Surface engineering of metallic housing

Surface finish of metal enclosures

Surface condition is an essential parameter of resistance against atmospheric corrosion. Both aluminum and stainless steel naturally form a protective oxide layer on the surface. Corrosion occurs only when this protective oxide layer is crossed or destroyed. Microcavities of a rough surface allow atmospheric pollutants to initiate local oxidative conditions. This is particularly critical when these pollutants have a different galvanic potential. For example, iron or iron oxide dust can create favourable conditions for perforating corrosion in stainless steel, as well as zinc in the case of aluminum. It is important that the surface of the metal, if exposed to the weather, be smooth so that these pollutants slide and escape naturally.



Optional surface treatment

The coating of aluminum boxes with an epoxy-polyester paint will allow them to maintain a better appearance because they cover naturally in the time of an orange-skin-like efflorescent layer, which can be aesthetically detrimental.

This treatment will have the effect of:

  • To improve the general protection of the housing surface against corrosion, when their resistance to natural corrosion is considered insufficient. In addition, this treatment, by interposing an electrically insulating layer between the aluminum and the fasteners or the mounting bracket, will limit the creation of thermoelectric couples initiating
  • Long-lasting appearance by avoiding pitting corrosion or blackening
  • Identify products or product families by their color
traitement de surface des boitiers métalliques polissage par trovalisation

Vibration deburred and polished: this smooth finish improves corrosion resistance.

This is the standard surface finish for aluminum and stainless steel enclosures















poudrage electrostatique epoxy polyester gris RAL7035 Epoxy-polyester electrostatic painting, oven polymerized. Colour RAL7035. Enclosures are

sand blasted before painted to improve bonding.

This is an optional surface finish for aluminum enclosures (other colours on request)



Salt spray testing of metal enclosures in our laboratory

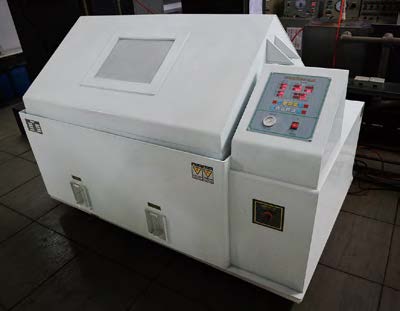

machine d'essais au brouillard salin

Material Starting After 500h After 1000h*
Not painted
aluminum
Aluminium non peint début d'essai au brouillard salin



Aluminium non peint apres 500h d'essai au brouillard salin



Aluminium non peint apres 1000h d'essai au brouillard salin



Epoxy painted
aluminum


Aluminium peinture epoxy début d'essai au brouillard salin







Aluminium peinture epoxy apres 500h d'essai au brouillard salin





 Aluminium peinture epoxy apres 1000h d'essai au brouillard salin



Stainless steel
304L
 Acier inoxydable 304L début d'essai au brouillard salin



 Acier inoxydable 304L apres 500h d'essai au brouillard salin



 Acier inoxydable 304L apres 1000h d'essai au brouillard salin



Stainless steel
316L
 Acier inoxydable 316L début d'essai au brouillard salin



Acier inoxydable 316L apres 500h d'essai au brouillard salin



Acier inoxydable 316L apres 1000h d'essai au brouillard salin



Test results
Aisi 304L and 316L enclosures do not show corrosion, and nor the epoxy painted enclosure. Not painted aluminum enclosure is slightly corroded, and we can see efflorescent white colour bubbles. They can be removed less or more by washing. After rinsing small black corrosion points can be seen with different sizes and deepths.



Pictures of the aluminum enclosure, after the 1000h of salt spray test and washing with water

Photos du boitier aluminium non peint, après 1000h de brouillard salin et lavage à l’eau Photos du boitier aluminium non peint, après 1000h de brouillard salin et lavage à l’eau macro



Surface after soap water washing Details of surface corrosion



UV discoloration of epoxy-polyester paint upon IS04892-1 (comparative tests carried out in our laboratory)

One issue of painted aluminum enclosures cases is their fading in the presence of UV radiation.

The validation tests of the boxes are done by subjecting them to a UV flux, wavelength 315 ~ 400nm, on standardized specimens, at a temperature of 55°C, for 1000 hours, equivalent to several years of sun exposure. These tests are carried out according to standard IS04892-1.

1000 hours UV resistance testing, made in our laboratory, on epoxy painted aluminum enclosures

A comparative examination is carried out between tested and non tested specimens, with measurement of the color change. Color fading is measured with an electronic measurement equipment. As for plastic raw material UV ageing test, colour change is considered as not visible by a non trained observer when the ΔE is lower than 5. This is therefore the reason why we selected a ∆E of 5 as the acceptable limit for this test.

équipement d'essai de vieilissement aux UV des boitiers métalliques boitiers aluminium peinture epoxy apres 500h d'essai de vieilissement aux UV des boitiers métalliques


UV ageing equipment

After 500 hours (side by side with a product not submitted to UV) After 1000 hours (side by side with a product not submitted to UV)
ΔE: 1.19 ΔE: 4.12



Resistance to corrosion by chlorine of metal enclosures

Tests performed in our laboratory according to ASTM G48

The test of resistance to corrosion by chlorine is intended to verify the behaviour of metal housings in a chlorinated medium, such as swimming pool and water recreation premise. Test is performed according to ASTM G48: it consists in a 96 hours accelerated corrosion test at 70°C in a concentrated solution of 5.25% sodium hypochlorite (bleach).

  • The loss of mechanical strength is measured by tensile strength at break specimen
  • Weight loss is measured.
  • A visual comparative examination is carried out, to check corrosion.



Machine pour Bain de test à l’hypochlorite de soude selon ASTM G48 Position des spécimen dans le Bain de test à l’hypochlorite de soude selon ASTM G48
Sodium hypochloride test bath Specimen location inside the bath
Equipement de mesure de l’élongation à la rupture Not painted aluminum
(before and after 96h test)
Aluminium non peint avant et apres l'essai de 96h selon ASTM G48
Epoxy painted aluminum Après 24h Aluminium peinture epoxy avant et apres l'essai de 24h selon ASTM G48
Après 96h Aluminium peinture epoxy avant et apres l'essai de 96h selon ASTM G48
Aisi 304L stainless steel
(before and after 96h test)
Inox Aisi 304L avant et apres l'essai de 96h selon ASTM G48



Aisi 316L stainless steel
(before and after 96h test)
Inox Aisi 316L avant et apres l'essai de 96h selon ASTM G48

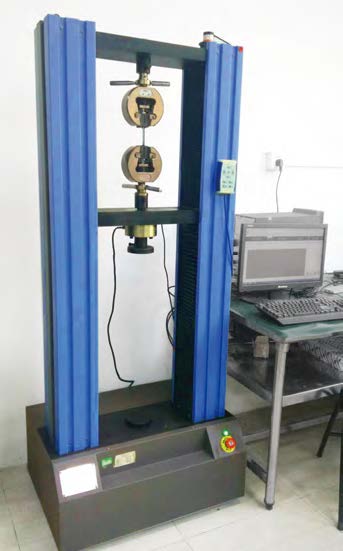

Tensile strength at break measurement equipment Specimens tested before and after corrosion test
Aluminium Epoxy painted aluminum AISI 304L stainless steel AISI 316L stainless steel
Weight change Specimen destroyed Specimen out of use -0.1% -0.05%
Mechanical strength loss 100% (Specimen destroyed) 100% (Specimen destroyed) 56% 45%
Corrosion visual inspection Specimen quickly fully dissolved Specimen highly corroded
already after 24h
Deep corrosion at some places, initiated by the laser
printing.
Slight corrosion marks.
