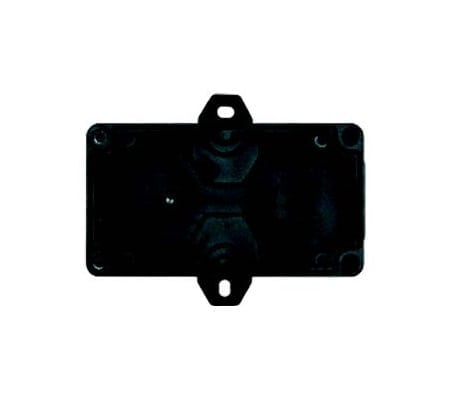

Miniature PA66 enclosure, removable wall mounting bracket, Y3A3

Temperature sensor, thermostat or level sensor PA66 enclosure, Y3B1

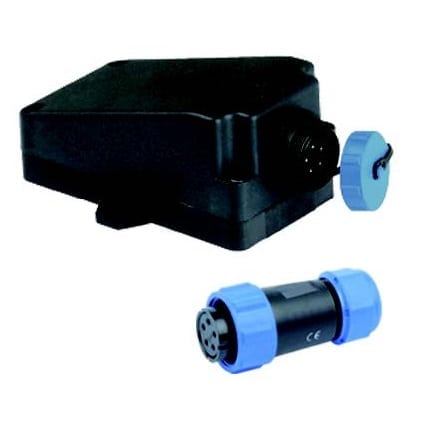

Miniature PA66 enclosure, external connection block, Y3A4
This housing is suitable for temperature sensor, level sensor, electronic printed circuit or cartridge heater.
Electrical connection is made in the cable gland connector.
Dimensions | 100 × 56 × 48 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

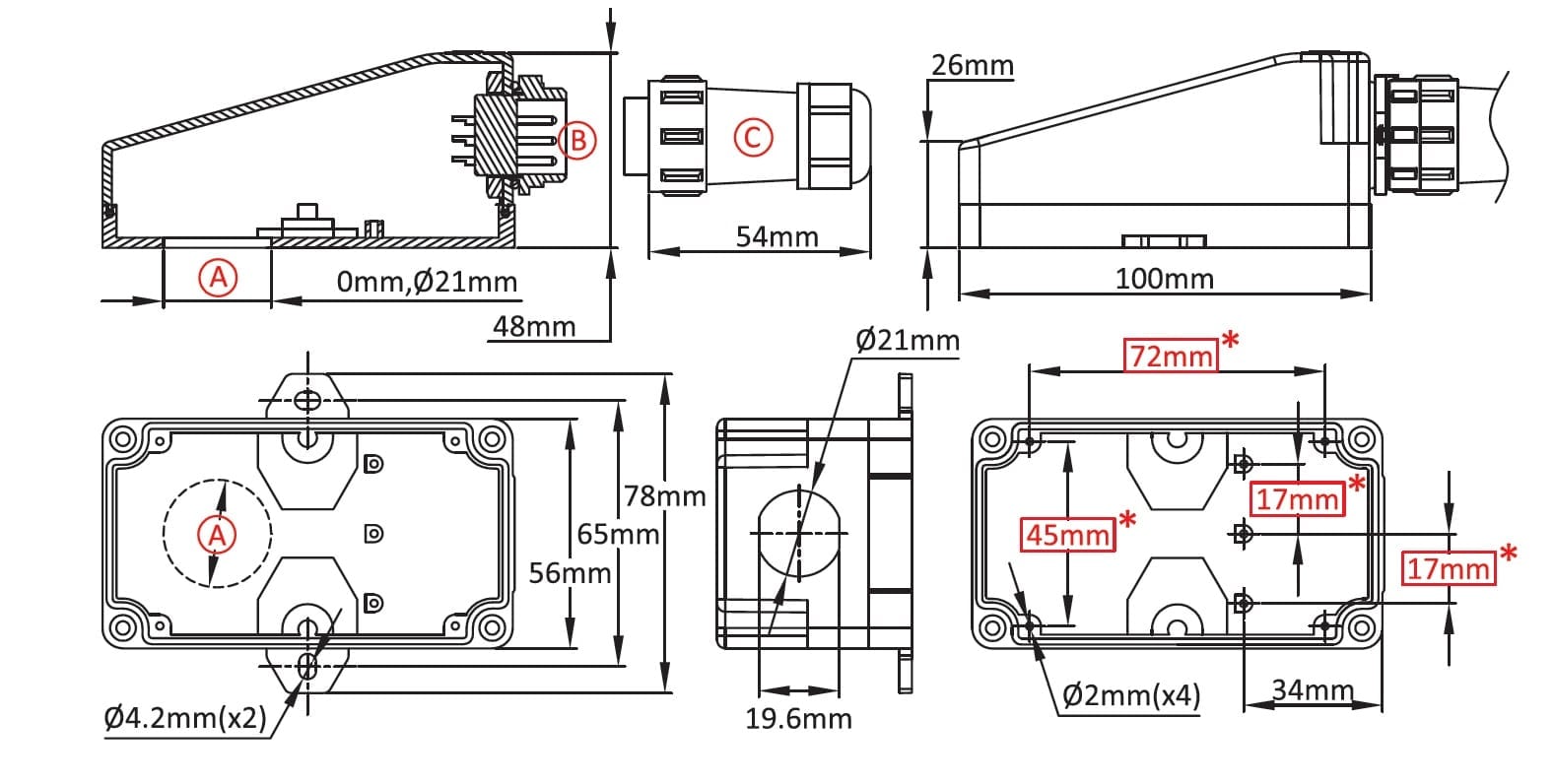

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is suitable for temperature sensor, level sensor, electronic printed circuit or cartridge heater.
Electrical connection is made in the cable gland connector.
Size: 100 x 56 x 48mm
Volume: 216 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A | B | C | Without connection block |
0 | × | × | Y3A400001210000T |
0 | √ | × | Y3A400001E80000T |
0 | √ | √ | Y3A400001E90000T |
8 | × | × | Y3A408001210000T |
8 | √ | × | Y3A408001E80000T |
8 | √ | √ | Y3A408001E90000T |
21 | × | × | Y3A421001210000T |
21 | √ | × | Y3A421001E80000T |
21 | √ | √ | Y3A421001E90000T |
Others drilling diameters on request.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Round enclosure for immersion heater or temperature sensor, Y306
- Drilling on the bottom possible for probes, or immersion heater fittings - Can receive a boot or a M20 thread on the lid for access to internal adjustment - Features bosses for internal bracket - Admits double threaded or rotating ring fittings up to 2 " - Cable outlet up to M25 (2 cable…
-
Big size enclosure with extension, for immersion heater, Y3M1
- Can accommodate 1"1/4, 1"1/2, M45x2, 2", 2"1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring - Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment - The cover can also receive multiple holes for pilot lights, switches, etc
-
Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, Y3N2
- Front panel with hinged polycarbonate porthole - Includes 4 removable wall brackets - Possibility of PCBs assembly - Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
-
Empty enclosure for oil filled electric radiators 200x77x58
Empty enclosure for oil filled electric radiators, with single tube heating element and electronic temperature control, IP22 Dimensions: 200x77x58 (excluding knob and bracket) Setting: One or two knobs, one pilot light IP Rating: IP22 (vertical mounting only) Weight: 192 gr. Material: PC-ABS Ventilation: Electronic area is ventilated by louver
-
Enclosure with window for immersion heaters, with extension, Y3N3
- Extension on the back for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring - Front panel with hinged polycarbonate porthole - Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²) - Several models of…
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Technical introduction of connection blocks made in ceramic and polyamide
Ceramic was the first insulating material used in the electrical connection terminals. Mechanically resistant, exceptionally fire resistant, excellent electrical insulator, it had all the qualifications. Produced from locally available raw materials, ceramic and porcelain glazed electro-technical parts were essential in the beginnings of electricity until the appearance of Bakelite in the 1930s, then of engineered thermoplastics to 1960. -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc. -
Float level switches technical introduction
Selecting a magnet for a level switch application must take into account the characteristics of the liquid in which it will be immersed, of the temperature at which it will be subjected, of its corrosion resistance, of the magnetic field required to operate the switch and its distance to the reed switches. Sintered magnets are shock and vibration sensitive, “bonded” magnets have a low temperature resistance due to the resins used to agglomerate, and Neodymium –Iron-Boron magnets contain 60-75% iron (amount is dependent on grade) and are therefore prone to corrosion.
