Enclosure with window for immersion heaters, with extension, Y3N3

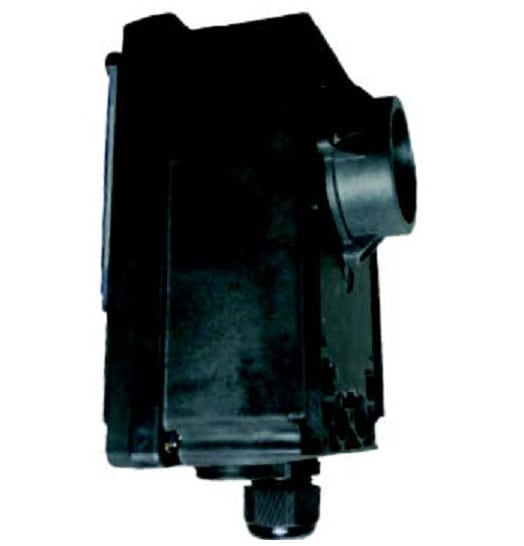

– Extension on the back for 1 “1/4, 1” 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring

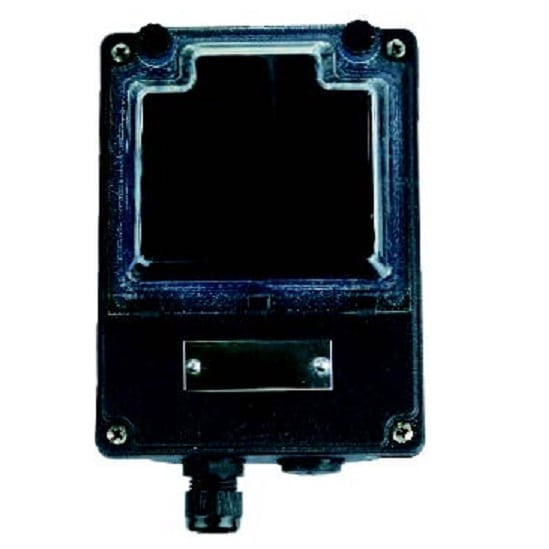

– Front panel with hinged polycarbonate porthole
– Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, up to M25

Dimensions 130 × 180 × 120 mm
Ingress protection

Volume (cm³)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

Description

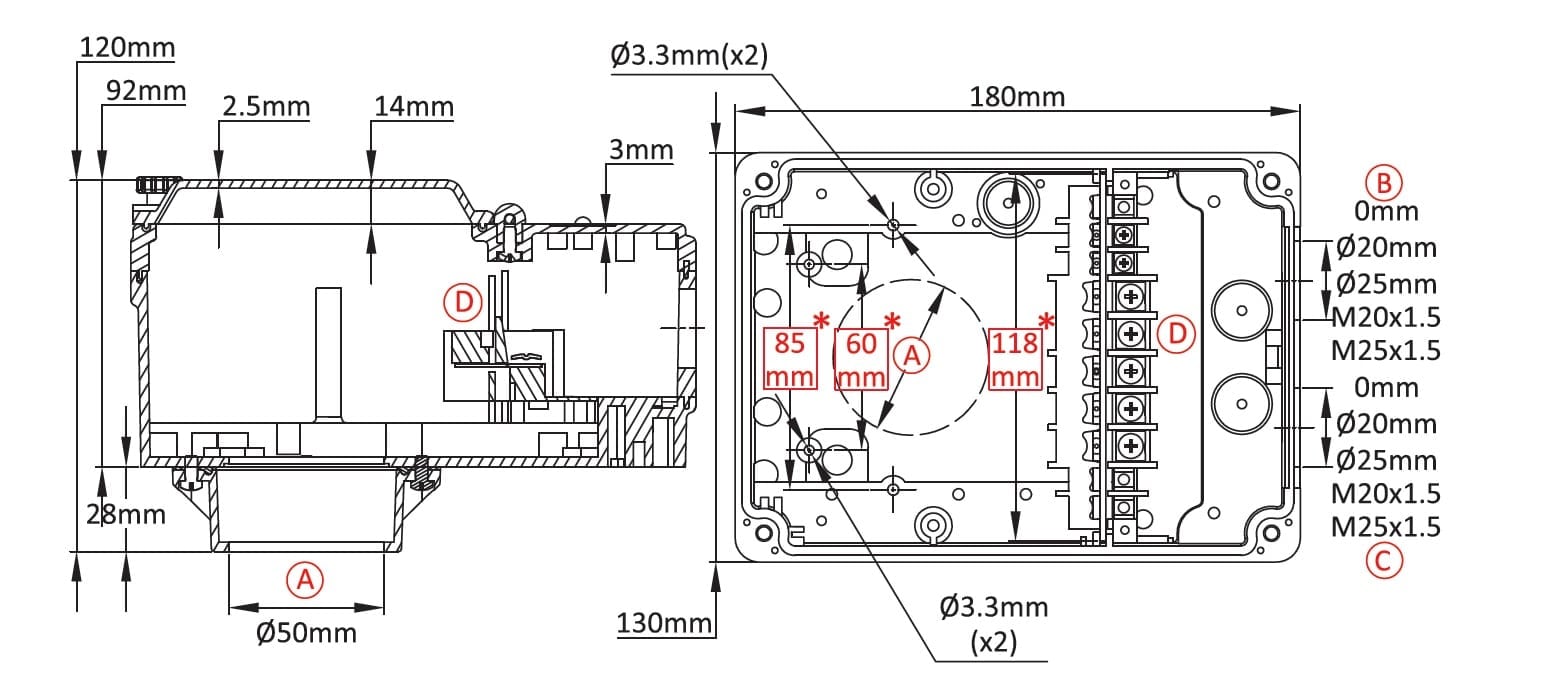

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main features

Enclosure with window for immersion heaters, with extension
– Extension on the back for 1 “1/4, 1” 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring
– Front panel with hinged polycarbonate porthole
– Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, up to M25

Size: 130 x 180 x 120 mm

Volume: 2093 cm³

Material: PA66 housing and PC transparent window

Ingress protection: IP69K

Mechanical impact resistance: IK10
