Empty Enclosure for Oil filled electric radiators 150x80x40

Immersion heater thermostat temperature control IP66, IK10
Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater, Y301
– Can accommodate ½” threaded fittings with internal lock nut or ¾” or 1″ brass fittings with 2 x M4 screws (Use a flat gasket)
– Includes a removable internal 3-way 2.5mm² terminal block
– PG11 cable gland outlet
Dimensions | 48 × 48 × 41 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Fastener raw material | |
Volume (cm³) |
Description

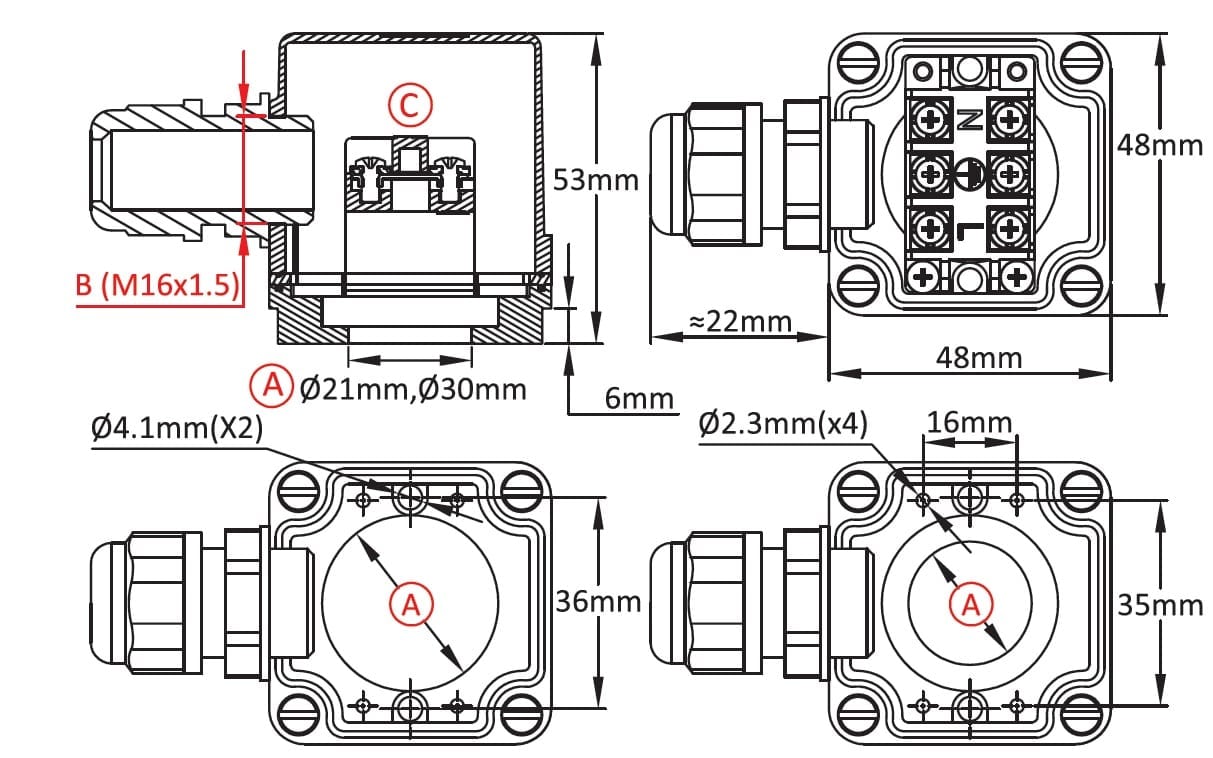

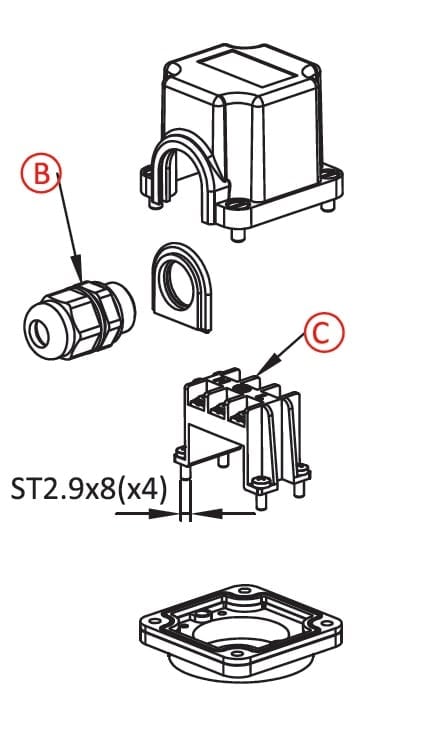

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

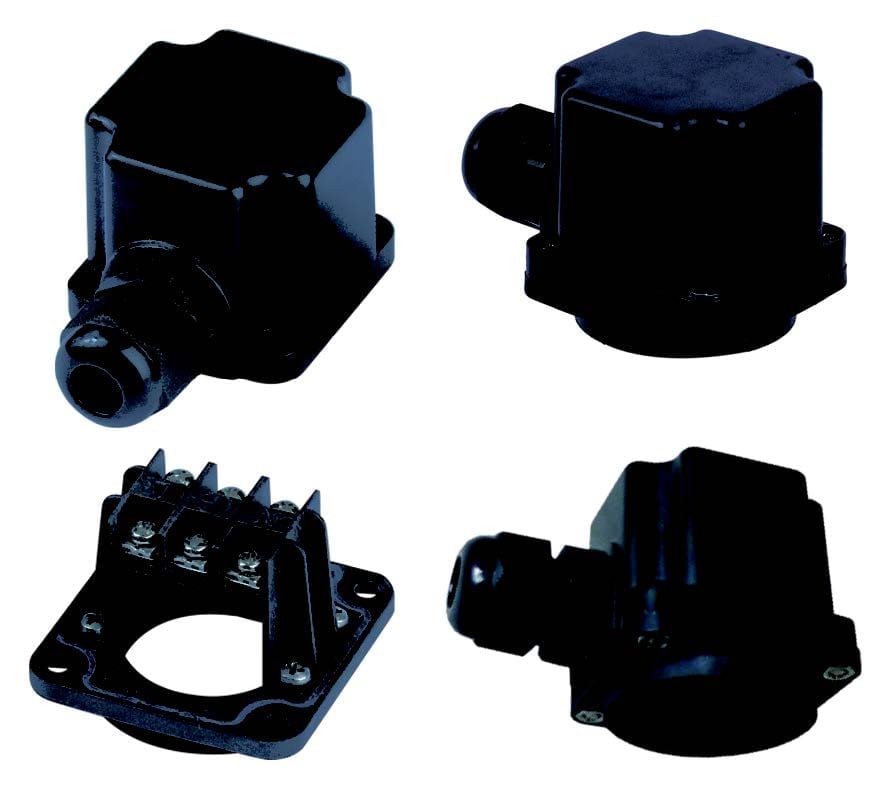

Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater
– Can accommodate ½” threaded fittings with internal lock nut or ¾” or 1″ brass fittings with 2 x M4 screws (Use a flat gasket)
– Includes a removable internal 3-way 2.5mm² terminal block
– PG11 cable gland outlet
Size: 48 x 48 x 41 mm
Volume: 93 cm³
Material: PA66
Ingress protection: IPX5
Mechanical impact resistance: IK8
Fastener: Stainless steel
Main references
A (mm) | With connection block | Without connection block |
21 | Y30121001E6H100T | Y30121001E60000T |
30 | Y30130001E6H100T | Y30130001E60000T |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, Y3N2
- Front panel with hinged polycarbonate porthole - Includes 4 removable wall brackets - Possibility of PCBs assembly - Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
-
Enclosure with window for immersion heaters, with extension, Y3N3
- Extension on the back for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring - Front panel with hinged polycarbonate porthole - Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²) - Several models of…
-
Round enclosure for immersion heater or temperature sensor, Y306
- Drilling on the bottom possible for probes, or immersion heater fittings - Can receive a boot or a M20 thread on the lid for access to internal adjustment - Features bosses for internal bracket - Admits double threaded or rotating ring fittings up to 2 " - Cable outlet up to M25 (2 cable…
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc.
