Enclosure for controls, connection, temperature sensor, thermostat, level sensor, Y3N1

Enclosure with window for immersion heaters, with extension, Y3N3
Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, Y3N2
– Front panel with hinged polycarbonate porthole
– Includes 4 removable wall brackets
– Possibility of PCBs assembly
– Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
Dimensions | 130 × 180 × 95 mm |
---|---|
Ingress protection | |
Volume (cm³) |
Description

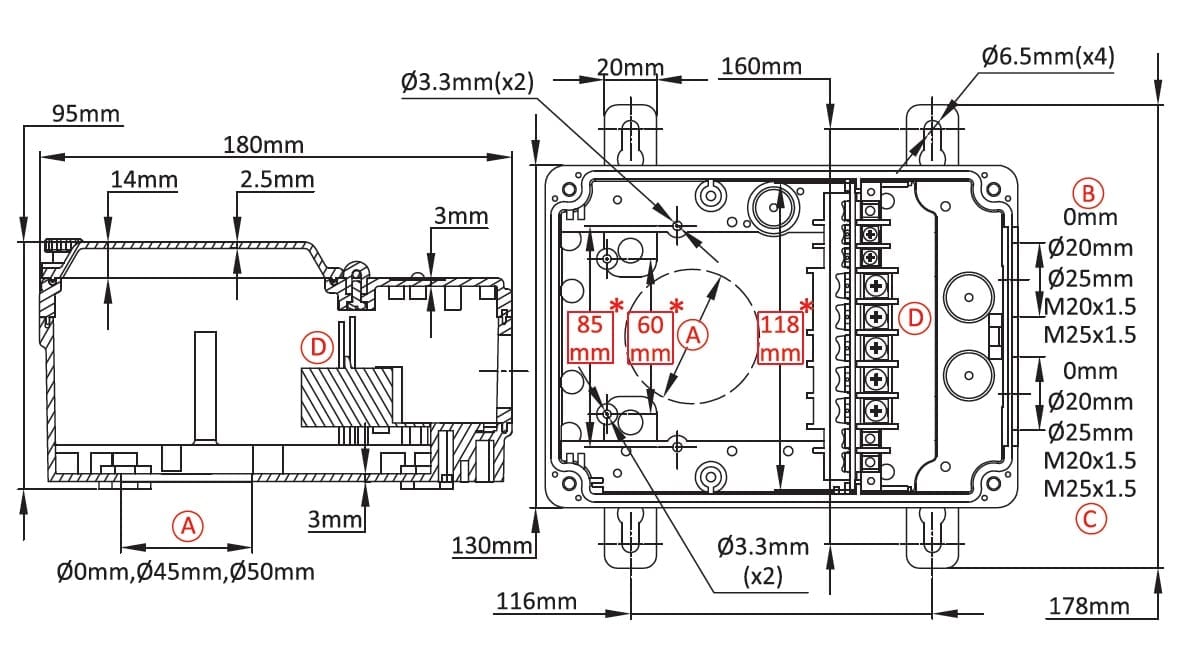

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

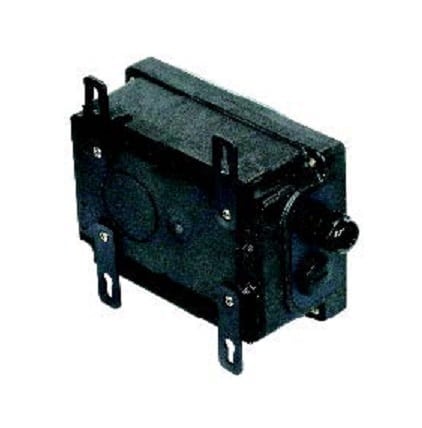

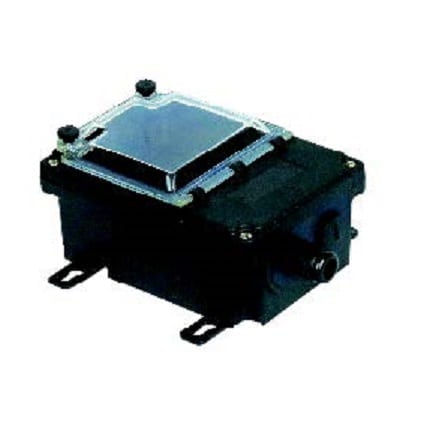

Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI
– Front panel with hinged polycarbonate porthole
– Includes 4 removable wall brackets
– Possibility of PCBs assembly
– Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
– Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, up to M25
Size: 130 x 180 x 95 mm
Volume: 2010 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | With D | Without D |
0 | 0 | 0 | Y3N20000000J100T | Y3N200000000000T |
0 | 0 | 20 | Y3N20000120J100T | Y3N200001200000T |
0 | 0 | 25 | Y3N20000125J100T | Y3N200001250000T |
0 | 0 | M20*1.5 | Y3N200001T0J100T | Y3N200001T00000T |
0 | 0 | M25*1.5 | Y3N200001T5J100T | Y3N200001T50000T |
0 | 20 | 20 | Y3N20000220J100T | Y3N200002200000T |
0 | 25 | 25 | Y3N20000225J100T | Y3N200002250000T |
0 | M20*1.5 | M20*1.5 | Y3N200002T0J100T | Y3N200002T00000T |
0 | M25*1.5 | M25*1.5 | Y3N200002T5J100T | Y3N200002T50000T |
45 | 0 | 0 | Y3N24500000J100T | Y3N245000000000T |
45 | 0 | 20 | Y3N24500120J100T | Y3N245001200000T |
45 | 0 | 25 | Y3N24500125J100T | Y3N245001250000T |
45 | 0 | M20*1.5 | Y3N245001T0J100T | Y3N245001T00000T |
45 | 0 | M25*1.5 | Y3N245001T5J100T | Y3N245001T50000T |
45 | 20 | 20 | Y3N24500220J100T | Y3N245002200000T |
45 | 25 | 25 | Y3N24500225J100T | Y3N245002250000T |
45 | M20*1.5 | M20*1.5 | Y3N245002T0J100T | Y3N245002T00000T |
45 | M25*1.5 | M25*1.5 | Y3N245002T5J100T | Y3N245002T50000T |
50 | 0 | 0 | Y3N25000000J100T | Y3N250000000000T |
50 | 0 | 20 | Y3N25000120J100T | Y3N250001200000T |
50 | 0 | 25 | Y3N25000125J100T | Y3N250001250000T |
50 | 0 | M20*1.5 | Y3N250001T0J100T | Y3N250001T00000T |
50 | 0 | M25*1.5 | Y3N250001T5J100T | Y3N250001T50000T |
50 | 20 | 20 | Y3N25000220J100T | Y3N250002200000T |
50 | 25 | 25 | Y3N25000225J100T | Y3N250002250000T |
50 | M20*1.5 | M20*1.5 | Y3N250002T0J100T | Y3N250002T00000T |
50 | M25*1.5 | M25*1.5 | Y3N250002T5J100T | Y3N250002T50000T |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Enclosure for immersion heater with electronic temperature control with heat sink for solid state relay (SSR), Y3N4
- Aluminum extension on rear side with heat exchanger, allows the assembly of static relays - Extension on the back accepts 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring - Front panel with hinged polycarbonate porthole
-
Big size enclosure with extension, for immersion heater, Y3M1
- Can accommodate 1"1/4, 1"1/2, M45x2, 2", 2"1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring - Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment - The cover can also receive multiple holes for pilot lights, switches, etc
-
Round enclosure for immersion heater or temperature sensor, Y306
- Drilling on the bottom possible for probes, or immersion heater fittings - Can receive a boot or a M20 thread on the lid for access to internal adjustment - Features bosses for internal bracket - Admits double threaded or rotating ring fittings up to 2 " - Cable outlet up to M25 (2 cable…
-
Enclosure with window for immersion heaters, with extension, Y3N3
- Extension on the back for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring - Front panel with hinged polycarbonate porthole - Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²) - Several models of…
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc. -
Thermostats installation
The proper functioning of a thermostat depends primarily on the correct choice of the component, but also the conditions of its installation. Conditions used to calibrate regulating and control equipment in the factory are always ideal laboratory conditions, ensuring measurement accuracy and repeatability. These conditions are rarely those found in practice when installing thermostats. However, with a minimum of constraints, it is possible to optimize assemblies. -
AWG diameters and sections in mm²
AWG Diameter (mm) Section (mm²) AWG Diameter (mm) Section (mm²) AWG Diameter (mm) Section (mm²) 24 0.510 0.205 17 1.15 1.04 10 2.59 5.26 23 0.575 0.259 16 1.29 1.31 9 2.9 6.63 22 0.643 0.324 15 1.45 1.65 8 3.25 8.37 21 0.724 0.411 14 1.63 2.08 7 3.65 10.55 20 0.813 0.519 13 […]
