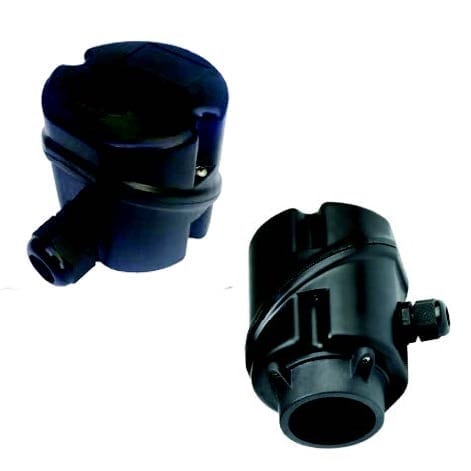

Round enclosure for immersion heater or temperature sensor with extension, Y3C4
This housing is used for immersion heater fittings.
Dimensions | 100 × 100 × 125 mm |
---|---|
Housing raw material | |
Ingress protection | |
Mechanical protection | |
Volume (cm³) |
Description

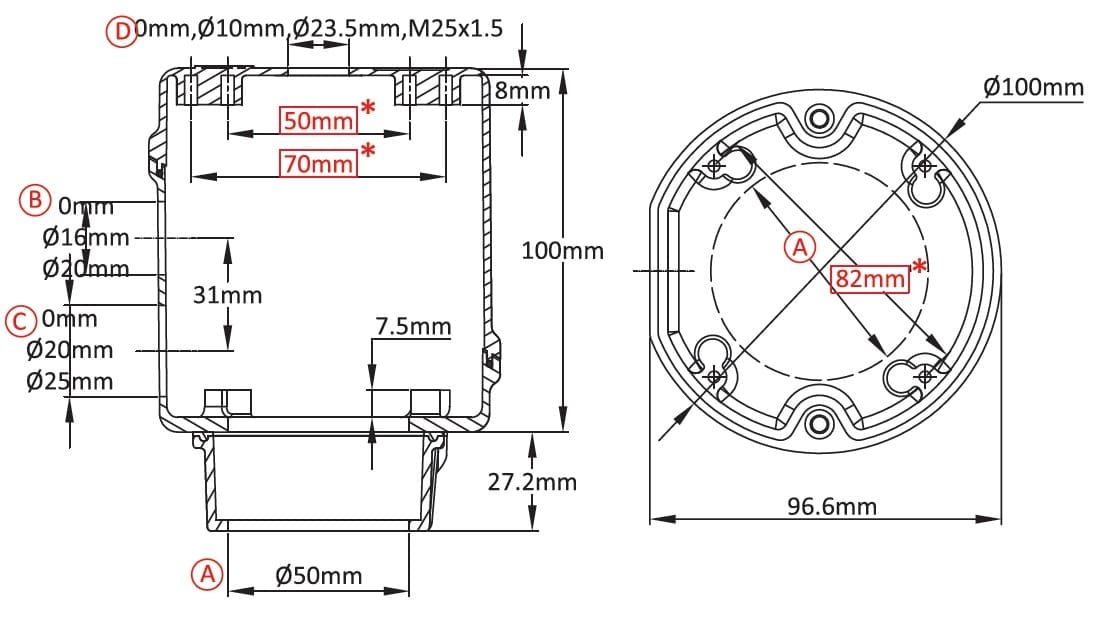

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is used for immersion heater fittings.
Size: Dia.100 x 125mm
Volume: 783 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A | B | C | D | References |
50 | 0 | 0 | 0 | Y3C450000000000T |
50 | 0 | 0 | 10 | Y3C4500A0000000T |
50 | 0 | 0 | 23.5 | Y3C4500D0000000T |
50 | 0 | 0 | M25*1.5 | Y3C4500F0000000T |
50 | 0 | 20 | 0 | Y3C450001200000T |
50 | 0 | 20 | 10 | Y3C4500A1200000T |
50 | 0 | 20 | 23.5 | Y3C4500D1200000T |
50 | 0 | 20 | M25*1.5 | Y3C4500F1200000T |
50 | 0 | 25 | 0 | Y3C450001250000T |
50 | 0 | 25 | 10 | Y3C4500A1250000T |
50 | 0 | 25 | 23.5 | Y3C4500D1250000T |
50 | 0 | 25 | M25*1.5 | Y3C4500F1250000T |
50 | 16 | 0 | 0 | Y3C450001160000T |
50 | 16 | 0 | 10 | Y3C4500A1160000T |
50 | 16 | 0 | 23.5 | Y3C4500D1160000T |
50 | 16 | 0 | M25*1.5 | Y3C4500F1160000T |
50 | 16 | 20 | 0 | Y3C450002C00000T |
50 | 16 | 20 | 10 | Y3C4500A2C00000T |
50 | 16 | 20 | 23.5 | Y3C4500D2C00000T |
50 | 16 | 20 | M25*1.5 | Y3C4500F2C00000T |
50 | 16 | 25 | 0 | Y3C450002C50000T |
50 | 16 | 25 | 10 | Y3C4500A2C50000T |
50 | 16 | 25 | 23.5 | Y3C4500D2C50000T |
50 | 16 | 25 | M25*1.5 | Y3C4500F2C50000T |
50 | 20 | 20 | 0 | Y3C450002200000T |
50 | 20 | 20 | 10 | Y3C4500A2200000T |
50 | 20 | 20 | 23.5 | Y3C4500D2200000T |
50 | 20 | 20 | M25*1.5 | Y3C4500F2200000T |
50 | 20 | 25 | 0 | Y3C450002D50000T |
50 | 20 | 25 | 10 | Y3C4500A2D50000T |
50 | 20 | 25 | 23.5 | Y3C4500D2D50000T |
50 | 20 | 25 | M25*1.5 | Y3C4500F2D50000T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
