Sub-miniature PA66 enclosure, removable wall mounting bracket, Y3A1

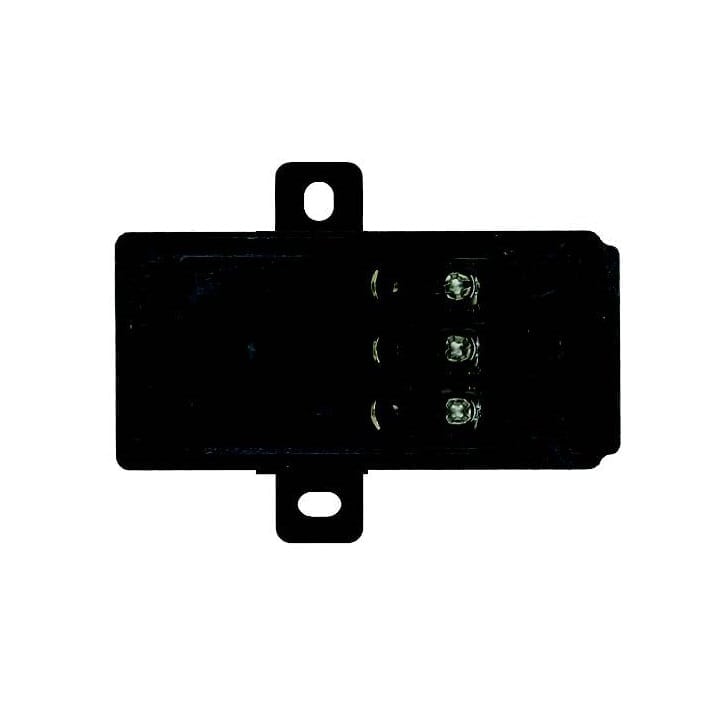

Miniature PA66 enclosure, removable wall mounting bracket, Y3A3

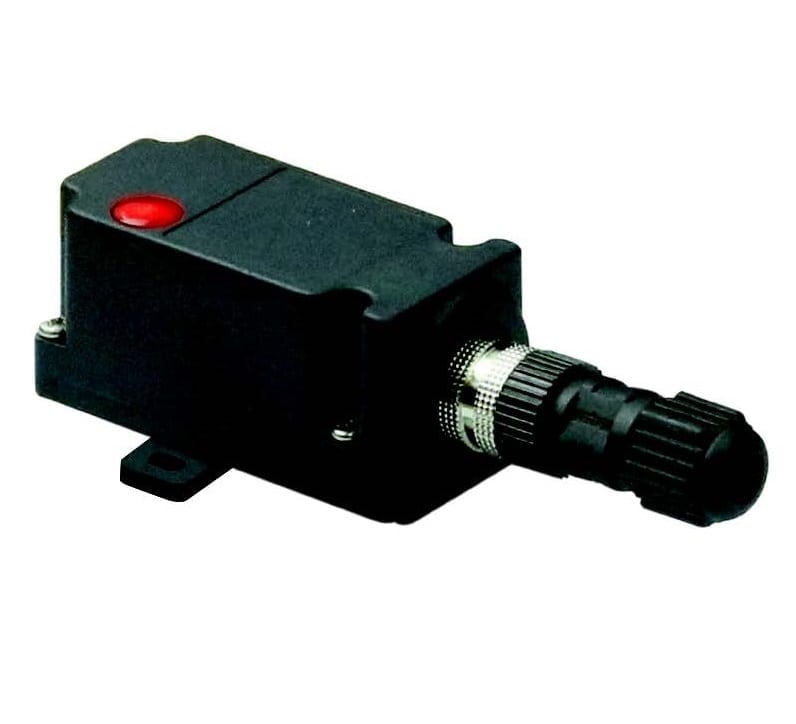

Sub-miniature PA66 enclosure, removable wall mounting bracket and pilot light, Y3A2
This housing is suitable for temperature sensor, level sensor, electronic printed circuit or cartridge heater.
A pilot light can be incorporated.
Dimensions | 70 × 33 × 33 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

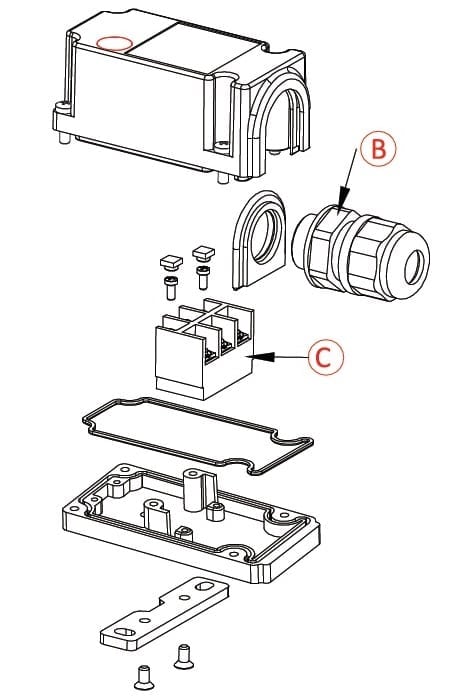

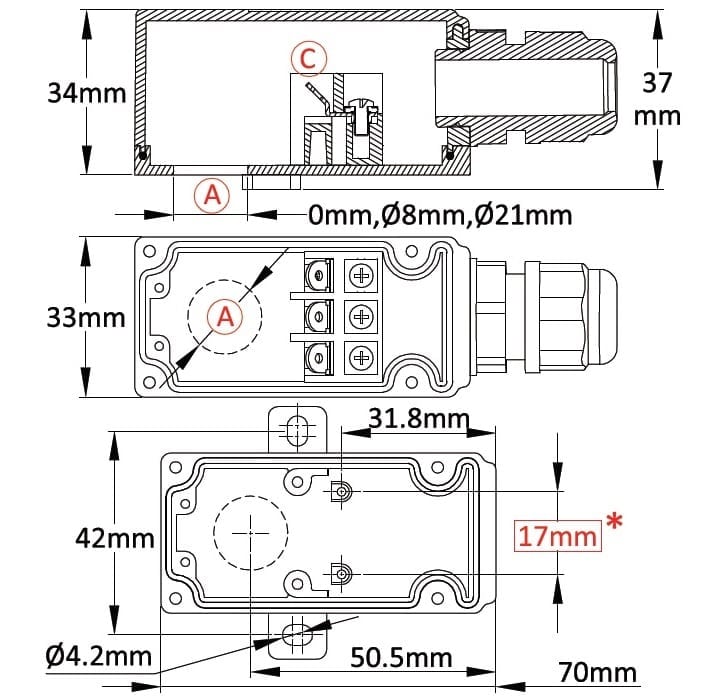

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is suitable for temperature sensor, level sensor, electronic printed circuit or cartridge heater.
A pilot light can be incorporated.
Size: 70 x 33 x 33mm
Volume: 72 cm³
Material: PA66
Ingress protection: IPX4
Mechanical impact resistance: IK8
Main references

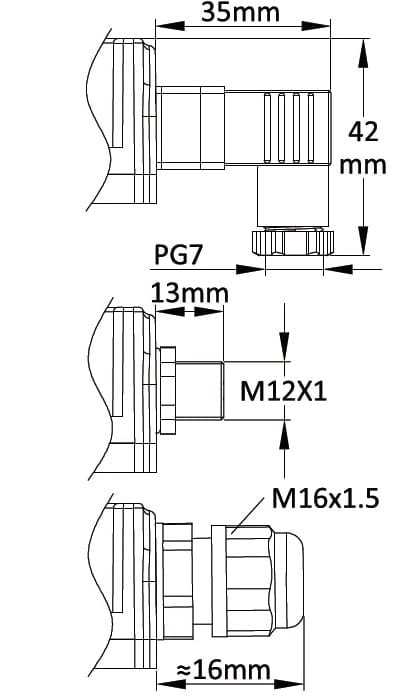

A | B1 | B2 | B3 | With connection block C | Without connection block C |
0 | √ | × | × | Y3A200001E1F100T | Y3A200001E10000T |
0 | × | √ | × | Y3A200001E3F100T | Y3A100001E30000T |
0 | × | × | √ | Y3A200001E2F100T | Y3A200001E20000T |
8 | √ | × | × | Y3A208001E1F100T | Y3A208001E10000T |
8 | × | √ | × | Y3A208001E3F100T | Y3A208001E30000T |
8 | × | × | √ | Y3A208001E2F100T | Y3A208001E20000T |
21 | √ | × | × | Y3A221001E1F100T | Y3A221001E10000T |
21 | × | √ | × | Y3A221001E3F100T | Y3A221001E30000T |
21 | × | × | √ | Y3A221001E2F100T | Y3A221001E20000T |
Others drilling diameters on request.
3D models are available on request under .stp format
