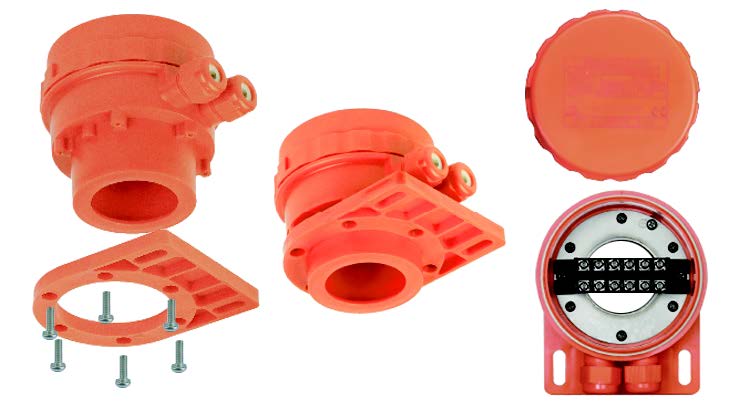

Polypropylene immersion heater tube enclosure for highly corrosive environments, Y3C6
Screws: There is no external screw in this housing.
Cover: Screwed cover, with Molded FKM (Viton) fluoroelastomeric polymer, silicone or NBR O-ring gasket. Cover can be tightened by hand or with a double hook wrench.
Dimensions | 105 × 105 × 95 mm |
---|---|
Housing raw material | |
Ingress protection | |
Mechanical protection | |
Volume (cm³) |

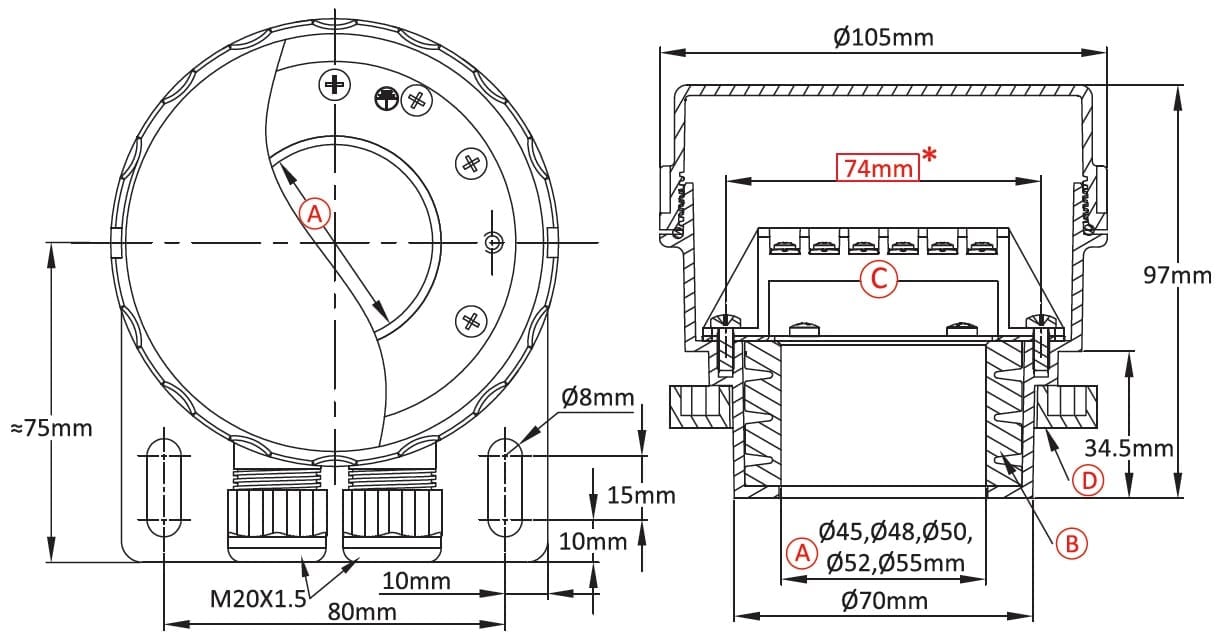

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Material: PP (orange)
Screws: There is no external screw in this housing.
Cover: Screwed cover, with Molded FKM (Viton) fluoroelastomeric polymer, silicone or NBR O-ring gasket. Cover can be tightened by hand or with a double hook wrench.
Cable glands: 2 cable glands M20; The cable gland body is molded in the bottom, to avoid leaks. Cable gland nuts are molded in the same material than the bottom. Cable gland gaskets are molded in silicone, NBR or FKM (Viton) fluoroelastomer. (This material is named FKM upon ASTM standard and FPM upon DIN/ISO)
Heating element protection tube mounting and tightening: Sealing is achieved by a very long seal with multiple compression lips, which can be used on metal tubes, and tubes in glazed porcelain, quartz, glass, or plastic like Teflon or Polypropylene. The compression of the seal is formed by an inner metal ring and 6 screws. The system contains no metal parts in contact with corrosive liquids or ambient atmosphere.
In the inner tubes of titanium or stainless steel of our production, this ring is made of the same material as the tube and is welded at its end. This ring includes a grounding terminal.These tubes allow to use common soapstone heating elements of 47mm dia. They are supplied with the seal corresponding to the diameter of the heater, the compression ring and screws.
Holes for heating tubes: There are 5 possible holes for heating tubes dia. 45, 48, 50, 52, 55 mm covering the full range of products available on the market, including traditional sheathed tubular heating elements with M45x2 or 1″1/2 fittings, double thread or with rotating ring. NB: The drilling diameter is 1mm greater than the tube.
Temperature resistance:
- Polypropylene: room temperature or temperature transmitted by conduction from the heater tube ≤ 80 °C
Accessory mountings : Inside the enclosure, there are two M4 threaded holes, 74mm distance,which can be used for mounting the BE6E6000000MP000 terminal block.
Tank side mounting: can be made with the polypropylene or PVDF flange (ref: 66Y3C6B1001Q or 66Y3C6B1001R). The enclosure is slightly forced into the flange. It is possible to secure it by using the 6 titanium screws which are provided.
Instrumentation: These enclosures may receive, in addition to heating elements, the same options for temperature control or temperature measurement than the YF5 series, provided that the ceramic body of the coiled heater has a central hole for the passage of the measuring elements, and has also a non-heating zone at its bottom to place the probe or the bulb. For more information, contact our technical department.
Compression gasket:
Holes for heating tubes (mm) | ||||
dia. 46 | dia. 49 | dia. 51 | dia. 53 | dia. 56 |
Main references
A (mm) | B (mm) | D | with connection block C | without connection block C |
45 | Silicone | √ | Y3C6450022BH40XU | Y3C6450022B000XU |
45 | Silicone | × | Y3C6450022BH40UU | Y3C6450022B000UU |
45 | FKM | √ | Y3C6450022BH40ZU | Y3C6450022B000ZU |
45 | FKM | × | Y3C6450022BH40WU | Y3C6450022B000WU |
45 | NBR | √ | Y3C6450022BH40YU | Y3C6450022B000YU |
45 | NBR | × | Y3C6450022BH40VU | Y3C6450022B000VU |
48 | Silicone | √ | Y3C6480022BH40XU | Y3C6480022B000XU |
48 | Silicone | × | Y3C6480022BH40UU | Y3C6480022B000UU |
48 | FKM | √ | Y3C6480022BH40ZU | Y3C6480022B000ZU |
48 | FKM | × | Y3C6480022BH40WU | Y3C6480022B000WU |
48 | NBR | √ | Y3C6480022BH40YU | Y3C6480022B000YU |
48 | NBR | × | Y3C6480022BH40VU | Y3C6480022B000VU |
50 | Silicone | √ | Y3C6500022BH40XU | Y3C6500022B000XU |
50 | Silicone | × | Y3C6500022BH40UU | Y3C6500022B000UU |
50 | FKM | √ | Y3C6500022BH40ZU | Y3C6500022B000ZU |
50 | FKM | × | Y3C6500022BH40WU | Y3C6500022B000WU |
50 | NBR | √ | Y3C6500022BH40YU | Y3C6500022B000YU |
50 | NBR | × | Y3C6500022BH40VU | Y3C6500022B000VU |
52 | Silicone | √ | Y3C6520022BH40XU | Y3C6520022B000XU |
52 | Silicone | × | Y3C6520022BH40UU | Y3C6520022B000UU |
52 | FKM | √ | Y3C6520022BH40ZU | Y3C6520022B000ZU |
52 | FKM | × | Y3C6520022BH40WU | Y3C6520022B000WU |
52 | NBR | √ | Y3C6520022BH40YU | Y3C6520022B000YU |
52 | NBR | × | Y3C6520022BH40VU | Y3C6520022B000VU |
55 | Silicone | √ | Y3C6550022BH40XU | Y3C6550022B000XU |
55 | Silicone | × | Y3C6550022BH40UU | Y3C6550022B000UU |
55 | FKM | √ | Y3C6550022BH40ZU | Y3C6550022B000ZU |
55 | FKM | × | Y3C6550022BH40WU | Y3C6550022B000WU |
55 | NBR | √ | Y3C6550022BH40YU | Y3C6550022B000YU |
55 | NBR | × | Y3C6550022BH40VU | Y3C6550022B000VU |
Accessories
PA66, 6 ways connection block | Double hook wrench for lid | Tank side PP or PVDF mounting bracket | Heater tube, SUS 316L, 316L-Ti or Titanium dia 50mm | Heating tube, quartz dia. 55mm | Rotation or double thread fittings | ||
For full range and references of fittings, nuts and gaskets: See immersion heater accessories |
|||||||
66Y3C6HW001 |
PP | 66Y3C6B1001Q | 316L | 66Y3C61605010xxx | 66Y3C6QU05525xxx | ||
PVDF |
66Y3C6B1001R |
316L-
Ti |
66Y3C6T605010xxx |
xxx=L in mm |
|||
Ti | 66Y3CTI05010xxx | ||||||
xxx=L in mm |
3D models are available on request under .stp format
