PVDF temperature sensor enclosure highly corrosive environments, Y3E8

Precise temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises.

Dimensions 105 × 105 × 82 mm
Housing raw material

Ingress protection

Mechanical protection

Volume (cm³)

SKU: Y3E8 Categories: , Tags: , , , , , , ,

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main applications

Precise temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises.

Raw Material: White PVDF body,  Very good resistance to strong bases, good resistance to acids. For use on liquids up to 110 °C.

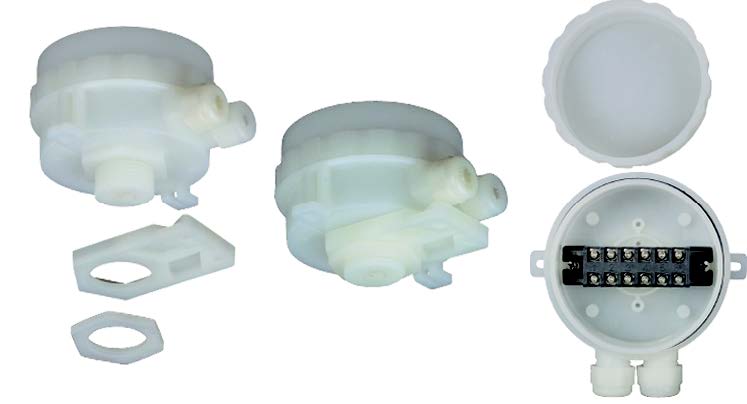

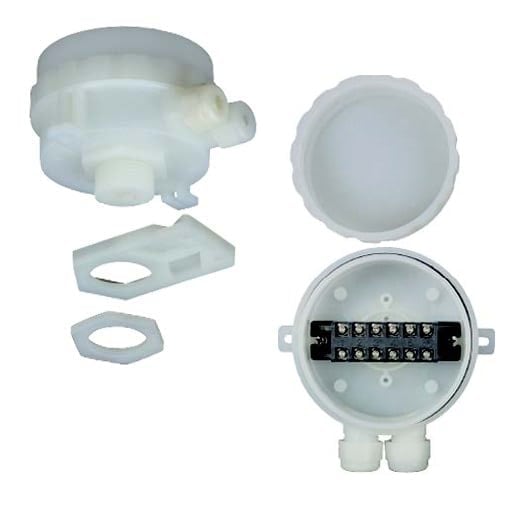

Housing: Protection class IP69K upon EN 60529 (waterproof spray water under high pressure and sea splashes, totally dust tight), dia. 105mm, height 82mm, made of plastic.

Cover gasket and cable gland stuffing sets gaskets are made in EPDM. Rod seal is made of fluorocarbon elastomer FKM (Viton). The cover can be unscrewed by hand, but it is also possible to use a hook spanner.

Mounting:

-By the 1″ BSPT thread (Mounting through wall is watertight when used with the 1″ nut and seal. See accessories)

-By a rotatable plastic bracket, enabling mounting on tank edge (See accessories)

-By the 2 legs on the side (2 holes dia 5 mm center distance 113 mm)



Main references

Accessories



1” BSPP Nut, 5mm thickness

 Bracket for tank side mounting, thickness 10mm (Assembly made with 1” nut) 1” gasket for through wall waterproof mounting with 1” nut













Reference in PA66: 66YFHN1N Reference in PA66: 66YFMB1N

Reference in FKM (Viton): 66YGA1F
Reference in PP: 66YFHN1P Reference in PP: 66YFMB1P
Reference in PVDF: 66YFHN1V Reference in PVDF: 66YFMB1V

3D models are available on request under .stp format
