Wall mounting temperature sensor enclosure, In PA66 and PC, Y3F1

Immersion heater enclosure with extension, in PA66 and PC Y3F3
Immersion heater, level sensor or temperature sensor enclosure, in PA66 and PC, Y3F2
– Includes two brackets for mounting on tank edge board.
– Drilling of different diameters possible on the back for direct probes or for 1 “1/4, 1” 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring.
– Includes a removable 6-way 2.5mm² terminal block.
– Output by two M20 cable glands
Dimensions | 105 × 105 × 66 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

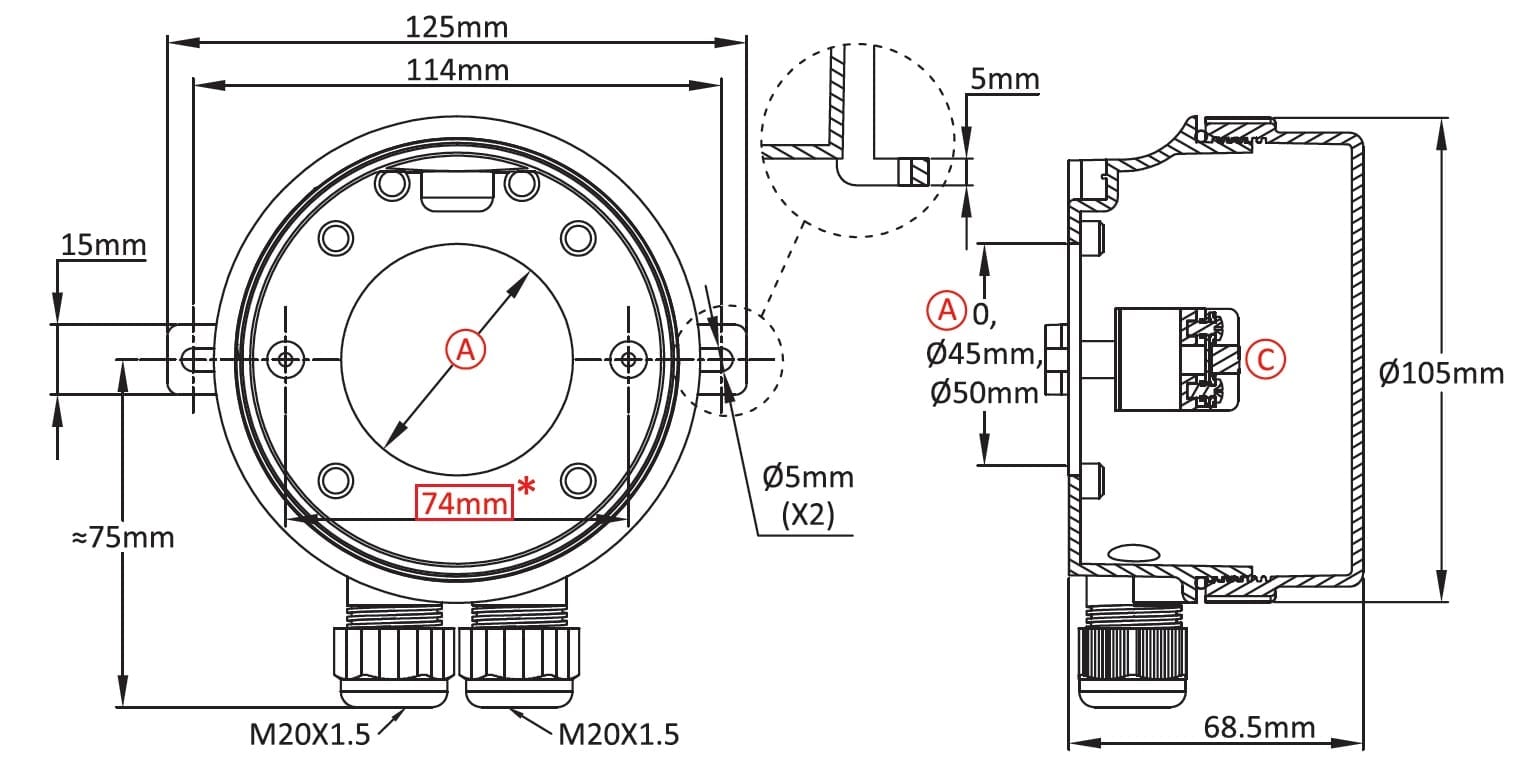

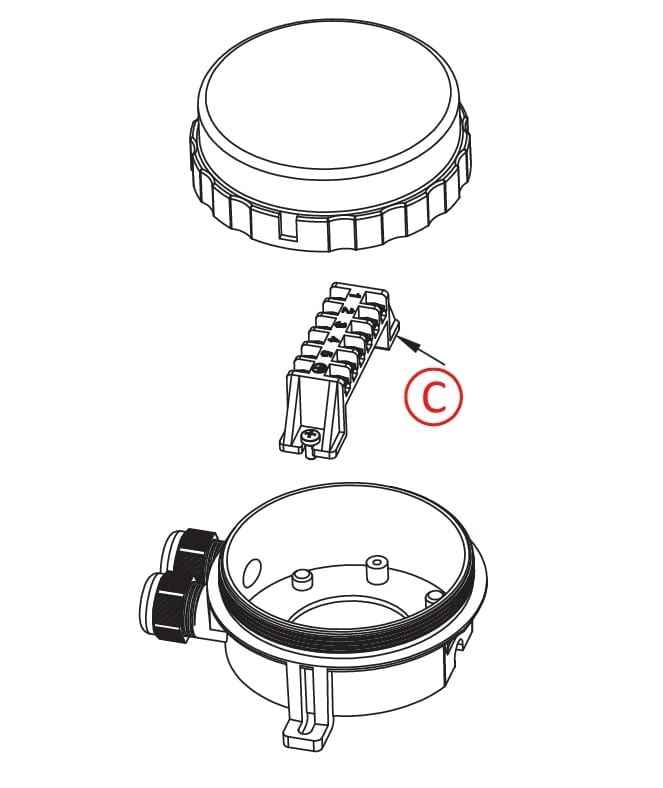

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

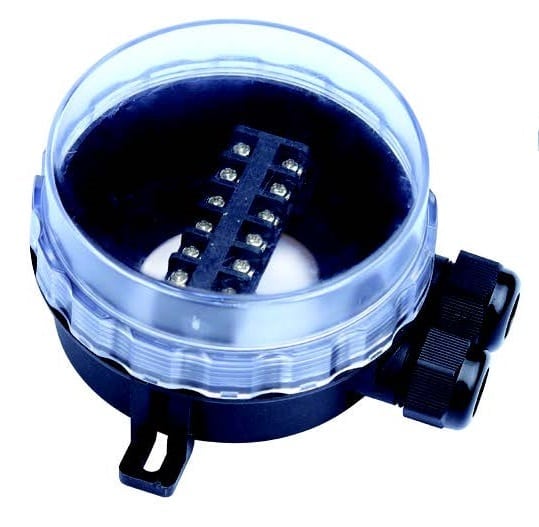

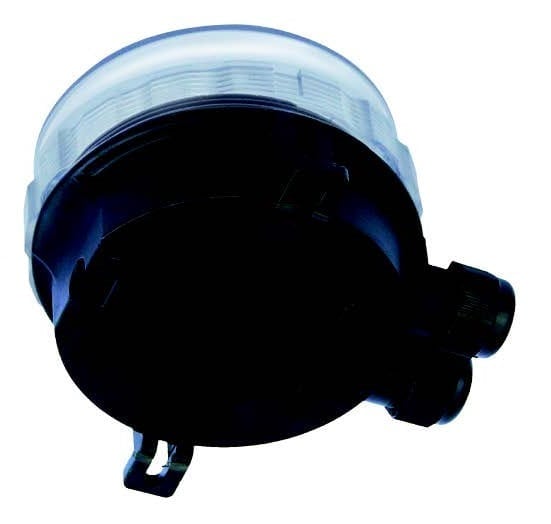

Immersion heater, level sensor or temperature sensor enclosure
– Transparent polycarbonate cover.
– Includes two brackets for mounting on tank edge board.
– Drilling of different diameters possible on the back for direct probes or for 1 “1/4, 1” 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring.
– Includes a removable 6-way 2.5mm² terminal block.
– Output by two M20 cable glands
Size: dia.105 x 66mm
Volume: 500 cm³
Material: black PA66 and transparent PC
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | With connection block C | Without connection block C |
0 | Y3F2000022AH400T | Y3F2000022A0000T |
45 | Y3F2450022AH400T | Y3F2450022A0000T |
50 | Y3F2500022AH400T | Y3F2500022A0000T |
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater, Y301
- Can accommodate ½" threaded fittings with internal lock nut or ¾" or 1" brass fittings with 2 x M4 screws (Use a flat gasket) - Includes a removable internal 3-way 2.5mm² terminal block - PG11 cable gland outlet
-
Polypropylene immersion heater tube enclosure for highly corrosive environments, Y3C6
Screws: There is no external screw in this housing. Cover: Screwed cover, with Molded FKM (Viton) fluoroelastomeric polymer, silicone or NBR O-ring gasket. Cover can be tightened by hand or with a double hook wrench.
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
