Immersion heater, level sensor or temperature sensor enclosure, in PA66 and PC, Y3F2

Aluminum enclosure, with polycarbonate cover, for immersion heater with 30 mm offset fitting, Y3G1
Immersion heater enclosure with extension, in PA66 and PC Y3F3
– Includes two wall brackets
– Extension on the back for 1″1/4, 1″1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring
– Removable 6-way terminal block
– Output by two M20 cable glands
Dimensions | 105 × 105 × 66 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

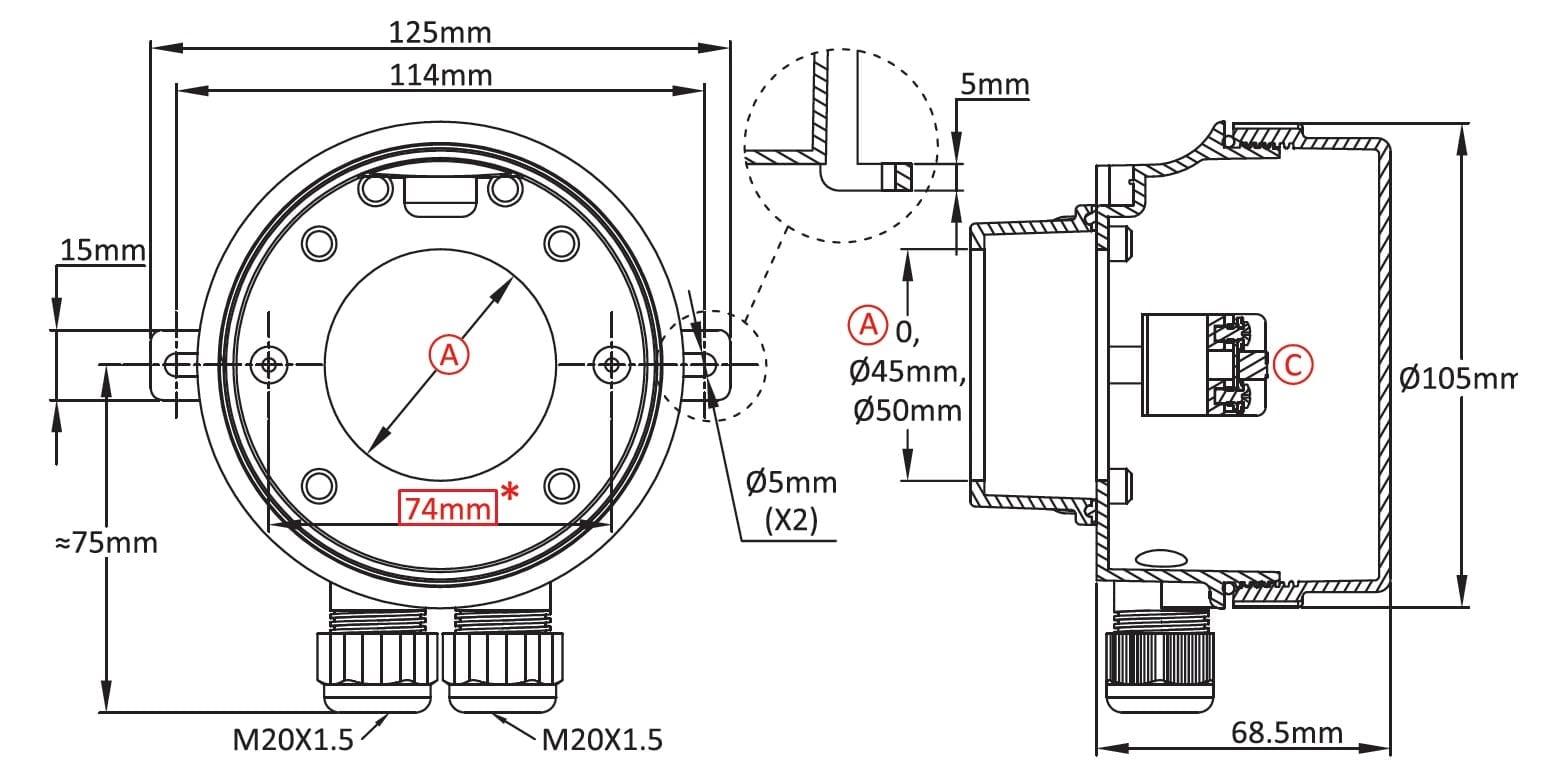

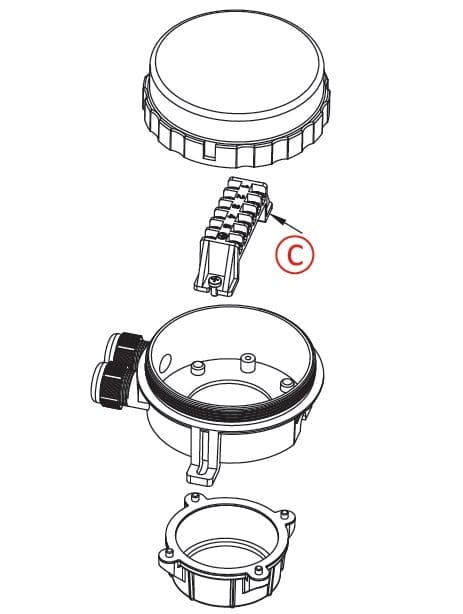

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

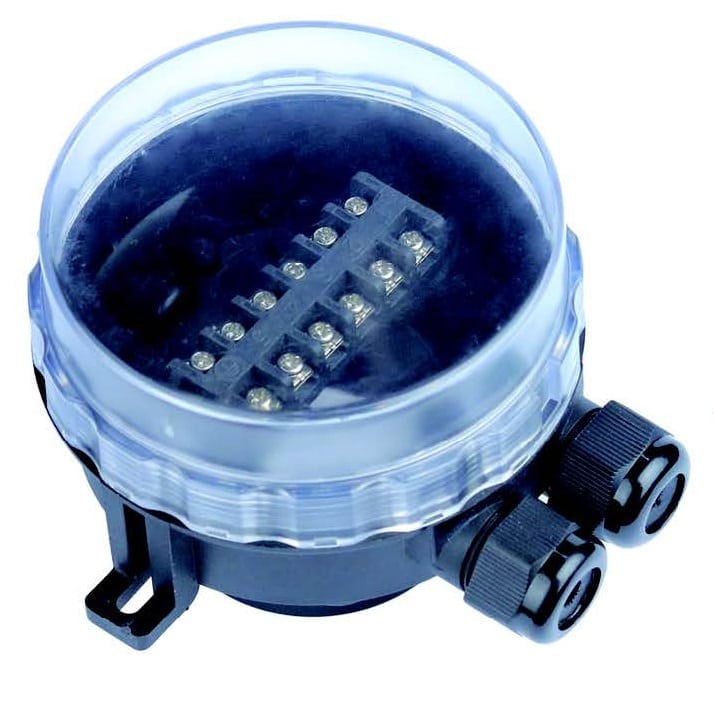

Immersion heater enclosure with extension
– Transparent polycarbonate cover
– Includes two wall brackets

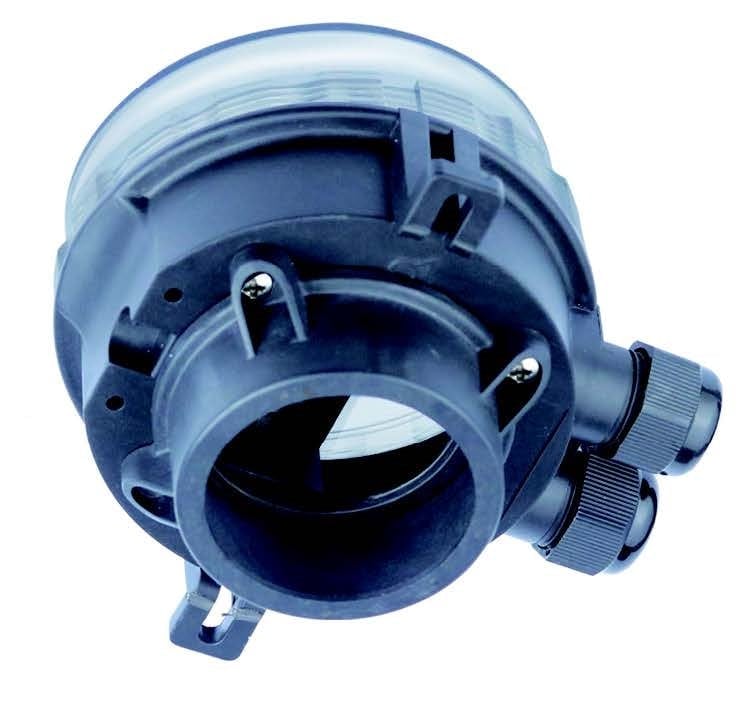

– Extension on the back for 1″1/4, 1″1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring
– Removable 6-way terminal block
– Output by two M20 cable glands
Size: dia.105 x 87mm
Volume: 583 cm³
Material: black PA66 and transparent PC
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
With connection block C | Without connection block C |
Y3F3500022AH400T | Y3F3500022A0000T |
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
