Polypropylene immersion heater enclosure for highly corrosive environments, Y3C7

PVDF immersion heater tube enclosure for highly corrosive environments, Y3E6
Polypropylene temperature sensor enclosure highly corrosive environments, Y3C8
Precise temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises.
Dimensions | 105 × 105 × 82 mm |
---|---|
Housing raw material | |
Ingress protection | |
Mechanical protection | |
Volume (cm³) |

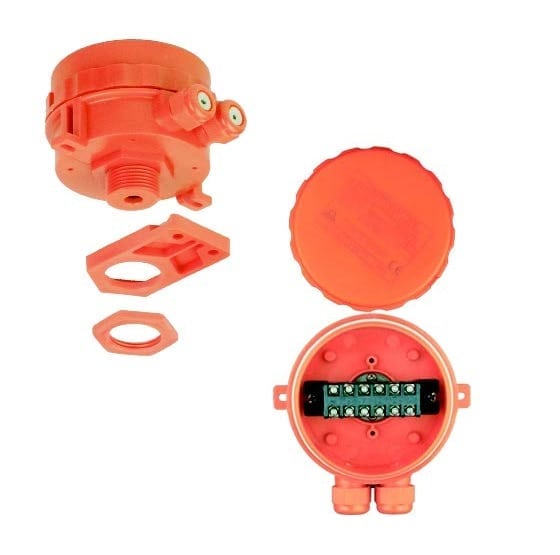

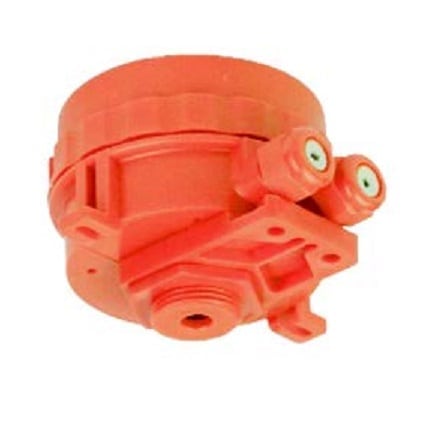

Description

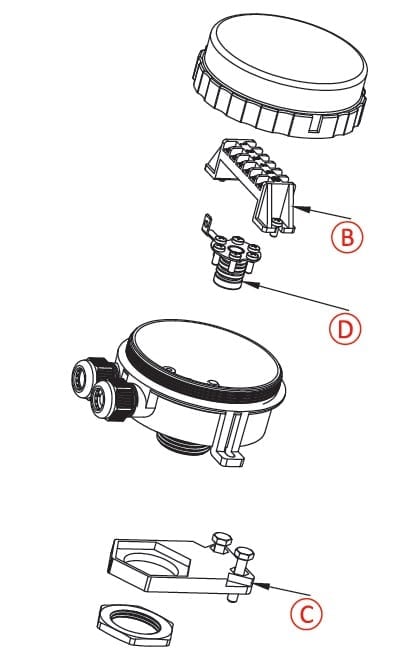

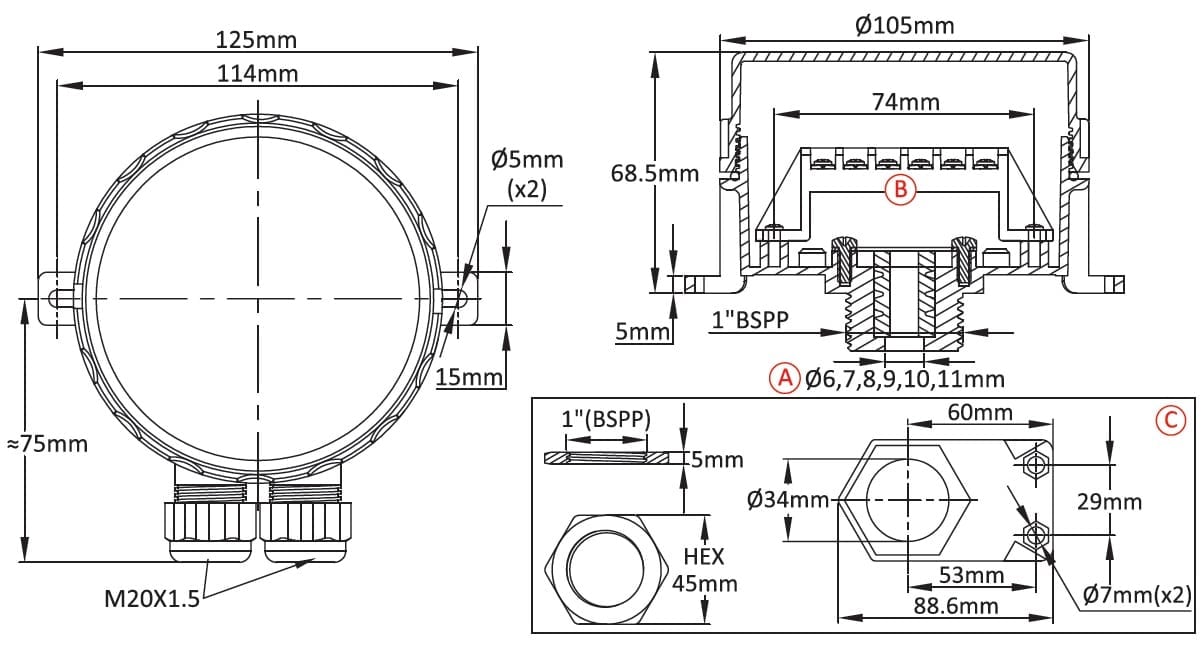

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main applications
Precise temperature control for surface treatment or corrosive liquid baths, sea water environment, livestock premises.
Raw Material: Orange PP (polypropylene) body: Very good resistance to strong bases, good resistance to acids. For use on liquids up to 90 °C.
Housing: Protection class IP69K upon EN 60529 (waterproof spray water under high pressure and sea splashes, totally dust tight), dia. 105mm, height 82mm, made of plastic.
Cover gasket and cable gland stuffing sets gaskets are made in EPDM. Rod seal is made of fluorocarbon elastomer FKM (Viton). The cover can be unscrewed by hand, but it is also possible to use a hook spanner.
Mounting:
-By the 1″ BSPT thread (Mounting through wall is watertight when used with the 1″ nut and seal. See accessories)
-By a rotatable plastic bracket, enabling mounting on tank edge (See accessories)
-By the 2 legs on the side (2 holes dia 5 mm center distance 113 mm)
Main references
A (mm) | D | C | with connection block B | without connection block B |
6 | Silicone | √ | Y3C8060022BH40XU | Y3C8060022B000XU |
6 | Silicone | × | Y3C8060022BH40UU | Y3C8060022B000UU |
6 | FKM | √ | Y3C8060022BH40ZU | Y3C8060022B000ZU |
6 | FKM | × | Y3C8060022BH40WU | Y3C8060022B000WU |
6 | NBR | √ | Y3C8060022BH40YU | Y3C8060022B000YU |
6 | NBR | × | Y3C8060022BH40VU | Y3C8060022B000VU |
7 | Silicone | √ | Y3C8070022BH40XU | Y3C8070022B000XU |
7 | Silicone | × | Y3C8070022BH40UU | Y3C8070022B000UU |
7 | FKM | √ | Y3C8070022BH40ZU | Y3C8070022B000ZU |
7 | FKM | × | Y3C8070022BH40WU | Y3C8070022B000WU |
7 | NBR | √ | Y3C8070022BH40YU | Y3C8070022B000YU |
7 | NBR | × | Y3C8070022BH40VU | Y3C8070022B000VU |
8 | Silicone | √ | Y3C8080022BH40XU | Y3C8080022B000XU |
8 | Silicone | × | Y3C8080022BH40UU | Y3C8080022B000UU |
8 | FKM | √ | Y3C8080022BH40ZU | Y3C8080022B000ZU |
8 | FKM | × | Y3C8080022BH40WU | Y3C8080022B000WU |
8 | NBR | √ | Y3C8080022BH40YU | Y3C8080022B000YU |
8 | NBR | × | Y3C8080022BH40VU | Y3C8080022B000VU |
9 | Silicone | √ | Y3C8090022BH40XU | Y3C8090022B000XU |
9 | Silicone | × | Y3C8090022BH40UU | Y3C8090022B000UU |
9 | FKM | √ | Y3C8090022BH40ZU | Y3C8090022B000ZU |
9 | FKM | × | Y3C8090022BH40WU | Y3C8090022B000WU |
9 | NBR | √ | Y3C8090022BH40YU | Y3C8090022B000YU |
9 | NBR | × | Y3C8090022BH40VU | Y3C8090022B000VU |
10 | Silicone | √ | Y3C8100022BH40XU | Y3C8100022B000XU |
10 | Silicone | × | Y3C8100022BH40UU | Y3C8100022B000UU |
10 | FKM | √ | Y3C8100022BH40ZU | Y3C8100022B000ZU |
10 | FKM | × | Y3C8100022BH40WU | Y3C8100022B000WU |
10 | NBR | √ | Y3C8100022BH40YU | Y3C8100022B000YU |
10 | NBR | × | Y3C8100022BH40VU | Y3C8100022B000VU |
11 | Silicone | √ | Y3C8110022BH40XU | Y3C8110022B000XU |
11 | Silicone | × | Y3C8110022BH40UU | Y3C8110022B000UU |
11 | FKM | √ | Y3C8110022BH40ZU | Y3C8110022B000ZU |
11 | FKM | × | Y3C8110022BH40WU | Y3C8110022B000WU |
11 | NBR | √ | Y3C8110022BH40YU | Y3C8110022B000YU |
11 | NBR | × | Y3C8110022BH40VU | Y3C8110022B000VU |
Accessories
1” BSPP Nut, 5mm thickness |
Bracket for tank side mounting, thickness 10mm (Assembly made with 1” nut) | 1” gasket for through wall waterproof mounting with 1” nut |
|
![]() |
|
Reference in PA66: 66YFHN1N | Reference in PA66: 66YFMB1N |
Reference in FKM (Viton): 66YGA1F |
Reference in PP: 66YFHN1P | Reference in PP: 66YFMB1P | |
Reference in PVDF: 66YFHN1V | Reference in PVDF: 66YFMB1V |
3D models are available on request under .stp format
