Temperature sensor, thermostat or level sensor PA66 enclosure, Y3B1

Immersion heater enclosure for standard fittings with three M4 mounting screws at 120 °, Y3C1

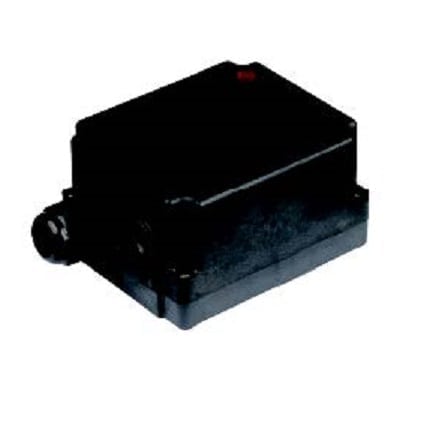

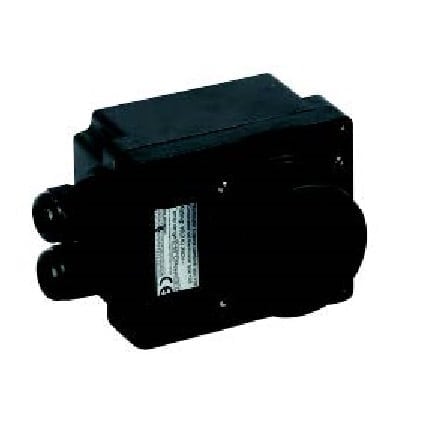

Immersion heater housing for commercial water heater tanks, Y3B2
This housing is suitable for immersion heater.
Dimensions | 105 × 88 × 84.5 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

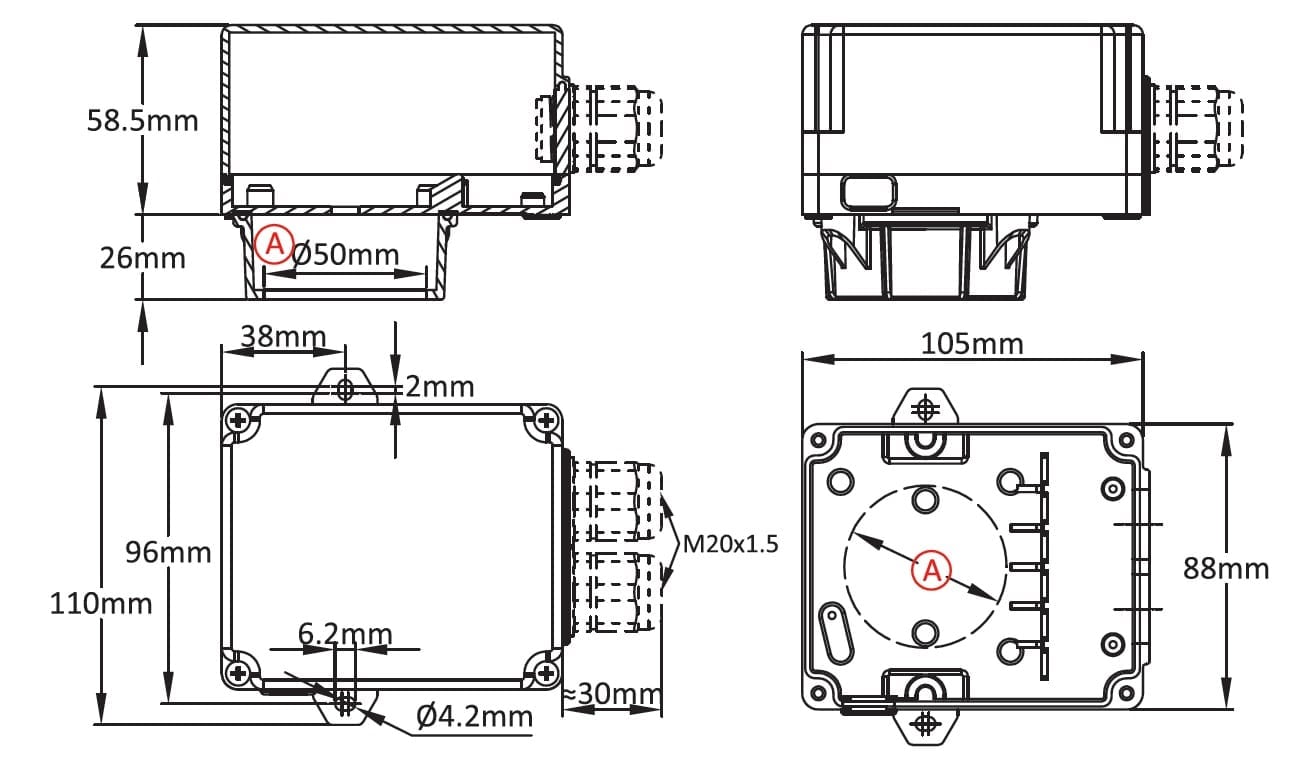

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is suitable for immersion heater.
Size: 105 x 88 x 84.5mm
Volume: 633 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | Reference |
50 | Y3B2500022C0000T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Empty enclosure for oil filled electric radiators 200x77x58
Empty enclosure for oil filled electric radiators, with single tube heating element and electronic temperature control, IP22 Dimensions: 200x77x58 (excluding knob and bracket) Setting: One or two knobs, one pilot light IP Rating: IP22 (vertical mounting only) Weight: 192 gr. Material: PC-ABS Ventilation: Electronic area is ventilated by louver
-
Polypropylene immersion heater tube enclosure for highly corrosive environments, Y3C6
Screws: There is no external screw in this housing. Cover: Screwed cover, with Molded FKM (Viton) fluoroelastomeric polymer, silicone or NBR O-ring gasket. Cover can be tightened by hand or with a double hook wrench.
-
Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, Y3N2
- Front panel with hinged polycarbonate porthole - Includes 4 removable wall brackets - Possibility of PCBs assembly - Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
-
Big size enclosure with extension, for immersion heater, Y3M1
- Can accommodate 1"1/4, 1"1/2, M45x2, 2", 2"1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring - Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment - The cover can also receive multiple holes for pilot lights, switches, etc
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
