Enclosure for controls, connection, temperature sensor, thermostat, level sensor, Y3N1
– Removable wall mounting legs
– Black polycarbonate cover
– Includes 4 removable wall brackets
– Possibility of PCBs assembly
Dimensions | 130 × 180 × 80 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

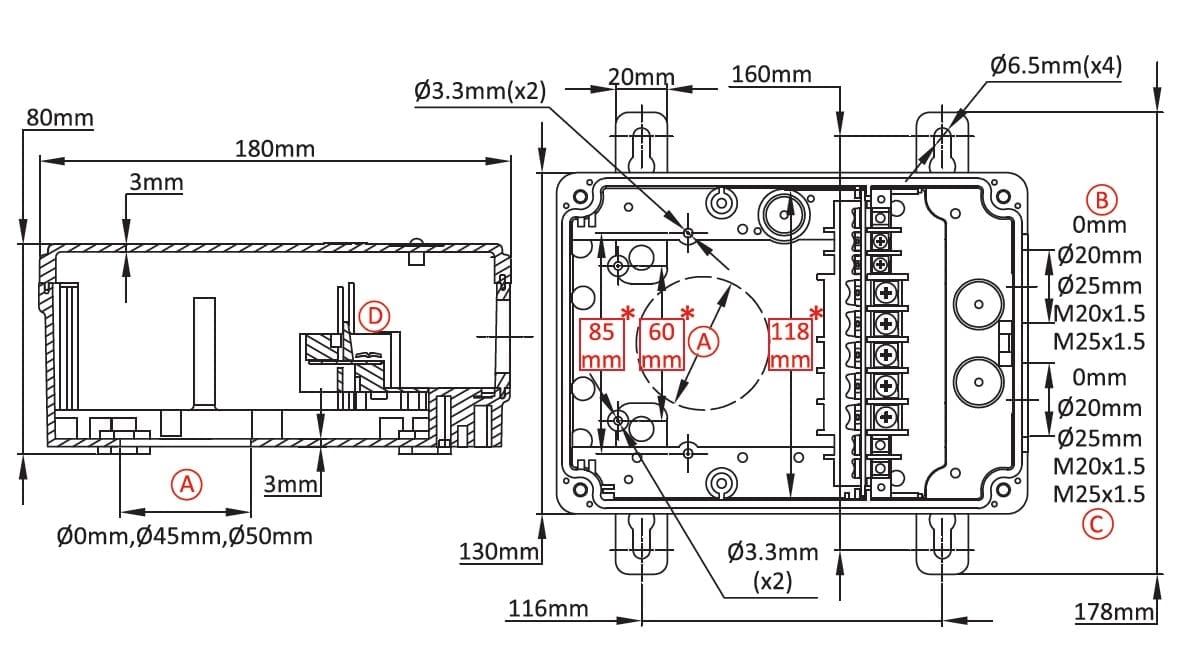

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

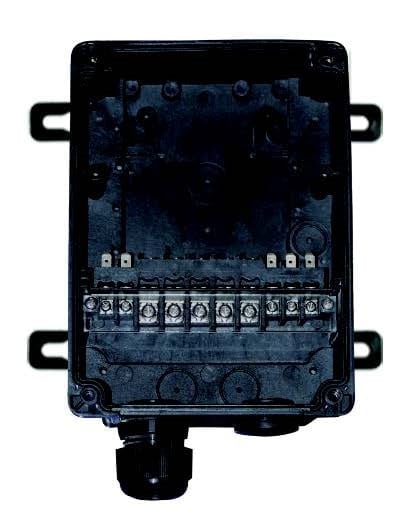

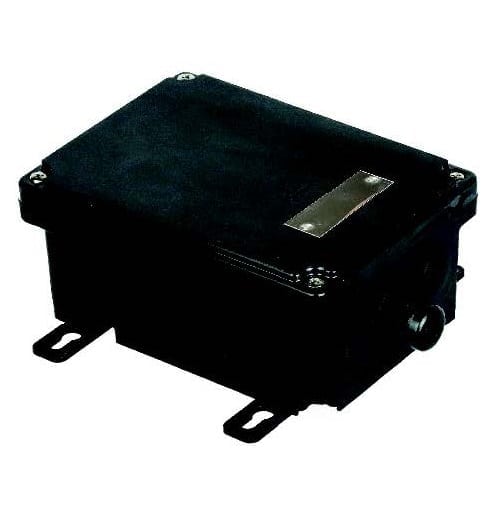

Enclosure for controls, connection, temperature sensor, thermostat, level sensor.
– Removable wall mounting legs
– Black polycarbonate cover
– Includes 4 removable wall brackets
– Possibility of PCBs assembly
– Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
– Several models of removable internal terminal blocks are available (up to 12 channels, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, up to M25
Size: 130 x 180 x 80 mm
Volume: 1870 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | With D | Without D |
0 | 0 | 0 | Y3N10000000J100T | Y3N100000000000T |
0 | 0 | 20 | Y3N10000120J100T | Y3N100001200000T |
0 | 0 | 25 | Y3N10000125J100T | Y3N100001250000T |
0 | 0 | M20*1.5 | Y3N100001T0J100T | Y3N100001T00000T |
0 | 0 | M25*1.5 | Y3N100001T5J100T | Y3N100001T50000T |
0 | 20 | 20 | Y3N10000220J100T | Y3N100002200000T |
0 | 25 | 25 | Y3N10000225J100T | Y3N100002250000T |
0 | M20*1.5 | M20*1.5 | Y3N100002T0J100T | Y3N100002T00000T |
0 | M25*1.5 | M25*1.5 | Y3N100002T5J100T | Y3N100002T50000T |
45 | 0 | 0 | Y3N14500000J100T | Y3N145000000000T |
45 | 0 | 20 | Y3N14500120J100T | Y3N145001200000T |
45 | 0 | 25 | Y3N14500125J100T | Y3N145001250000T |
45 | 0 | M20*1.5 | Y3N145001T0J100T | Y3N145001T00000T |
45 | 0 | M25*1.5 | Y3N145001T5J100T | Y3N145001T50000T |
45 | 20 | 20 | Y3N14500220J100T | Y3N145002200000T |
45 | 25 | 25 | Y3N14500225J100T | Y3N145002250000T |
45 | M20*1.5 | M20*1.5 | Y3N145002T0J100T | Y3N145002T00000T |
45 | M25*1.5 | M25*1.5 | Y3N145002T5J100T | Y3N145002T50000T |
50 | 0 | 0 | Y3N15000000J100T | Y3N150000000000T |
50 | 0 | 20 | Y3N15000120J100T | Y3N150001200000T |
50 | 0 | 25 | Y3N15000125J100T | Y3N150001250000T |
50 | 0 | M20*1.5 | Y3N150001T0J100T | Y3N150001T00000T |
50 | 0 | M25*1.5 | Y3N150001T5J100T | Y3N150001T50000T |
50 | 20 | 20 | Y3N15000220J100T | Y3N150002200000T |
50 | 25 | 25 | Y3N15000225J100T | Y3N150002250000T |
50 | M20*1.5 | M20*1.5 | Y3N150002T0J100T | Y3N150002T00000T |
50 | M25*1.5 | M25*1.5 | Y3N150002T5J100T | Y3N150002T50000T |
Cable gland not included in these reference, consult us if you want them.
