Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater, Y301
Empty Enclosure for Oil filled electric radiators 150x80x40

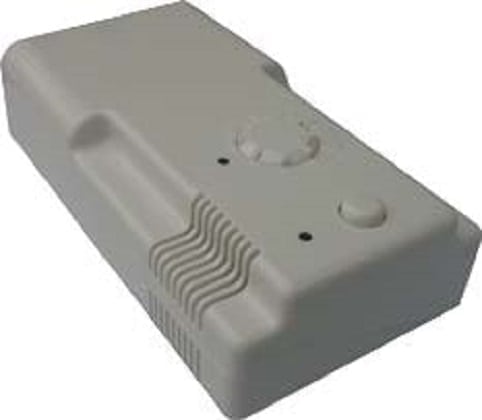

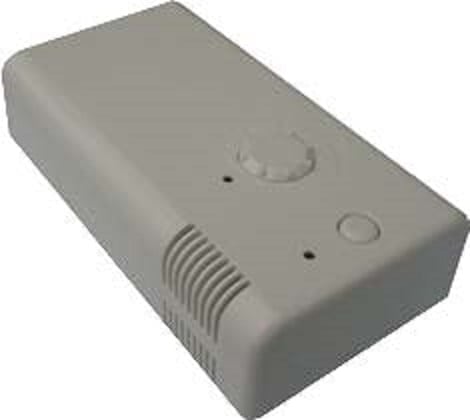

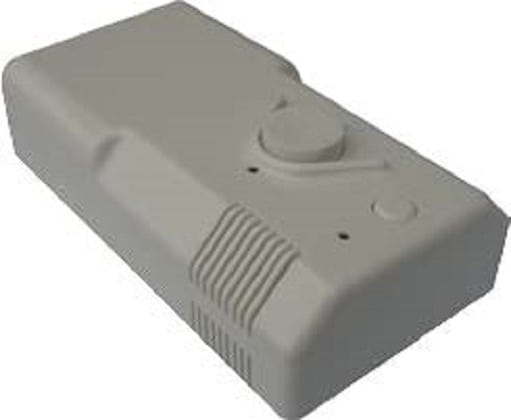

Empty enclosure for oil filled electric radiators, with single tube heating element and electronic temperature control, IP33
Setting: One knob, one button, two pilot lights
IP Rating: IP33 (vertical mounting only)
Weight: 130 gr.
Color: RAL1010
Material: PC-ABS
Ventilation: For relay output electronic controls . Not suitable for triac.
Weight | 0.130 kg |
---|---|
Dimensions | 150 × 80 × 40 mm |
Ingress protection | |
Color |
Description
These boxes are mounted on the outer threaded ½ “ single tube heating elements in oil filled radiators. They are designed to accommodate
existing electronic cards from manufacturers such as Cotherm, Delta Dore etc …
Their IP protection class allows them to be mounted in most domestic applications.
They are designed to respond to a class II insulation: creepage distances and clearances between the metal parts or live parts are greater than
or equal to 8mm (Indicative values, which may vary according to internal electronic circuits)
The minimum plastic wall thickness is 1.6 mm.
They can be supplied with mains cable with pull out force greater than 10 daN.
The development of these boxes is on customer specifications.
Contact us for reference and suppliers of compatible electronic circuit board
Setting: One knob, one button, two pilot lights
IP Rating: IP33 (vertical mounting only)
Weight: 130 gr.
Color: RAL1010
Material: PC-ABS
Ventilation: For relay output electronic controls . Not suitable for triac.
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Enclosure for immersion heater with electronic temperature control with heat sink for solid state relay (SSR), Y3N4
- Aluminum extension on rear side with heat exchanger, allows the assembly of static relays - Extension on the back accepts 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring - Front panel with hinged polycarbonate porthole
-
Empty enclosure for oil filled electric radiators 200x77x58
Empty enclosure for oil filled electric radiators, with single tube heating element and electronic temperature control, IP22 Dimensions: 200x77x58 (excluding knob and bracket) Setting: One or two knobs, one pilot light IP Rating: IP22 (vertical mounting only) Weight: 192 gr. Material: PC-ABS Ventilation: Electronic area is ventilated by louver
-
Big size enclosure with extension, for immersion heater, Y3M1
- Can accommodate 1"1/4, 1"1/2, M45x2, 2", 2"1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring - Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment - The cover can also receive multiple holes for pilot lights, switches, etc
-
Immersion heater, level sensor or temperature sensor enclosure, in PA66 and PC, Y3F2
- Includes two brackets for mounting on tank edge board. - Drilling of different diameters possible on the back for direct probes or for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring. - Includes a removable 6-way 2.5mm² terminal block. - Output by…
Technical informations associated to this product
-
Electrical contacts
As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element. -
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Description of temperature controls
Used as control thermostats or as a safety thermostat with manual reset, these thermostats have a disc made of two different metals laminated together for temperature sensing element. These two metals have different expansion coefficients. -
JPC Design concept of the Y0 types enclosures
The design of the Y0 enclosures was made to provide a starting range with a particular selection of low cost solutions. The plastic used is PC-ABC compound, with or without fiberglass reinforcement.
