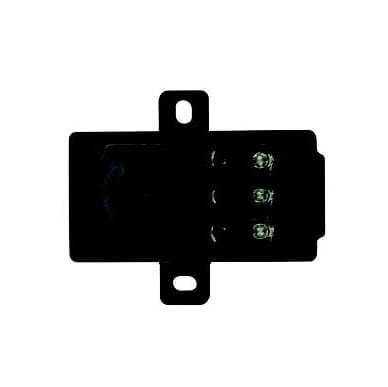

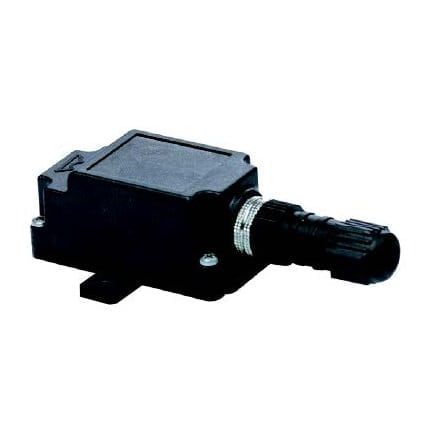

Sub-miniature PA66 enclosure, removable wall mounting bracket, Y3A1
This housing is suitable for temperature sensor, level sensor, electronic printed circuit or cartridge heater.
Dimensions | 61 × 33 × 30 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material |
SKU: Y3A1
Categories: Accessories for electro thermal control boxes, Plastic housings
Tags: Miniature, PA66, plastic housing, IPX4, IK8, enclosure, Removable wall mounting bracket

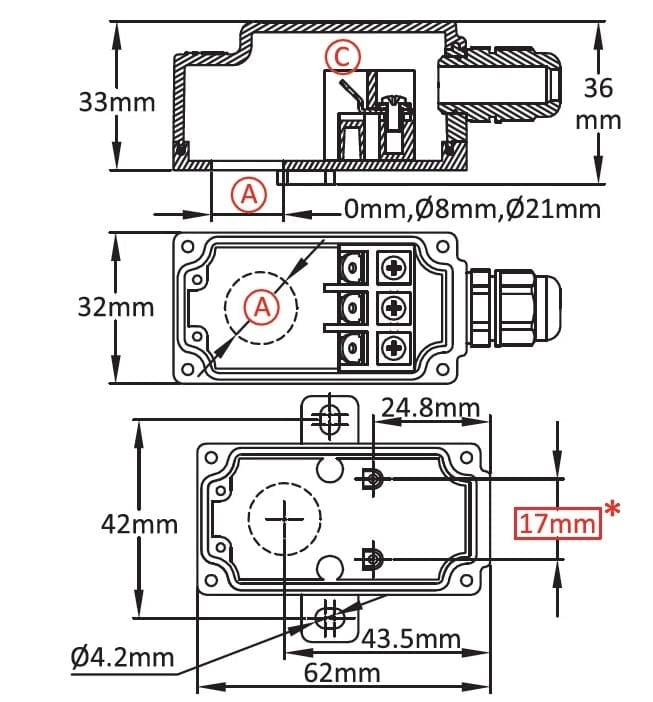

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is suitable for temperature sensor, level sensor, electronic printed circuit or cartridge heater.
Size: 61 x 33 x 30mm
Volume: 52 cm³
Material: PA66
Ingress protection: IPX4
Mechanical impact resistance: IK8
Main references
A | B1 | B2 | B3 | With connection block C | Without connection block C |
0 | √ | × | × | Y3A100001E1F100T | Y3A100001E10000T |
0 | × | √ | × | Y3A100001E3F100T | Y3A100001E30000T |
0 | × | × | √ | Y3A100001E2F100T | Y3A100001E20000T |
8 | √ | × | × | Y3A108001E1F100T | Y3A108001E10000T |
8 | × | √ | × | Y3A108001E3F100T | Y3A108001E30000T |
8 | × | × | √ | Y3A108001E2F100T | Y3A108001E20000T |
21 | √ | × | × | Y3A121001E1F100T | Y3A121001E10000T |
21 | × | √ | × | Y3A121001E3F100T | Y3A121001E30000T |
21 | × | × | √ | Y3A121001E2F100T | Y3A121001E20000T |

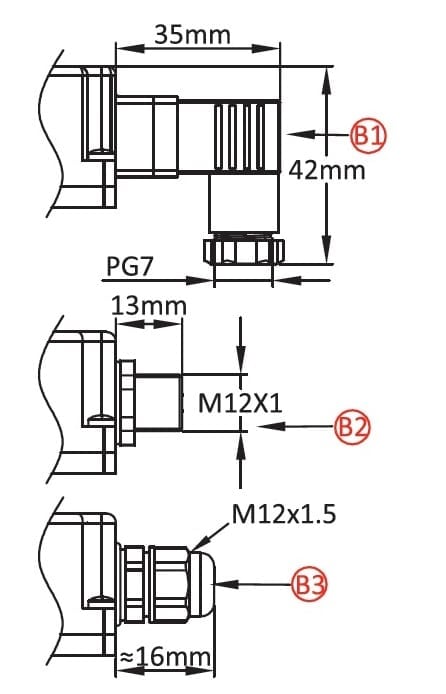

Others drilling diameters on request.
3D models are available on request under .stp format
