Miniature PA66 enclosure, external connection block, Y3A4

Immersion heater housing for commercial water heater tanks, Y3B2

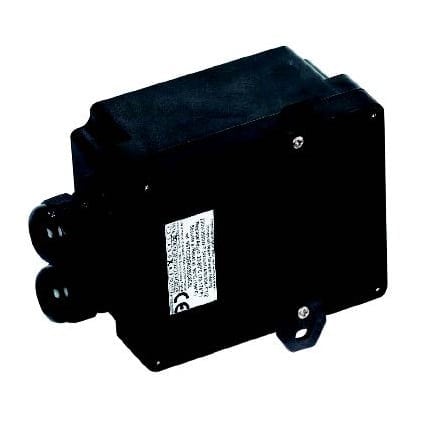

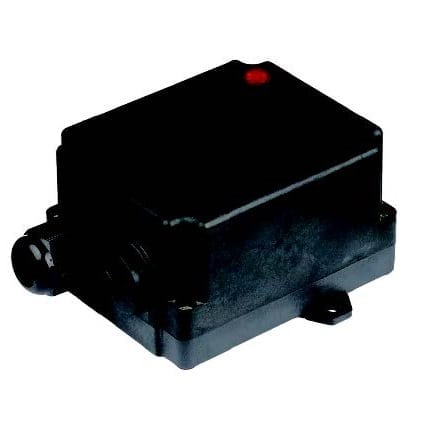

Temperature sensor, thermostat or level sensor PA66 enclosure, Y3B1
This housing is suitable for temperature sensor, thermostat or level sensor.
Dimensions | 105 × 88 × 58.5 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

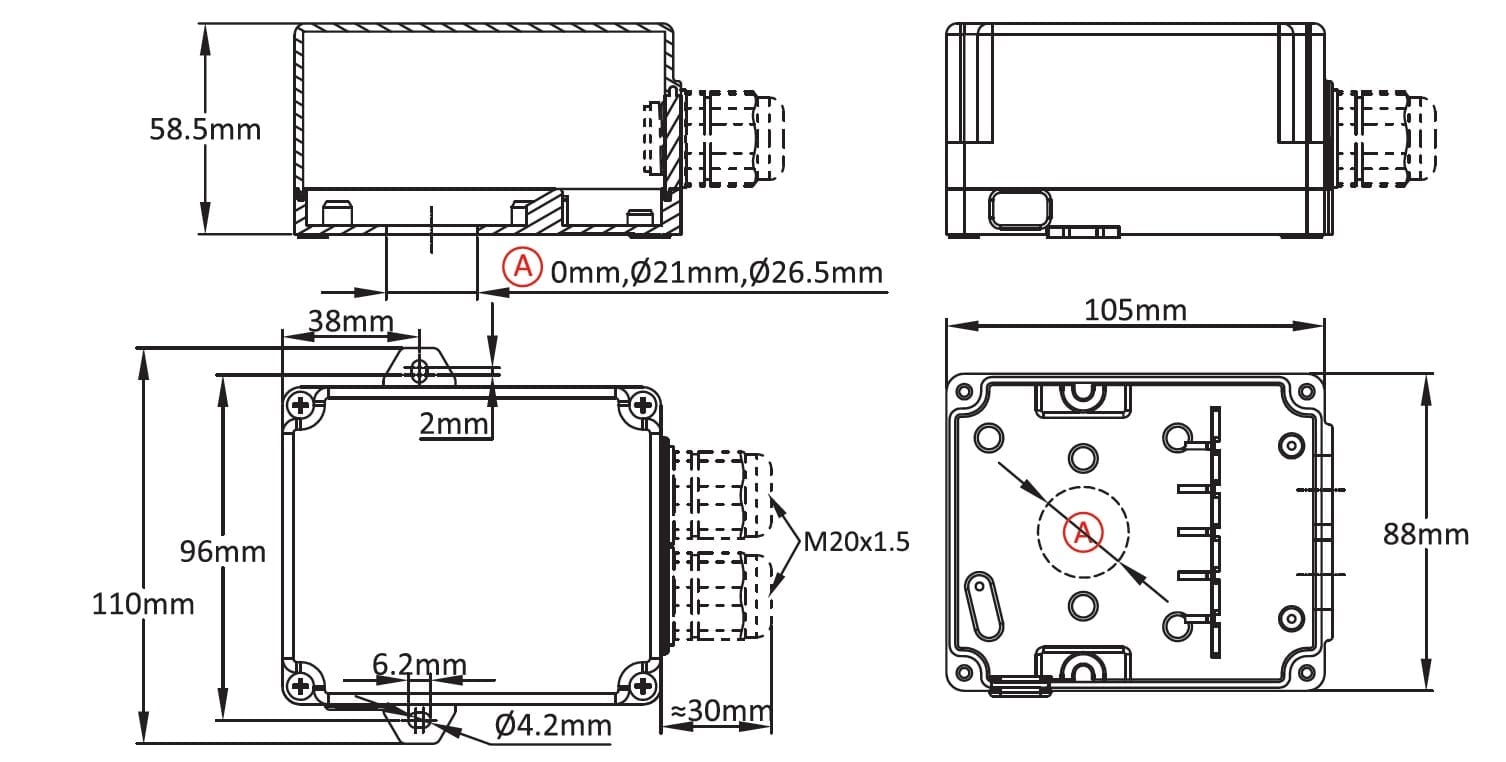

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is suitable for temperature sensor, thermostat or level sensor.
Size: 105 x 88 x 58.5mm
Volume: 550 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A | Reference |
0 | Y3B1000022C0000T |
21 | Y3B1210022C0000T |
26.5 | Y3B1265022C0000T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Immersion heater, level sensor or temperature sensor enclosure, in PA66 and PC, Y3F2
- Includes two brackets for mounting on tank edge board. - Drilling of different diameters possible on the back for direct probes or for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring. - Includes a removable 6-way 2.5mm² terminal block. - Output by…
-
Big size enclosure with extension, for immersion heater, Y3M1
- Can accommodate 1"1/4, 1"1/2, M45x2, 2", 2"1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring - Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment - The cover can also receive multiple holes for pilot lights, switches, etc
-
Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, Y3N2
- Front panel with hinged polycarbonate porthole - Includes 4 removable wall brackets - Possibility of PCBs assembly - Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
-
Round enclosure for immersion heater or temperature sensor, Y306
- Drilling on the bottom possible for probes, or immersion heater fittings - Can receive a boot or a M20 thread on the lid for access to internal adjustment - Features bosses for internal bracket - Admits double threaded or rotating ring fittings up to 2 " - Cable outlet up to M25 (2 cable…
