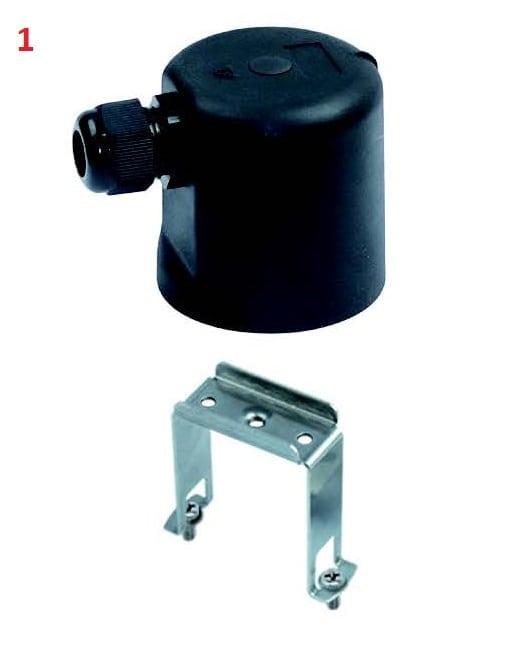

Immersion heater enclosure for standard fittings with three M4 mounting screws at 120 °, Y3C1

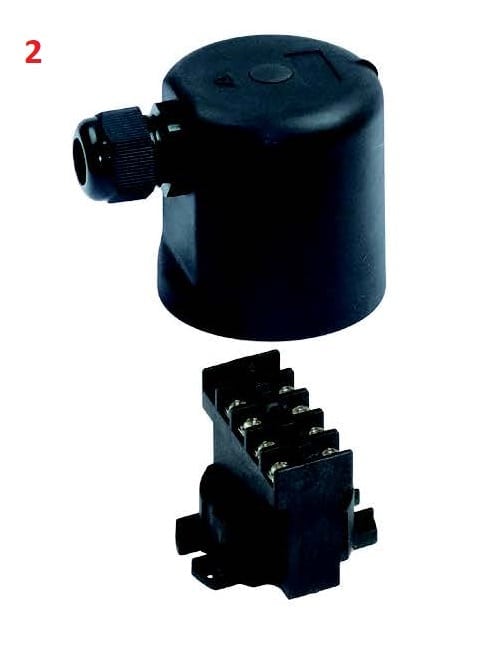

Simplified round enclosure for 2”1/2 and M77x2 fittings, Y3C3

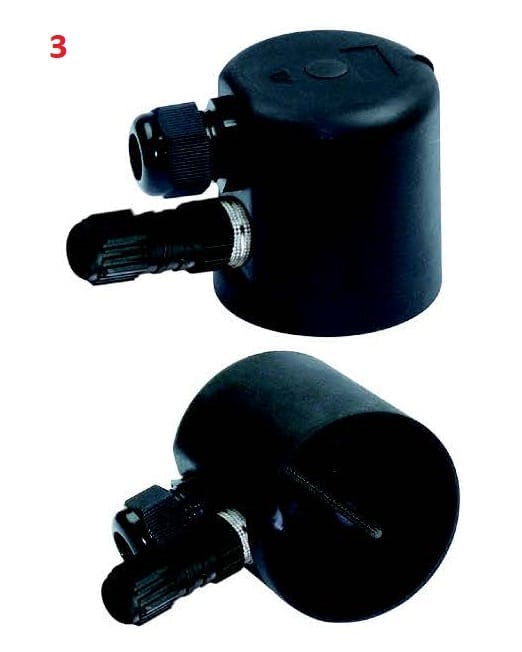

Miniature Enclosure for 2” fittings, Y3C2
This housing is used for standard 2″ immersion heater fittings.
Dimensions | 65 × 65 × 66 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Volume (cm³) |
Description

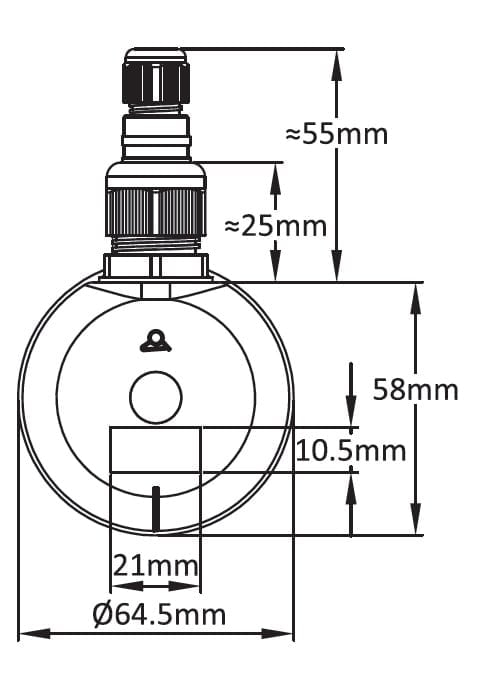

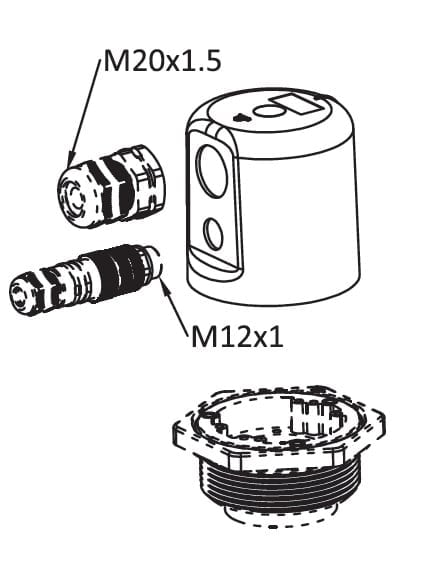

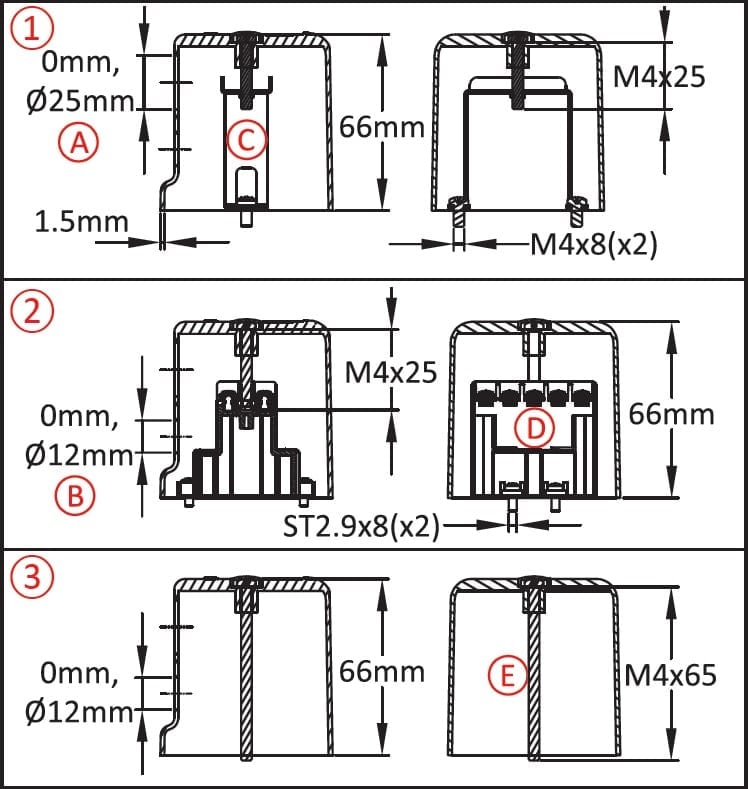

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is used for standard 2″ immersion heater fittings.
Size: Dia.65 x 66mm
Volume: 200 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK8
Main references
A | B | C | D | E | Reference |
0 | 0 | √ | × | × | Y3C20001000E100T |
0 | 0 | × | √ | × | Y3C20001000H200T |
0 | 0 | × | × | √ | Y3C200010000100T |
0 | 12 | √ | × | × | Y3C20001112E100T |
0 | 12 | × | √ | × | Y3C20001112H200T |
0 | 12 | × | × | √ | Y3C200011120100T |
25 | 0 | √ | × | × | Y3C20001125E100T |
25 | 0 | × | √ | × | Y3C20001125H200T |
25 | 0 | × | × | √ | Y3C200011250100T |
25 | 12 | √ | × | × | Y3C200012A0E100T |
25 | 12 | × | √ | × | Y3C200012A0H200T |
25 | 12 | × | × | √ | Y3C200012A00100T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
