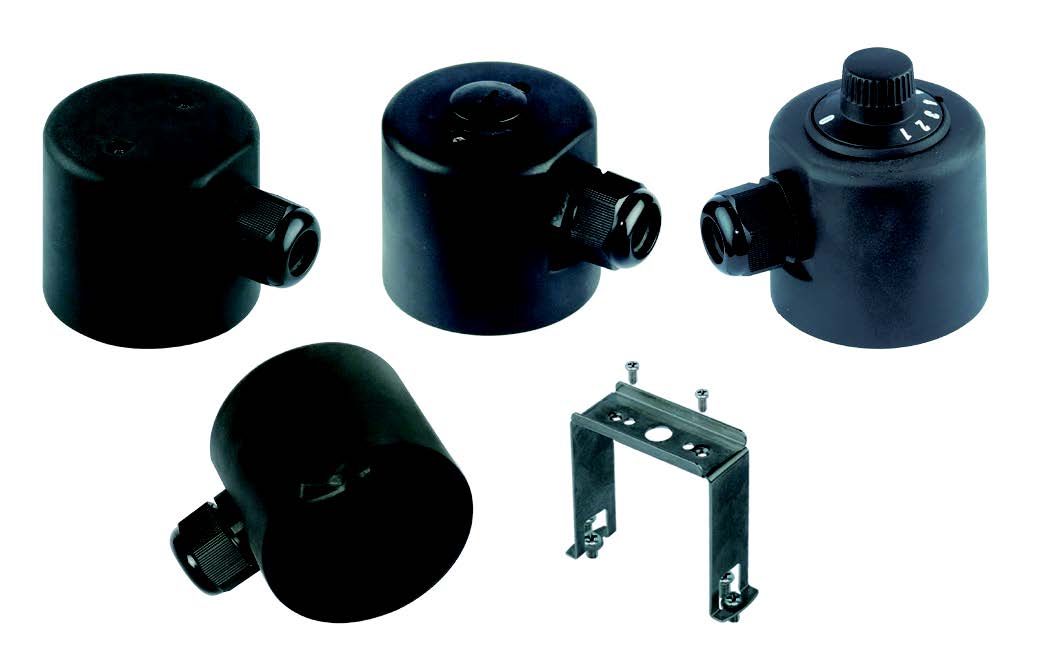

Simplified round enclosure for 2”1/2 and M77x2 fittings, Y3C3
This housing is used for standard 2”1/2 and M77x2 immersion heater fittings.
Dimensions | 86 × 86 × 75 mm |
---|---|
Housing raw material | |
Ingress protection | |
Mechanical protection | |
Volume (cm³) |

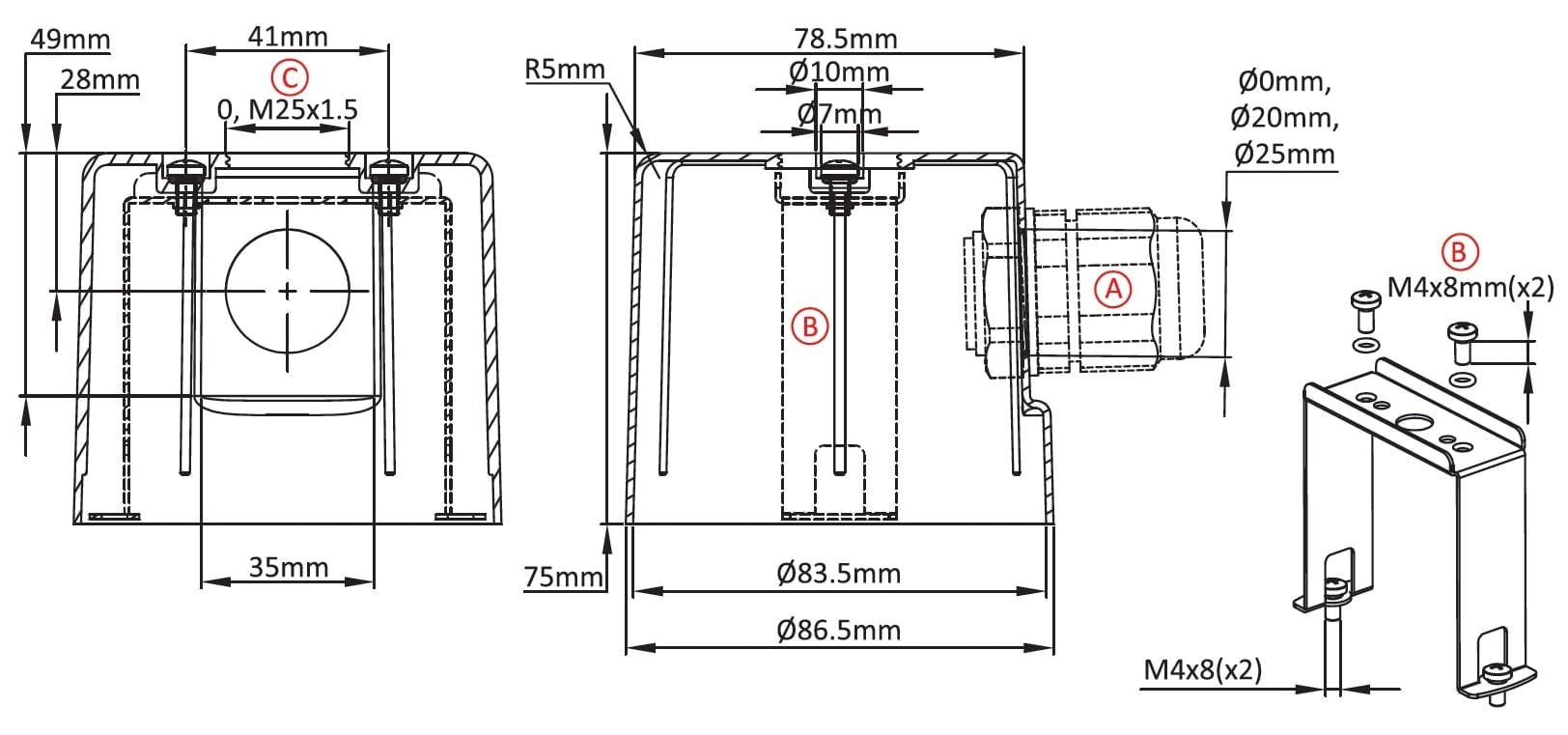

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
This housing is used for standard 2”1/2 and M77x2 immersion heater fittings.
Size: Dia.86 x 75mm
Volume: 416 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK9
Main references
A | B | C | Reference |
0 | √ | 0 | Y3C30000000E200T |
0 | √ | M25*1.5 | Y3C3000F000E200T |
20 | √ | 0 | Y3C30000120E200T |
20 | √ | M25*1.5 | Y3C3000F120E200T |
25 | √ | 0 | Y3C30000125E200T |
25 | √ | M25*1.5 | Y3C3000F125E200T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
