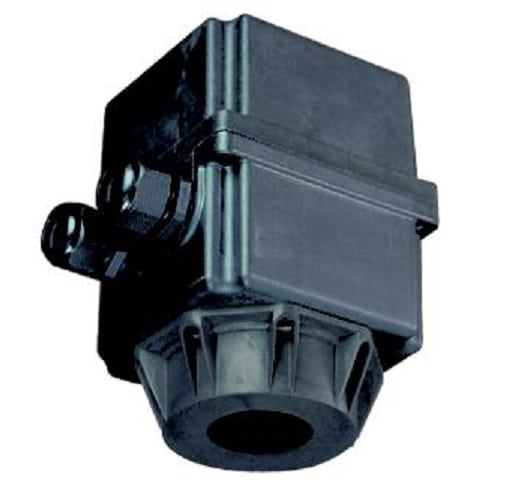

Big size enclosure with extension, for immersion heater, Y3M1
– Can accommodate 1″1/4, 1″1/2, M45x2, 2″, 2″1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring
– Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment
– The cover can also receive multiple holes for pilot lights, switches, etc
Dimensions | 130 × 130 × 190 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

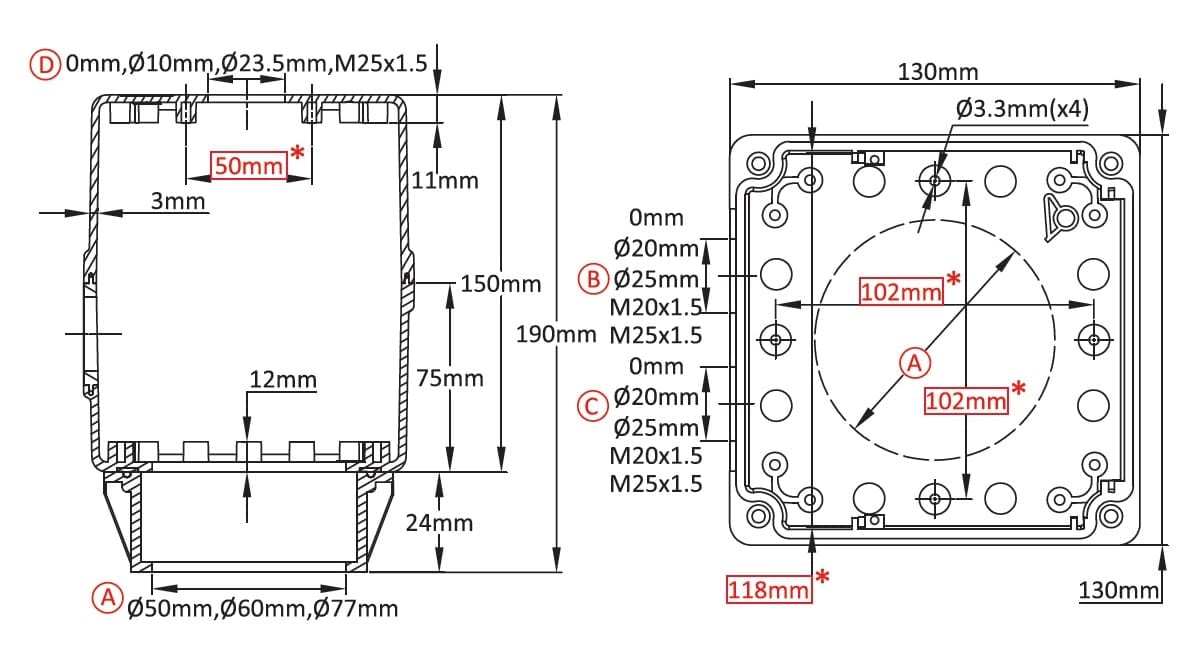

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Big size enclosure with extension, for immersion heater
– Can accommodate 1″1/4, 1″1/2, M45x2, 2″, 2″1/2, and M77x2 double thread and internal nut fittings, or single thread with rotation ring
– Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment
– The cover can also receive multiple holes for pilot lights, switches, etc
– Can receive one or two power contactors on internal Din rail
– Features bosses and slides for PCBs
– Internal removable connection block (up to 12 ways, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, size up to M25
Size: 130 x 130 x 190 mm
Volume: 2836 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | D (mm) | References |
50 | 0 | 0 | 0 | Y3M150000000000T |
50 | 0 | 0 | 10 | Y3M1500A0000000T |
50 | 0 | 0 | 23.5 | Y3M1500D0000000T |
50 | 0 | 0 | M25×1.5 | Y3M1500F0000000T |
50 | 0 | 20 | 0 | Y3M150001200000T |
50 | 0 | 20 | 10 | Y3M1500A1200000T |
50 | 0 | 20 | 23.5 | Y3M1500D1200000T |
50 | 0 | 20 | M25×1.5 | Y3M1500F1200000T |
50 | 0 | 25 | 0 | Y3M150001250000T |
50 | 0 | 25 | 10 | Y3M1500A1250000T |
50 | 0 | 25 | 23.5 | Y3M1500D1250000T |
50 | 0 | 25 | M25×1.5 | Y3M1500F1250000T |
50 | 0 | M20×1.5 | 0 | Y3M150001T00000T |
50 | 0 | M20×1.5 | 10 | Y3M1500A1T00000T |
50 | 0 | M20×1.5 | 23.5 | Y3M1500D1T00000T |
50 | 0 | M20×1.5 | M25×1.5 | Y3M1500F1T00000T |
50 | 0 | M25×1.5 | 0 | Y3M150001T50000T |
50 | 0 | M25×1.5 | 10 | Y3M1500A1T50000T |
50 | 0 | M25×1.5 | 23.5 | Y3M1500D1T50000T |
50 | 0 | M25×1.5 | M25×1.5 | Y3M1500F1T50000T |
50 | 20 | 20 | 0 | Y3M150002200000T |
50 | 20 | 20 | 10 | Y3M1500A2200000T |
50 | 20 | 20 | 23.5 | Y3M1500D2200000T |
50 | 20 | 20 | M25×1.5 | Y3M1500F2200000T |
50 | 25 | 25 | 0 | Y3M150002250000T |
50 | 25 | 25 | 10 | Y3M1500A2250000T |
50 | 25 | 25 | 23.5 | Y3M1500D2250000T |
50 | 25 | 25 | M25×1.5 | Y3M1500F2250000T |
50 | M20×1.5 | M20×1.5 | 0 | Y3M150002T00000T |
50 | M20×1.5 | M20×1.5 | 10 | Y3M1500A2T00000T |
50 | M20×1.5 | M20×1.5 | 23.5 | Y3M1500D2T00000T |
50 | M20×1.5 | M20×1.5 | M25×1.5 | Y3M1500F2T00000T |
50 | M25×1.5 | M25×1.5 | 0 | Y3M150002T50000T |
50 | M25×1.5 | M25×1.5 | 10 | Y3M1500A2T50000T |
50 | M25×1.5 | M25×1.5 | 23.5 | Y3M1500D2T50000T |
50 | M25×1.5 | M25×1.5 | M25×1.5 | Y3M1500F2T50000T |
60 | 0 | 0 | 0 | Y3M160000000000T |
60 | 0 | 0 | 10 | Y3M1600A0000000T |
60 | 0 | 0 | 23.5 | Y3M1600D0000000T |
60 | 0 | 0 | M25×1.5 | Y3M1600F0000000T |
60 | 0 | 20 | 0 | Y3M160001200000T |
60 | 0 | 20 | 10 | Y3M1600A1200000T |
60 | 0 | 20 | 23.5 | Y3M1600D1200000T |
60 | 0 | 20 | M25×1.5 | Y3M1600F1200000T |
60 | 0 | 25 | 0 | Y3M160001250000T |
60 | 0 | 25 | 10 | Y3M1600A1250000T |
60 | 0 | 25 | 23.5 | Y3M1600D1250000T |
60 | 0 | 25 | M25×1.5 | Y3M1600F1250000T |
60 | 0 | M20×1.5 | 0 | Y3M160001T00000T |
60 | 0 | M20×1.5 | 10 | Y3M1600A1T00000T |
60 | 0 | M20×1.5 | 23.5 | Y3M1600D1T00000T |
60 | 0 | M20×1.5 | M25×1.5 | Y3M1600F1T00000T |
60 | 0 | M25×1.5 | 0 | Y3M160001T50000T |
60 | 0 | M25×1.5 | 10 | Y3M1600A1T50000T |
60 | 0 | M25×1.5 | 23.5 | Y3M1600D1T50000T |
60 | 0 | M25×1.5 | M25×1.5 | Y3M1600F1T50000T |
60 | 20 | 20 | 0 | Y3M160002200000T |
60 | 20 | 20 | 10 | Y3M1600A2200000T |
60 | 20 | 20 | 23.5 | Y3M1600D2200000T |
60 | 20 | 20 | M25×1.5 | Y3M1600F2200000T |
60 | 25 | 25 | 0 | Y3M160002250000T |
60 | 25 | 25 | 10 | Y3M1600A2250000T |
60 | 25 | 25 | 23.5 | Y3M1600D2250000T |
60 | 25 | 25 | M25×1.5 | Y3M1600F2250000T |
60 | M20×1.5 | M20×1.5 | 0 | Y3M160002T00000T |
60 | M20×1.5 | M20×1.5 | 10 | Y3M1600A2T00000T |
60 | M20×1.5 | M20×1.5 | 23.5 | Y3M1600D2T00000T |
60 | M20×1.5 | M20×1.5 | M25×1.5 | Y3M1600F2T00000T |
60 | M25×1.5 | M25×1.5 | 0 | Y3M160002T50000T |
60 | M25×1.5 | M25×1.5 | 10 | Y3M1600A2T50000T |
60 | M25×1.5 | M25×1.5 | 23.5 | Y3M1600D2T50000T |
60 | M25×1.5 | M25×1.5 | M25×1.5 | Y3M1600F2T50000T |
77 | 0 | 0 | 0 | Y3M177000000000T |
77 | 0 | 0 | 10 | Y3M1770A0000000T |
77 | 0 | 0 | 23.5 | Y3M1770D0000000T |
77 | 0 | 0 | M25×1.5 | Y3M1770F0000000T |
77 | 0 | 20 | 0 | Y3M177001200000T |
77 | 0 | 20 | 10 | Y3M1770A1200000T |
77 | 0 | 20 | 23.5 | Y3M1770D1200000T |
77 | 0 | 20 | M25×1.5 | Y3M1770F1200000T |
77 | 0 | 25 | 0 | Y3M177001250000T |
77 | 0 | 25 | 10 | Y3M1770A1250000T |
77 | 0 | 25 | 23.5 | Y3M1770D1250000T |
77 | 0 | 25 | M25×1.5 | Y3M1770F1250000T |
77 | 0 | M20×1.5 | 0 | Y3M177001T00000T |
77 | 0 | M20×1.5 | 10 | Y3M1770A1T00000T |
77 | 0 | M20×1.5 | 23.5 | Y3M1770D1T00000T |
77 | 0 | M20×1.5 | M25×1.5 | Y3M1770F1T00000T |
77 | 0 | M25×1.5 | 0 | Y3M177001T50000T |
77 | 0 | M25×1.5 | 10 | Y3M1770A1T50000T |
77 | 0 | M25×1.5 | 23.5 | Y3M1770D1T50000T |
77 | 0 | M25×1.5 | M25×1.5 | Y3M1770F1T50000T |
77 | 20 | 20 | 0 | Y3M177002200000T |
77 | 20 | 20 | 10 | Y3M1770A2200000T |
77 | 20 | 20 | 23.5 | Y3M1770D2200000T |
77 | 20 | 20 | M25×1.5 | Y3M1770F2200000T |
77 | 25 | 25 | 0 | Y3M177002250000T |
77 | 25 | 25 | 10 | Y3M1770A2250000T |
77 | 25 | 25 | 23.5 | Y3M1770D2250000T |
77 | 25 | 25 | M25×1.5 | Y3M1770F2250000T |
77 | M20×1.5 | M20×1.5 | 0 | Y3M177002T00000T |
77 | M20×1.5 | M20×1.5 | 10 | Y3M1770A2T00000T |
77 | M20×1.5 | M20×1.5 | 23.5 | Y3M1770D2T00000T |
77 | M20×1.5 | M20×1.5 | M25×1.5 | Y3M1770F2T00000T |
77 | M25×1.5 | M25×1.5 | 0 | Y3M177002T50000T |
77 | M25×1.5 | M25×1.5 | 10 | Y3M1770A2T50000T |
77 | M25×1.5 | M25×1.5 | 23.5 | Y3M1770D2T50000T |
77 | M25×1.5 | M25×1.5 | M25×1.5 | Y3M1770F2T50000T |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
