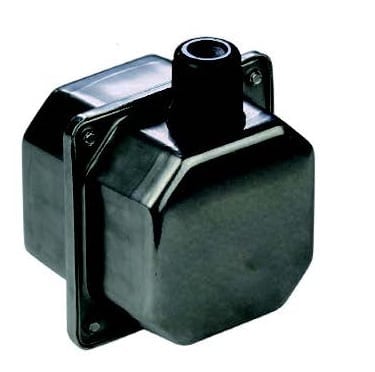

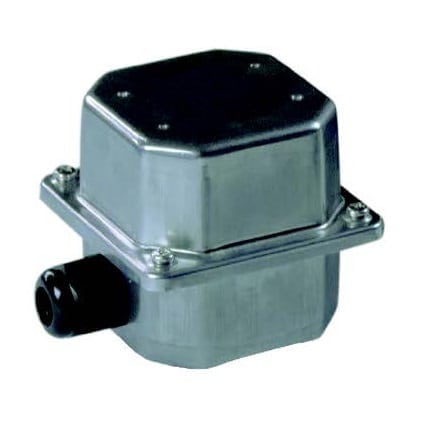

Stainless steel immersion heater or temperature sensor enclosure, Y3S3

– High lid
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut
– Hole for M20 cable gland

Dimensions 90 × 90 × 75 mm
Ingress protection

Mechanical protection

Housing raw material

,

Fastener raw material

Volume (cm³)

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

Description

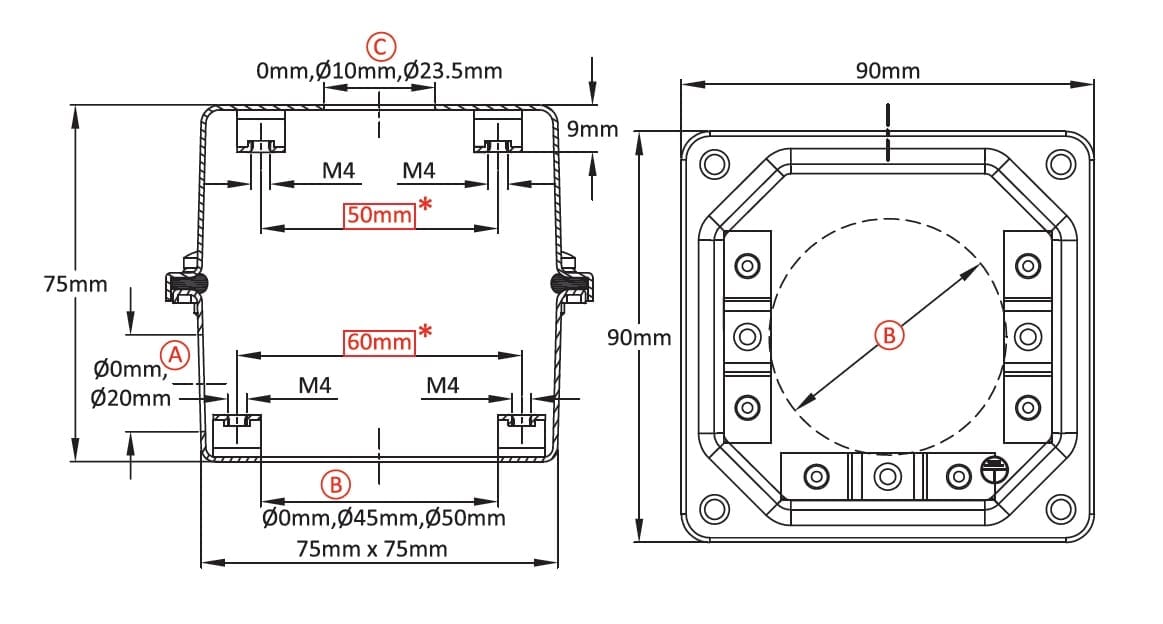

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main features

Immersion heater or temperature sensor enclosure
– High lid
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut
– Hole for M20 cable gland

Size: 90 x 90 x 75 mm

Volume: 392 cm³

Material: Stainless steel deep drawn cover and bottom.

Ingress protection: IP69K

Mechanical impact resistance: IK7

Screws: Stainless Steel.

Cover gasket: Molded Silicone.



Basic references

Accessories



Internal bracket for inside adjustment thermostat



Silicone cap for thermostat adjustment hole



PA66, 6 way connection block



Brass fittings

Massive stainless steel fitting, for custom hole drilling

Deep drawn stainless steel fitting



9BBAE1000ELH008A



9BBJO1000004078A



BE6E6000000MP000

For full range and references of fittings, nuts and gaskets: immersion heater accessories. Available without holes or drilled upon request. Ask for references Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references



To access download documents, please Login/Register.  Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.

Downloads

TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.
