Aluminum enclosure, with transparent window cover, for immersion heater with 30 mm offset fitting, Y3G2
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
Dimensions | 182 × 132 × 144 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

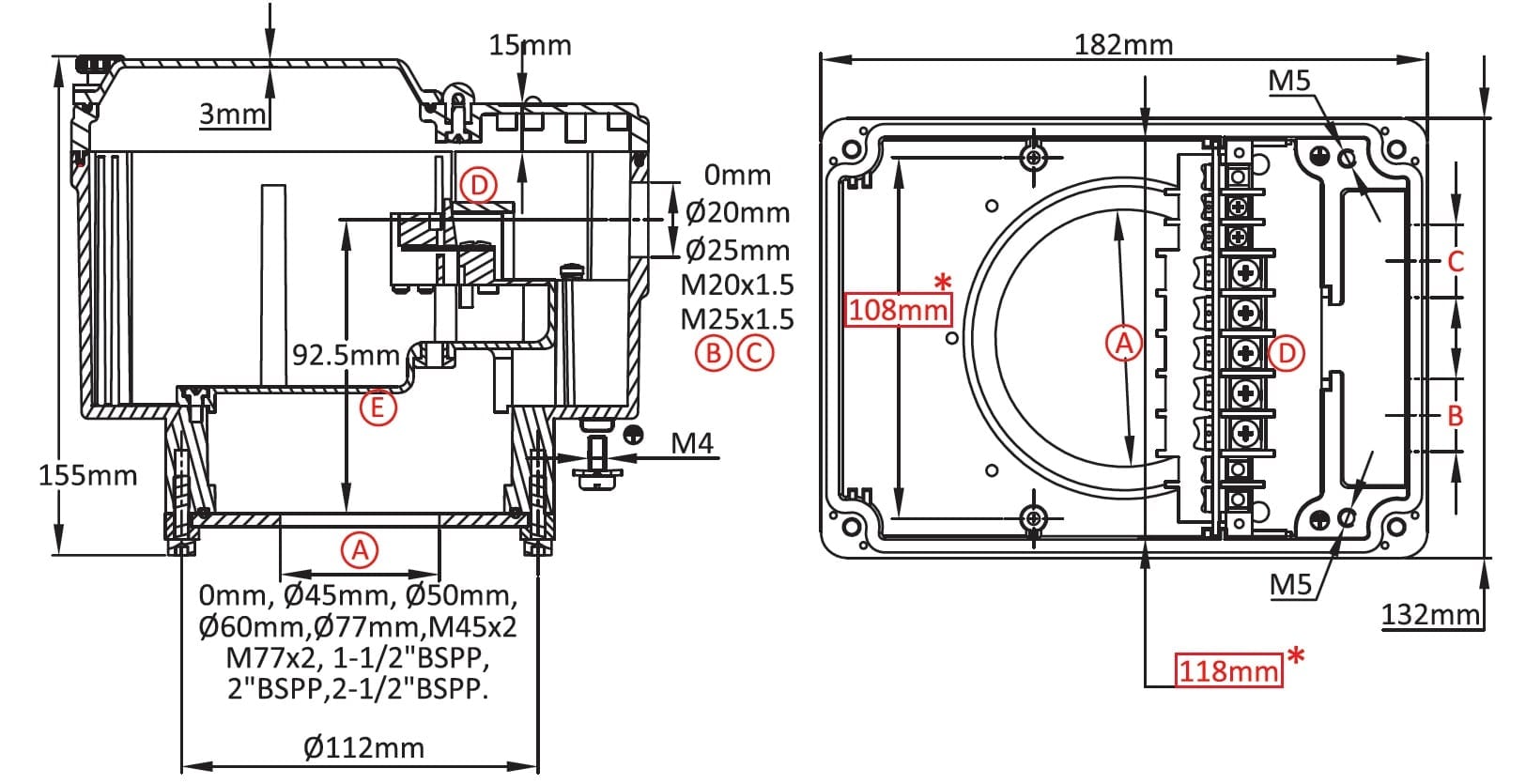

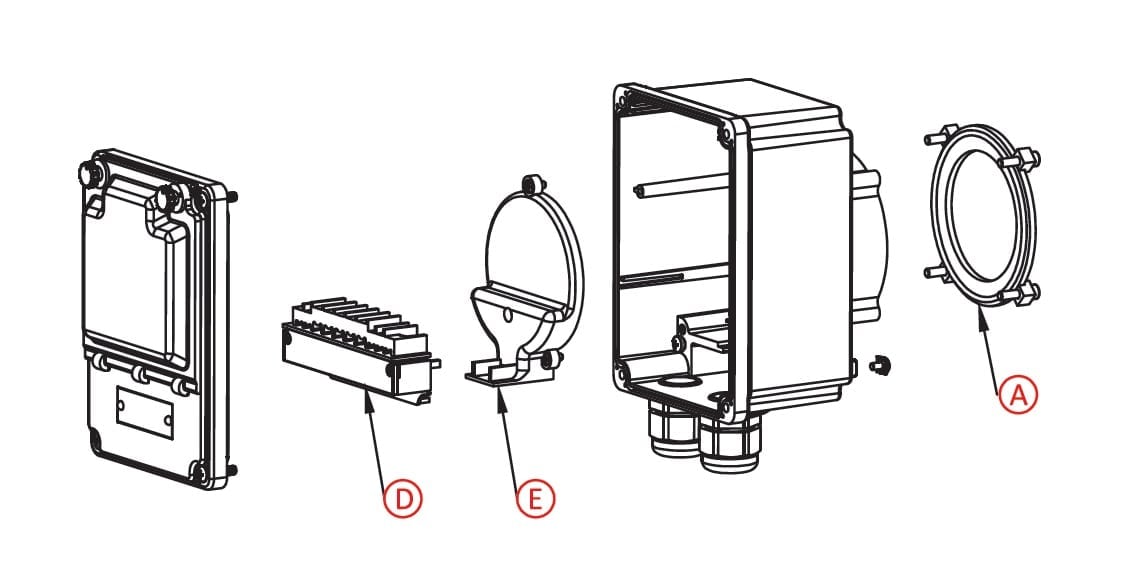

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

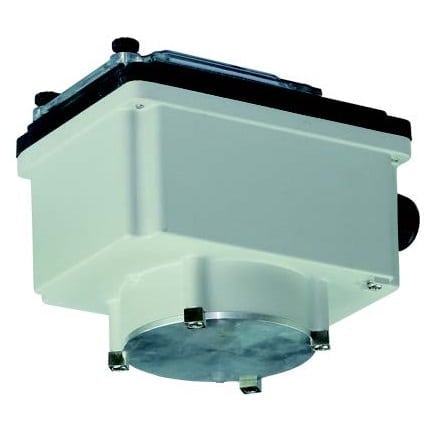

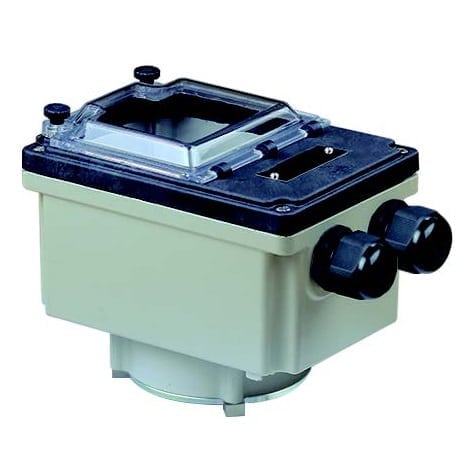

Aluminum and plastic composite enclosure, with transparent window cover, for immersion heater with 30 mm offset fitting
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
– Can receive a power contactor
– Can receive an internal connection block up to 12 ways and up to 10mm²
– Output by one or two M25 cable glands
Size: 182 x 132 x 144mm
Volume: 2575 cm³
Material: Aluminium with PA66 cover and polycarbonate transparent window
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3G20000000J1007 | Y3G20000000J100G |
0 | 20 | 0 | Y3G20000120J1007 | Y3G20000120J100G |
0 | 20 | 20 | Y3G20000220J1007 | Y3G20000220J100G |
0 | 25 | 0 | Y3G20000125J1007 | Y3G20000125J100G |
0 | 25 | 25 | Y3G20000225J1007 | Y3G20000225J100G |
0 | M20×1.5 | 0 | Y3G200001T0J1007 | Y3G200001T0J100G |
0 | M20×1.5 | M20×1.5 | Y3G200002T0J1007 | Y3G200002T0J100G |
0 | M25×1.5 | 0 | Y3G200001T5J1007 | Y3G200001T5J100G |
0 | M25×1.5 | M25×1.5 | Y3G200002T5J1007 | Y3G200002T5J100G |
45 | 0 | 0 | Y3G24500000J1007 | Y3G24500000J100G |
45 | 20 | 0 | Y3G24500120J1007 | Y3G24500120J100G |
45 | 20 | 20 | Y3G24500220J1007 | Y3G24500220J100G |
45 | 25 | 0 | Y3G24500125J1007 | Y3G24500125J100G |
45 | 25 | 25 | Y3G24500225J1007 | Y3G24500225J100G |
45 | M20×1.5 | 0 | Y3G245001T0J1007 | Y3G245001T0J100G |
45 | M20×1.5 | M20×1.5 | Y3G245002T0J1007 | Y3G245002T0J100G |
45 | M25×1.5 | 0 | Y3G245001T5J1007 | Y3G245001T5J100G |
45 | M25×1.5 | M25×1.5 | Y3G245002T5J1007 | Y3G245002T5J100G |
50 | 0 | 0 | Y3G25000000J1007 | Y3G25000000J100G |
50 | 20 | 0 | Y3G25000120J1007 | Y3G25000120J100G |
50 | 20 | 20 | Y3G25000220J1007 | Y3G25000220J100G |
50 | 25 | 0 | Y3G25000125J1007 | Y3G25000125J100G |
50 | 25 | 25 | Y3G25000225J1007 | Y3G25000225J100G |
50 | M20×1.5 | 0 | Y3G250001T0J1007 | Y3G250001T0J100G |
50 | M20×1.5 | M20×1.5 | Y3G250002T0J1007 | Y3G250002T0J100G |
50 | M25×1.5 | 0 | Y3G250001T5J1007 | Y3G250001T5J100G |
50 | M25×1.5 | M25×1.5 | Y3G250002T5J1007 | Y3G250002T5J100G |
60 | 0 | 0 | Y3G26000000J1007 | Y3G26000000J100G |
60 | 20 | 0 | Y3G26000120J1007 | Y3G26000120J100G |
60 | 20 | 20 | Y3G26000220J1007 | Y3G26000220J100G |
60 | 25 | 0 | Y3G26000125J1007 | Y3G26000125J100G |
60 | 25 | 25 | Y3G26000225J1007 | Y3G26000225J100G |
60 | M20×1.5 | 0 | Y3G260001T0J1007 | Y3G260001T0J100G |
60 | M20×1.5 | M20×1.5 | Y3G260002T0J1007 | Y3G260002T0J100G |
60 | M25×1.5 | 0 | Y3G260001T5J1007 | Y3G260001T5J100G |
60 | M25×1.5 | M25×1.5 | Y3G260002T5J1007 | Y3G260002T5J100G |
77 | 0 | 0 | Y3G27700000J1007 | Y3G27700000J100G |
77 | 20 | 0 | Y3G27700120J1007 | Y3G27700120J100G |
77 | 20 | 20 | Y3G27700220J1007 | Y3G27700220J100G |
77 | 25 | 0 | Y3G27700125J1007 | Y3G27700125J100G |
77 | 25 | 25 | Y3G27700225J1007 | Y3G27700225J100G |
77 | M20×1.5 | 0 | Y3G277001T0J1007 | Y3G277001T0J100G |
77 | M20×1.5 | M20×1.5 | Y3G277002T0J1007 | Y3G277002T0J100G |
77 | M25×1.5 | 0 | Y3G277001T5J1007 | Y3G277001T5J100G |
77 | M25×1.5 | M25×1.5 | Y3G277002T5J1007 | Y3G277002T5J100G |
M45×2 | 0 | 0 | Y3G2M450000J1007 | Y3G2M450000J100G |
M45×2 | 20 | 0 | Y3G2M450120J1007 | Y3G2M450120J100G |
M45×2 | 20 | 20 | Y3G2M450220J1007 | Y3G2M450220J100G |
M45×2 | 25 | 0 | Y3G2M450125J1007 | Y3G2M450125J100G |
M45×2 | 25 | 25 | Y3G2M450225J1007 | Y3G2M450225J100G |
M45×2 | M20×1.5 | 0 | Y3G2M4501T0J1007 | Y3G2M4501T0J100G |
M45×2 | M20×1.5 | M20×1.5 | Y3G2M4502T0J1007 | Y3G2M4502T0J100G |
M45×2 | M25×1.5 | 0 | Y3G2M4501T5J1007 | Y3G2M4501T5J100G |
M45×2 | M25×1.5 | M25×1.5 | Y3G2M4502T5J1007 | Y3G2M4502T5J100G |
M77×2 | 0 | 0 | Y3G2M770000J1007 | Y3G2M770000J100G |
M77×2 | 20 | 0 | Y3G2M770120J1007 | Y3G2M770120J100G |
M77×2 | 20 | 20 | Y3G2M770220J1007 | Y3G2M770220J100G |
M77×2 | 25 | 0 | Y3G2M770125J1007 | Y3G2M770125J100G |
M77×2 | 25 | 25 | Y3G2M770225J1007 | Y3G2M770225J100G |
M77×2 | M20×1.5 | 0 | Y3G2M7701T0J1007 | Y3G2M7701T0J100G |
M77×2 | M20×1.5 | M20×1.5 | Y3G2M7702T0J1007 | Y3G2M7702T0J100G |
M77×2 | M25×1.5 | 0 | Y3G2M7701T5J1007 | Y3G2M7701T5J100G |
M77×2 | M25×1.5 | M25×1.5 | Y3G2M7702T5J1007 | Y3G2M7702T5J100G |
1½”BSPP | 0 | 0 | Y3G2BA20000J1007 | Y3G2BA20000J100G |
1½”BSPP | 20 | 0 | Y3G2BA20120J1007 | Y3G2BA20120J100G |
1½”BSPP | 20 | 20 | Y3G2BA20220J1007 | Y3G2BA20220J100G |
1½”BSPP | 25 | 0 | Y3G2BA20125J1007 | Y3G2BA20125J100G |
1½”BSPP | 25 | 25 | Y3G2BA20225J1007 | Y3G2BA20225J100G |
1½”BSPP | M20×1.5 | 0 | Y3G2BA201T0J1007 | Y3G2BA201T0J100G |
1½”BSPP | M20×1.5 | M20×1.5 | Y3G2BA202T0J1007 | Y3G2BA202T0J100G |
1½”BSPP | M25×1.5 | 0 | Y3G2BA201T5J1007 | Y3G2BA201T5J100G |
1½”BSPP | M25×1.5 | M25×1.5 | Y3G2BA202T5J1007 | Y3G2BA202T5J100G |
2″BSPP | 0 | 0 | Y3G2BB20000J1007 | Y3G2BB20000J100G |
2″BSPP | 20 | 0 | Y3G2BB20120J1007 | Y3G2BB20120J100G |
2″BSPP | 20 | 20 | Y3G2BB20220J1007 | Y3G2BB20220J100G |
2″BSPP | 25 | 0 | Y3G2BB20125J1007 | Y3G2BB20125J100G |
2″BSPP | 25 | 25 | Y3G2BB20225J1007 | Y3G2BB20225J100G |
2″BSPP | M20×1.5 | 0 | Y3G2BB201T0J1007 | Y3G2BB201T0J100G |
2″BSPP | M20×1.5 | M20×1.5 | Y3G2BB202T0J1007 | Y3G2BB202T0J100G |
2″BSPP | M25×1.5 | 0 | Y3G2BB201T5J1007 | Y3G2BB201T5J100G |
2″BSPP | M25×1.5 | M25×1.5 | Y3G2BB202T5J1007 | Y3G2BB202T5J100G |
2½”BSPP | 0 | 0 | Y3G2BC20000J1007 | Y3G2BC20000J100G |
2½”BSPP | 20 | 0 | Y3G2BC20120J1007 | Y3G2BC20120J100G |
2½”BSPP | 20 | 20 | Y3G2BC20220J1007 | Y3G2BC20220J100G |
2½”BSPP | 25 | 0 | Y3G2BC20125J1007 | Y3G2BC20125J100G |
2½”BSPP | 25 | 25 | Y3G2BC20225J1007 | Y3G2BC20225J100G |
2½”BSPP | M20×1.5 | 0 | Y3G2BC201T0J1007 | Y3G2BC201T0J100G |
2½”BSPP | M20×1.5 | M20×1.5 | Y3G2BC202T0J1007 | Y3G2BC202T0J100G |
2½”BSPP | M25×1.5 | 0 | Y3G2BC201T5J1007 | Y3G2BC201T5J100G |
2½”BSPP | M25×1.5 | M25×1.5 | Y3G2BC202T5J1007 | Y3G2BC202T5J100G |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
