Immersion heater enclosure with extension, in PA66 and PC Y3F3

Aluminum enclosure, with transparent window cover, for immersion heater with 30 mm offset fitting, Y3G2
Aluminum enclosure, with polycarbonate cover, for immersion heater with 30 mm offset fitting, Y3G1
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
Dimensions | 182 × 132 × 130 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

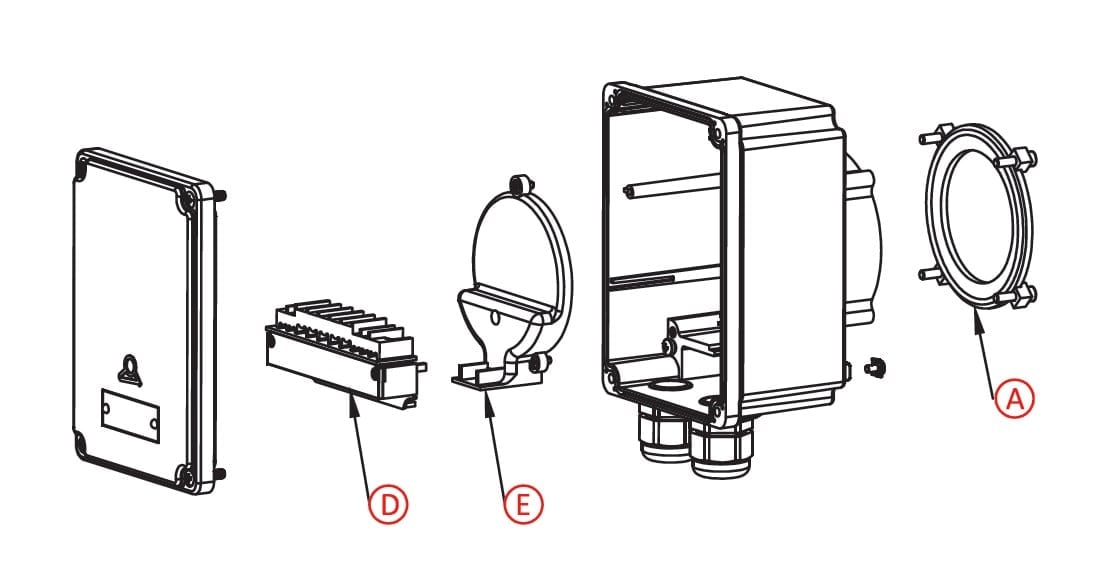

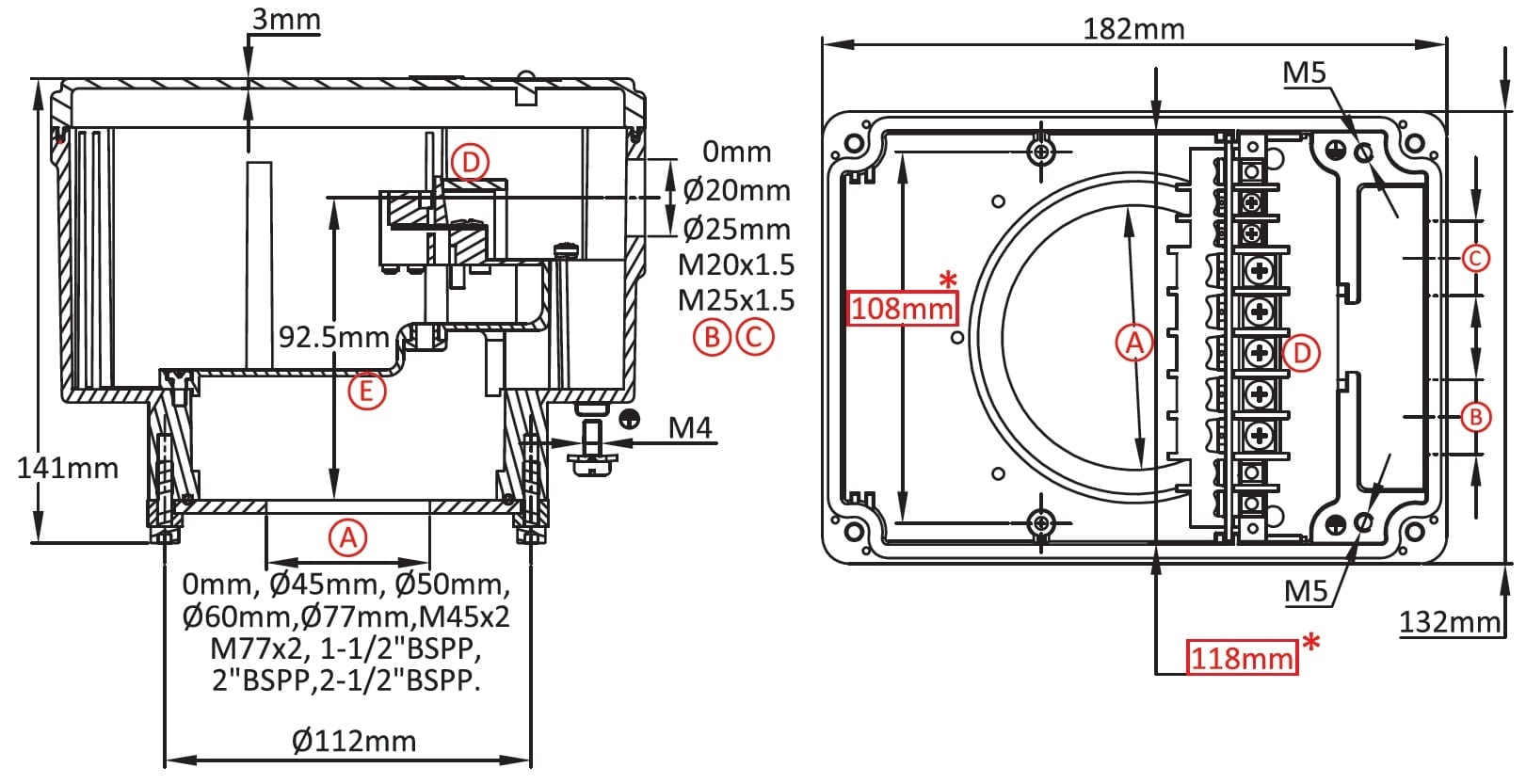

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

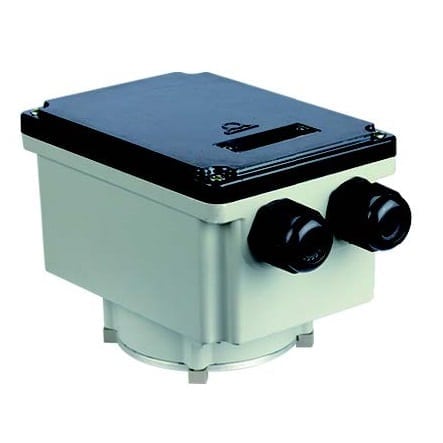

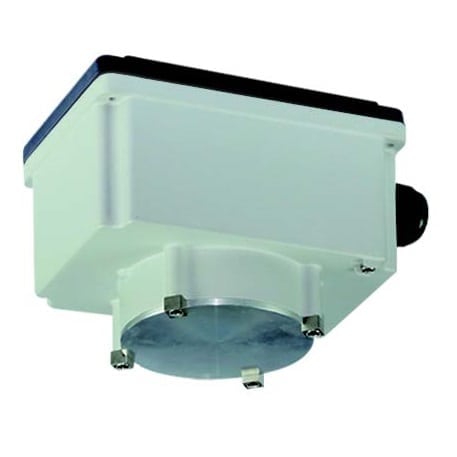

Aluminum and plastic composite enclosure, with polycarbonate cover, for immersion heater with 30 mm offset fitting
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
– Can receive a power contactor
– Can receive an internal connection block up to 12 ways and up to 10mm²
– Output by one or two M25 cable glands
Size: 182 x 132 x 130mm
Volume: 2435 cm³
Material: Aluminium with polycarbonate cover
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3G10000000J1007 | Y3G10000000J100G |
0 | 20 | 0 | Y3G10000120J1007 | Y3G10000120J100G |
0 | 20 | 20 | Y3G10000220J1007 | Y3G10000220J100G |
0 | 25 | 0 | Y3G10000125J1007 | Y3G10000125J100G |
0 | 25 | 25 | Y3G10000225J1007 | Y3G10000225J100G |
0 | M20×1.5 | 0 | Y3G100001T0J1007 | Y3G100001T0J100G |
0 | M20×1.5 | M20×1.5 | Y3G100002T0J1007 | Y3G100002T0J100G |
0 | M25×1.5 | 0 | Y3G100001T5J1007 | Y3G100001T5J100G |
0 | M25×1.5 | M25×1.5 | Y3G100002T5J1007 | Y3G100002T5J100G |
45 | 0 | 0 | Y3G14500000J1007 | Y3G14500000J100G |
45 | 20 | 0 | Y3G14500120J1007 | Y3G14500120J100G |
45 | 20 | 20 | Y3G14500220J1007 | Y3G14500220J100G |
45 | 25 | 0 | Y3G14500125J1007 | Y3G14500125J100G |
45 | 25 | 25 | Y3G14500225J1007 | Y3G14500225J100G |
45 | M20×1.5 | 0 | Y3G145001T0J1007 | Y3G145001T0J100G |
45 | M20×1.5 | M20×1.5 | Y3G145002T0J1007 | Y3G145002T0J100G |
45 | M25×1.5 | 0 | Y3G145001T5J1007 | Y3G145001T5J100G |
45 | M25×1.5 | M25×1.5 | Y3G145002T5J1007 | Y3G145002T5J100G |
50 | 0 | 0 | Y3G15000000J1007 | Y3G15000000J100G |
50 | 20 | 0 | Y3G15000120J1007 | Y3G15000120J100G |
50 | 20 | 20 | Y3G15000220J1007 | Y3G15000220J100G |
50 | 25 | 0 | Y3G15000125J1007 | Y3G15000125J100G |
50 | 25 | 25 | Y3G15000225J1007 | Y3G15000225J100G |
50 | M20×1.5 | 0 | Y3G150001T0J1007 | Y3G150001T0J100G |
50 | M20×1.5 | M20×1.5 | Y3G150002T0J1007 | Y3G150002T0J100G |
50 | M25×1.5 | 0 | Y3G150001T5J1007 | Y3G150001T5J100G |
50 | M25×1.5 | M25×1.5 | Y3G150002T5J1007 | Y3G150002T5J100G |
60 | 0 | 0 | Y3G16000000J1007 | Y3G16000000J100G |
60 | 20 | 0 | Y3G16000120J1007 | Y3G16000120J100G |
60 | 20 | 20 | Y3G16000220J1007 | Y3G16000220J100G |
60 | 25 | 0 | Y3G16000125J1007 | Y3G16000125J100G |
60 | 25 | 25 | Y3G16000225J1007 | Y3G16000225J100G |
60 | M20×1.5 | 0 | Y3G160001T0J1007 | Y3G160001T0J100G |
60 | M20×1.5 | M20×1.5 | Y3G160002T0J1007 | Y3G160002T0J100G |
60 | M25×1.5 | 0 | Y3G160001T5J1007 | Y3G160001T5J100G |
60 | M25×1.5 | M25×1.5 | Y3G160002T5J1007 | Y3G160002T5J100G |
77 | 0 | 0 | Y3G17700000J1007 | Y3G17700000J100G |
77 | 20 | 0 | Y3G17700120J1007 | Y3G17700120J100G |
77 | 20 | 20 | Y3G17700220J1007 | Y3G17700220J100G |
77 | 25 | 0 | Y3G17700125J1007 | Y3G17700125J100G |
77 | 25 | 25 | Y3G17700225J1007 | Y3G17700225J100G |
77 | M20×1.5 | 0 | Y3G177001T0J1007 | Y3G177001T0J100G |
77 | M20×1.5 | M20×1.5 | Y3G177002T0J1007 | Y3G177002T0J100G |
77 | M25×1.5 | 0 | Y3G177001T5J1007 | Y3G177001T5J100G |
77 | M25×1.5 | M25×1.5 | Y3G177002T5J1007 | Y3G177002T5J100G |
M45×2 | 0 | 0 | Y3G1M450000J1007 | Y3G1M450000J100G |
M45×2 | 20 | 0 | Y3G1M450120J1007 | Y3G1M450120J100G |
M45×2 | 20 | 20 | Y3G1M450220J1007 | Y3G1M450220J100G |
M45×2 | 25 | 0 | Y3G1M450125J1007 | Y3G1M450125J100G |
M45×2 | 25 | 25 | Y3G1M450225J1007 | Y3G1M450225J100G |
M45×2 | M20×1.5 | 0 | Y3G1M4501T0J1007 | Y3G1M4501T0J100G |
M45×2 | M20×1.5 | M20×1.5 | Y3G1M4502T0J1007 | Y3G1M4502T0J100G |
M45×2 | M25×1.5 | 0 | Y3G1M4501T5J1007 | Y3G1M4501T5J100G |
M45×2 | M25×1.5 | M25×1.5 | Y3G1M4502T5J1007 | Y3G1M4502T5J100G |
M77×2 | 0 | 0 | Y3G1M770000J1007 | Y3G1M770000J100G |
M77×2 | 20 | 0 | Y3G1M770120J1007 | Y3G1M770120J100G |
M77×2 | 20 | 20 | Y3G1M770220J1007 | Y3G1M770220J100G |
M77×2 | 25 | 0 | Y3G1M770125J1007 | Y3G1M770125J100G |
M77×2 | 25 | 25 | Y3G1M770225J1007 | Y3G1M770225J100G |
M77×2 | M20×1.5 | 0 | Y3G1M7701T0J1007 | Y3G1M7701T0J100G |
M77×2 | M20×1.5 | M20×1.5 | Y3G1M7702T0J1007 | Y3G1M7702T0J100G |
M77×2 | M25×1.5 | 0 | Y3G1M7701T5J1007 | Y3G1M7701T5J100G |
M77×2 | M25×1.5 | M25×1.5 | Y3G1M7702T5J1007 | Y3G1M7702T5J100G |
1½”BSPP | 0 | 0 | Y3G1BA20000J1007 | Y3G1BA20000J100G |
1½”BSPP | 20 | 0 | Y3G1BA20120J1007 | Y3G1BA20120J100G |
1½”BSPP | 20 | 20 | Y3G1BA20220J1007 | Y3G1BA20220J100G |
1½”BSPP | 25 | 0 | Y3G1BA20125J1007 | Y3G1BA20125J100G |
1½”BSPP | 25 | 25 | Y3G1BA20225J1007 | Y3G1BA20225J100G |
1½”BSPP | M20×1.5 | 0 | Y3G1BA201T0J1007 | Y3G1BA201T0J100G |
1½”BSPP | M20×1.5 | M20×1.5 | Y3G1BA202T0J1007 | Y3G1BA202T0J100G |
1½”BSPP | M25×1.5 | 0 | Y3G1BA201T5J1007 | Y3G1BA201T5J100G |
1½”BSPP | M25×1.5 | M25×1.5 | Y3G1BA202T5J1007 | Y3G1BA202T5J100G |
2″BSPP | 0 | 0 | Y3G1BB20000J1007 | Y3G1BB20000J100G |
2″BSPP | 20 | 0 | Y3G1BB20120J1007 | Y3G1BB20120J100G |
2″BSPP | 20 | 20 | Y3G1BB20220J1007 | Y3G1BB20220J100G |
2″BSPP | 25 | 0 | Y3G1BB20125J1007 | Y3G1BB20125J100G |
2″BSPP | 25 | 25 | Y3G1BB20225J1007 | Y3G1BB20225J100G |
2″BSPP | M20×1.5 | 0 | Y3G1BB201T0J1007 | Y3G1BB201T0J100G |
2″BSPP | M20×1.5 | M20×1.5 | Y3G1BB202T0J1007 | Y3G1BB202T0J100G |
2″BSPP | M25×1.5 | 0 | Y3G1BB201T5J1007 | Y3G1BB201T5J100G |
2″BSPP | M25×1.5 | M25×1.5 | Y3G1BB202T5J1007 | Y3G1BB202T5J100G |
2½”BSPP | 0 | 0 | Y3G1BC20000J1007 | Y3G1BC20000J100G |
2½”BSPP | 20 | 0 | Y3G1BC20120J1007 | Y3G1BC20120J100G |
2½”BSPP | 20 | 20 | Y3G1BC20220J1007 | Y3G1BC20220J100G |
2½”BSPP | 25 | 0 | Y3G1BC20125J1007 | Y3G1BC20125J100G |
2½”BSPP | 25 | 25 | Y3G1BC20225J1007 | Y3G1BC20225J100G |
2½”BSPP | M20×1.5 | 0 | Y3G1BC201T0J1007 | Y3G1BC201T0J100G |
2½”BSPP | M20×1.5 | M20×1.5 | Y3G1BC202T0J1007 | Y3G1BC202T0J100G |
2½”BSPP | M25×1.5 | 0 | Y3G1BC201T5J1007 | Y3G1BC201T5J100G |
2½”BSPP | M25×1.5 | M25×1.5 | Y3G1BC202T5J1007 | Y3G1BC202T5J100G |
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Aluminum enclosure, with transparent window cover, for immersion heater with 120 mm offset fitting, Y3J2
- Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring) - Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
-
Stainless steel Immersion heater or temperature sensor, flat cover, Y3SA
- Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2 - Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat - Hole for one M25 cable gland, or holes for one…
-
Medium size enclosure for immersion heater, finned heaters with external adjustment knob, Y3P4
- Cover has deep recess for protected external knob, access from front or side of cover - Can receive backside holes for 1"1/4, 1"1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring - Can accommodate wall mounting brackets - Can also receive back side holes for finned heating elements…
-
Large size enclosure for immersion heater, finned heaters or controls, Y3P5
- Can receive backside holes for 1"1/4, 1"1/2, M45x2, 2″, 2″1/2 and M77x2, fittings with double thread and inner nut, or single thread with rotating ring. - Can accommodate stainless steel wall mounting brackets -Can also receive back side holes for finned heating elements - Output by one, two or three M20 or M25 cable…
-
Stainless steel immersion heater enclosure with built-in hexagon for fitting, Y3S4
- High lid - Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut - Can be used with 1 ″1/4 or 1 ″1/2 or M45 TIG welded fittings - Hole for M20 cable gland - Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting,…
-
Stainless steel big size enclosure for immersion heater with built-in hexagon, Y3S8
- Bottom side with stamped 58mm on flat hexagon, for 1 ″1/4, 1 ″1/2 or M45 TIG welded fittings - Hole for one M25 cable gland, or holes for one M25 and two M16 - Optional hole for pilot light - Can receive one or two power relays
-
Stainless steel big size enclosure for immersion heater or temperature sensor, Y3S7
Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2 - Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat - Hole for one M25 cable gland, or holes for one M25…
-
Enclosure for small storage heater immersion heater, Y3L4
- Flat lid - Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut - Hole for M20 cable gland - Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting, with 54 mm on flat hexagon
