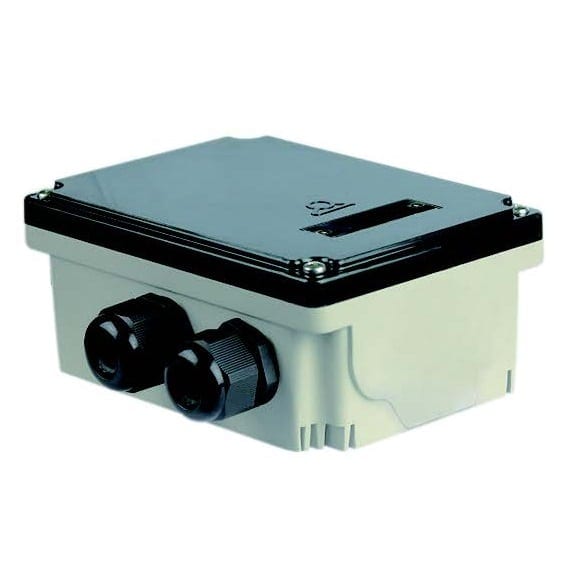

Aluminum enclosure, black or transparent polycarbonate cover, for immersion heater or solid state relays (SSR) controls, Y3H1

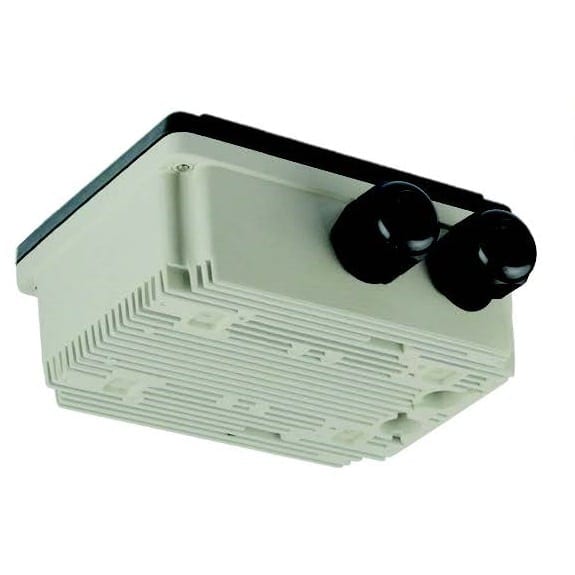

– The rear side has fins to cool the solid state relays
– Size compatible with 3-pole static relay or 4 single pole solid state relays
– Includes slides for printed circuits

Dimensions	81 × 132 × 182 mm
Ingress protection	IP69K
Housing raw material	Aluminum, PC
Volume (cm³)	1870

SKU: Y3H1 Categories: Metallic housings, Immersion heater housings Tags: SSR, Solid state relays, immersion heater, enclosure, IP69K, PC, Aluminium, transparent cover, IK10

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main features

Enclosure with aluminum body, black or transparent polycarbonate cover, for immersion heater or solid state relays (SSR) controls
– The rear side has fins to cool the solid state relays
– Size compatible with 3-pole static relay or 4 single pole solid state relays
– Includes slides for printed circuits
– The 96x132mm face can receive piercing for 1 “1/4, 1” 1/2 and M45x2 fittings, double thread and inner nut, or single twist ring thread
– Output from one, two or three M20 or M25 cable glands on 182 x 96mm faces

Size: 81 x 132 x 182mm

Volume: 1870 cm³

Material: Aluminium with black or transparent polycarbonate cover

Ingress protection: IP69K

Mechanical impact resistance: IK10

Main references

Show references

A (mm)	B (mm)	C (mm)	Not painted	Painted
0	0	0	Y3H1000000000007	Y3H100000000000G
0	20	0	Y3H1000012000007	Y3H100001200000G
0	20	20	Y3H1000022000007	Y3H100002200000G
0	25	0	Y3H1000012500007	Y3H100001250000G
0	25	25	Y3H1000022500007	Y3H100002250000G
0	M20*1.5	0	Y3H100001T000007	Y3H100001T00000G
0	M20*1.5	M20*1.5	Y3H100002T000007	Y3H100002T00000G
0	M25*1.5	0	Y3H100001T500007	Y3H100001T50000G
0	M25*1.5	M25*1.5	Y3H100002T500007	Y3H100002T50000G
45	0	0	Y3H1450000000007	Y3H145000000000G
45	20	0	Y3H1450012000007	Y3H145001200000G
45	20	20	Y3H1450022000007	Y3H145002200000G
45	25	0	Y3H1450012500007	Y3H145001250000G
45	25	25	Y3H1450022500007	Y3H145002250000G
45	M20*1.5	0	Y3H145001T000007	Y3H145001T00000G
45	M20*1.5	M20*1.5	Y3H145002T000007	Y3H145002T00000G
45	M25*1.5	0	Y3H145001T500007	Y3H145001T50000G
45	M25*1.5	M25*1.5	Y3H145002T500007	Y3H145002T50000G
50	0	0	Y3H1500000000007	Y3H150000000000G
50	20	0	Y3H1500012000007	Y3H150001200000G
50	20	20	Y3H1500022000007	Y3H150002200000G
50	25	0	Y3H1500012500007	Y3H150001250000G
50	25	25	Y3H1500022500007	Y3H150002250000G
50	M20*1.5	0	Y3H150001T000007	Y3H150001T00000G
50	M20*1.5	M20*1.5	Y3H150002T000007	Y3H150002T00000G
50	M25*1.5	0	Y3H150001T500007	Y3H150001T50000G
50	M25*1.5	M25*1.5	Y3H150002T500007	Y3H150002T50000G
M45*2	0	0	Y3H1M45000000007	Y3H1M4500000000G
M45*2	20	0	Y3H1M45012000007	Y3H1M4501200000G
M45*2	20	20	Y3H1M45022000007	Y3H1M4502200000G
M45*2	25	0	Y3H1M45012500007	Y3H1M4501250000G
M45*2	25	25	Y3H1M45022500007	Y3H1M4502250000G
M45*2	M20*1.5	0	Y3H1M4501T000007	Y3H1M4501T00000G
M45*2	M20*1.5	M20*1.5	Y3H1M4502T000007	Y3H1M4502T00000G
M45*2	M25*1.5	0	Y3H1M4501T500007	Y3H1M4501T50000G
M45*2	M25*1.5	M25*1.5	Y3H1M4502T500007	Y3H1M4502T50000G
1½”BSPP	0	0	Y3H1BA2000000007	Y3H1BA200000000G
1½”BSPP	20	0	Y3H1BA2012000007	Y3H1BA201200000G
1½”BSPP	20	20	Y3H1BA2022000007	Y3H1BA202200000G
1½”BSPP	25	0	Y3H1BA2012500007	Y3H1BA201250000G
1½”BSPP	25	25	Y3H1BA2022500007	Y3H1BA202250000G
1½”BSPP	M20*1.5	0	Y3H1BA201T000007	Y3H1BA201T00000G
1½”BSPP	M20*1.5	M20*1.5	Y3H1BA202T000007	Y3H1BA202T00000G
1½”BSPP	M25*1.5	0	Y3H1BA201T500007	Y3H1BA201T50000G
1½”BSPP	M25*1.5	M25*1.5	Y3H1BA202T500007	Y3H1BA202T50000G

Cable gland not included in these reference, consult us if you want them.

3D models are available on request under .stp format

Downloads

Datasheet

Y3H1 Datasheet

Drawings

Y3H1 drawing (.dwg)

Technical informations associated to this product

Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
Raw materials
Introduction to the use of solid state relays (SSR) and comparison with electromechanical relays
The solid state relay, also called solid state contactor or SSR (English acronym for Solid State Relay) is the electronic equivalent of the electromechanical power contactor.
