Stainless steel medium size enclosure for immersion heater or temperature sensor, Y3S5

Stainless steel big size enclosure for immersion heater or temperature sensor, Y3S7

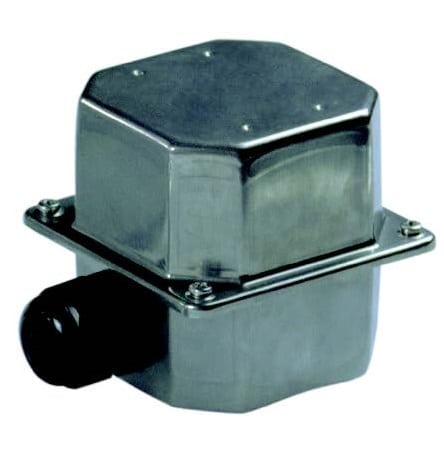

Stainless steel medium size immersion heater enclosure with built-in hexagon for fitting, Y3S6
– Bottom side with stamped hexagon 58mm on flat, for 1″1/4 or 1″1/2 or M45 TIG welded fittings
– Hole for M25 cable gland
Dimensions | 105 × 105 × 110 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description
Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

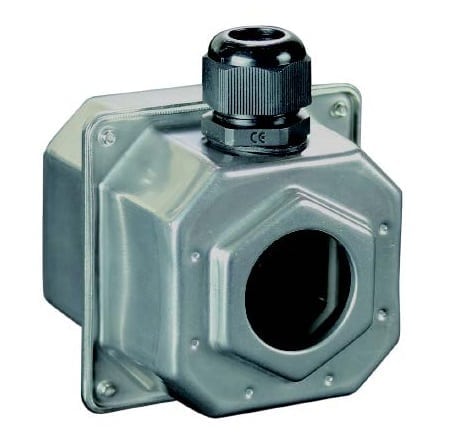

Medium size immersion heater enclosure with built-in hexagon for fitting
– Bottom side with stamped hexagon 58mm on flat, for 1″1/4 or 1″1/2 or M45 TIG welded fittings
– Hole for M25 cable gland
Size: 105 x 105 x 110 mm
Volume: 781 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | 304 | 316 |
0 | 40.6 | 0 | Y3S64060000G1008 | Y3S64060000G1009 |
0 | 40.6 | 10 | Y3S6406A000G1008 | Y3S6406A000G1009 |
0 | 40.6 | 23.5 | Y3S6406D000G1008 | Y3S6406D000G1009 |
20 | 40.6 | 0 | Y3S64060120G1008 | Y3S64060120G1009 |
20 | 40.6 | 10 | Y3S6406A120G1008 | Y3S6406A120G1009 |
20 | 40.6 | 23.5 | Y3S6406D120G1008 | Y3S6406D120G1009 |
25 | 40.6 | 0 | Y3S64060125G1008 | Y3S64060125G1009 |
25 | 40.6 | 10 | Y3S6406A125G1008 | Y3S6406A125G1009 |
25 | 40.6 | 23.5 | Y3S6406D125G1008 | Y3S6406D125G1009 |
Cable gland not included in these reference, consult us if you want them.
Accessories
Internal bracket for inside adjustment thermostat |
Silicone cap for thermostat adjustment hole |
PA66, 6 way connection block |
Brass fittings |
Massive stainless steel fitting, for custom hole drilling |
Deep drawn stainless steel fitting |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
9BBAE1000ELH008A |
9BBJO1000004078A |
BE6E6000000MP000 |
For full range and references of fittings, nuts and gaskets: immersion heater accessories. | Available without holes or drilled upon request. Ask for references | Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references |
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes, Y3TB
- Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 80mm tubes. - Hole for one M25 cable gland, or holes for one M25 and two M16 - Optional hole for pilot light
-
Medium size enclosure for immersion heater, finned heaters with external adjustment knob, Y3P4
- Cover has deep recess for protected external knob, access from front or side of cover - Can receive backside holes for 1"1/4, 1"1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring - Can accommodate wall mounting brackets - Can also receive back side holes for finned heating elements…
-
Stainless steel big size enclosure for immersion heater or temperature sensor, Y3S7
Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2 - Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat - Hole for one M25 cable gland, or holes for one M25…
-
Medium size enclosure for immersion heater, finned heaters or controls, Y3P3
- Can receive backside holes for 1"1/4, 1"1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring - Can accommodate stainless steel wall mounting brackets - Output by one or two M20 or M25 cable glands
-
Small size enclosure for immersion heater, finned heaters or controls, Y3P1
- Can receive backside holes for 1"1/4, 1"1/2 and M45x2 fittings with double thread and inner nut, or single thread with rotating ring - Can also receive back side holes for finned heating elements - Output by one or two M20 or M25 cable glands
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Surface engineering of metallic housing
Surface condition is an essential parameter of resistance against atmospheric corrosion. Both aluminum and stainless steel naturally form a protective oxide layer on the surface. Corrosion occurs only when this protective oxide layer is crossed or destroyed. Microcavities of a rough surface allow atmospheric pollutants to initiate local oxidative conditions. This is particularly critical when these pollutants have a different galvanic potential. For example, iron or iron oxide dust can create favourable conditions for perforating corrosion in stainless steel, as well as zinc in the case of aluminum. It is important that the surface of the metal, if exposed to the weather, be smooth so that these pollutants slide and escape naturally.
