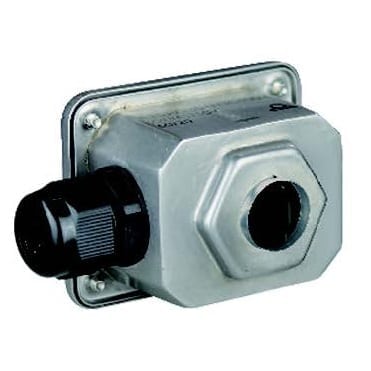

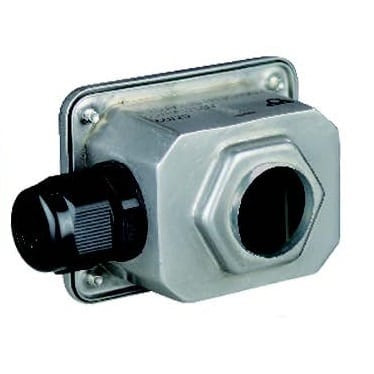

Miniature enclosure for temperature sensor or level sensor, Y3L2
– Flat lid
– Bottom side with stamped hexagon 35mm on flat, for TIG welded ½ ″ or ¾ ″ fittings
– Hole for M20 cable gland
Dimensions | 75 × 60 × 44 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

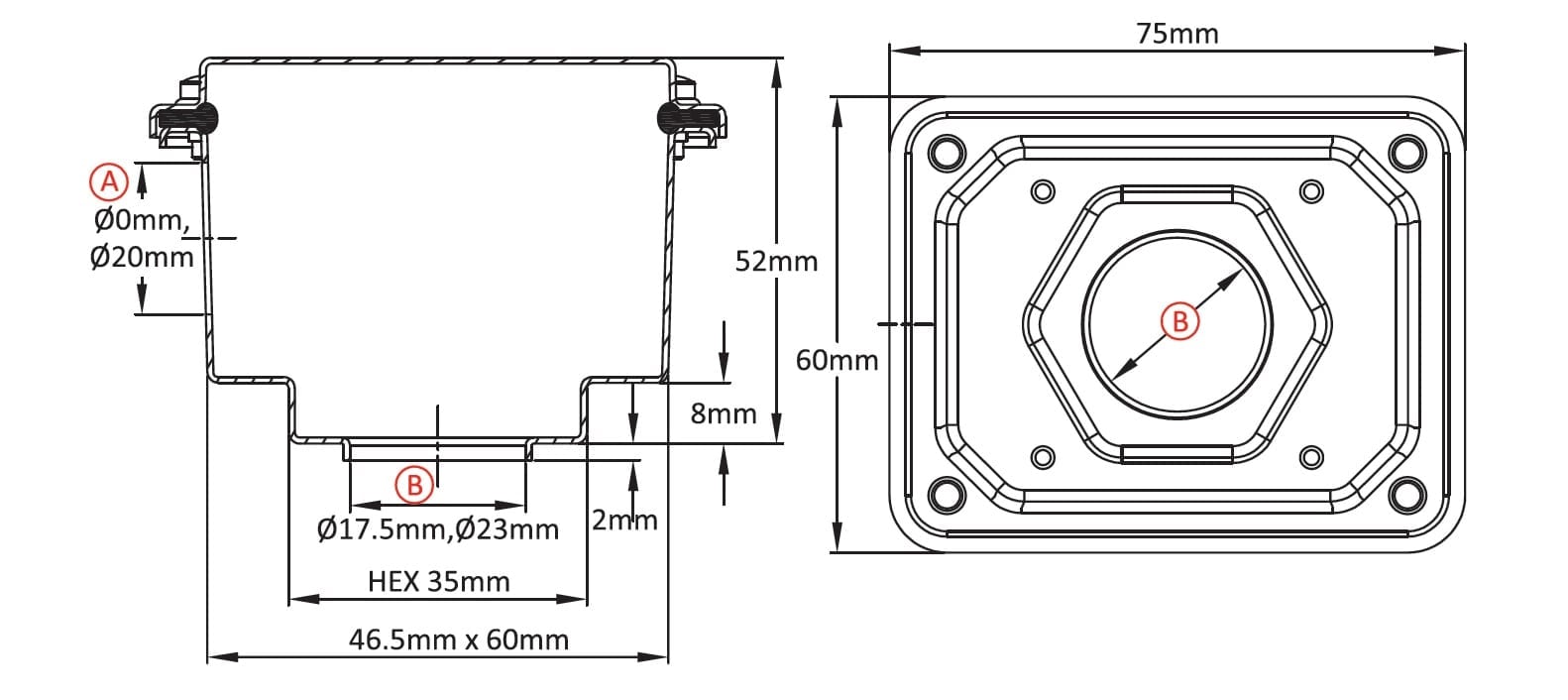

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Miniature enclosure for temperature sensor or level sensor
– Flat lid
– Bottom side with stamped hexagon 35mm on flat, for TIG welded ½ ″ or ¾ ″ fittings
– Hole for M20 cable gland
Size: 75 x 60 x 52 mm
Volume: 119 cm³
Material: Stainless steel 304 or 316
Ingress protection: IP69K
Mechanical impact resistance: IK7
Main references
A (mm) | B(mm) | 304 | 316 |
0 | 17.5 | Y3L2175000000008 | Y3L2175000000009 |
0 | 23 | Y3L2230000000008 | Y3L2230000000009 |
20 | 17.5 | Y3L2175120000008 | Y3L2175120000009 |
20 | 23 | Y3L2230120000008 | Y3L2230120000009 |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
