Large size enclosure for immersion heater, finned heaters or controls, Y3P5
– Can receive backside holes for 1″1/4, 1″1/2, M45x2, 2″, 2″1/2 and M77x2, fittings with double thread and inner nut, or single thread with rotating ring.
– Can accommodate stainless steel wall mounting brackets
-Can also receive back side holes for finned heating elements
– Output by one, two or three M20 or M25 cable glands
Dimensions | 92 × 124 × 159 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

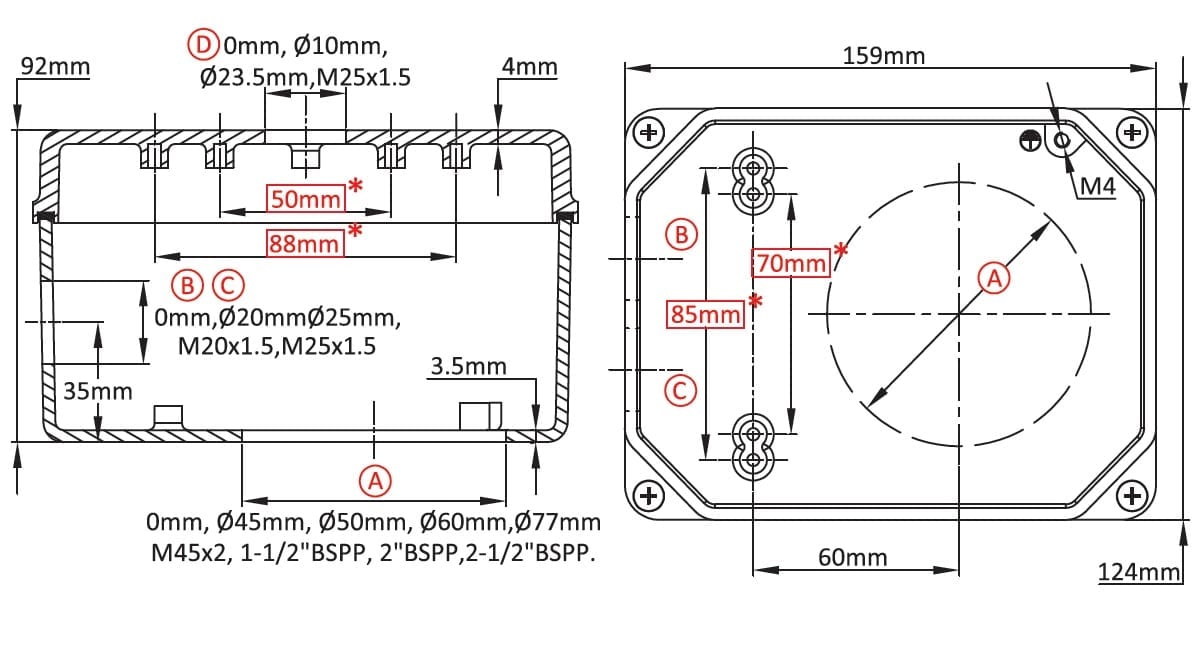

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

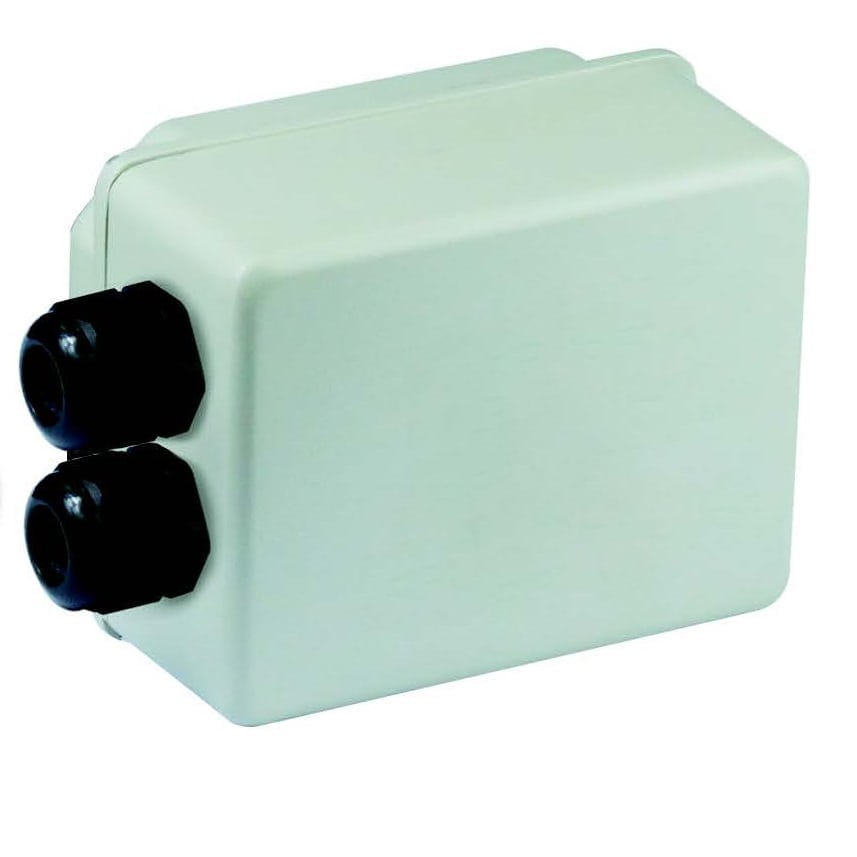

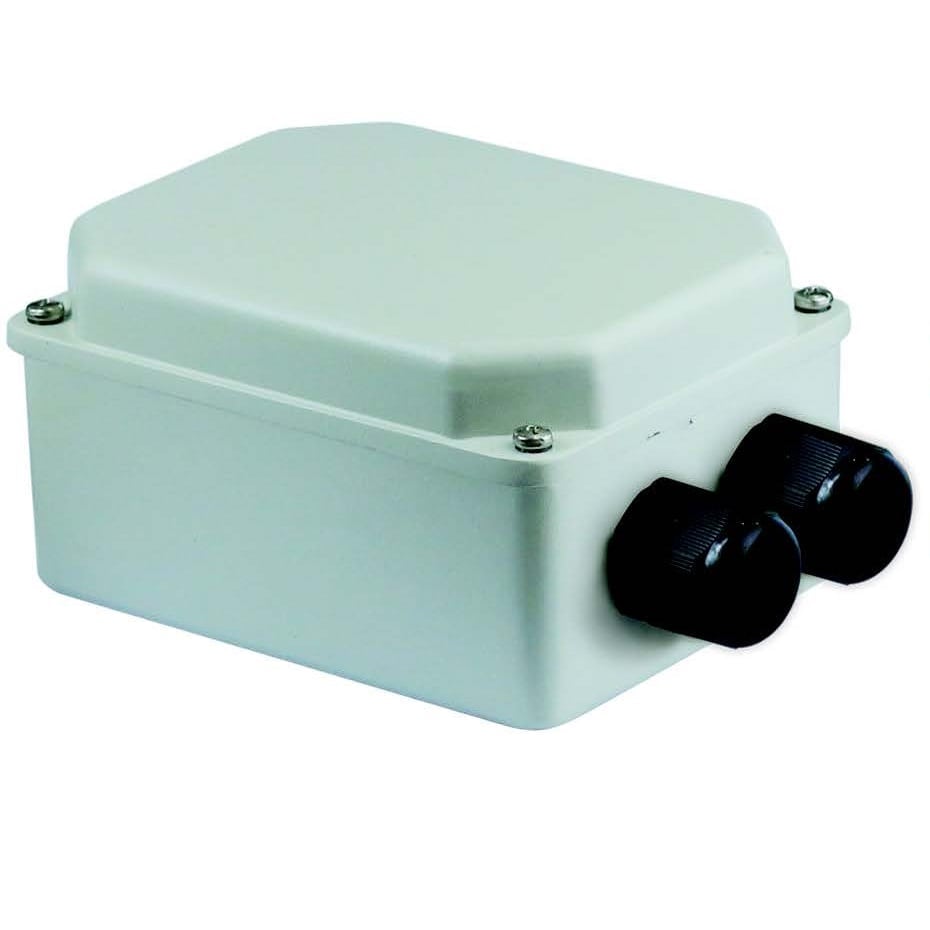

Large size enclosure for immersion heater, finned heaters or controls
– Can receive backside holes for 1″1/4, 1″1/2, M45x2, 2″, 2″1/2 and M77x2, fittings with double thread and inner nut, or single thread with rotating ring.
– Can accommodate stainless steel wall mounting brackets
-Can also receive back side holes for finned heating elements
– Output by one, two or three M20 or M25 cable glands
Size: 92 x 124 x 159 mm
Volume: 1790 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | D (mm) | Not painted | Painted |
0 | M25*1.5 | M25*1.5 | 10 | Y3P5000A2T500007 | Y3P5000A2T50000G |
0 | M25*1.5 | M25*1.5 | 23.5 | Y3P5000D2T500007 | Y3P5000D2T50000G |
0 | M25*1.5 | M25*1.5 | M25*1.5 | Y3P5000F2T500007 | Y3P5000F2T50000G |
45 | 0 | 0 | 0 | Y3P5450000000007 | Y3P545000000000G |
45 | 0 | 0 | 10 | Y3P5450A00000007 | Y3P5450A0000000G |
45 | 0 | 0 | 23.5 | Y3P5450D00000007 | Y3P5450D0000000G |
45 | 0 | 0 | M25*1.5 | Y3P5450F00000007 | Y3P5450F0000000G |
45 | 20 | 20 | 0 | Y3P5450022000007 | Y3P545002200000G |
45 | 20 | 20 | 10 | Y3P5450A22000007 | Y3P5450A2200000G |
45 | 20 | 20 | 23.5 | Y3P5450D22000007 | Y3P5450D2200000G |
45 | 20 | 20 | M25*1.5 | Y3P5450F22000007 | Y3P5450F2200000G |
45 | 25 | 25 | 0 | Y3P5450022500007 | Y3P545002250000G |
45 | 25 | 25 | 10 | Y3P5450A22500007 | Y3P5450A2250000G |
45 | 25 | 25 | 23.5 | Y3P5450D22500007 | Y3P5450D2250000G |
45 | 25 | 25 | M25*1.5 | Y3P5450F22500007 | Y3P5450F2250000G |
45 | M20*1.5 | M20*1.5 | 0 | Y3P545002T000007 | Y3P545002T00000G |
45 | M20*1.5 | M20*1.5 | 10 | Y3P5450A2T000007 | Y3P5450A2T00000G |
M45*2 | 20 | 20 | M25*1.5 | Y3P5M45F22000007 | Y3P5M45F2200000G |
M45*2 | 25 | 25 | 0 | Y3P5M45022500007 | Y3P5M4502250000G |
M45*2 | 25 | 25 | 10 | Y3P5M45A22500007 | Y3P5M45A2250000G |
M45*2 | 25 | 25 | 23.5 | Y3P5M45D22500007 | Y3P5M45D2250000G |
M45*2 | 25 | 25 | M25*1.5 | Y3P5M45F22500007 | Y3P5M45F2250000G |
M45*2 | M20*1.5 | M20*1.5 | 0 | Y3P5M4502T000007 | Y3P5M4502T00000G |
M45*2 | M20*1.5 | M20*1.5 | 10 | Y3P5M45A2T000007 | Y3P5M45A2T00000G |
M45*2 | M20*1.5 | M20*1.5 | 23.5 | Y3P5M45D2T000007 | Y3P5M45D2T00000G |
M45*2 | M20*1.5 | M20*1.5 | M25*1.5 | Y3P5M45F2T000007 | Y3P5M45F2T00000G |
M45*2 | M25*1.5 | M25*1.5 | 0 | Y3P5M4502T500007 | Y3P5M4502T50000G |
M45*2 | M25*1.5 | M25*1.5 | 10 | Y3P5M45A2T500007 | Y3P5M45A2T50000G |
M45*2 | M25*1.5 | M25*1.5 | 23.5 | Y3P5M45D2T500007 | Y3P5M45D2T50000G |
M45*2 | M25*1.5 | M25*1.5 | M25*1.5 | Y3P5M45F2T500007 | Y3P5M45F2T50000G |
1½”BSPP | 0 | 0 | 0 | Y3P5BA2000000007 | Y3P5BA200000000G |
1½”BSPP | 0 | 0 | 10 | Y3P5BA2A00000007 | Y3P5BA2A0000000G |
1½”BSPP | 0 | 0 | 23.5 | Y3P5BA2D00000007 | Y3P5BA2D0000000G |
1½”BSPP | 0 | 0 | M25*1.5 | Y3P5BA2F00000007 | Y3P5BA2F0000000G |
1½”BSPP | 20 | 20 | 0 | Y3P5BA2022000007 | Y3P5BA202200000G |
1½”BSPP | 20 | 20 | 10 | Y3P5BA2A22000007 | Y3P5BA2A2200000G |
1½”BSPP | 20 | 20 | 23.5 | Y3P5BA2D22000007 | Y3P5BA2D2200000G |
1½”BSPP | 20 | 20 | M25*1.5 | Y3P5BA2F22000007 | Y3P5BA2F2200000G |
1½”BSPP | 25 | 25 | 0 | Y3P5BA2022500007 | Y3P5BA202250000G |
1½”BSPP | 25 | 25 | 10 | Y3P5BA2A22500007 | Y3P5BA2A2250000G |
1½”BSPP | 25 | 25 | 23.5 | Y3P5BA2D22500007 | Y3P5BA2D2250000G |
1½”BSPP | 25 | 25 | M25*1.5 | Y3P5BA2F22500007 | Y3P5BA2F2250000G |
1½”BSPP | M20*1.5 | M20*1.5 | 0 | Y3P5BA202T000007 | Y3P5BA202T00000G |
1½”BSPP | M20*1.5 | M20*1.5 | 10 | Y3P5BA2A2T000007 | Y3P5BA2A2T00000G |
1½”BSPP | M20*1.5 | M20*1.5 | 23.5 | Y3P5BA2D2T000007 | Y3P5BA2D2T00000G |
1½”BSPP | M20*1.5 | M20*1.5 | M25*1.5 | Y3P5BA2F2T000007 | Y3P5BA2F2T00000G |
1½”BSPP | M25*1.5 | M25*1.5 | 0 | Y3P5BA202T500007 | Y3P5BA202T50000G |
1½”BSPP | M25*1.5 | M25*1.5 | 10 | Y3P5BA2A2T500007 | Y3P5BA2A2T50000G |
1½”BSPP | M25*1.5 | M25*1.5 | 23.5 | Y3P5BA2D2T500007 | Y3P5BA2D2T50000G |
1½”BSPP | M25*1.5 | M25*1.5 | M25*1.5 | Y3P5BA2F2T500007 | Y3P5BA2F2T50000G |
2″BSPP | 0 | 0 | 0 | Y3P5BB2000000007 | Y3P5BB200000000G |
2″BSPP | 0 | 0 | 10 | Y3P5BB2A00000007 | Y3P5BB2A0000000G |
2″BSPP | 0 | 0 | 23.5 | Y3P5BB2D00000007 | Y3P5BB2D0000000G |
2″BSPP | 0 | 0 | M25*1.5 | Y3P5BB2F00000007 | Y3P5BB2F0000000G |
2″BSPP | 20 | 20 | 0 | Y3P5BB2022000007 | Y3P5BB202200000G |
2″BSPP | 20 | 20 | 10 | Y3P5BB2A22000007 | Y3P5BB2A2200000G |
2″BSPP | 20 | 20 | 23.5 | Y3P5BB2D22000007 | Y3P5BB2D2200000G |
2″BSPP | 20 | 20 | M25*1.5 | Y3P5BB2F22000007 | Y3P5BB2F2200000G |
2″BSPP | 25 | 25 | 0 | Y3P5BB2022500007 | Y3P5BB202250000G |
2″BSPP | 25 | 25 | 10 | Y3P5BB2A22500007 | Y3P5BB2A2250000G |
2″BSPP | 25 | 25 | 23.5 | Y3P5BB2D22500007 | Y3P5BB2D2250000G |
2″BSPP | 25 | 25 | M25*1.5 | Y3P5BB2F22500007 | Y3P5BB2F2250000G |
2″BSPP | M20*1.5 | M20*1.5 | 0 | Y3P5BB202T000007 | Y3P5BB202T00000G |
2″BSPP | M20*1.5 | M20*1.5 | 10 | Y3P5BB2A2T000007 | Y3P5BB2A2T00000G |
2″BSPP | M20*1.5 | M20*1.5 | 23.5 | Y3P5BB2D2T000007 | Y3P5BB2D2T00000G |
2″BSPP | M20*1.5 | M20*1.5 | M25*1.5 | Y3P5BB2F2T000007 | Y3P5BB2F2T00000G |
2″BSPP | M25*1.5 | M25*1.5 | 0 | Y3P5BB202T500007 | Y3P5BB202T50000G |
2″BSPP | M25*1.5 | M25*1.5 | 10 | Y3P5BB2A2T500007 | Y3P5BB2A2T50000G |
2″BSPP | M25*1.5 | M25*1.5 | 23.5 | Y3P5BB2D2T500007 | Y3P5BB2D2T50000G |
2″BSPP | M25*1.5 | M25*1.5 | M25*1.5 | Y3P5BB2F2T500007 | Y3P5BB2F2T50000G |
2½”BSPP | 0 | 0 | 0 | Y3P5BC2000000007 | Y3P5BC200000000G |
2½”BSPP | 0 | 0 | 10 | Y3P5BC2A00000007 | Y3P5BC2A0000000G |
2½”BSPP | 0 | 0 | 23.5 | Y3P5BC2D00000007 | Y3P5BC2D0000000G |
2½”BSPP | 0 | 0 | M25*1.5 | Y3P5BC2F00000007 | Y3P5BC2F0000000G |
2½”BSPP | 20 | 20 | 0 | Y3P5BC2022000007 | Y3P5BC202200000G |
2½”BSPP | 20 | 20 | 10 | Y3P5BC2A22000007 | Y3P5BC2A2200000G |
2½”BSPP | 20 | 20 | 23.5 | Y3P5BC2D22000007 | Y3P5BC2D2200000G |
2½”BSPP | 20 | 20 | M25*1.5 | Y3P5BC2F22000007 | Y3P5BC2F2200000G |
2½”BSPP | 25 | 25 | 0 | Y3P5BC2022500007 | Y3P5BC202250000G |
2½”BSPP | 25 | 25 | 10 | Y3P5BC2A22500007 | Y3P5BC2A2250000G |
2½”BSPP | 25 | 25 | 23.5 | Y3P5BC2D22500007 | Y3P5BC2D2250000G |
2½”BSPP | 25 | 25 | M25*1.5 | Y3P5BC2F22500007 | Y3P5BC2F2250000G |
2½”BSPP | M20*1.5 | M20*1.5 | 0 | Y3P5BC202T000007 | Y3P5BC202T00000G |
2½”BSPP | M20*1.5 | M20*1.5 | 10 | Y3P5BC2A2T000007 | Y3P5BC2A2T00000G |
2½”BSPP | M20*1.5 | M20*1.5 | 23.5 | Y3P5BC2D2T000007 | Y3P5BC2D2T00000G |
2½”BSPP | M20*1.5 | M20*1.5 | M25*1.5 | Y3P5BC2F2T000007 | Y3P5BC2F2T00000G |
2½”BSPP | M25*1.5 | M25*1.5 | 0 | Y3P5BC202T500007 | Y3P5BC202T50000G |
2½”BSPP | M25*1.5 | M25*1.5 | 10 | Y3P5BC2A2T500007 | Y3P5BC2A2T50000G |
2½”BSPP | M25*1.5 | M25*1.5 | 23.5 | Y3P5BC2D2T500007 | Y3P5BC2D2T50000G |
2½”BSPP | M25*1.5 | M25*1.5 | M25*1.5 | Y3P5BC2F2T500007 | Y3P5BC2F2T50000G |
Cable gland not included in these reference, consult us if you want them.
