Enclosure for small storage heater immersion heater, Y3L4
– Flat lid
– Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut
– Hole for M20 cable gland
– Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting, with 54 mm on flat hexagon
Dimensions | 75 × 60 × 44 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

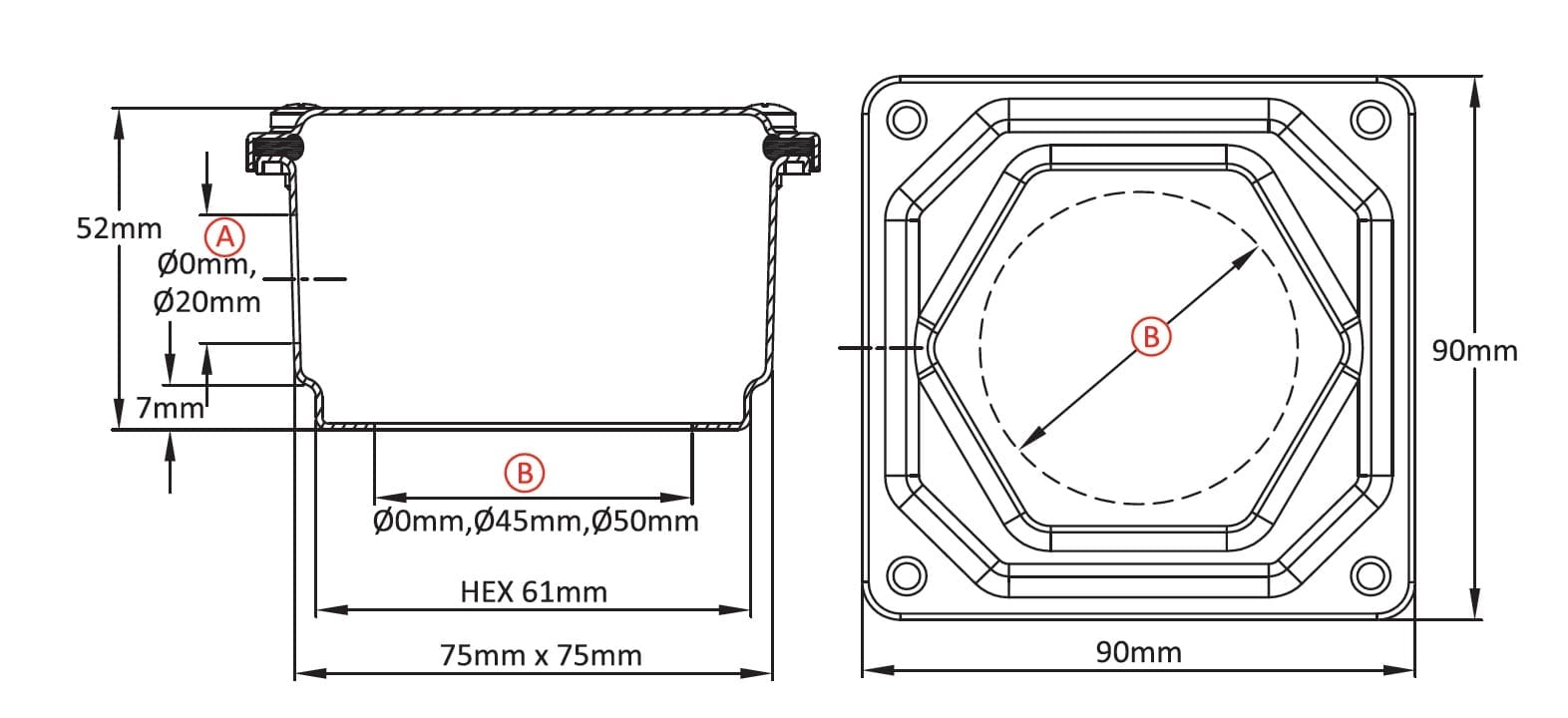

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

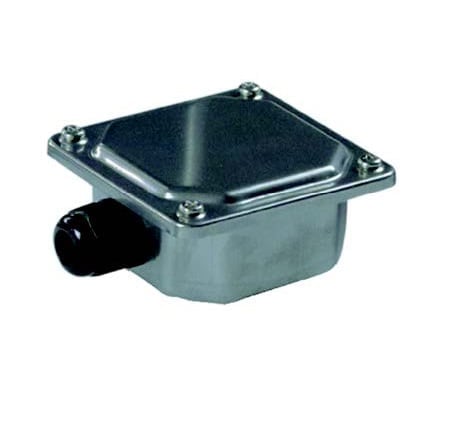

Enclosure for small storage heater immersion heater
– Flat lid

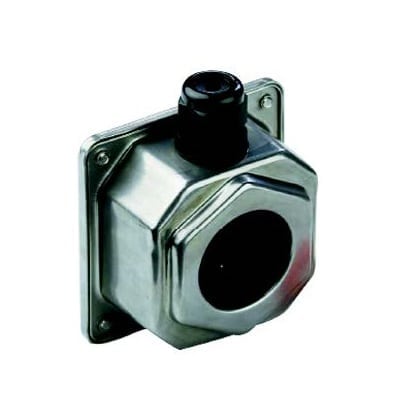

– Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut
– Hole for M20 cable gland
– Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting, with 54 mm on flat hexagon
Size: 90 x 90 x 52 mm
Volume: 232 cm³
Material: Stainless steel 304 or 316
Ingress protection: IP69K
Mechanical impact resistance: IK7
Main references
A (mm) | B(mm) | 304 | 316 |
0 | 0 | Y3L4000000000008 | Y3L4000000000009 |
0 | 45 | Y3L4450000000008 | Y3L4450000000009 |
0 | 50 | Y3L4500000000008 | Y3L4500000000009 |
20 | 0 | Y3L4000120000008 | Y3L4000120000009 |
20 | 45 | Y3L4450120000008 | Y3L4450120000009 |
20 | 50 | Y3L4500120000008 | Y3L4500120000009 |
Cable gland not included in these reference, consult us if you want them.
