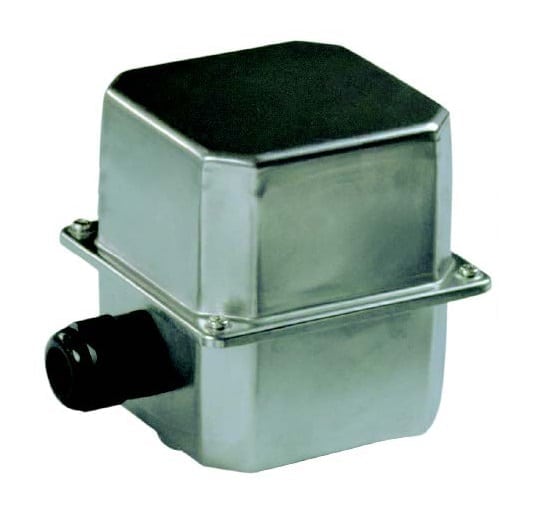

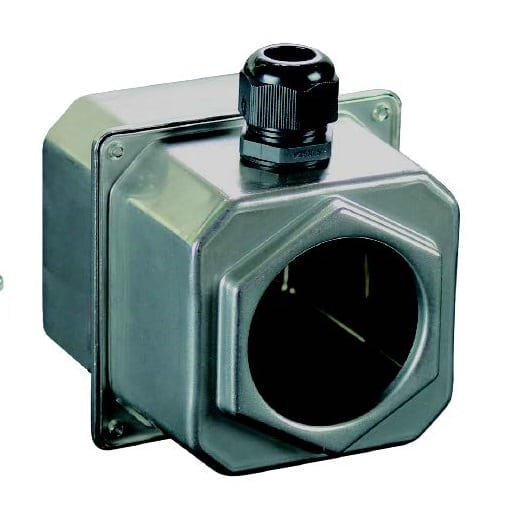

Stainless steel big size enclosure with built in hexagon for large size immersion heaters, Y3S9

– Bottom side with stamped 85mm on flat hexagon, for 2 ″1/2 or M77 TIG welded fittings
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays

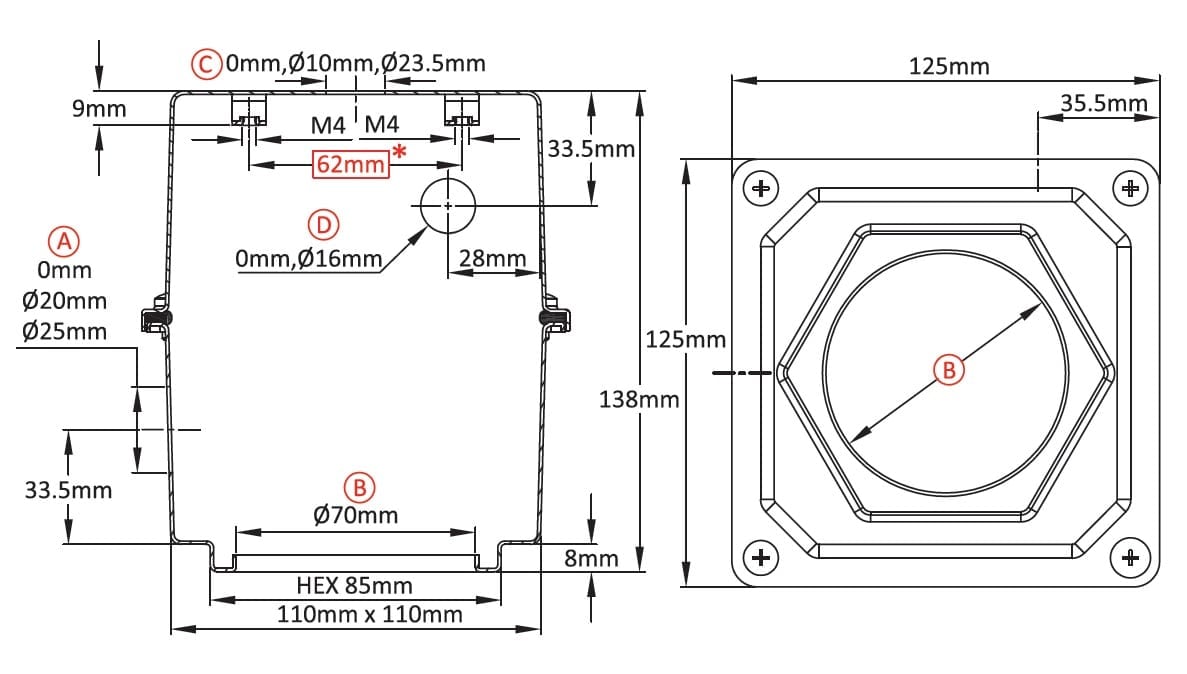

Dimensions 125 × 125 × 138 mm
Ingress protection

Mechanical protection

Housing raw material

, ,

Volume (cm³)
