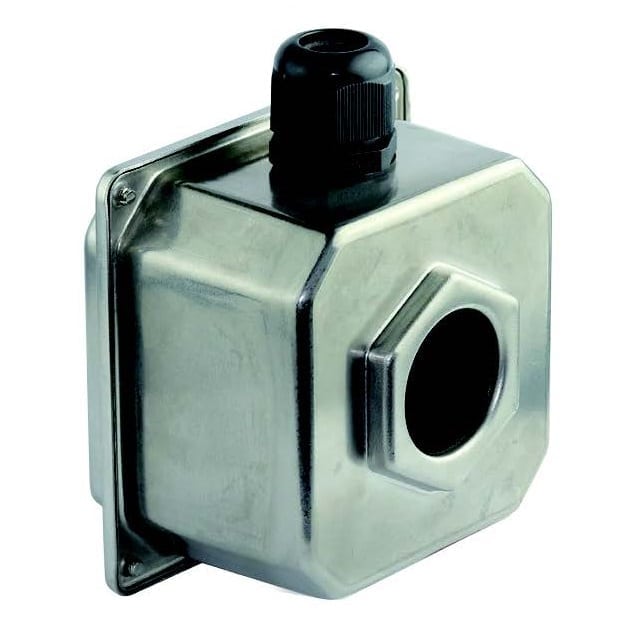

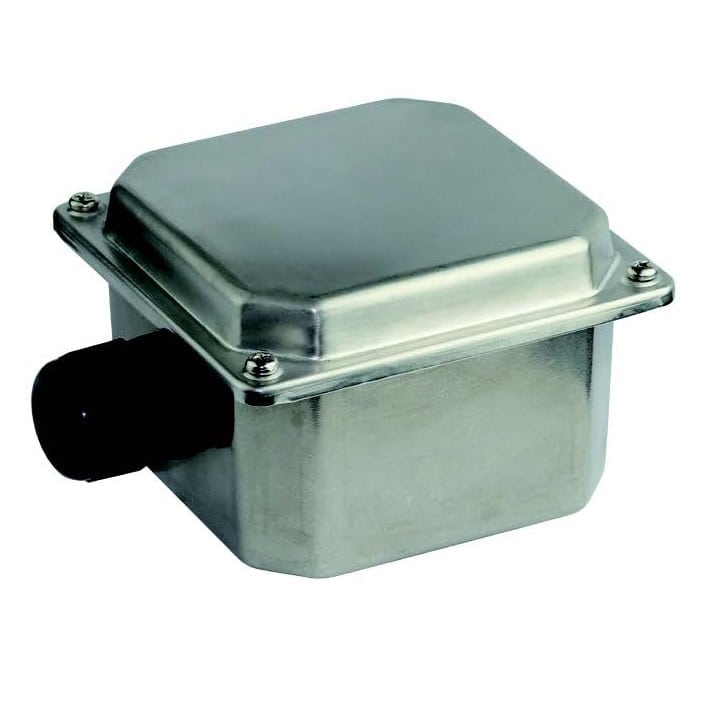

Stainless steel Big immersion heater enclosure, with flat cover and stamped hexagon, Y3SB
– Bottom side with stamped 58mm on flat hexagon, for 1 ″1/4, 1 ″1/2 or M45 TIG welded fittings
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Dimensions | 125 × 125 × 93 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

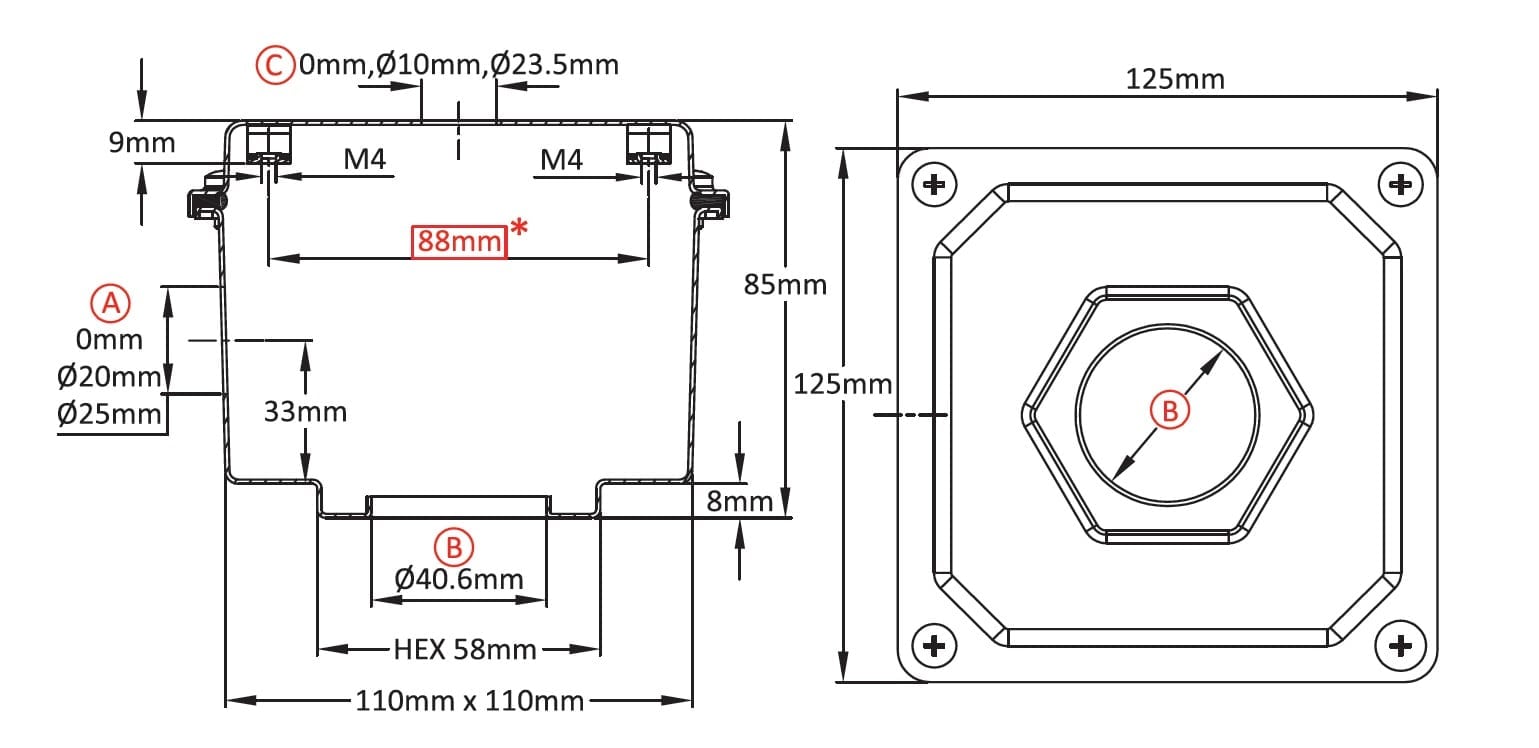

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Big immersion heater enclosure, with flat cover and stamped hexagon
– Bottom side with stamped 58mm on flat hexagon, for 1 ″1/4, 1 ″1/2 or M45 TIG welded fittings
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Size: 125 x 125 x 93 mm
Volume: 1000 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | 304 | 316 |
0 | 40.6 | 0 | Y3SB4060000G1008 | Y3SB4060000G1009 |
0 | 40.6 | 10 | Y3SB406A000G1008 | Y3SB406A000G1009 |
0 | 40.6 | 23.5 | Y3SB406D000G1008 | Y3SB406D000G1009 |
20 | 40.6 | 0 | Y3SB4060120G1008 | Y3SB4060120G1009 |
20 | 40.6 | 10 | Y3SB406A120G1008 | Y3SB406A120G1009 |
20 | 40.6 | 23.5 | Y3SB406D120G1008 | Y3SB406D120G1009 |
25 | 40.6 | 0 | Y3SB4060125G1008 | Y3SB4060125G1009 |
25 | 40.6 | 10 | Y3SB406A125G1008 | Y3SB406A125G1009 |
25 | 40.6 | 23.5 | Y3SB406D125G1008 | Y3SB406D125G1009 |
Cable gland not included in these reference, consult us if you want them.
Accessories
Internal bracket for inside adjustment thermostat |
Silicone cap for thermostat adjustment hole |
PA66, 6 way connection block |
Brass fittings |
Massive stainless steel fitting, for custom hole drilling |
Deep drawn stainless steel fitting |
9BBAE1000ELH008A |
9BBJO1000004078A |
BE6E6000000MP000 |
For full range and references of fittings, nuts and gaskets: immersion heater accessories. | Available without holes or drilled upon request. Ask for references | Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references |
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
