Stainless steel big size enclosure with built in hexagon for large size immersion heaters, Y3S9

Stainless steel Big immersion heater enclosure, with flat cover and stamped hexagon, Y3SB
Stainless steel Immersion heater or temperature sensor, flat cover, Y3SA
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2
– Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Dimensions | 125 × 125 × 85 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

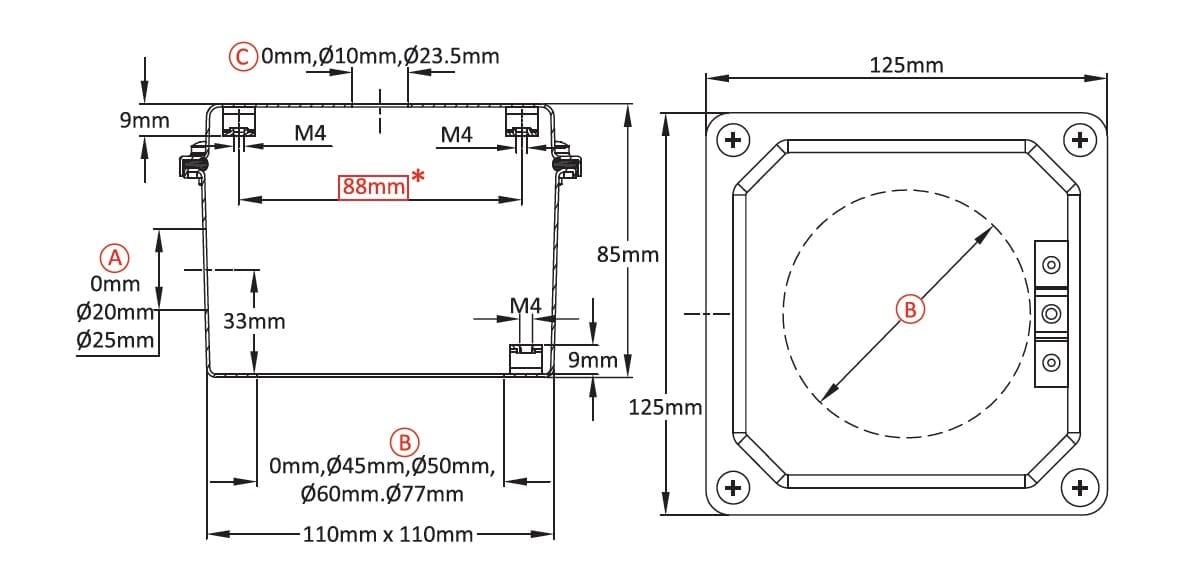

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

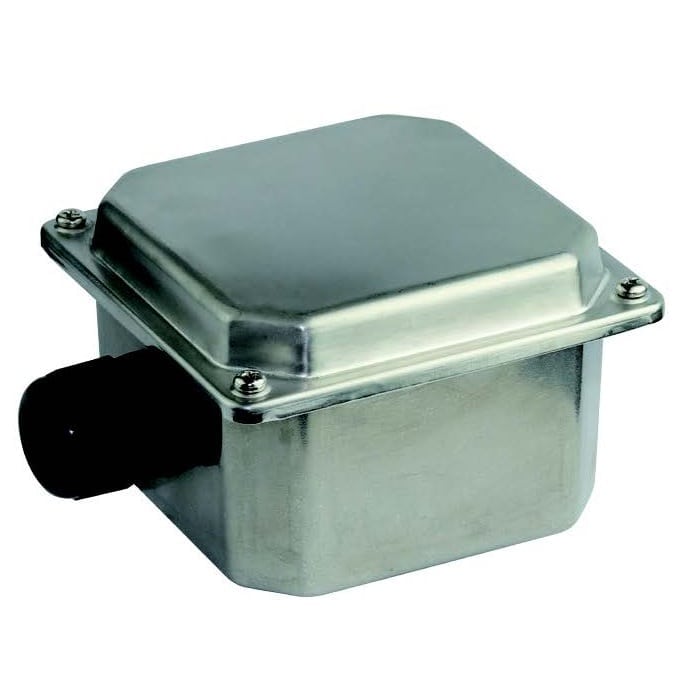

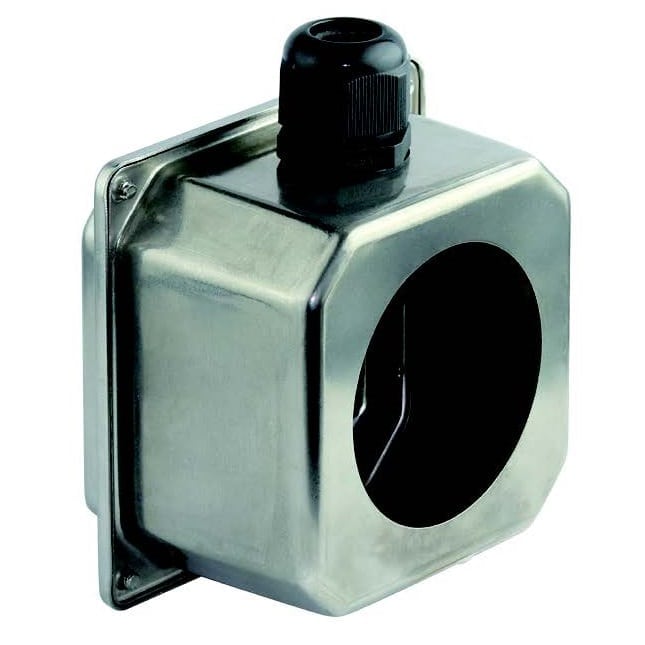

Immersion heater or temperature sensor, flat cover
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut, up to M77 or 2 ″1/2
– Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control and electronic manual reset thermostat
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Size: 125 x 125 x 85 mm
Volume: 970 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | 304 | 316 |
0 | 0 | 0 | Y3SA0000000G1008 | Y3SA0000000G1009 |
0 | 0 | 10 | Y3SA000A000G1008 | Y3SA000A000G1009 |
0 | 0 | 23.5 | Y3SA000D000G1008 | Y3SA000D000G1009 |
0 | 45 | 0 | Y3SA4500000G1008 | Y3SA4500000G1009 |
0 | 45 | 10 | Y3SA450A000G1008 | Y3SA450A000G1009 |
0 | 45 | 23.5 | Y3SA450D000G1008 | Y3SA450D000G1009 |
0 | 50 | 0 | Y3SA5000000G1008 | Y3SA5000000G1009 |
0 | 50 | 10 | Y3SA500A000G1008 | Y3SA500A000G1009 |
0 | 50 | 23.5 | Y3SA500D000G1008 | Y3SA500D000G1009 |
0 | 60 | 0 | Y3SA6000000G1008 | Y3SA6000000G1009 |
0 | 60 | 10 | Y3SA600A000G1008 | Y3SA600A000G1009 |
0 | 60 | 23.5 | Y3SA600D000G1008 | Y3SA600D000G1009 |
0 | 77 | 0 | Y3SA7700000G1008 | Y3SA7700000G1009 |
0 | 77 | 10 | Y3SA770A000G1008 | Y3SA770A000G1009 |
0 | 77 | 23.5 | Y3SA770D000G1008 | Y3SA770D000G1009 |
20 | 0 | 0 | Y3SA0000120G1008 | Y3SA0000120G1009 |
20 | 0 | 10 | Y3SA000A120G1008 | Y3SA000A120G1009 |
20 | 0 | 23.5 | Y3SA000D120G1008 | Y3SA000D120G1009 |
20 | 45 | 0 | Y3SA4500120G1008 | Y3SA4500120G1009 |
20 | 45 | 10 | Y3SA450A120G1008 | Y3SA450A120G1009 |
20 | 45 | 23.5 | Y3SA450D120G1008 | Y3SA450D120G1009 |
20 | 50 | 0 | Y3SA5000120G1008 | Y3SA5000120G1009 |
20 | 50 | 10 | Y3SA500A120G1008 | Y3SA500A120G1009 |
20 | 50 | 23.5 | Y3SA500D120G1008 | Y3SA500D120G1009 |
20 | 60 | 0 | Y3SA6000120G1008 | Y3SA6000120G1009 |
20 | 60 | 10 | Y3SA600A120G1008 | Y3SA600A120G1009 |
20 | 60 | 23.5 | Y3SA600D120G1008 | Y3SA600D120G1009 |
20 | 77 | 0 | Y3SA7700120G1008 | Y3SA7700120G1009 |
20 | 77 | 10 | Y3SA770A120G1008 | Y3SA770A120G1009 |
20 | 77 | 23.5 | Y3SA770D120G1008 | Y3SA770D120G1009 |
25 | 0 | 0 | Y3SA0000125G1008 | Y3SA0000125G1009 |
25 | 0 | 10 | Y3SA000A125G1008 | Y3SA000A125G1009 |
25 | 0 | 23.5 | Y3SA000D125G1008 | Y3SA000D125G1009 |
25 | 45 | 0 | Y3SA4500125G1008 | Y3SA4500125G1009 |
25 | 45 | 10 | Y3SA450A125G1008 | Y3SA450A125G1009 |
25 | 45 | 23.5 | Y3SA450D125G1008 | Y3SA450D125G1009 |
25 | 50 | 0 | Y3SA5000125G1008 | Y3SA5000125G1009 |
25 | 50 | 10 | Y3SA500A125G1008 | Y3SA500A125G1009 |
25 | 50 | 23.5 | Y3SA500D125G1008 | Y3SA500D125G1009 |
25 | 60 | 0 | Y3SA6000125G1008 | Y3SA6000125G1009 |
25 | 60 | 10 | Y3SA600A125G1008 | Y3SA600A125G1009 |
25 | 60 | 23.5 | Y3SA600D125G1008 | Y3SA600D125G1009 |
25 | 77 | 0 | Y3SA7700125G1008 | Y3SA7700125G1009 |
25 | 77 | 10 | Y3SA770A125G1008 | Y3SA770A125G1009 |
Cable gland not included in these reference, consult us if you want them.
Accessories
Internal bracket for inside adjustment thermostat |
Silicone cap for thermostat adjustment hole |
PA66, 6 way connection block |
Brass fittings |
Massive stainless steel fitting, for custom hole drilling |
Deep drawn stainless steel fitting |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
9BBAE1000ELH008A |
9BBJO1000004078A |
BE6E6000000MP000 |
For full range and references of fittings, nuts and gaskets: immersion heater accessories. | Available without holes or drilled upon request. Ask for references | Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references |
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
