All aluminum enclosure, for immersion heater or solid state relays (SSR) controls, Y3H3
– The rear side has fins to cool the solid state relays
– Size compatible with 3-pole static relay or 4 single pole solid state relays
– Includes slides for printed circuits
Dimensions | 96 × 132 × 182 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

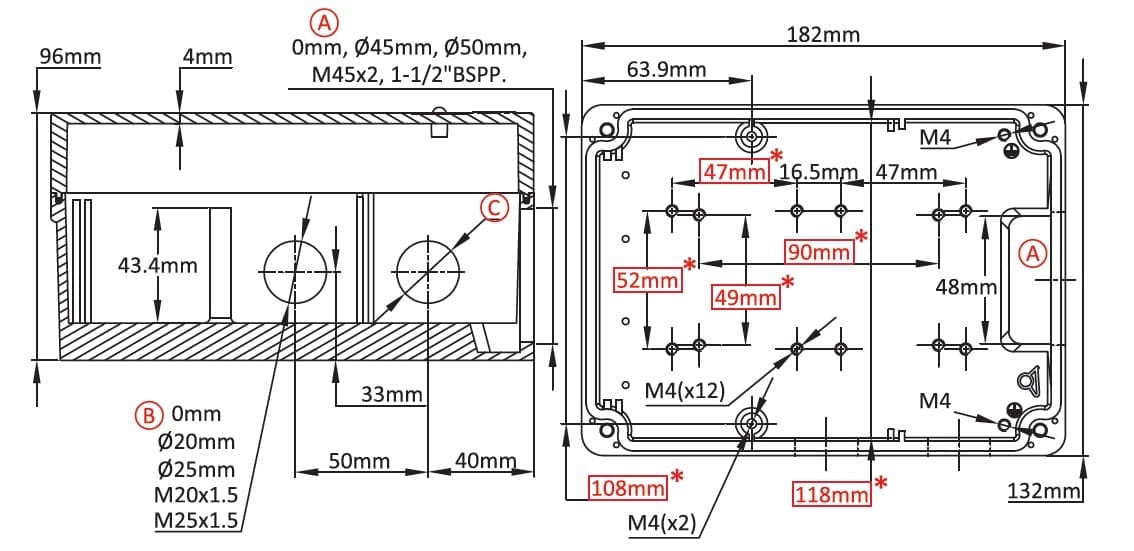

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

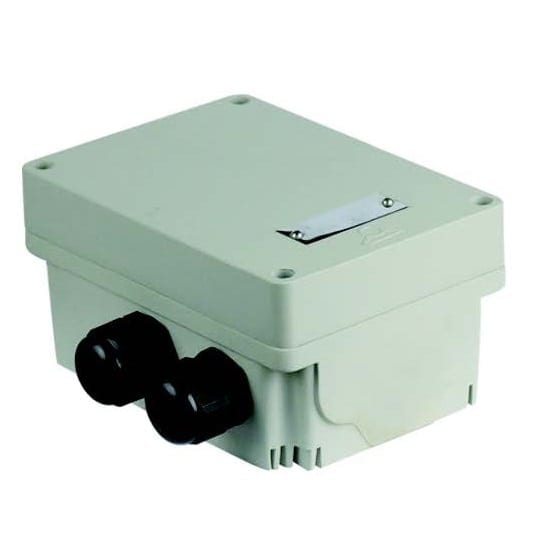

All aluminum enclosure, for immersion heater or solid state relays (SSR) controls

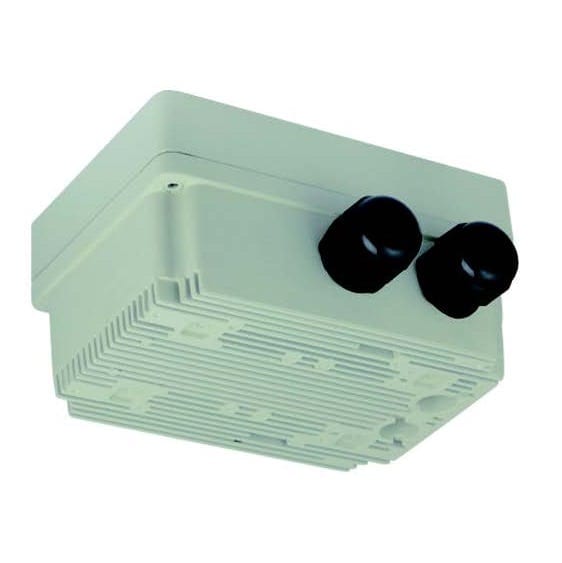

– The rear side has fins to cool the solid state relays
– Size compatible with 3-pole static relay or 4 single pole solid state relays
– Includes slides for printed circuits
– The 96x132mm face can receive piercing for 1 “1/4, 1” 1/2 and M45x2 fittings, double thread and inner nut, or single twist ring thread
– Output from one, two or three M20 or M25 cable glands on 182 x 96 mm faces
Size: 96 x 132 x 182mm
Volume: 2050 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3H3000000000007 | Y3H300000000000G |
0 | 20 | 0 | Y3H3000012000007 | Y3H300001200000G |
0 | 20 | 20 | Y3H3000022000007 | Y3H300002200000G |
0 | 25 | 0 | Y3H3000012500007 | Y3H300001250000G |
0 | 25 | 25 | Y3H3000022500007 | Y3H300002250000G |
0 | M20*1.5 | 0 | Y3H300001T000007 | Y3H300001T00000G |
0 | M20*1.5 | M20*1.5 | Y3H300002T000007 | Y3H300002T00000G |
0 | M25*1.5 | 0 | Y3H300001T500007 | Y3H300001T50000G |
0 | M25*1.5 | M25*1.5 | Y3H300002T500007 | Y3H300002T50000G |
45 | 0 | 0 | Y3H3450000000007 | Y3H345000000000G |
45 | 20 | 0 | Y3H3450012000007 | Y3H345001200000G |
45 | 20 | 20 | Y3H3450022000007 | Y3H345002200000G |
45 | 25 | 0 | Y3H3450012500007 | Y3H345001250000G |
45 | 25 | 25 | Y3H3450022500007 | Y3H345002250000G |
45 | M20*1.5 | 0 | Y3H345001T000007 | Y3H345001T00000G |
45 | M20*1.5 | M20*1.5 | Y3H345002T000007 | Y3H345002T00000G |
45 | M25*1.5 | 0 | Y3H345001T500007 | Y3H345001T50000G |
45 | M25*1.5 | M25*1.5 | Y3H345002T500007 | Y3H345002T50000G |
50 | 0 | 0 | Y3H3500000000007 | Y3H350000000000G |
50 | 20 | 0 | Y3H3500012000007 | Y3H350001200000G |
50 | 20 | 20 | Y3H3500022000007 | Y3H350002200000G |
50 | 25 | 0 | Y3H3500012500007 | Y3H350001250000G |
50 | 25 | 25 | Y3H3500022500007 | Y3H350002250000G |
50 | M20*1.5 | 0 | Y3H350001T000007 | Y3H350001T00000G |
50 | M20*1.5 | M20*1.5 | Y3H350002T000007 | Y3H350002T00000G |
50 | M25*1.5 | 0 | Y3H350001T500007 | Y3H350001T50000G |
50 | M25*1.5 | M25*1.5 | Y3H350002T500007 | Y3H350002T50000G |
M45*2 | 0 | 0 | Y3H3M45000000007 | Y3H3M4500000000G |
M45*2 | 20 | 0 | Y3H3M45012000007 | Y3H3M4501200000G |
M45*2 | 20 | 20 | Y3H3M45022000007 | Y3H3M4502200000G |
M45*2 | 25 | 0 | Y3H3M45012500007 | Y3H3M4501250000G |
M45*2 | 25 | 25 | Y3H3M45022500007 | Y3H3M4502250000G |
M45*2 | M20*1.5 | 0 | Y3H3M4501T000007 | Y3H3M4501T00000G |
M45*2 | M20*1.5 | M20*1.5 | Y3H3M4502T000007 | Y3H3M4502T00000G |
M45*2 | M25*1.5 | 0 | Y3H3M4501T500007 | Y3H3M4501T50000G |
M45*2 | M25*1.5 | M25*1.5 | Y3H3M4502T500007 | Y3H3M4502T50000G |
1½”BSPP | 0 | 0 | Y3H3BA2000000007 | Y3H3BA200000000G |
1½”BSPP | 20 | 0 | Y3H3BA2012000007 | Y3H3BA201200000G |
1½”BSPP | 20 | 20 | Y3H3BA2022000007 | Y3H3BA202200000G |
1½”BSPP | 25 | 0 | Y3H3BA2012500007 | Y3H3BA201250000G |
1½”BSPP | 25 | 25 | Y3H3BA2022500007 | Y3H3BA202250000G |
1½”BSPP | M20*1.5 | 0 | Y3H3BA201T000007 | Y3H3BA201T00000G |
1½”BSPP | M20*1.5 | M20*1.5 | Y3H3BA202T000007 | Y3H3BA202T00000G |
1½”BSPP | M25*1.5 | 0 | Y3H3BA201T500007 | Y3H3BA201T50000G |
1½”BSPP | M25*1.5 | M25*1.5 | Y3H3BA202T500007 | Y3H3BA202T50000G |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
