All aluminum enclosure, for immersion heater or solid state relays (SSR) controls, Y3H3

Aluminum enclosure, with transparent window cover, for immersion heater with 120 mm offset fitting, Y3J2
Aluminum enclosure, with polycarbonate cover, for immersion heater with 120 mm offset fitting, Y3J1
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
Dimensions | 182 × 132 × 210 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

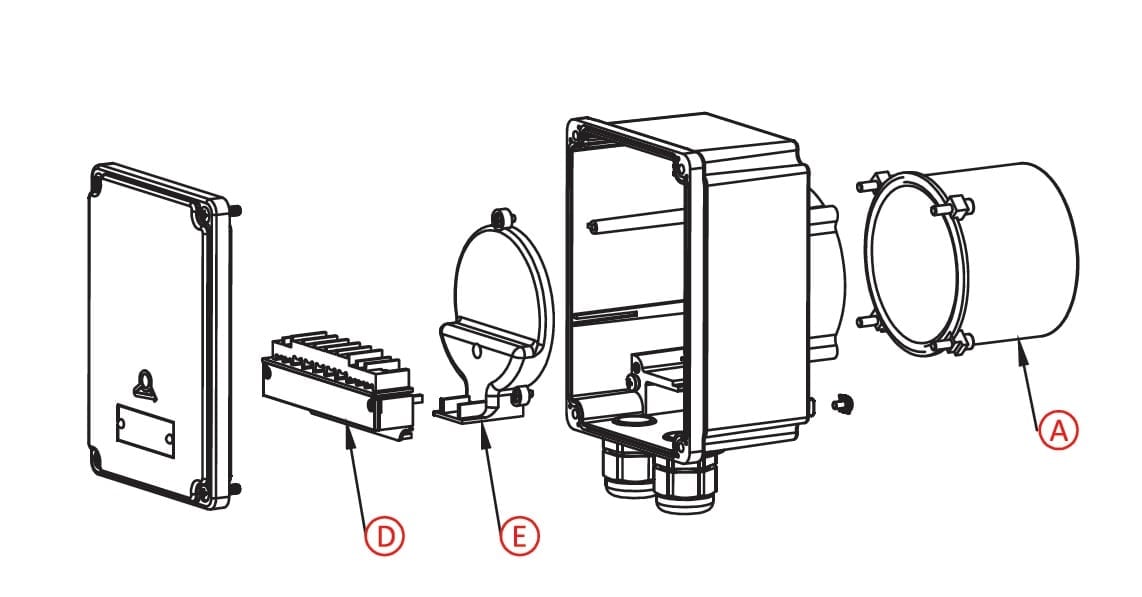

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

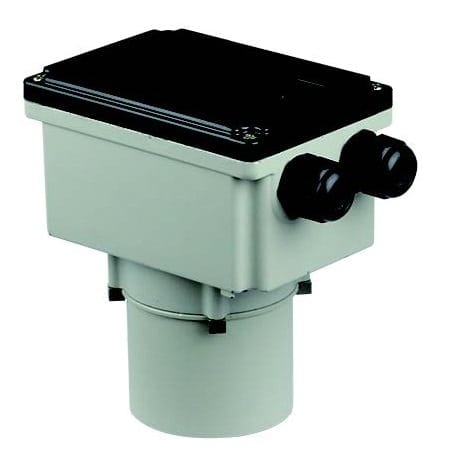

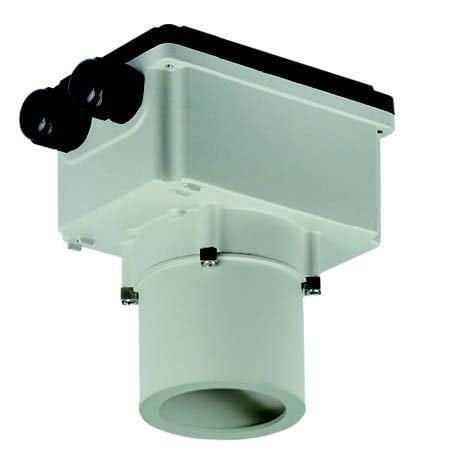

Aluminum and plastic composite enclosure, with polycarbonate cover, for immersion heater with 120 mm offset fitting
– Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring)
– Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
– Can receive a power contactor
– Can receive an internal connection block up to 12 ways and up to 10mm²
– Output by one or two M25 cable glands
Size: 182 x 132 x 210mm
Volume: 3066 cm³
Material: Aluminium with polycarbonate cover
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3J10000000J1007 | Y3J10000000J100G |
0 | 20 | 0 | Y3J10000120J1007 | Y3J10000120J100G |
0 | 20 | 20 | Y3J10000220J1007 | Y3J10000220J100G |
0 | 25 | 0 | Y3J10000125J1007 | Y3J10000125J100G |
0 | 25 | 25 | Y3J10000225J1007 | Y3J10000225J100G |
0 | M20×1.5 | 0 | Y3J100001T0J1007 | Y3J100001T0J100G |
0 | M20×1.5 | M20×1.5 | Y3J100002T0J1007 | Y3J100002T0J100G |
0 | M25×1.5 | 0 | Y3J100001T5J1007 | Y3J100001T5J100G |
0 | M25×1.5 | M25×1.5 | Y3J100002T5J1007 | Y3J100002T5J100G |
45 | 0 | 0 | Y3J14500000J1007 | Y3J14500000J100G |
45 | 20 | 0 | Y3J14500120J1007 | Y3J14500120J100G |
45 | 20 | 20 | Y3J14500220J1007 | Y3J14500220J100G |
45 | 25 | 0 | Y3J14500125J1007 | Y3J14500125J100G |
45 | 25 | 25 | Y3J14500225J1007 | Y3J14500225J100G |
45 | M20×1.5 | 0 | Y3J145001T0J1007 | Y3J145001T0J100G |
45 | M20×1.5 | M20×1.5 | Y3J145002T0J1007 | Y3J145002T0J100G |
45 | M25×1.5 | 0 | Y3J145001T5J1007 | Y3J145001T5J100G |
45 | M25×1.5 | M25×1.5 | Y3J145002T5J1007 | Y3J145002T5J100G |
50 | 0 | 0 | Y3J15000000J1007 | Y3J15000000J100G |
50 | 20 | 0 | Y3J15000120J1007 | Y3J15000120J100G |
50 | 20 | 20 | Y3J15000220J1007 | Y3J15000220J100G |
50 | 25 | 0 | Y3J15000125J1007 | Y3J15000125J100G |
50 | 25 | 25 | Y3J15000225J1007 | Y3J15000225J100G |
50 | M20×1.5 | 0 | Y3J150001T0J1007 | Y3J150001T0J100G |
50 | M20×1.5 | M20×1.5 | Y3J150002T0J1007 | Y3J150002T0J100G |
50 | M25×1.5 | 0 | Y3J150001T5J1007 | Y3J150001T5J100G |
50 | M25×1.5 | M25×1.5 | Y3J150002T5J1007 | Y3J150002T5J100G |
60 | 0 | 0 | Y3J16000000J1007 | Y3J16000000J100G |
60 | 20 | 0 | Y3J16000120J1007 | Y3J16000120J100G |
60 | 20 | 20 | Y3J16000220J1007 | Y3J16000220J100G |
60 | 25 | 0 | Y3J16000125J1007 | Y3J16000125J100G |
60 | 25 | 25 | Y3J16000225J1007 | Y3J16000225J100G |
60 | M20×1.5 | 0 | Y3J160001T0J1007 | Y3J160001T0J100G |
60 | M20×1.5 | M20×1.5 | Y3J160002T0J1007 | Y3J160002T0J100G |
60 | M25×1.5 | 0 | Y3J160001T5J1007 | Y3J160001T5J100G |
60 | M25×1.5 | M25×1.5 | Y3J160002T5J1007 | Y3J160002T5J100G |
77 | 0 | 0 | Y3J17700000J1007 | Y3J17700000J100G |
77 | 20 | 0 | Y3J17700120J1007 | Y3J17700120J100G |
77 | 20 | 20 | Y3J17700220J1007 | Y3J17700220J100G |
77 | 25 | 0 | Y3J17700125J1007 | Y3J17700125J100G |
77 | 25 | 25 | Y3J17700225J1007 | Y3J17700225J100G |
77 | M20×1.5 | 0 | Y3J177001T0J1007 | Y3J177001T0J100G |
77 | M20×1.5 | M20×1.5 | Y3J177002T0J1007 | Y3J177002T0J100G |
77 | M25×1.5 | 0 | Y3J177001T5J1007 | Y3J177001T5J100G |
77 | M25×1.5 | M | Y3J177002T5 J1007 | Y3J177002T5J100G |
M45×2 | 0 | 0 | Y3J1M450000J1007 | Y3J1M450000J100G |
M45×2 | 20 | 0 | Y3J1M450120J1007 | Y3J1M450120J100G |
M45×2 | 20 | 20 | Y3J1M450220J1007 | Y3J1M450220J100G |
M45×2 | 25 | 0 | Y3J1M450125J1007 | Y3J1M450125J100G |
M45×2 | 25 | 25 | Y3J1M450225J1007 | Y3J1M450225J100G |
M45×2 | M20×1.5 | 0 | Y3J1M4501T0J1007 | Y3J1M4501T0J100G |
M45×2 | M20×1.5 | M20×1.5 | Y3J1M4502T0J1007 | Y3J1M4502T0J100G |
M45×2 | M25×1.5 | 0 | Y3J1M4501T5J1007 | Y3J1M4501T5J100G |
M45×2 | M25×1.5 | M25×1.5 | Y3J1M4502T5J1007 | Y3J1M4502T5J100G |
M77×2 | 0 | 0 | Y3J1M770000J1007 | Y3J1M770000J100G |
M77×2 | 20 | 0 | Y3J1M770120J1007 | Y3J1M770120J100G |
M77×2 | 20 | 20 | Y3J1M770220J1007 | Y3J1M770220J100G |
M77×2 | 25 | 0 | Y3J1M770125J1007 | Y3J1M770125J100G |
M77×2 | 25 | 25 | Y3J1M770225J1007 | Y3J1M770225J100G |
M77×2 | M20×1.5 | 0 | Y3J1M7701T0J1007 | Y3J1M7701T0J100G |
M77×2 | M20×1.5 | M20×1.5 | Y3J1M7702T0J1007 | Y3J1M7702T0J100G |
M77×2 | M25×1.5 | 0 | Y3J1M7701T5J1007 | Y3J1M7701T5J100G |
M77×2 | M25×1.5 | M25×1.5 | Y3J1M7702T5J1007 | Y3J1M7702T5J100G |
1½”BSPP | 0 | 0 | Y3J1BA20000J1007 | Y3J1BA20000J100G |
1½”BSPP | 20 | 0 | Y3J1BA20120J1007 | Y3J1BA20120J100G |
1½”BSPP | 20 | 20 | Y3J1BA20220J1007 | Y3J1BA20220J100G |
1½”BSPP | 25 | 0 | Y3J1BA20125J1007 | Y3J1BA20125J100G |
1½”BSPP | 25 | 25 | Y3J1BA20225J1007 | Y3J1BA20225J100G |
1½”BSPP | M20×1.5 | 0 | Y3J1BA201T0J1007 | Y3J1BA201T0J100G |
1½”BSPP | M20×1.5 | M20×1.5 | Y3J1BA202T0J1007 | Y3J1BA202T0J100G |
1½”BSPP | M25×1.5 | 0 | Y3J1BA201T5J1007 | Y3J1BA201T5J100G |
1½”BSPP | M25×1.5 | M25×1.5 | Y3J1BA202T5J1007 | Y3J1BA202T5J100G |
2″BSPP | 0 | 0 | Y3J1BB20000J1007 | Y3J1BB20000J100G |
2″BSPP | 20 | 0 | Y3J1BB20120J1007 | Y3J1BB20120J100G |
2″BSPP | 20 | 20 | Y3J1BB20220J1007 | Y3J1BB20220J100G |
2″BSPP | 25 | 0 | Y3J1BB20125J1007 | Y3J1BB20125J100G |
2″BSPP | 25 | 25 | Y3J1BB20225J1007 | Y3J1BB20225J100G |
2″BSPP | M20×1.5 | 0 | Y3J1BB201T0J1007 | Y3J1BB201T0J100G |
2″BSPP | M20×1.5 | M20×1.5 | Y3J1BB202T0J1007 | Y3J1BB202T0J100G |
2″BSPP | M25×1.5 | 0 | Y3J1BB201T5J1007 | Y3J1BB201T5J100G |
2″BSPP | M25×1.5 | M25×1.5 | Y3J1BB202T5J1007 | Y3J1BB202T5J100G |
2½”BSPP | 0 | 0 | Y3J1BC20000J1007 | Y3J1BC20000J100G |
2½”BSPP | 20 | 0 | Y3J1BC20120J1007 | Y3J1BC20120J100G |
2½”BSPP | 20 | 20 | Y3J1BC20220J1007 | Y3J1BC20220J100G |
2½”BSPP | 25 | 0 | Y3J1BC20125J1007 | Y3J1BC20125J100G |
2½”BSPP | 25 | 25 | Y3J1BC20225J1007 | Y3J1BC20225J100G |
2½”BSPP | M20×1.5 | 0 | Y3J1BC201T0J1007 | Y3J1BC201T0J100G |
2½”BSPP | M20×1.5 | M20×1.5 | Y3J1BC202T0J1007 | Y3J1BC202T0J100G |
2½”BSPP | M25×1.5 | 0 | Y3J1BC201T5J1007 | Y3J1BC201T5J100G |
2½”BSPP | M25×1.5 | M25×1.5 | Y3J1BC202T5J1007 | Y3J1BC202T5J100G |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Aluminum enclosure, with transparent window cover, for immersion heater with 30 mm offset fitting, Y3G2
- Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring) - Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
-
Stainless steel big size enclosure for immersion heater with built-in hexagon, Y3S8
- Bottom side with stamped 58mm on flat hexagon, for 1 ″1/4, 1 ″1/2 or M45 TIG welded fittings - Hole for one M25 cable gland, or holes for one M25 and two M16 - Optional hole for pilot light - Can receive one or two power relays
-
Large size enclosure for immersion heater, finned heaters or controls, Y3P5
- Can receive backside holes for 1"1/4, 1"1/2, M45x2, 2″, 2″1/2 and M77x2, fittings with double thread and inner nut, or single thread with rotating ring. - Can accommodate stainless steel wall mounting brackets -Can also receive back side holes for finned heating elements - Output by one, two or three M20 or M25 cable…
-
Medium size enclosure for immersion heater, finned heaters or controls, Y3P3
- Can receive backside holes for 1"1/4, 1"1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring - Can accommodate stainless steel wall mounting brackets - Output by one or two M20 or M25 cable glands
-
Stainless steel immersion heater enclosure with built-in hexagon for fitting, Y3S4
- High lid - Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut - Can be used with 1 ″1/4 or 1 ″1/2 or M45 TIG welded fittings - Hole for M20 cable gland - Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting,…
