Medium size enclosure for immersion heater, finned heaters with external adjustment knob, Y3P4
– Cover has deep recess for protected external knob, access from front or side of cover
– Can receive backside holes for 1″1/4, 1″1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring
– Can accommodate wall mounting brackets
– Can also receive back side holes for finned heating elements
– Output by one M20 or M25 cable glands
Dimensions | 110 × 110 × 70 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |

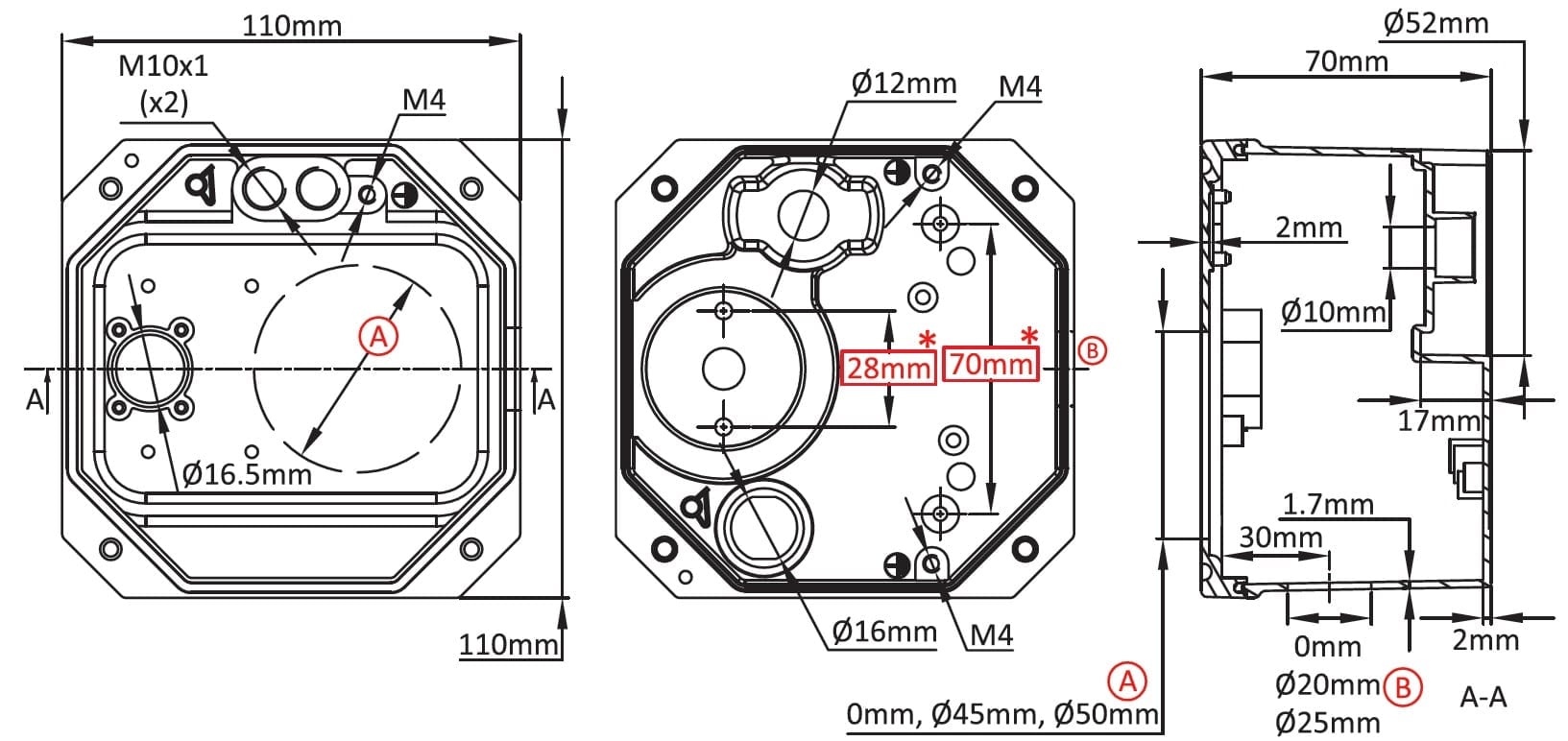

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

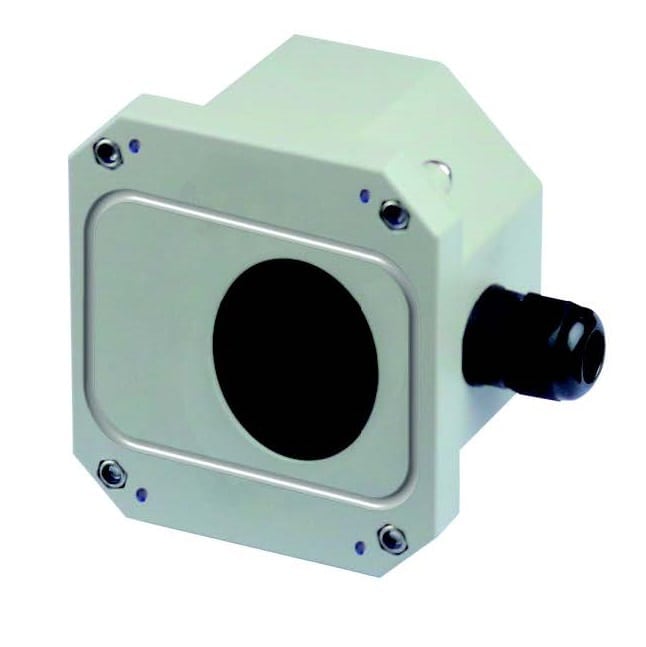

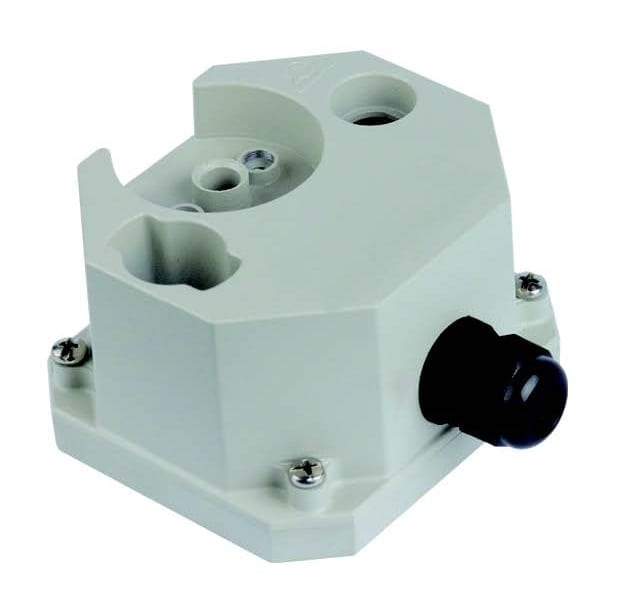

Medium size enclosure for immersion heater, finned heaters with external adjustment knob
– Cover has deep recess for protected external knob, access from front or side of cover
– Can receive backside holes for 1″1/4, 1″1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring
– Can accommodate wall mounting brackets
– Can also receive back side holes for finned heating elements
– Output by one M20 or M25 cable glands
Size: 110 x 110 x 70 mm
Volume: 725 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | Not painted | Painted |
0 | 0 | Y3P4000000000007 | Y3P400000000000G |
0 | 20 | Y3P4000012000007 | Y3P400001200000G |
0 | 25 | Y3P4000012500007 | Y3P400001250000G |
45 | 0 | Y3P4450000000007 | Y3P445000000000G |
45 | 20 | Y3P4450012000007 | Y3P445001200000G |
45 | 25 | Y3P4450012500007 | Y3P445001250000G |
50 | 0 | Y3P4500000000007 | Y3P450000000000G |
50 | 20 | Y3P4500012000007 | Y3P450001200000G |
50 | 25 | Y3P4500012500007 | Y3P450001250000G |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
