Stainless steel medium size enclosure for immersion heater or temperature sensor, Y3S5
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut up to 2”1/2
– Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control
– Hole for M25 cable gland
Dimensions | 105 × 105 × 102 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

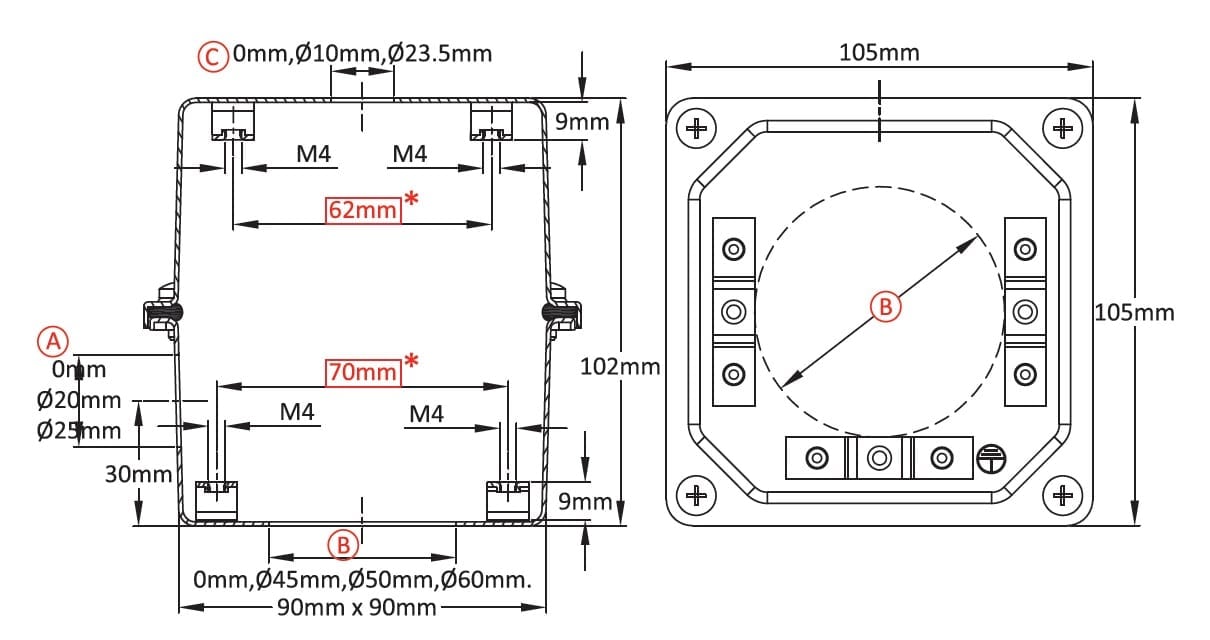

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

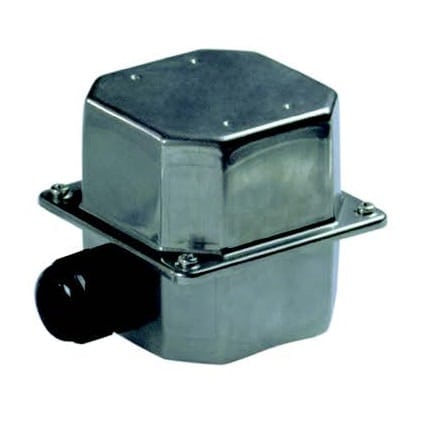

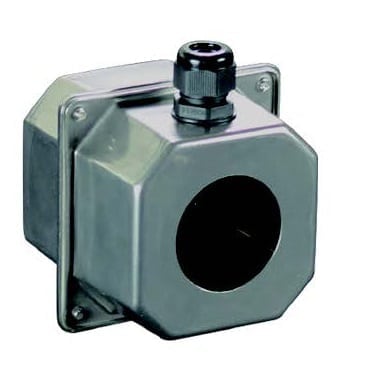

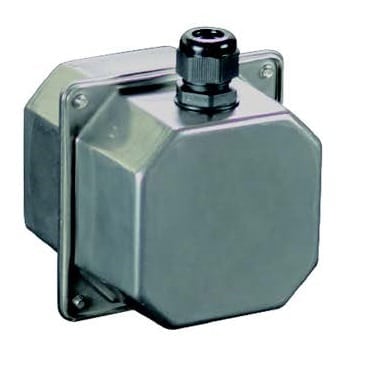

Medium size enclosure for immersion heater or temperature sensor
– Bottom side without hole, or with hole for orientable fitting with ring or internal nut up to 2”1/2
– Fits the 2” plastic nut for swimming pools, spas and aquarium heaters and electronic thermostat control
– Hole for M25 cable gland
Size: 105 x 105 x 102 mm
Volume: 757 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | 304 | 316 |
0 | 0 | 0 | Y3S50000000G1008 | Y3S50000000G1009 |
0 | 0 | 10 | Y3S5000A000G1008 | Y3S5000A000G1009 |
0 | 0 | 23.5 | Y3S5000D000G1008 | Y3S5000D000G1009 |
0 | 45 | 0 | Y3S54500000G1008 | Y3S54500000G1009 |
0 | 45 | 10 | Y3S5450A000G1008 | Y3S5450A000G1009 |
0 | 45 | 23.5 | Y3S5450D000G1008 | Y3S5450D000G1009 |
0 | 50 | 0 | Y3S55000000G1008 | Y3S55000000G1009 |
0 | 50 | 10 | Y3S5500A000G1008 | Y3S5500A000G1009 |
0 | 50 | 23.5 | Y3S5500D000G1008 | Y3S5500D000G1009 |
0 | 60 | 0 | Y3S56000000G1008 | Y3S56000000G1009 |
0 | 60 | 10 | Y3S5600A000G1008 | Y3S5600A000G1009 |
0 | 60 | 23.5 | Y3S5600D000G1008 | Y3S5600D000G1009 |
20 | 0 | 0 | Y3S50000120G1008 | Y3S50000120G1009 |
20 | 0 | 10 | Y3S5000A120G1008 | Y3S5000A120G1009 |
20 | 0 | 23.5 | Y3S5000D120G1008 | Y3S5000D120G1009 |
20 | 45 | 0 | Y3S54500120G1008 | Y3S54500120G1009 |
20 | 45 | 10 | Y3S5450A120G1008 | Y3S5450A120G1009 |
20 | 45 | 23.5 | Y3S5450D120G1008 | Y3S5450D120G1009 |
20 | 50 | 0 | Y3S55000120G1008 | Y3S55000120G1009 |
20 | 50 | 10 | Y3S5500A120G1008 | Y3S5500A120G1009 |
20 | 50 | 23.5 | Y3S5500D120G1008 | Y3S5500D120G1009 |
20 | 60 | 0 | Y3S56000120G1008 | Y3S56000120G1009 |
20 | 60 | 10 | Y3S5600A120G1008 | Y3S5600A120G1009 |
20 | 60 | 23.5 | Y3S5600D120G1008 | Y3S5600D120G1009 |
Cable gland not included in these reference, consult us if you want them.
Accessories
Internal bracket for inside adjustment thermostat |
Silicone cap for thermostat adjustment hole |
PA66, 6 way connection block |
Brass fittings |
Massive stainless steel fitting, for custom hole drilling |
Deep drawn stainless steel fitting |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
9BBAE1000ELH008A |
9BBJO1000004078A |
BE6E6000000MP000 |
For full range and references of fittings, nuts and gaskets: immersion heater accessories. | Available without holes or drilled upon request. Ask for references | Available in 2, 3, 4, 5, 6, 7 holes and M45 or 1″1/2 thread. Ask for references |
