Aluminum enclosure, black or transparent polycarbonate cover, for immersion heater or solid state relays (SSR) controls, Y3H1

All aluminum enclosure, for immersion heater or solid state relays (SSR) controls, Y3H3
Aluminum enclosure, with PA66 cover and transparent PC window, for immersion heater or solid state relays (SSR) controls, Y3H2
– The rear side has fins to cool the solid state relays
– Size compatible with 3-pole static relay or 4 single pole solid state relays
– Includes slides for printed circuits
Dimensions | 95 × 132 × 182 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

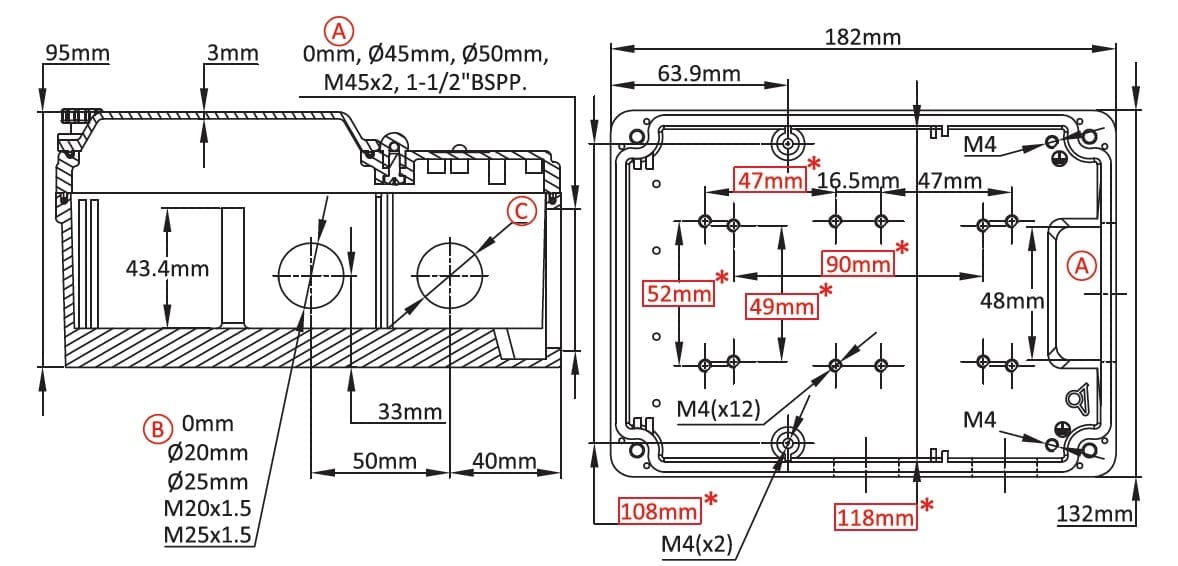

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

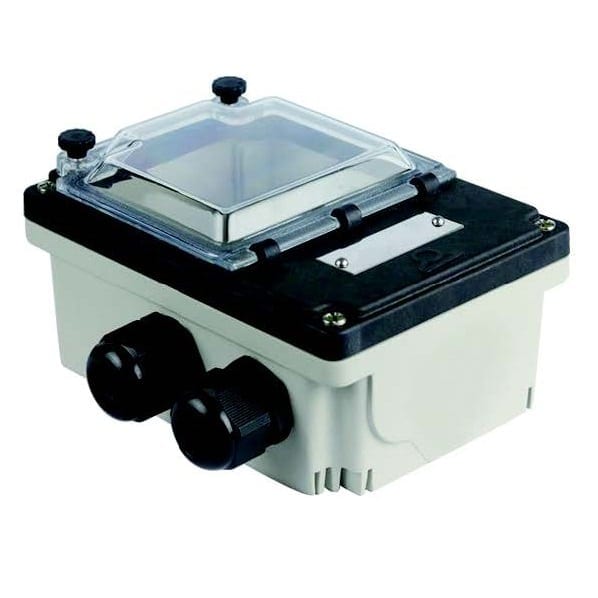

Enclosure with aluminum body, and plastic cover with transparent window, for immersion heater or solid state relays (SSR) controls

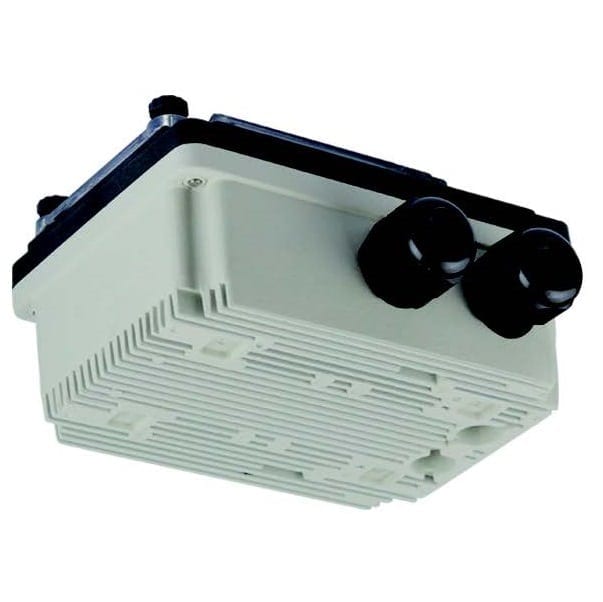

– The rear side has fins to cool the solid state relays
– Size compatible with 3-pole static relay or 4 single pole solid state relays
– Includes slides for printed circuits
– The 96x132mm face can receive piercing for 1 “1/4, 1” 1/2 and M45x2 fittings, double thread and inner nut, or single twist ring thread
– Output from one, two or three M20 or M25 cable glands on 182 x 96mm faces
Size: 95 x 132 x 182mm
Volume: 2010 cm³
Material: Aluminium with black PA66 cover and transparent polycarbonate window
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y3H2000000000007 | Y3H200000000000G |
0 | 20 | 0 | Y3H2000012000007 | Y3H200001200000G |
0 | 20 | 20 | Y3H2000022000007 | Y3H200002200000G |
0 | 25 | 0 | Y3H2000012500007 | Y3H200001250000G |
0 | 25 | 25 | Y3H2000022500007 | Y3H200002250000G |
0 | M20*1.5 | 0 | Y3H200001T000007 | Y3H200001T00000G |
0 | M20*1.5 | M20*1.5 | Y3H200002T000007 | Y3H200002T00000G |
0 | M25*1.5 | 0 | Y3H200001T500007 | Y3H200001T50000G |
0 | M25*1.5 | M25*1.5 | Y3H200002T500007 | Y3H200002T50000G |
45 | 0 | 0 | Y3H2450000000007 | Y3H245000000000G |
45 | 20 | 0 | Y3H2450012000007 | Y3H245001200000G |
45 | 20 | 20 | Y3H2450022000007 | Y3H245002200000G |
45 | 25 | 0 | Y3H2450012500007 | Y3H245001250000G |
45 | 25 | 25 | Y3H2450022500007 | Y3H245002250000G |
45 | M20*1.5 | 0 | Y3H245001T000007 | Y3H245001T00000G |
45 | M20*1.5 | M20*1.5 | Y3H245002T000007 | Y3H245002T00000G |
45 | M25*1.5 | 0 | Y3H245001T500007 | Y3H245001T50000G |
45 | M25*1.5 | M25*1.5 | Y3H245002T500007 | Y3H245002T50000G |
50 | 0 | 0 | Y3H2500000000007 | Y3H250000000000G |
50 | 20 | 0 | Y3H2500012000007 | Y3H250001200000G |
50 | 20 | 20 | Y3H2500022000007 | Y3H250002200000G |
50 | 25 | 0 | Y3H2500012500007 | Y3H250001250000G |
50 | 25 | 25 | Y3H2500022500007 | Y3H250002250000G |
50 | M20*1.5 | 0 | Y3H250001T000007 | Y3H250001T00000G |
50 | M20*1.5 | M20*1.5 | Y3H250002T000007 | Y3H250002T00000G |
50 | M25*1.5 | 0 | Y3H250001T500007 | Y3H250001T50000G |
50 | M25*1.5 | M25*1.5 | Y3H250002T500007 | Y3H250002T50000G |
M45*2 | 0 | 0 | Y3H2M45000000007 | Y3H2M4500000000G |
M45*2 | 20 | 0 | Y3H2M45012000007 | Y3H2M4501200000G |
M45*2 | 20 | 20 | Y3H2M45022000007 | Y3H2M4502200000G |
M45*2 | 25 | 0 | Y3H2M45012500007 | Y3H2M4501250000G |
M45*2 | 25 | 25 | Y3H2M45022500007 | Y3H2M4502250000G |
M45*2 | M20*1.5 | 0 | Y3H2M4501T000007 | Y3H2M4501T00000G |
M45*2 | M20*1.5 | M20*1.5 | Y3H2M4502T000007 | Y3H2M4502T00000G |
M45*2 | M25*1.5 | 0 | Y3H2M4501T500007 | Y3H2M4501T50000G |
M45*2 | M25*1.5 | M25*1.5 | Y3H2M4502T500007 | Y3H2M4502T50000G |
1½”BSPP | 0 | 0 | Y3H2BA2000000007 | Y3H2BA200000000G |
1½”BSPP | 20 | 0 | Y3H2BA2012000007 | Y3H2BA201200000G |
1½”BSPP | 20 | 20 | Y3H2BA2022000007 | Y3H2BA202200000G |
1½”BSPP | 25 | 0 | Y3H2BA2012500007 | Y3H2BA201250000G |
1½”BSPP | 25 | 25 | Y3H2BA2022500007 | Y3H2BA202250000G |
1½”BSPP | M20*1.5 | 0 | Y3H2BA201T000007 | Y3H2BA201T00000G |
1½”BSPP | M20*1.5 | M20*1.5 | Y3H2BA202T000007 | Y3H2BA202T00000G |
1½”BSPP | M25*1.5 | 0 | Y3H2BA201T500007 | Y3H2BA201T50000G |
1½”BSPP | M25*1.5 | M25*1.5 | Y3H2BA202T500007 | Y3H2BA202T50000G |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
