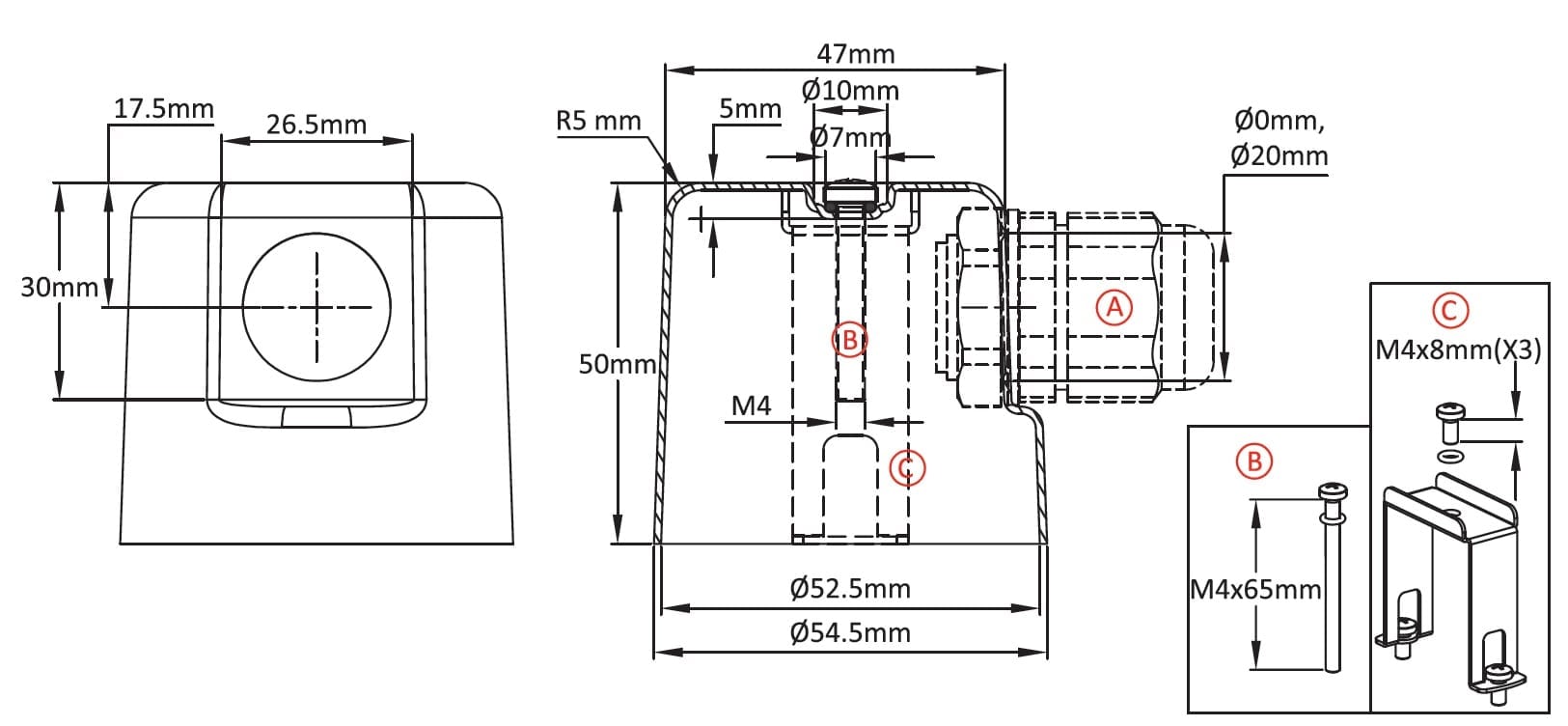

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

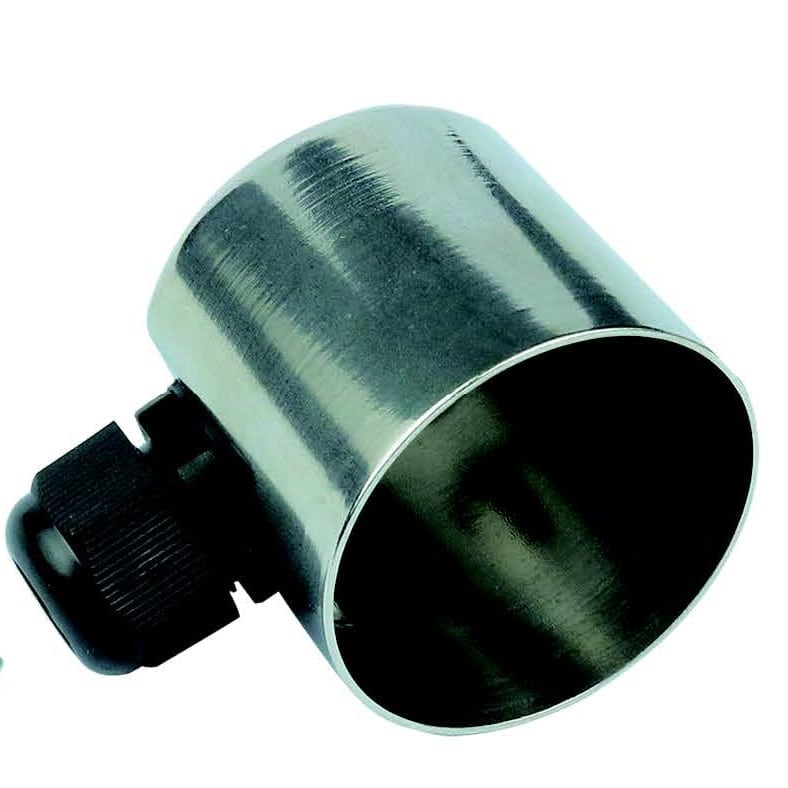

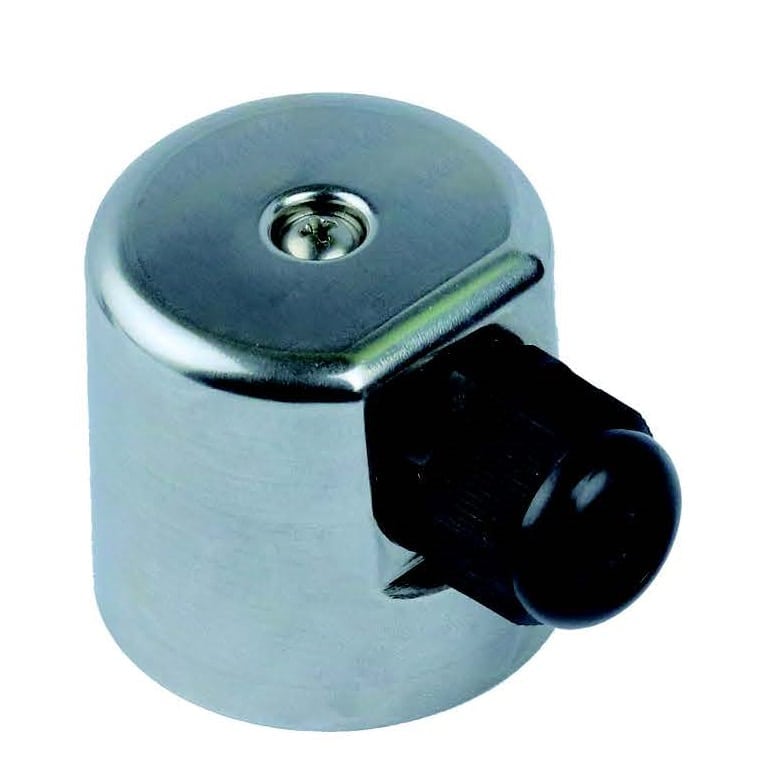

Round miniature simplified immersion heater enclosure
– Mounting on single thread brass or stainless steel fittings 1″1/4, 1″1/2 and M45x2, but also on fittings with M4 centre thread
– Output by M20 cable gland
Size: Dia.54 x 50mm
Volume: 105 cm³
Material: Stainless steel 304 or 316
Ingress protection: IP69K
Mechanical impact resistance: IK7
Main references
A (mm) | B | C | 304 | 316 |
0 | √ | × | Y3K1000100001008 | Y3K1000100001009 |
20 | √ | × | Y3K1000112001008 | Y3K1000112001009 |
0 | × | √ | Y3K10001000E1008 | Y3K10001000E1009 |
20 | × | √ | Y3K10001120E1008 | Y3K10001120E1009 |
0 | × | × | Y3K1000100000008 | Y3K1000100000009 |
20 | × | × | Y3K1000112000008 | Y3K1000112000009 |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
