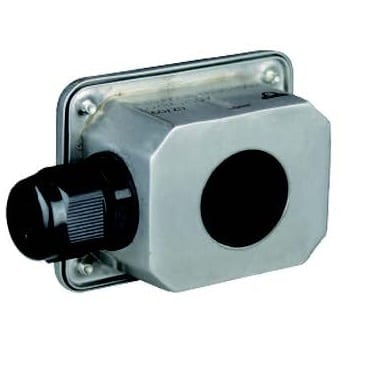

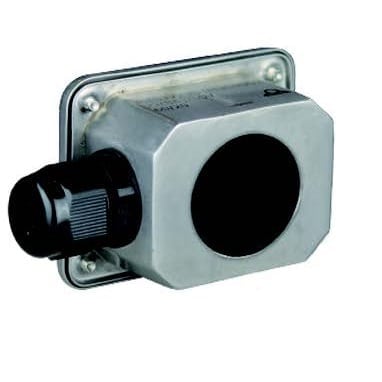

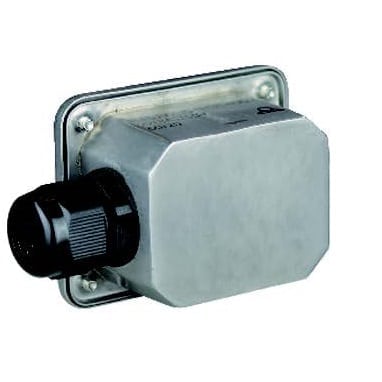

Miniature enclosure for temperature sensor or level sensor, Y3L1
– Flat lid
– Bottom side without hole or with hole for fitting
– Hole for M20 cable gland
Dimensions | 75 × 60 × 44 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

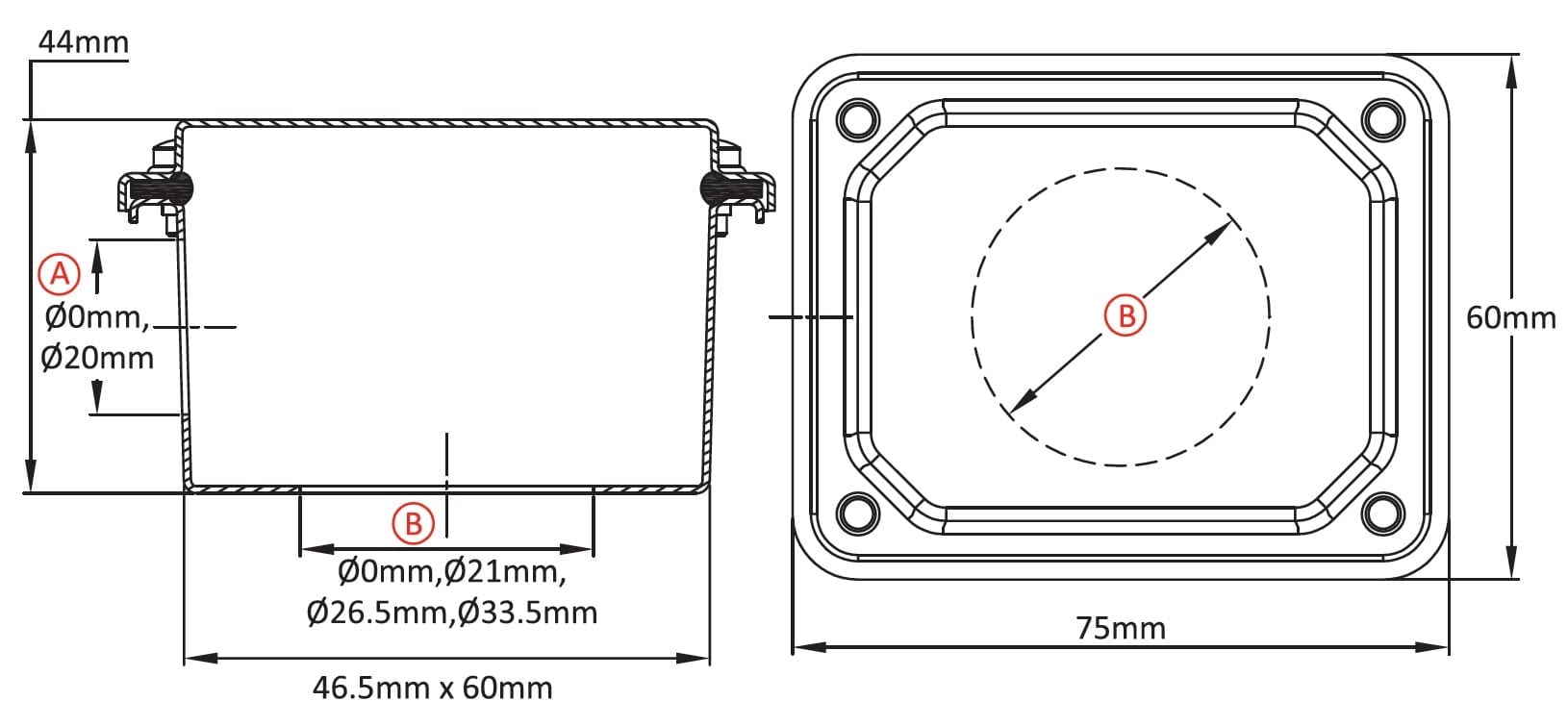

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Miniature enclosure for temperature sensor or level sensor
– Flat lid
– Bottom side without hole or with hole for fitting
– Hole for M20 cable gland
Size: 75 x 60 x 44 mm
Volume: 111 cm³
Material: Stainless steel 304 or 316
Ingress protection: IP69K
Mechanical impact resistance: IK7
Main references
A (mm) | B(mm) | 304 | 316 |
0 | 0 | Y3L1000000000008 | Y3L1000000000009 |
0 | 21 | Y3L1210000000008 | Y3L1210000000009 |
0 | 26.5 | Y3L1265000000008 | Y3L1265000000009 |
0 | 33.5 | Y3L1335000000008 | Y3L1335000000009 |
20 | 0 | Y3L1000120000008 | Y3L1000120000009 |
20 | 21 | Y3L1210120000008 | Y3L1210120000009 |
20 | 26.5 | Y3L1265120000008 | Y3L1265120000009 |
20 | 33.5 | Y3L1335120000008 | Y3L1335120000009 |
Cable gland not included in these reference, consult us if you want them.
