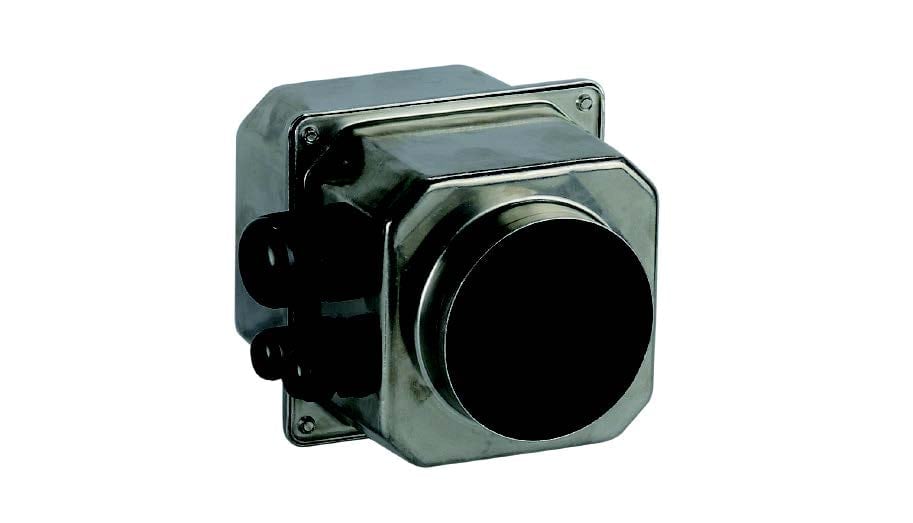

Big size immersion heater or controls enclosure, for direct welding on pipes, Y3T8

– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 80 tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays

Dimensions 125 × 125 × 135 mm
Ingress protection

Mechanical protection

Housing raw material

, ,

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.

Description

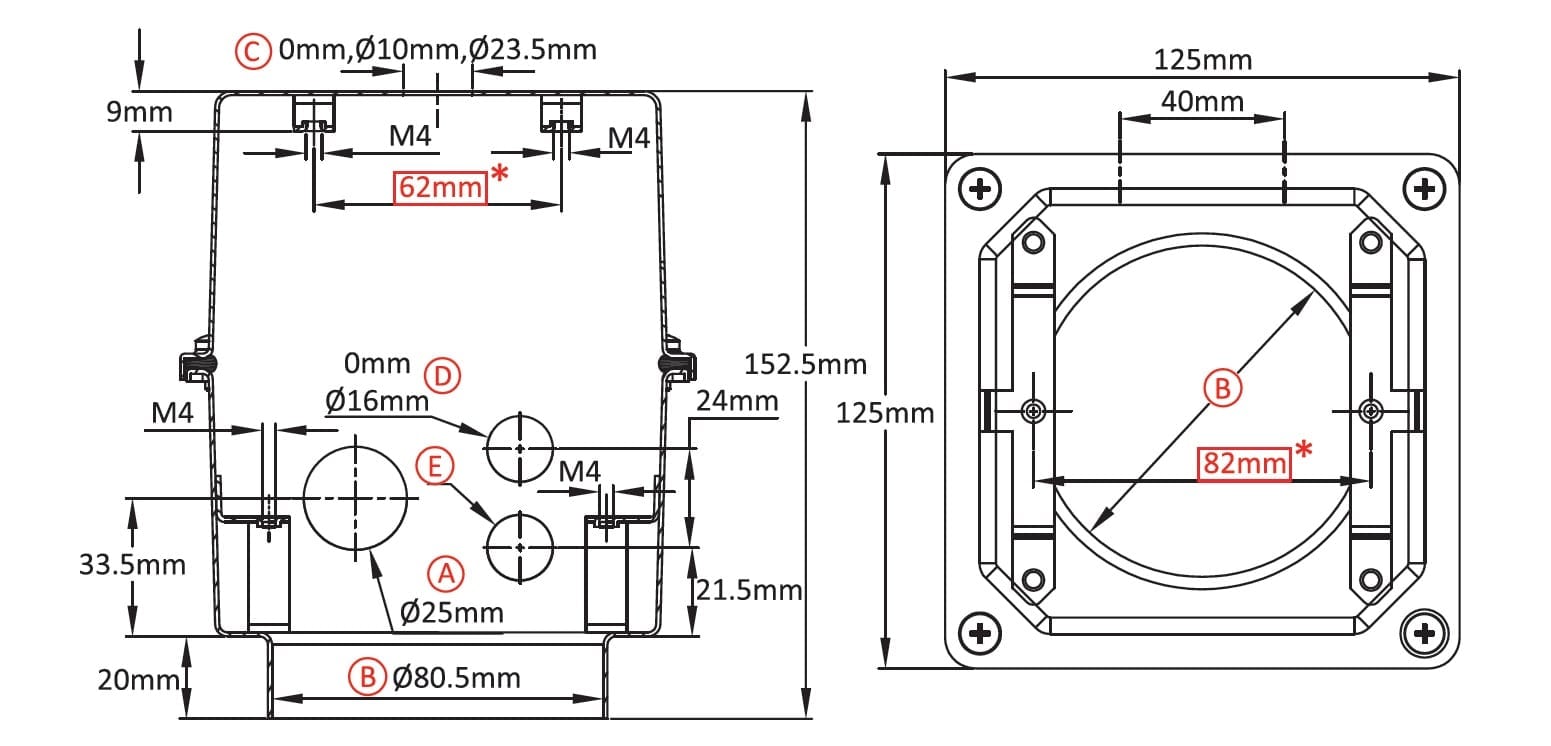

Red dimensions inside rectangular frames on drawings are used for accessories assembly.

Main features

Big size immersion heater or controls enclosure, for direct welding on pipes
– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 80 tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
– Can receive one or two power relays

Size: 125 x 125 x 135 mm

Volume: 1668 cm³

Material: Stainless steel deep drawn cover and bottom.

Ingress protection: IP69K

Mechanical impact resistance: IK7

Screws: Stainless Steel.

Cover gasket: Molded Silicone.



Basic references





To access download documents, please Login/Register.  Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.

Downloads

TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.

Technical informations associated to this product

  • Electrical protection classes

    The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.)
  • Guide for immersion heater selection

    Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
  • Surface engineering of metallic housing

    Surface condition is an essential parameter of resistance against atmospheric corrosion. Both aluminum and stainless steel naturally form a protective oxide layer on the surface. Corrosion occurs only when this protective oxide layer is crossed or destroyed. Microcavities of a rough surface allow atmospheric pollutants to initiate local oxidative conditions. This is particularly critical when these pollutants have a different galvanic potential. For example, iron or iron oxide dust can create favourable conditions for perforating corrosion in stainless steel, as well as zinc in the case of aluminum. It is important that the surface of the metal, if exposed to the weather, be smooth so that these pollutants slide and escape naturally.
  • Electrical contacts

    As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element.
