Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes, Y3TB

Big size immersion heater or controls enclosure, for direct welding on pipes, Y3T8
Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes, Y3TC
– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 100mm tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Dimensions | 125 × 125 × 105 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Volume (cm³) |
Description

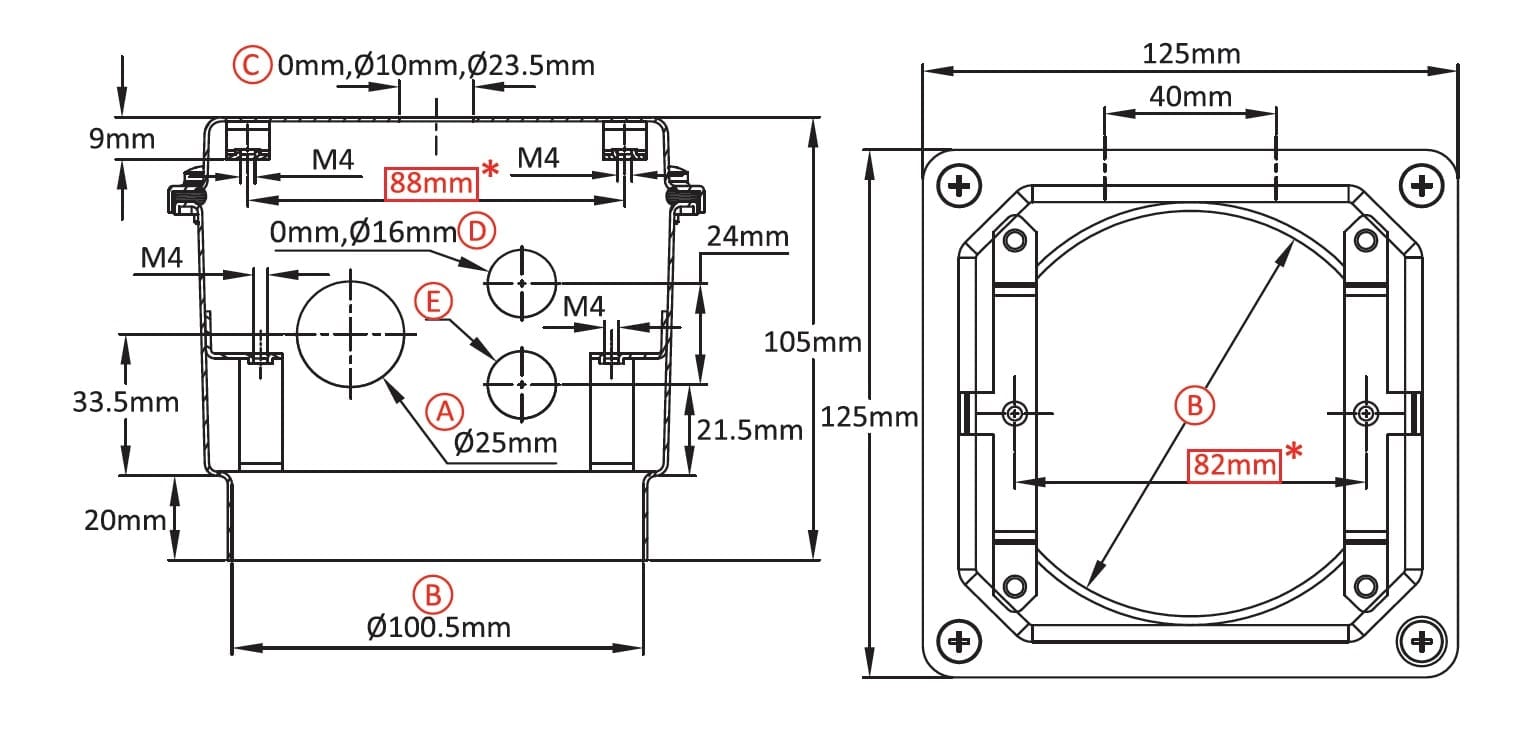

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

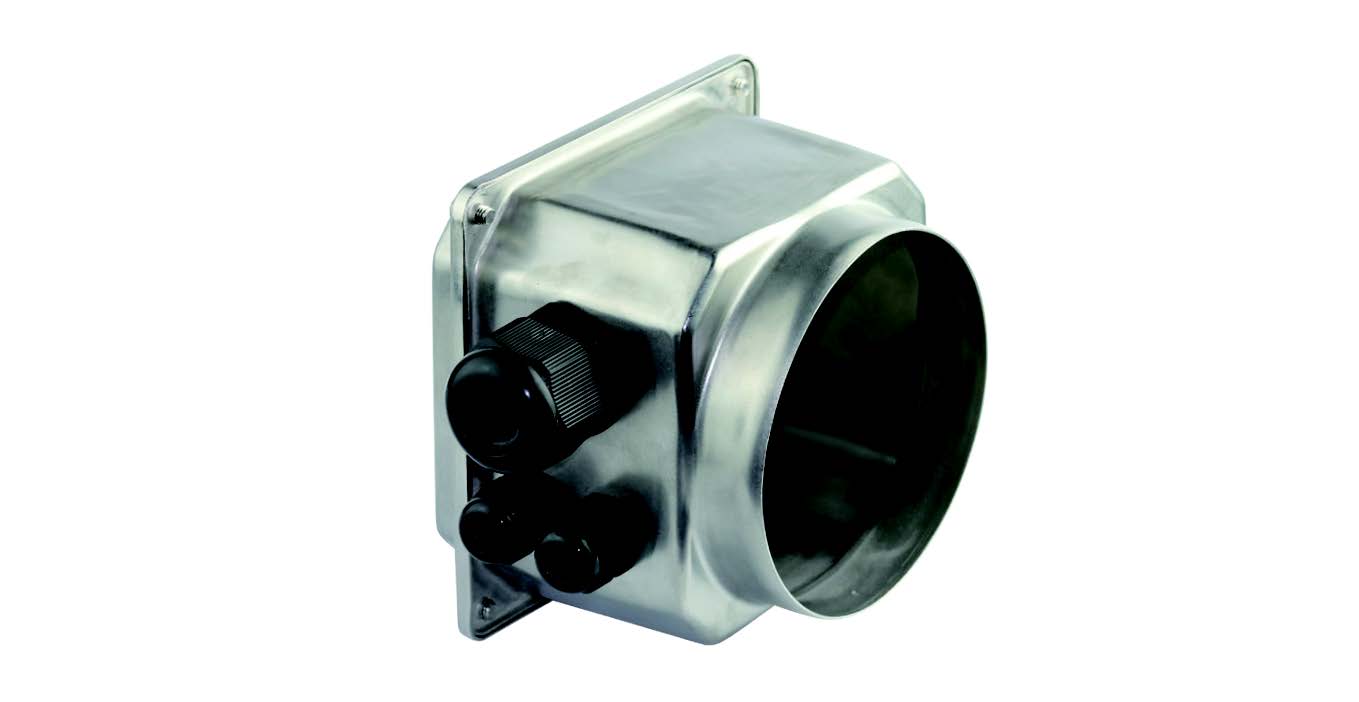

Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes
– Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 100mm tubes.
– Hole for one M25 cable gland, or holes for one M25 and two M16
– Optional hole for pilot light
Size: 125 x 125 x 105 mm
Volume: 1138 cm³
Material: Stainless steel deep drawn cover and bottom.
Ingress protection: IP69K
Mechanical impact resistance: IK7
Screws: Stainless Steel.
Cover gasket: Molded Silicone.
Basic references
A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | 304 | 316 |
25 | 100.5 | 0 | 16 | 16 | Y3TCA0503S3G1008 | Y3TCA0503S3G1009 |
25 | 100.5 | 10 | 16 | 16 | Y3TCA05A3S3G1008 | Y3TCA05A3S3G1009 |
25 | 100.5 | 23.5 | 16 | 16 | Y3TCA05D3S3G1008 | Y3TCA05D3S3G1009 |
25 | 100.5 | 0 | 0 | 16 | Y3TCA0502C5G1008 | Y3TCA0502C5G1009 |
25 | 100.5 | 10 | 0 | 16 | Y3TCA05A2C5G1008 | Y3TCA05A2C5G1009 |
25 | 100.5 | 23.5 | 0 | 16 | Y3TCA05D2C5G1008 | Y3TCA05D2C5G1009 |
25 | 100.5 | 0 | 0 | 0 | Y3TCA050125G1008 | Y3TCA050125G1009 |
25 | 100.5 | 10 | 0 | 0 | Y3TCA05A125G1008 | Y3TCA05A125G1009 |
25 | 100.5 | 23.5 | 0 | 0 | Y3TCA05D125G1008 | Y3TCA05D125G1009 |
Cable gland not included in these reference, consult us if you want them.
