Big size immersion heater or controls enclosure, for direct welding on pipes, Y3T8

Miniature enclosure for immersion heater, level sensor or temperature sensor, Y303
Simplified immersion heater enclosure for fittings with M4 central screw, Y302
– Mounting on brass fittings 1 “1/4, 1” 1/2 and M45x2
– Output by M20 cable gland
Dimensions | 54 × 54 × 66 mm |
---|---|
Ingress protection | |
Mechanical protection | |
Housing raw material | |
Fastener raw material | |
Volume (cm³) |
Description

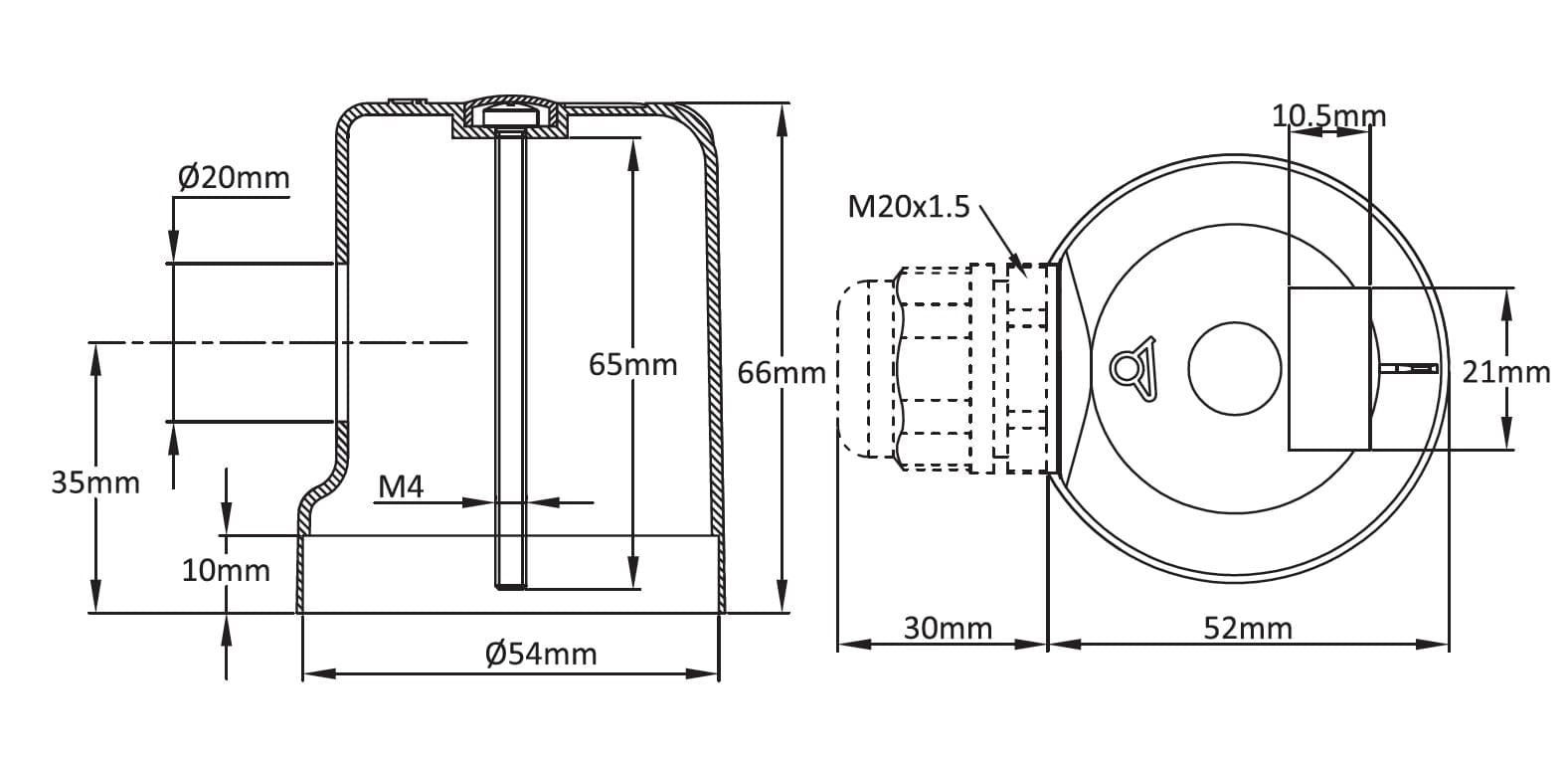

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Simplified immersion heater enclosure for fittings with M4 central screw
– Mounting on brass fittings 1 “1/4, 1” 1/2 and M45x2
– Output by M20 cable gland
Size: Dia.54 x 66 mm
Volume: 160 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK8
Fastener: Stainless steel
Main references
Y30200011200000T |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
