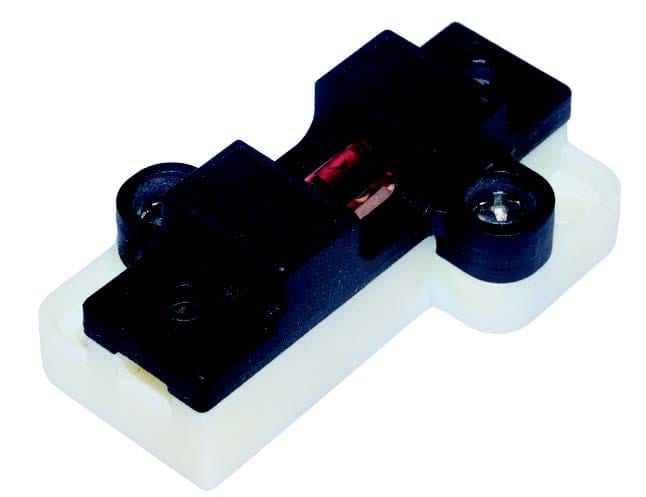

Miniature electric fire detection switches with thermal glass bulb

Simple device for fire detection in buildings. This device is operating electrical contacts for remote alarm and simultaneous control of electrical servo-controls such as electric cylinders, electric motors or solenoids, for opening or closing air conditioning dampers, doors, sunroofs, and openings in building facades.

Contact Material

,

Contact style

Voltage

, ,

Electrical rating

, ,

Release temperature (°C)

, , , , ,

Send an inquiry for this item
  • I agree that that the website retain and use my personal information to renew contact with me.
Insert a valid name
insert a valid mail
Insert message
Authorization needed to validate the form.
Category: Tags: , , , , , , , , , , , ,

Description

Applications

Simple device for fire detection in buildings. This device is operating electrical contacts for remote alarm and simultaneous control of electrical servo-controls such as electric cylinders, electric motors or solenoids, for opening or closing air conditioning dampers, doors, sunroofs, and openings in building facades.

Main Features

Thermal sensitive part: Thermal bulb.

Operation: The break of the bulb operates an electric switch.

Mounting: Body with 2 holes for mounting on the wall or ceiling.

Electrical contact: Opening when the bulb breaks.

Rating: 16A (4A) 250V alt.; 10A (1A) 400V alt.; 4A (100mA) 24 and 48VDC. Compatible with 24V and 48V, 500 N electro-magnet.

Selection of gold-plated silver contact avoids oxidation, and allows use on low level electronic circuits. NB: use on circuits with a voltage greater than 12V and at more than 1A may vaporize the protective gold layer.

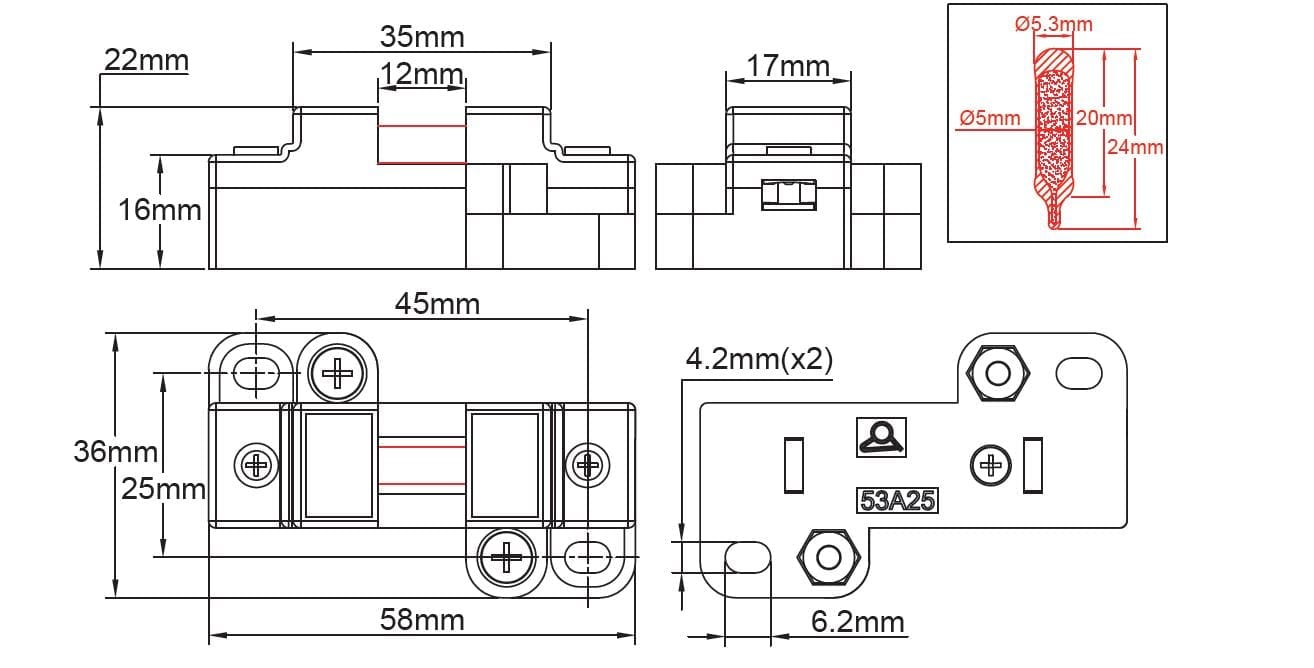

Body: 17 x 58 x 22 mm ceramic, with UV-resistant black PA66 cover,

  • Flammability: UL94V0 and GWFI 960°C.
  • Deformation temperature under load: 225°C. (ISO 75-2, 1.8 MPa).
  • Room temperature class T200°C.

Electrical connection: Screw terminals for wires up to 2.5mm².

Maintenance: The replacement of the 5x20mm thermal bulb is possible after unscrewing the PA66 cover

Options: Customization and customer labelling, plastic cover in red or cream color
