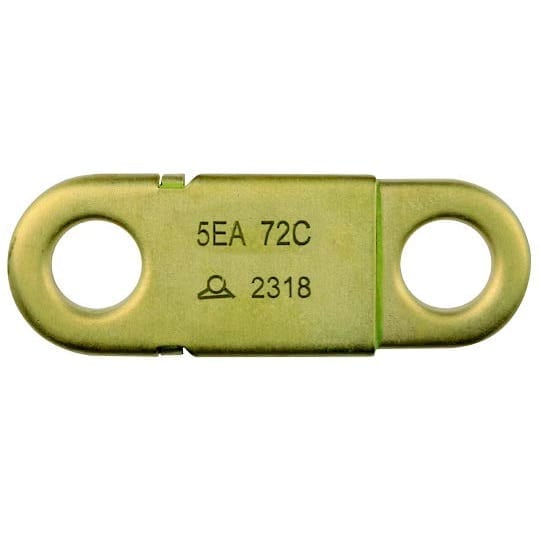

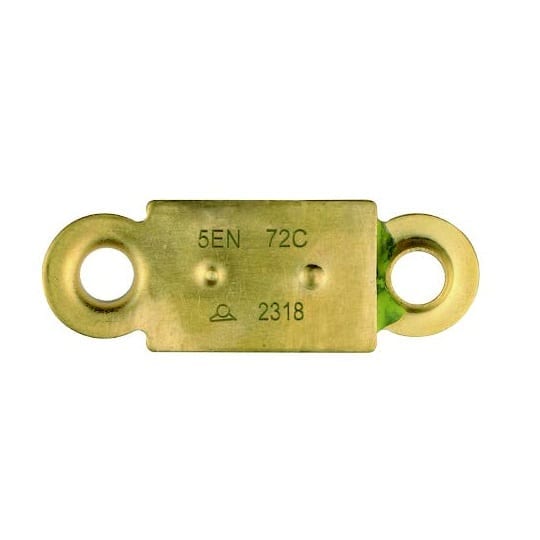

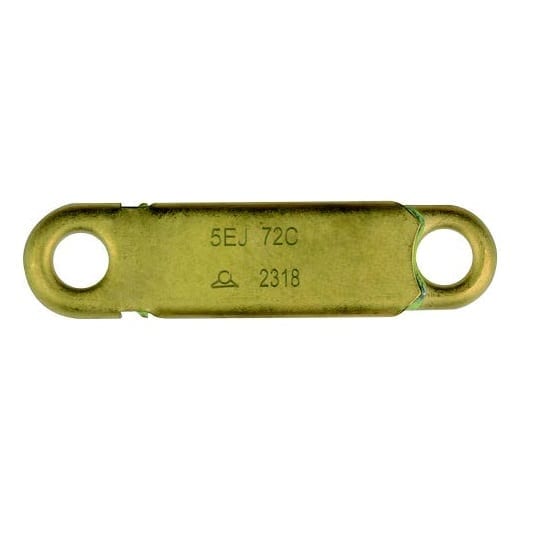

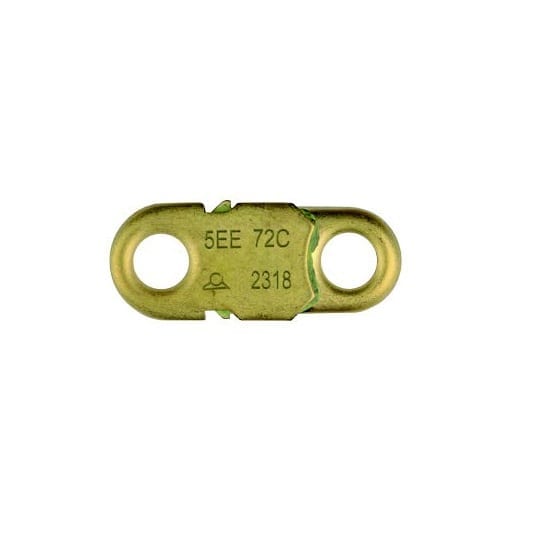

Eutectic alloys fusible links for medium loads

These fusible links have a medium response time, between 3 minutes and 3 minutes 10 seconds, for a temperature rise rate of 20°C/min from 25°C and their thickness of metal gives them sufficient strength for their use in multiplied mechanisms supporting a maximum load of 300DaN. The holes have a lip to improve their resistance to mechanical break at 25°C by avoiding the tearing of the metal.

Maximum permanent load (DaN)

, ,

Raw material

Thickness (mm)

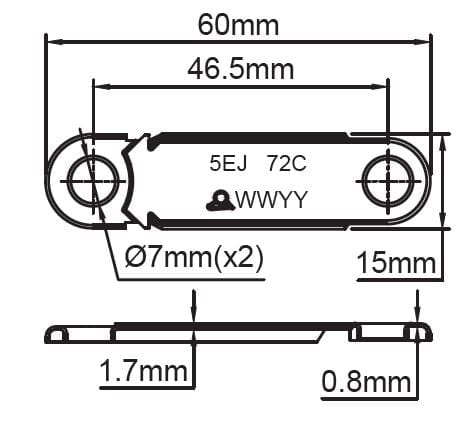

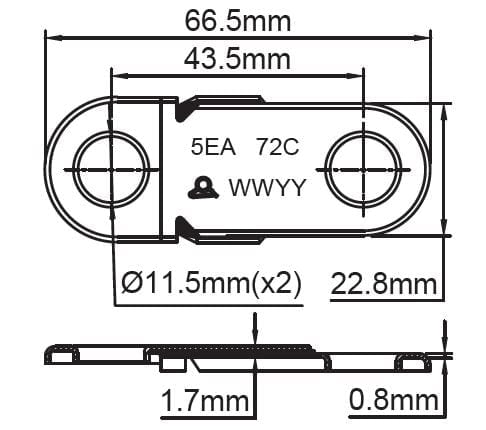

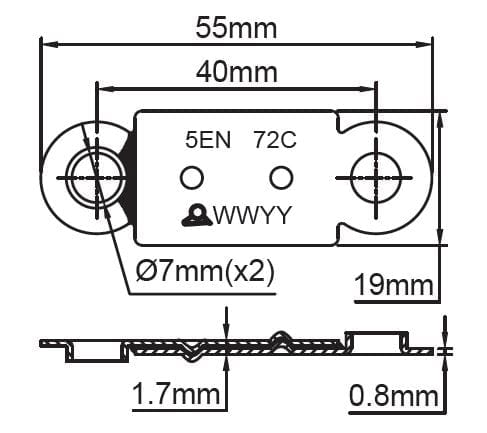

Hole distance (mm)

, , ,
