Description

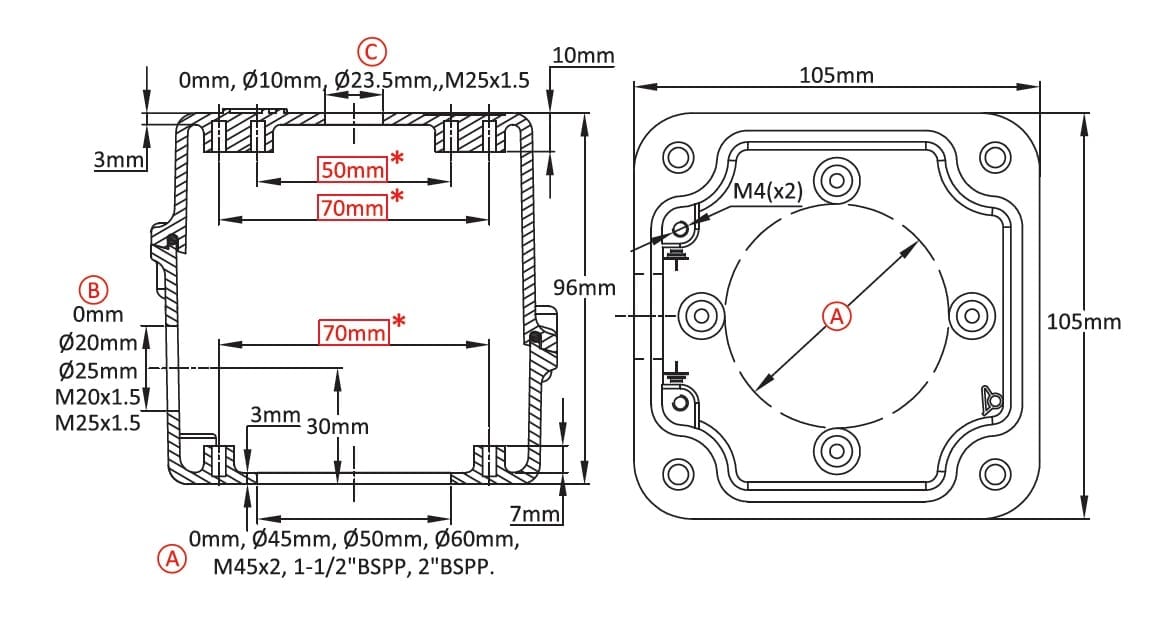

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

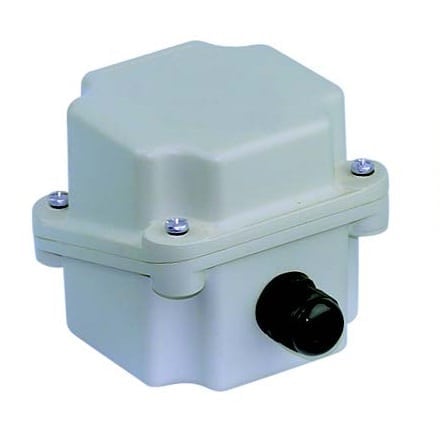

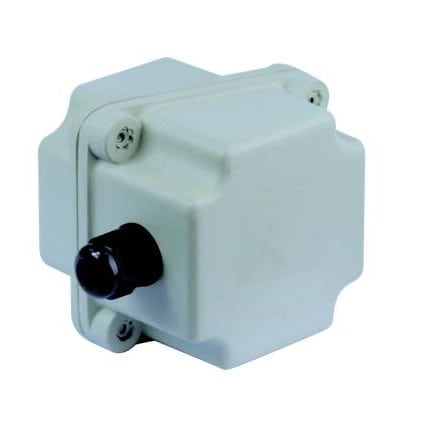

Enclosure for immersion heater
– Can receive a drill on the back side for 1″1/4, 1″1/2 and M45x2 fittings with double thread and inner nut, or single thread with rotating ring
– Can also accommodate a 2″ double threaded fitting (only with threaded ring)
– Has mounting bosses for internal adjustment backplate
– Output via an M20 or M25 cable gland
Size: 105 x 105 x 96 mm
Volume: 858 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y305000000000007 | Y30500000000000G |
0 | 0 | 10 | Y305000A00000007 | Y305000A0000000G |
0 | 0 | 23.5 | Y305000D00000007 | Y305000D0000000G |
0 | 0 | M25×1.5 | Y305000F00000007 | Y305000F0000000G |
0 | 20 | 0 | Y305000012000007 | Y30500001200000G |
0 | 20 | 10 | Y305000A12000007 | Y305000A1200000G |
0 | 20 | 23.5 | Y305000D12000007 | Y305000D1200000G |
0 | 20 | M25×1.5 | Y305000F12000007 | Y305000F1200000G |
0 | 25 | 0 | Y305000012500007 | Y30500001250000G |
0 | 25 | 10 | Y305000A12500007 | Y305000A1250000G |
0 | 25 | 23.5 | Y305000D12500007 | Y305000D1250000G |
0 | 25 | M25×1.5 | Y305000F12500007 | Y305000F1250000G |
0 | M20×1.5 | 0 | Y30500001T000007 | Y30500001T00000G |
0 | M20×1.5 | 10 | Y305000A1T000007 | Y305000A1T00000G |
0 | M20×1.5 | 23.5 | Y305000D1T000007 | Y305000D1T00000G |
0 | M20×1.5 | M25×1.5 | Y305000F1T000007 | Y305000F1T00000G |
0 | M25×1.5 | 0 | Y30500001T500007 | Y30500001T50000G |
0 | M25×1.5 | 10 | Y305000A1T500007 | Y305000A1T50000G |
0 | M25×1.5 | 23.5 | Y305000D1T500007 | Y305000D1T50000G |
0 | M25×1.5 | M25×1.5 | Y305000F1T500007 | Y305000F1T50000G |
45 | 0 | 0 | Y305450000000007 | Y30545000000000G |
45 | 0 | 10 | Y305450A00000007 | Y305450A0000000G |
45 | 0 | 23.5 | Y305450D00000007 | Y305450D0000000G |
45 | 0 | M25×1.5 | Y305450F00000007 | Y305450F0000000G |
45 | 20 | 0 | Y305450012000007 | Y30545001200000G |
45 | 20 | 10 | Y305450A12000007 | Y305450A1200000G |
45 | 20 | 23.5 | Y305450D12000007 | Y305450D1200000G |
45 | 20 | M25×1.5 | Y305450F12000007 | Y305450F1200000G |
45 | 25 | 0 | Y305450012500007 | Y30545001250000G |
45 | 25 | 10 | Y305450A12500007 | Y305450A1250000G |
45 | 25 | 23.5 | Y305450D12500007 | Y305450D1250000G |
45 | 25 | M25×1.5 | Y305450F12500007 | Y305450F1250000G |
45 | M20×1.5 | 0 | Y30545001T000007 | Y30545001T00000G |
45 | M20×1.5 | 10 | Y305450A1T000007 | Y305450A1T00000G |
45 | M20×1.5 | 23.5 | Y305450D1T000007 | Y305450D1T00000G |
45 | M20×1.5 | M25×1.5 | Y305450F1T000007 | Y305450F1T00000G |
45 | M25×1.5 | 0 | Y30545001T500007 | Y30545001T50000G |
45 | M25×1.5 | 10 | Y305450A1T500007 | Y305450A1T50000G |
45 | M25×1.5 | 23.5 | Y305450D1T500007 | Y305450D1T50000G |
45 | M25×1.5 | M25×1.5 | Y305450F1T500007 | Y305450F1T50000G |
50 | 0 | 0 | Y305500000000007 | Y30550000000000G |
50 | 0 | 10 | Y305500A00000007 | Y305500A0000000G |
50 | 0 | 23.5 | Y305500D00000007 | Y305500D0000000G |
50 | 0 | M25×1.5 | Y305500F00000007 | Y305500F0000000G |
50 | 20 | 0 | Y305500012000007 | Y30550001200000G |
50 | 20 | 10 | Y305500A12000007 | Y305500A1200000G |
50 | 20 | 23.5 | Y305500D12000007 | Y305500D1200000G |
50 | 20 | M25×1.5 | Y305500F12000007 | Y305500F1200000G |
50 | 25 | 0 | Y305500012500007 | Y30550001250000G |
50 | 25 | 10 | Y305500A12500007 | Y305500A1250000G |
50 | 25 | 23.5 | Y305500D12500007 | Y305500D1250000G |
50 | 25 | M25×1.5 | Y305500F12500007 | Y305500F1250000G |
50 | M20×1.5 | 0 | Y30550001T000007 | Y30550001T00000G |
50 | M20×1.5 | 10 | Y305500A1T000007 | Y305500A1T00000G |
50 | M20×1.5 | 23.5 | Y305500D1T000007 | Y305500D1T00000G |
50 | M20×1.5 | M25×1.5 | Y305500F1T000007 | Y305500F1T00000G |
50 | M25×1.5 | 0 | Y30550001T500007 | Y30550001T50000G |
50 | M25×1.5 | 10 | Y305500A1T500007 | Y305500A1T50000G |
50 | M25×1.5 | 23.5 | Y305500D1T500007 | Y305500D1T50000G |
50 | M25×1.5 | M25×1.5 | Y305500F1T500007 | Y305500F1T50000G |
60 | 0 | 0 | Y305600000000007 | Y30560000000000G |
60 | 0 | 10 | Y305600A00000007 | Y305600A0000000G |
60 | 0 | 23.5 | Y305600D00000007 | Y305600D0000000G |
60 | 0 | M25×1.5 | Y305600F00000007 | Y305600F0000000G |
60 | 20 | 0 | Y305600012000007 | Y30560001200000G |
60 | 20 | 10 | Y305600A12000007 | Y305600A1200000G |
60 | 20 | 23.5 | Y305600D12000007 | Y305600D1200000G |
60 | 20 | M25×1.5 | Y305600F12000007 | Y305600F1200000G |
60 | 25 | 0 | Y305600012500007 | Y30560001250000G |
60 | 25 | 10 | Y305600A12500007 | Y305600A1250000G |
60 | 25 | 23.5 | Y305600D12500007 | Y305600D1250000G |
60 | 25 | M25×1.5 | Y305600F12500007 | Y305600F1250000G |
60 | M20×1.5 | 0 | Y30560001T000007 | Y30560001T00000G |
60 | M20×1.5 | 10 | Y305600A1T000007 | Y305600A1T00000G |
60 | M20×1.5 | 23.5 | Y305600D1T000007 | Y305600D1T00000G |
60 | M20×1.5 | M25×1.5 | Y305600F1T000007 | Y305600F1T00000G |
60 | M25×1.5 | 0 | Y30560001T500007 | Y30560001T50000G |
60 | M25×1.5 | 10 | Y305600A1T500007 | Y305600A1T50000G |
60 | M25×1.5 | 23.5 | Y305600D1T500007 | Y305600D1T50000G |
60 | M25×1.5 | M25×1.5 | Y305600F1T500007 | Y305600F1T50000G |
M45×2 | 0 | 0 | Y305M45000000007 | Y305M4500000000G |
M45×2 | 0 | 10 | Y305M45A00000007 | Y305M45A0000000G |
M45×2 | 0 | 23.5 | Y305M45D00000007 | Y305M45D0000000G |
M45×2 | 0 | M25×1.5 | Y305M45F00000007 | Y305M45F0000000G |
M45×2 | 20 | 0 | Y305M45012000007 | Y305M4501200000G |
M45×2 | 20 | 10 | Y305M45A12000007 | Y305M45A1200000G |
M45×2 | 20 | 23.5 | Y305M45D12000007 | Y305M45D1200000G |
M45×2 | 20 | M25×1.5 | Y305M45F12000007 | Y305M45F1200000G |
M45×2 | 25 | 0 | Y305M45012500007 | Y305M4501250000G |
M45×2 | 25 | 10 | Y305M45A12500007 | Y305M45A1250000G |
M45×2 | 25 | 23.5 | Y305M45D12500007 | Y305M45D1250000G |
M45×2 | 25 | M25×1.5 | Y305M45F12500007 | Y305M45F1250000G |
M45×2 | M20×1.5 | 0 | Y305M4501T000007 | Y305M4501T00000G |
M45×2 | M20×1.5 | 10 | Y305M45A1T000007 | Y305M45A1T00000G |
M45×2 | M20×1.5 | 23.5 | Y305M45D1T000007 | Y305M45D1T00000G |
M45×2 | M20×1.5 | M25×1.5 | Y305M45F1T000007 | Y305M45F1T00000G |
M45×2 | M25×1.5 | 0 | Y305M4501T500007 | Y305M4501T50000G |
M45×2 | M25×1.5 | 10 | Y305M45A1T500007 | Y305M45A1T50000G |
M45×2 | M25×1.5 | 23.5 | Y305M45D1T500007 | Y305M45D1T50000G |
M45×2 | M25×1.5 | M25×1.5 | Y305M45F1T500007 | Y305M45F1T50000G |
1½” BSPP | 0 | 0 | Y305BA2000000007 | Y305BA200000000G |
1½” BSPP | 0 | 10 | Y305BA2A00000007 | Y305BA2A0000000G |
1½” BSPP | 0 | 23.5 | Y305BA2D00000007 | Y305BA2D0000000G |
1½” BSPP | 0 | M25×1.5 | Y305BA2F00000007 | Y305BA2F0000000G |
1½” BSPP | 20 | 0 | Y305BA2012000007 | Y305BA201200000G |
1½” BSPP | 20 | 10 | Y305BA2A12000007 | Y305BA2A1200000G |
1½” BSPP | 20 | 23.5 | Y305BA2D12000007 | Y305BA2D1200000G |
1½” BSPP | 20 | M25×1.5 | Y305BA2F12000007 | Y305BA2F1200000G |
1½” BSPP | 25 | 0 | Y305BA2012500007 | Y305BA201250000G |
1½” BSPP | 25 | 10 | Y305BA2A12500007 | Y305BA2A1250000G |
1½” BSPP | 25 | 23.5 | Y305BA2D12500007 | Y305BA2D1250000G |
1½” BSPP | 25 | M25×1.5 | Y305BA2F12500007 | Y305BA2F1250000G |
1½” BSPP | M20×1.5 | 0 | Y305BA201T000007 | Y305BA201T00000G |
1½” BSPP | M20×1.5 | 10 | Y305BA2A1T000007 | Y305BA2A1T00000G |
1½” BSPP | M20×1.5 | 23.5 | Y305BA2D1T000007 | Y305BA2D1T00000G |
1½” BSPP | M20×1.5 | M25×1.5 | Y305BA2F1T000007 | Y305BA2F1T00000G |
1½” BSPP | M25×1.5 | 0 | Y305BA201T500007 | Y305BA201T50000G |
1½” BSPP | M25×1.5 | 10 | Y305BA2A1T500007 | Y305BA2A1T50000G |
1½” BSPP | M25×1.5 | 23.5 | Y305BA2D1T500007 | Y305BA2D1T50000G |
1½” BSPP | M25×1.5 | M25×1.5 | Y305BA2F1T500007 | Y305BA2F1T50000G |
2″ BSPP | 0 | 0 | Y305BB2000000007 | Y305BB200000000G |
2″ BSPP | 0 | 10 | Y305BB2A00000007 | Y305BB2A0000000G |
2″ BSPP | 0 | 23.5 | Y305BB2D00000007 | Y305BB2D0000000G |
2″ BSPP | 0 | M25×1.5 | Y305BB2F00000007 | Y305BB2F0000000G |
2″ BSPP | 20 | 0 | Y305BB2012000007 | Y305BB201200000G |
2″ BSPP | 20 | 10 | Y305BB2A12000007 | Y305BB2A1200000G |
2″ BSPP | 20 | 23.5 | Y305BB2D12000007 | Y305BB2D1200000G |
2″ BSPP | 20 | M25×1.5 | Y305BB2F12000007 | Y305BB2F1200000G |
2″ BSPP | 25 | 0 | Y305BB2012500007 | Y305BB201250000G |
2″ BSPP | 25 | 10 | Y305BB2A12500007 | Y305BB2A1250000G |
2″ BSPP | 25 | 23.5 | Y305BB2D12500007 | Y305BB2D1250000G |
2″ BSPP | 25 | M25×1.5 | Y305BB2F12500007 | Y305BB2F1250000G |
2″ BSPP | M20×1.5 | 0 | Y305BB201T000007 | Y305BB201T00000G |
2″ BSPP | M20×1.5 | 10 | Y305BB2A1T000007 | Y305BB2A1T00000G |
2″ BSPP | M20×1.5 | 23.5 | Y305BB2D1T000007 | Y305BB2D1T00000G |
2″ BSPP | M20×1.5 | M25×1.5 | Y305BB2F1T000007 | Y305BB2F1T00000G |
2″ BSPP | M25×1.5 | 0 | Y305BB201T500007 | Y305BB201T50000G |
2″ BSPP | M25×1.5 | 10 | Y305BB2A1T500007 | Y305BB2A1T50000G |
2″ BSPP | M25×1.5 | 23.5 | Y305BB2D1T500007 | Y305BB2D1T50000G |
2″ BSPP | M25×1.5 | M25×1.5 | Y305BB2F1T500007 | Y305BB2F1T50000G |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Enclosure for small storage heater immersion heater, Y3L4
- Flat lid - Bottom side with stamped 61mm hexagon, can be used on orientable fitting with ring or inside nut - Hole for M20 cable gland - Can receive a standard storage heater immersion heater, with 1/”1/4 brass fitting, with 54 mm on flat hexagon
-
Medium size enclosure for immersion heater, finned heaters or controls, Y3P3
- Can receive backside holes for 1"1/4, 1"1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring - Can accommodate stainless steel wall mounting brackets - Output by one or two M20 or M25 cable glands
-
Big enclosure, for immersion heaters or instruments, with flat cover, for welding on tubes, Y3TB
- Bottom side with stamped hole with welding lips for direct welding on in line heaters body or on dia. 80mm tubes. - Hole for one M25 cable gland, or holes for one M25 and two M16 - Optional hole for pilot light
-
Aluminum enclosure, with PA66 cover and transparent PC window, for immersion heater or solid state relays (SSR) controls, Y3H2
- The rear side has fins to cool the solid state relays - Size compatible with 3-pole static relay or 4 single pole solid state relays - Includes slides for printed circuits
-
Small size enclosure for immersion heater, finned heaters or controls, Y3P1
- Can receive backside holes for 1"1/4, 1"1/2 and M45x2 fittings with double thread and inner nut, or single thread with rotating ring - Can also receive back side holes for finned heating elements - Output by one or two M20 or M25 cable glands
-
Medium size enclosure for immersion heater, finned heaters with external adjustment knob, Y3P4
- Cover has deep recess for protected external knob, access from front or side of cover - Can receive backside holes for 1"1/4, 1"1/2, M45x2, fittings with double thread and inner nut, or single thread with rotating ring - Can accommodate wall mounting brackets - Can also receive back side holes for finned heating elements…
-
Aluminum enclosure, with polycarbonate cover, for immersion heater with 120 mm offset fitting, Y3J1
- Can accommodate all types of fittings up to M77x2 (with threaded ring or rotating ring) - Up to 2” the fittings are mounted on an aluminum plate that can be rotated to orient the enclosure during installation, without having to open it
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Corrosion resistance of aluminum
The plastic enclosures and their weather resistance are treated in the catalog N ° 3. We will deal here with the corrosion resistance of aluminum housings and accessories.
Categories
- TEMPERATURE
- Control thermostats
- Temperature limiters
- Control thermostat with ingress protection boxes
- Temperature limiter with ingress protection boxes
- ATEX/IECEx thermostats
- Housings and accessories
- Plastic housings
- Metallic housings
- Immersion heater housings
- Accessories for immersion heaters
- Finned heater control boxes
- Air heater and ventilation boxes
- Accessories for electro thermal control boxes
- Accessories for incorporation
- Relays and power contactors
- Connection blocks
- Heat tracing accessories
- PRESSURE
- HUMIDITY
- FLOW SWITCHES
- LEVEL SWITCHES
- FIRE DETECTION
- CONNECTION BLOCKS
