Combination of adjustable set point immersion heater thermostat and manual reset high limit, IP54 housing, 105x88x58.5mm
Control sub-assembly designed to be fitted directly on standard immersion heaters.
Power up to 3500W, 230V, single phase.
Housing raw material | |
---|---|
Color | |
Ingress protection | |
Contact Material | |
Electrical rating | |
Voltage | |
Electrical life (cycles at rated value) | |
Measurement type | |
Sensing element | |
Capillary length (mm) | |
Temperature adjustment range (°C) | |
Manual reset temperature (°C) | |
Differential (°C) | |
Setting adjustment | |
Rod length (mm) |
Enclosure | Type | Operation | Contact | Measurement | Ranges °C | Models |
IP54 | Control | Mechanical | SPDT | Immersion heater | Y08 | |
Material |
||||||
PC-ABS |
Main applications:
Control sub-assembly designed to be fitted directly on standard immersion heaters.
Power up to 3500W, 230V, single phase.

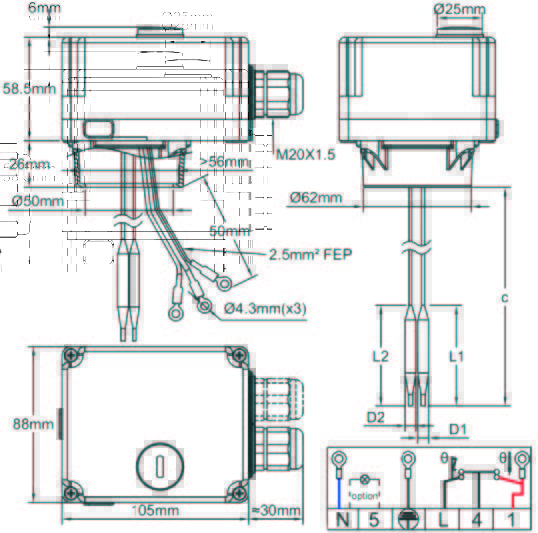

Housing: IP54, 105 x 88 x 84.5 mm, (Cap, accessories and cable gland not included), black PC-ABS, UL94V0. High impact and UV resistance.
Product including an adjustable temperature control thermostat and a fixed setting high limit manual reset thermostat. Manual reset has access from outside, by removing a cap.
Electrical input: one M20 cable glands.
Temperature Adjustment: Inside, with °C printed knob. (°F printed knobs available in option)
Sensing elements: Liquid filled bulbs, dia. 6mm , with output on backside, for mounting inside immersion heater pockets
Adjustment ranges: 0-60°C (32-140°F) ; 30- 90°C (85-195°F) ; 30-110°C (90-230°F)
Sensing elements output length (C): 500mm (standard) , other lengths from 150mm to 800mm available on request
Electrical connections:
- Power supply (Neutral, Line, Ground), on 6mm² screw terminals.
- Immersion heater: 3 wires, FEP 180°C insulated, 2.5mm², equipped with ring terminals, length 50mm on the immersion heater connection side, for direct connection on heating elements M4 terminals. (Neutral wire is blue color)
- Pilot light (Option): can be connected by a strap on power supply, or on control thermostat output, or on safety thermostat output.
Mounting: by the backside extension, on the 50mm diameter hole, that can be used for immersion heaters with 1”1/2 thread or M45 thread, mounted by nut or by dia 56mm rotation ring (see fittings and accessories for immersion heaters in catalogue 2)
Control thermostat contact: Open on temperature rise contact (C-1) 16A(2.6) 250VAC
-Electrical life >100.000 cycles.
Manual reset thermostat contact: Fail safe, open by temperature rise; 16A (2,6) 250V alt.
Control thermostat and manual reset thermostat contacts are in serial on the Line supply of immersion heater.
Options:
- Pilot light (230V)
- Liftable adjustable high end adjustment on control
- Outside access to the control thermostat adjustment (By removing a 40mm cap)
- Thermal cut out for incorporation inside immersion heater pocket.
Cover options:
1: Manual reset cap.(Standard) 2: Outside adjustment cap, dia 40mm (Option) 3: Pilot light (Option |
Set point adjustment options:
A: Mini dial adjustment (Option to be selected for outside adjustment with cap 2). B: Soft-grip knob adjustment, (Standard). C: Liftable adjustable high limit (Option) |
Main references (with C=300mm)
Temperature ranges °C (°F) | Manual reset calibration °C (°F) | Cap access manual reset | Cap access manual recess, liftable adjustable high stop | Cap access manual recess, liftable adjustable high stop, power supply “on” pilot (230V) | Differential °C (°F) | Max temperature on bulbs °C (°F) |
0-60°C(32-140°F) | 80°C (176°F) | Y08MS00060A20080 | Y08ME00060A20080 | Y08NE00060C20080 | 4±3 (7±5.5°F) | 90 (195°F) |
30-90°C (85-195°F) | 110°C (230°F) | Y08MS30090A20110 | Y08ME30090A20110 | Y08NE30090C20110 | 4±3 (7±5.5°F) | 120 (250°F) |
30-110°C (90-230°F) | 130°C (266°F) | Y08MS30110A20130 | Y08ME30110A20130 | Y08NE30110C20130 | 5±3 (9±7°F) | 150 (300°F) |
