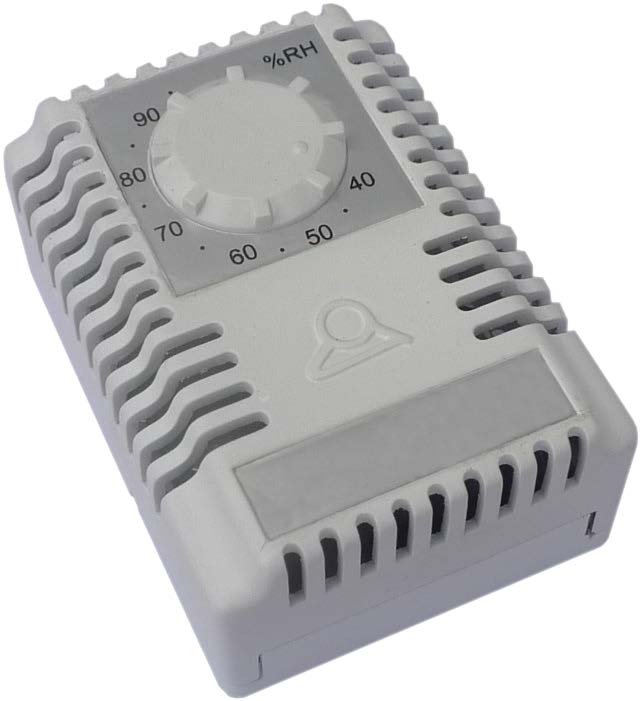

Wall mounting miniature humidistat
This humidistat is designed for indoor application to switch on a heater or a ventilating fan It can also be used to switch on humidifiers, dehumidifiers, or other devices.
Weight | 0.5 kg |
---|---|
Dimensions | 67 × 31 × 50 mm |
Maximum setting (%RH) | |
Minimum setting (%RH) | |
Measuring accuracy (%RH) | |
Differential at 50% RH | |
Electrical rating | |
Voltage | |
Min operating temperature (°C) | |
Max operating temperature (°C) | |
Min storage temperature (°C) | |
Max storage temperature (°C) | |
Ingress protection |
Description
Main Application: This humidistat is designed for indoor application to switch on a heater or a ventilating fan It can also be used to switch on humidifiers, dehumidifiers, or other devices. It must be vertically wall mounted in a ventilated area.
Humidity sensing element: hygroscopic polymer film with special treatment, produced by Ultimheat, ensuring a fast response, long life and high stability.
Setting range: 35 to 95% RH
Measuring accuracy: ±5% RH
Differential at 50% RH: 8% RH (±3% RH )
Measuring medium: air, pressure-less, non-aggressive

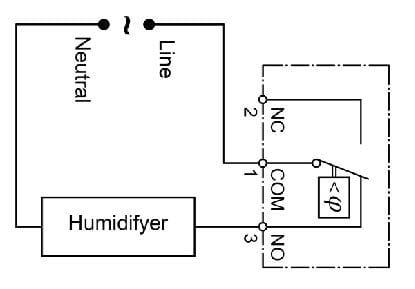

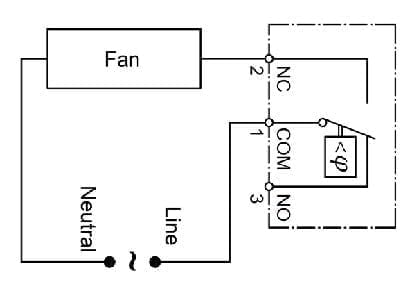

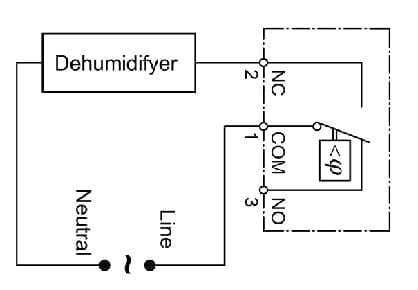

Electrical contact: silver contacts, SPDT, 5A 250V
Connection: 3 screw terminals for 1.5mm² wires, max torque 0.5Nm

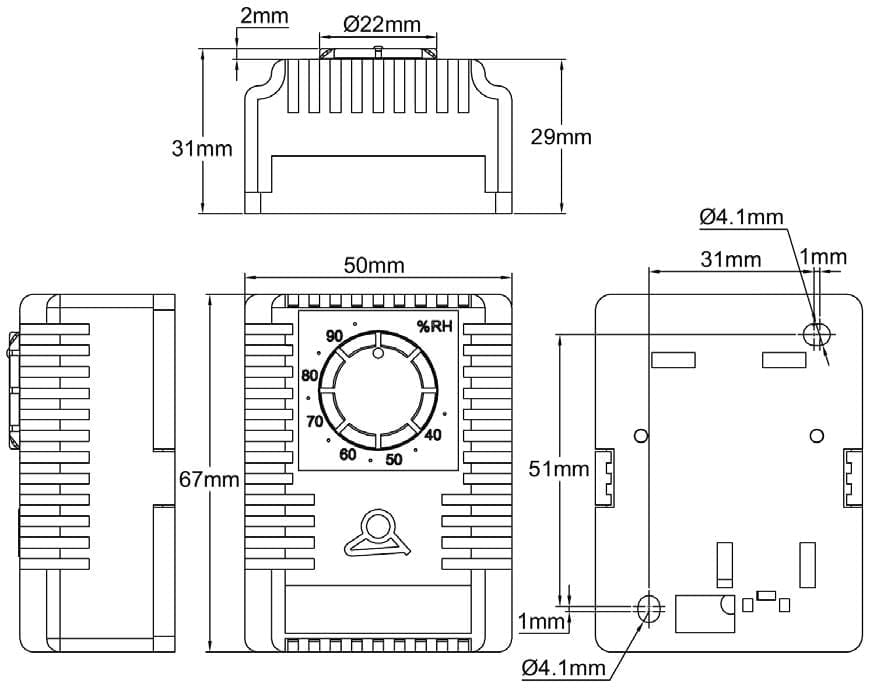

Mounting: wall mounting, with 2 screws dia 4 mm max, distance 31 x51 mm
Operating temperature: 0 to+60°C (+32 to +140F)
Storage temperature: -20 to +70°C (-4 to +158F)
Mounting position: vertical
Voltage supply: the humidistat should be mounted such that there is no buildup of condensate on or in the device. If the voltage supply is higher than 48V there is a risk of voltage arcing in the event of water condensation on the micro-switch or connecting terminals which might destroy the control.
Ingress protection class: IP30
Dimension: 67x50x29mm
Maintenance: The humidity sensing ribbon is maintenance-free in clean air. Air containing solvent can cause measuring errors and failure, depending on the type and concentration. Deposits such as resin aerosols, lacquer aerosols, smokes, which eventually form a water-repellent film are harmful for the measuring element.
