Mechanical humidistats for incorporation
€23.20 – €24.90

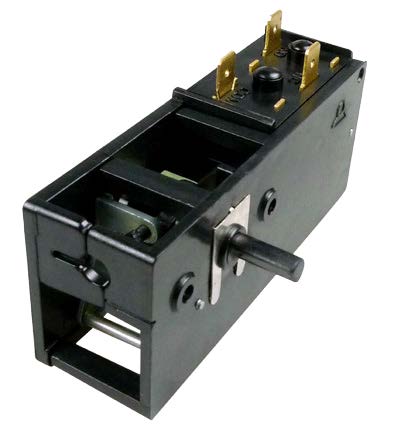

Mechanical humidistats for incorporation, front shaft adjustment.
Hygroscopic polymer film with special treatment, guaranteeing a fast response, long lifetime and high stability.
Weight | 0.7 kg |
---|---|
Dimensions | 85.7 × 45.4 × 42.8 mm |
Contact style | |
Contact Material | |
Electrical rating | |
Min operating temperature (°C) | |
Max operating temperature (°C) |
Description
SENSING ELEMENT: hygroscopic polymer film with special treatment, guaranteeing a fast response, long lifetime and high stability
HOUSING: Fiber glassfilled Makrolon, high humidity resistance, very high electrical insulation properties. Do not use in places with risk of condensation.
MOUNTING: front fixing by two screws, 30 mm distance. The same fixing is also available at the backside.
SETTING: with 6.4 mm diameter shaft, 14 mm long, with 4 mm flat, front located.
SHAFT ROTATION: Standard mechanical rotation 295°.
ADJUSTMENT RANGE: Range 20-80%: on 235° angular. Range 10-60%: on 224° angular.
CALIBRATION: at mid position at 42% RH and 22°C. Calibration tolerance at mid-point: +/-5% relative humidity. Minimum and maximum positions have positive contact actuation
CONTACT STYLE:
- SPDT: the NC opens when the relative humidity goes above the set-point (humidification applications), the NO contact closes when the relative humidity goes above the set-point (ventilation or dehumidification applications)
- NC: NC opens when the relative humidity goes above the set-point (humidification applications)
- NO: NO contact closes when the relative humidity goes above the set-point ( ventilation or dehumidification applications)
CONTACT MATERIAL:
- Gold plated silver: recommended when storage at high humidity conditions may occur, or when the product is used in low voltage application (electronic control boards)
- Silver: recommended for standard resistive load application or low inductive loads
ELECTRICAL CONNECTIONS: 6.3 x 0.8 mm tabs
AMBIENT CONDITIONS :
Humidity: 5 to 95% without condensation
Ambient temperature: 5 to 40°C
RATING:
- UL and CSA: 6A resistive, 20A LRA, FLA 7A, 240V
- EC: 6A resistive, (3.7A inductive) 250V
OPTIONS: Change in angular position, reverse rotation, flat and shaft length and orientation change (with MOQ and/or tooling cost)
REFERENCES :
(mechanical knob rotation 295 °, 14 mm long shaft, flat horizontal position topside at mid adjustment range)
Contact style | Gold plated contact | Silver contact | Adjustment range | Rotation to increase set-point |
NC | Q88F1G14H1060900 | Q88F1S14H1060900 | 10-60% | Clockwise |
NO | Q88F2G14C2080900 | Q88F2S14C2080900 | 20-80% | Counter-clockwise |
SPDT | Q88F3G14C2080900 | Q88F3S14C2080900 | 20-80% | Counter-clockwise |
downloadables
Technical specifications sheet
RELATED PRODUCTS
SIMILAR PRODUCTS
-

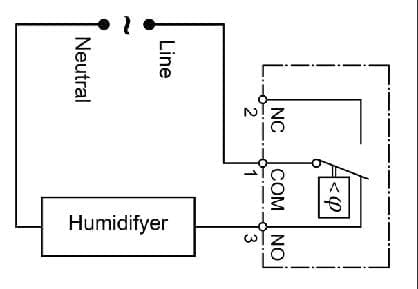

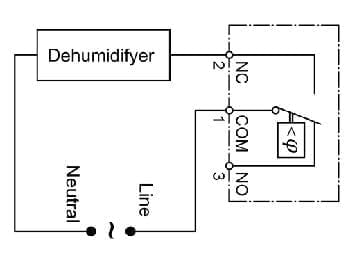

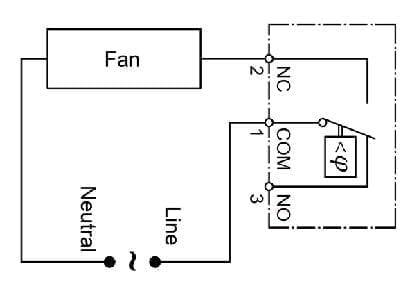

Din rail mounting miniature humidistat for electrical cabinets
Main Application: condensation in electrical enclosures and cabinets can be critical for electrical components and safety. This humidistat is designed to switch on a heater or a ventilating fan when the relative humidity raises at dangerous levels, when there is a risk to reach the dew point usually around 65%.
-
Miniature mechanical humidistat module, for incorporation. 30-100% relative humidity range
APPLICATION: module for installation inside wall mounting housings, cabinet humidity housings, or mounting board of controls, to control fans, humidifier or dehumidifier. The incorporation and ingress protection must be made by the integrator
-
High load breakable glass bulb heat responsive link
Patented mechanical system of fire detection by liquid filled glass bulb breaking. In case of fire, when the temperature reaches the liquid boiling temperature, it causes the explosion of the glass bulb, which releases the mechanism. This self-powered mechanism does not require power supply such as electricity or compressed air. It i can open smoke…
-
Room humidistat and thermostat combination, wall mounting, for swimming pools areas and air conditioning
Main Application: This device is a combination of a humidistat and a room thermostat. It is especially suited for use in air conditioning control of indoor swimming-pool halls.His aesthetics and small size housing (122x70x31mm) allows mounting in most of these applications, but must be protected from splashing water, and used only in ambient air free…
Technical informations associated to this product
-
Electrical contacts
As numerous mechanisms exist, we decided not to distinguish on the basis of constructive technique, but according to their operation speed, which is the key element. -
Humidistats historical foreword
Relative humidity control is relatively new, and the first mechanical devices that were used for this purpose dating from the early 20th century, and were related to the development of central heating and air conditioning, and the concept of environmental comfort. -
Humidistats technical features
Introduction to nylon ribbon humidistats technology (Others names: Humidostats, hygrostats, humidity switches)
