Enclosure for immersion heater, Y305

Big size enclosure for immersion heater, temperature sensor, level sensor or controls, Y307
Round enclosure for immersion heater or temperature sensor, Y306
– Drilling on the bottom possible for probes, or immersion heater fittings
– Can receive a boot or a M20 thread on the lid for access to internal adjustment
– Features bosses for internal bracket
– Admits double threaded or rotating ring fittings up to 2 ”
– Cable outlet up to M25 (2 cable glands possible)
Dimensions | 100 × 100 × 100 mm |
---|---|
Housing raw material | |
Ingress protection | |
Volume (cm³) |
Description

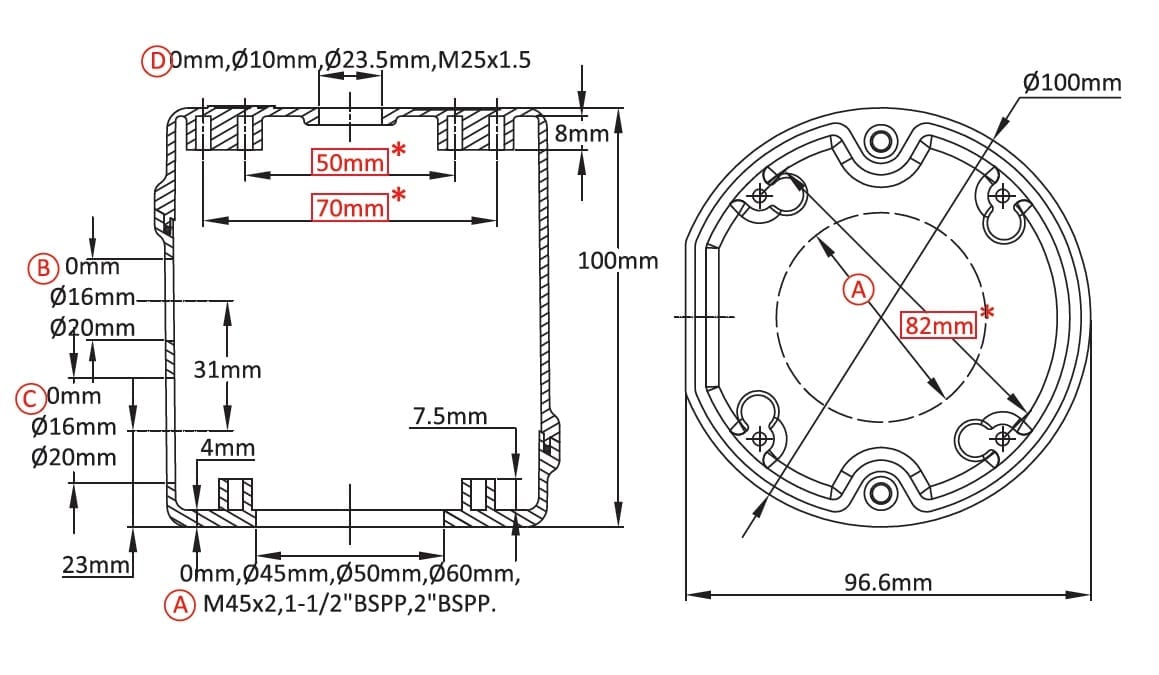

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

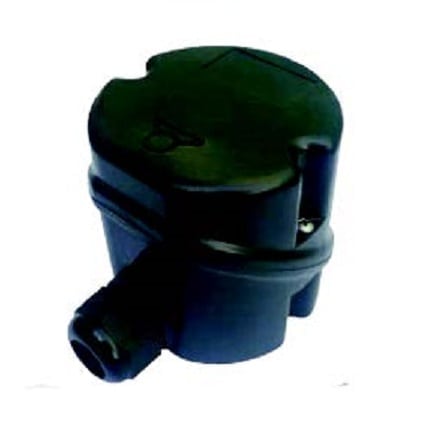

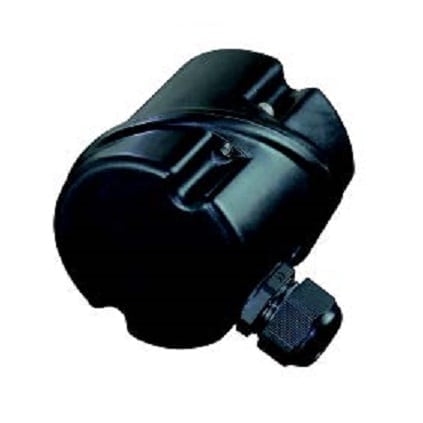

Round enclosure for immersion heater or temperature sensor
– Drilling on the bottom possible for probes, or immersion heater fittings
– Can receive a boot or a M20 thread on the lid for access to internal adjustment
– Features bosses for internal bracket
– Admits double threaded or rotating ring fittings up to 2 ”
– Cable outlet up to M25 (2 cable glands possible)
Size: Dia.100 x 100 mm
Volume: 700 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | D (mm) | References |
0 | 0 | 0 | 0 | Y30600000000000T |
0 | 0 | 0 | 10 | Y306000A0000000T |
0 | 0 | 0 | 23.5 | Y306000D0000000T |
0 | 0 | 0 | M25×1.5 | Y306000F0000000T |
0 | 0 | 16 | 0 | Y30600001160000T |
0 | 0 | 16 | 10 | Y306000A1160000T |
0 | 0 | 16 | 23.5 | Y306000D1160000T |
0 | 0 | 16 | M25×1.5 | Y306000F1160000T |
0 | 0 | 20 | 0 | Y30600001200000T |
0 | 0 | 20 | 10 | Y306000A1200000T |
0 | 0 | 20 | 23.5 | Y306000D1200000T |
0 | 0 | 20 | M25×1.5 | Y306000F1200000T |
0 | 16 | 16 | 0 | Y30600002160000T |
0 | 16 | 16 | 10 | Y306000A2160000T |
0 | 16 | 16 | 23.5 | Y306000D2160000T |
0 | 16 | 16 | M25×1.5 | Y306000F2160000T |
0 | 16 | 20 | 0 | Y30600002C00000T |
0 | 16 | 20 | 10 | Y306000A2C00000T |
0 | 16 | 20 | 23.5 | Y306000D2C00000T |
0 | 16 | 20 | M25×1.5 | Y306000F2C00000T |
0 | 20 | 20 | 0 | Y30600002200000T |
0 | 20 | 20 | 10 | Y306000A2200000T |
0 | 20 | 20 | 23.5 | Y306000D2200000T |
0 | 20 | 20 | M25×1.5 | Y306000F2200000T |
45 | 0 | 0 | 0 | Y30645000000000T |
45 | 0 | 0 | 10 | Y306450A0000000T |
45 | 0 | 0 | 23.5 | Y306450D0000000T |
45 | 0 | 0 | M25×1.5 | Y306450F0000000T |
45 | 0 | 16 | 0 | Y30645001160000T |
45 | 0 | 16 | 10 | Y306450A1160000T |
45 | 0 | 16 | 23.5 | Y306450D1160000T |
45 | 0 | 16 | M25×1.5 | Y306450F1160000T |
45 | 0 | 20 | 0 | Y30645001200000T |
45 | 0 | 20 | 10 | Y306450A1200000T |
45 | 0 | 20 | 23.5 | Y306450D1200000T |
45 | 0 | 20 | M25×1.5 | Y306450F1200000T |
45 | 16 | 16 | 0 | Y30645002160000T |
45 | 16 | 16 | 10 | Y306450A2160000T |
45 | 16 | 16 | 23.5 | Y306450D2160000T |
45 | 16 | 16 | M25×1.5 | Y306450F2160000T |
45 | 16 | 20 | 0 | Y30645002C00000T |
45 | 16 | 20 | 10 | Y306450A2C00000T |
45 | 16 | 20 | 23.5 | Y306450D2C00000T |
45 | 16 | 20 | M25×1.5 | Y306450F2C00000T |
45 | 20 | 20 | 0 | Y30645002200000T |
45 | 20 | 20 | 10 | Y306450A2200000T |
45 | 20 | 20 | 23.5 | Y306450D2200000T |
45 | 20 | 20 | M25×1.5 | Y306450F2200000T |
50 | 0 | 0 | 0 | Y30650000000000T |
50 | 0 | 0 | 10 | Y306500A0000000T |
50 | 0 | 0 | 23.5 | Y306500D0000000T |
50 | 0 | 0 | M25×1.5 | Y306500F0000000T |
50 | 0 | 16 | 0 | Y30650001600000T |
50 | 0 | 16 | 10 | Y306500A1600000T |
50 | 0 | 16 | 23.5 | Y306500D1600000T |
50 | 0 | 16 | M25×1.5 | Y306500F1600000T |
50 | 0 | 20 | 0 | Y30650001200000T |
50 | 0 | 20 | 10 | Y306500A1200000T |
50 | 0 | 20 | 23.5 | Y306500D1200000T |
50 | 0 | 20 | M25×1.5 | Y306500F1200000T |
50 | 16 | 16 | 0 | Y30650002160000T |
50 | 16 | 16 | 10 | Y306500A2160000T |
50 | 16 | 16 | 23.5 | Y306500D2160000T |
50 | 16 | 16 | M25×1.5 | Y306500F2160000T |
50 | 16 | 20 | 0 | Y30650002C00000T |
50 | 16 | 20 | 10 | Y306500A2C00000T |
50 | 16 | 20 | 23.5 | Y306500D2C00000T |
50 | 16 | 20 | M25×1.5 | Y306500F2C00000T |
50 | 20 | 20 | 0 | Y30650002200000T |
50 | 20 | 20 | 10 | Y306500A2200000T |
50 | 20 | 20 | 23.5 | Y306500D2200000T |
50 | 20 | 20 | M25×1.5 | Y306500F2200000T |
60 | 0 | 0 | 0 | Y30660000000000T |
60 | 0 | 0 | 10 | Y306600A0000000T |
60 | 0 | 0 | 23.5 | Y306600D0000000T |
60 | 0 | 0 | M25×1.5 | Y306600F0000000T |
60 | 0 | 16 | 0 | Y30660001160000T |
60 | 0 | 16 | 10 | Y306600A1160000T |
60 | 0 | 16 | 23.5 | Y306600D1160000T |
60 | 0 | 16 | M25×1.5 | Y306600F1160000T |
60 | 0 | 20 | 0 | Y30660001200000T |
60 | 0 | 20 | 10 | Y306600A1200000T |
60 | 0 | 20 | 23.5 | Y306600D1200000T |
60 | 0 | 20 | M25×1.5 | Y306600F1200000T |
60 | 16 | 16 | 0 | Y30660002160000T |
60 | 16 | 16 | 10 | Y306600A2160000T |
60 | 16 | 16 | 23.5 | Y306600D2160000T |
60 | 16 | 16 | M25×1.5 | Y306600F2160000T |
60 | 16 | 20 | 0 | Y30660002C00000T |
60 | 16 | 20 | 10 | Y306600A2C00000T |
60 | 16 | 20 | 23.5 | Y306600D2C00000T |
60 | 16 | 20 | M25×1.5 | Y306600F2C00000T |
60 | 20 | 20 | 0 | Y30660002200000T |
60 | 20 | 20 | 10 | Y306600A2200000T |
60 | 20 | 20 | 23.5 | Y306600D2200000T |
60 | 20 | 20 | M25×1.5 | Y306600F2200000T |
M45×2 | 0 | 0 | 0 | Y306M4500000000T |
M45×2 | 0 | 0 | 10 | Y306M45A0000000T |
M45×2 | 0 | 0 | 23.5 | Y306M45D0000000T |
M45×2 | 0 | 0 | M25×1.5 | Y306M45F0000000T |
M45×2 | 0 | 16 | 0 | Y306M4501600000T |
M45×2 | 0 | 16 | 10 | Y306M45A1600000T |
M45×2 | 0 | 16 | 23.5 | Y306M45D1600000T |
M45×2 | 0 | 16 | M25×1.5 | Y306M45F1600000T |
M45×2 | 0 | 20 | 0 | Y306M4501200000T |
M45×2 | 0 | 20 | 10 | Y306M45A1200000T |
M45×2 | 0 | 20 | 23.5 | Y306M45D1200000T |
M45×2 | 0 | 20 | M25×1.5 | Y306M45F1200000T |
M45×2 | 16 | 16 | 0 | Y306M4502160000T |
M45×2 | 16 | 16 | 10 | Y306M45A2160000T |
M45×2 | 16 | 16 | 23.5 | Y306M45D2160000T |
M45×2 | 16 | 16 | M25×1.5 | Y306M45F2160000T |
M45×2 | 16 | 20 | 0 | Y306M4502C00000T |
M45×2 | 16 | 20 | 10 | Y306M45A2C00000T |
M45×2 | 16 | 20 | 23.5 | Y306M45D2C00000T |
M45×2 | 16 | 20 | M25×1.5 | Y306M45F2C00000T |
M45×2 | 20 | 20 | 0 | Y306M4502200000T |
M45×2 | 20 | 20 | 10 | Y306M45A2200000T |
M45×2 | 20 | 20 | 23.5 | Y306M45D2200000T |
M45×2 | 20 | 20 | M25×1.5 | Y306M45F2200000T |
1½”BSPP | 0 | 0 | 0 | Y306BA200000000T |
1½”BSPP | 0 | 0 | 10 | Y306BA2A0000000T |
1½”BSPP | 0 | 0 | 23.5 | Y306BA2D0000000T |
1½”BSPP | 0 | 0 | M25×1.5 | Y306BA2F0000000T |
1½”BSPP | 0 | 16 | 0 | Y306BA201160000T |
1½”BSPP | 0 | 16 | 10 | Y306BA2A1160000T |
1½”BSPP | 0 | 16 | 23.5 | Y306BA2D1160000T |
1½”BSPP | 0 | 16 | M25×1.5 | Y306BA2F1160000T |
1½”BSPP | 0 | 20 | 0 | Y306BA201200000T |
1½”BSPP | 0 | 20 | 10 | Y306BA2A1200000T |
1½”BSPP | 0 | 20 | 23.5 | Y306BA2D1200000T |
1½”BSPP | 0 | 20 | M25×1.5 | Y306BA2F1200000T |
1½”BSPP | 16 | 16 | 0 | Y306BA202160000T |
1½”BSPP | 16 | 16 | 10 | Y306BA2A2160000T |
1½”BSPP | 16 | 16 | 23.5 | Y306BA2D2160000T |
1½”BSPP | 16 | 16 | M25×1.5 | Y306BA2F2160000T |
1½”BSPP | 16 | 20 | 0 | Y306BA202C00000T |
1½”BSPP | 16 | 20 | 10 | Y306BA2A2C00000T |
1½”BSPP | 16 | 20 | 23.5 | Y306BA2D2C00000T |
1½”BSPP | 16 | 20 | M25×1.5 | Y306BA2F2C00000T |
1½”BSPP | 20 | 20 | 0 | Y306BA202200000T |
1½”BSPP | 20 | 20 | 10 | Y306BA2A2200000T |
1½”BSPP | 20 | 20 | 23.5 | Y306BA2D2200000T |
1½”BSPP | 20 | 20 | M25×1.5 | Y306BA2F2200000T |
2″BSPP | 0 | 0 | 0 | Y306BB200000000T |
2″BSPP | 0 | 0 | 10 | Y306BB2A0000000T |
2″BSPP | 0 | 0 | 23.5 | Y306BB2D0000000T |
2″BSPP | 0 | 0 | M25×1.5 | Y306BB2F0000000T |
2″BSPP | 0 | 16 | 0 | Y306BB201160000T |
2″BSPP | 0 | 16 | 10 | Y306BB2A1160000T |
2″BSPP | 0 | 16 | 23.5 | Y306BB2D1160000T |
2″BSPP | 0 | 16 | M25×1.5 | Y306BB2F1160000T |
2″BSPP | 0 | 20 | 0 | Y306BB201200000T |
2″BSPP | 0 | 20 | 10 | Y306BB2A1200000T |
2″BSPP | 0 | 20 | 23.5 | Y306BB2D1200000T |
2″BSPP | 0 | 20 | M25×1.5 | Y306BB2F1200000T |
2″BSPP | 16 | 16 | 0 | Y306BB202160000T |
2″BSPP | 16 | 16 | 10 | Y306BB2A2160000T |
2″BSPP | 16 | 16 | 23.5 | Y306BB2D2160000T |
2″BSPP | 16 | 16 | M25×1.5 | Y306BB2F2160000T |
2″BSPP | 16 | 20 | 0 | Y306BB202C00000T |
2″BSPP | 16 | 20 | 10 | Y306BB2A2C00000T |
2″BSPP | 16 | 20 | 23.5 | Y306BB2D2C00000T |
2″BSPP | 16 | 20 | M25×1.5 | Y306BB2F2C00000T |
2″BSPP | 20 | 20 | 0 | Y306BB202200000T |
2″BSPP | 20 | 20 | 10 | Y306BB2A2200000T |
2″BSPP | 20 | 20 | 23.5 | Y306BB2D2200000T |
2″BSPP | 20 | 20 | M25×1.5 | Y306BB2F2200000T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Enclosure with window, for controls, connection, temperature sensor, thermostat, level sensor, GFCI, Y3N2
- Front panel with hinged polycarbonate porthole - Includes 4 removable wall brackets - Possibility of PCBs assembly - Can receive a hole on the back side for temperature sensor probe, thermostat rod or level detector probe
-
Empty Enclosure for Oil filled electric radiators 150x80x40
Empty enclosure for oil filled electric radiators, with single tube heating element and electronic temperature control, IP33 Setting: One knob, one button, two pilot lights IP Rating: IP33 (vertical mounting only) Weight: 130 gr. Color: RAL1010 Material: PC-ABS Ventilation: For relay output electronic controls . Not suitable for triac.
-
Polypropylene immersion heater tube enclosure for highly corrosive environments, Y3C6
Screws: There is no external screw in this housing. Cover: Screwed cover, with Molded FKM (Viton) fluoroelastomeric polymer, silicone or NBR O-ring gasket. Cover can be tightened by hand or with a double hook wrench.
-
Miniature enclosure for temperature sensor, level sensor, electronic printed circuit or cartridge heater, Y301
- Can accommodate ½" threaded fittings with internal lock nut or ¾" or 1" brass fittings with 2 x M4 screws (Use a flat gasket) - Includes a removable internal 3-way 2.5mm² terminal block - PG11 cable gland outlet
-
Immersion heater, level sensor or temperature sensor enclosure, in PA66 and PC, Y3F2
- Includes two brackets for mounting on tank edge board. - Drilling of different diameters possible on the back for direct probes or for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring. - Includes a removable 6-way 2.5mm² terminal block. - Output by…
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
