Enclosure for immersion heater, level sensor or temperature sensor, Y304
– Can receive a drill on the back for 1″1/4, 1″1/2 and M45x2 fittings with double thread and inner nut, or single thread with rotating ring
– Can receive a 2″ double thread fitting (only with thread on the enclosure)
– Can receive a drill on the back for temperature sensor or level sensor
– Has mounting bosses for internal adjustment backplate
– Available in lightened version with reduced wall thickness to 1.7mm instead of 3mm
Dimensions | 78 × 78 × 74 mm |
---|---|
Ingress protection | |
Housing raw material | |
Volume (cm³) |
Description

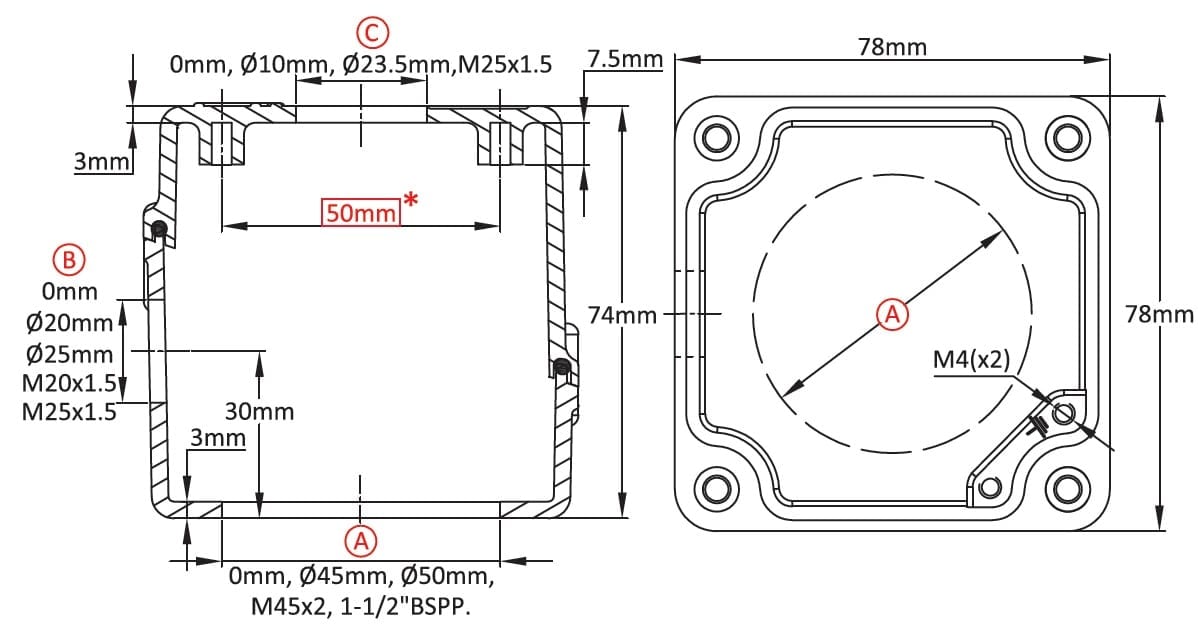

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features

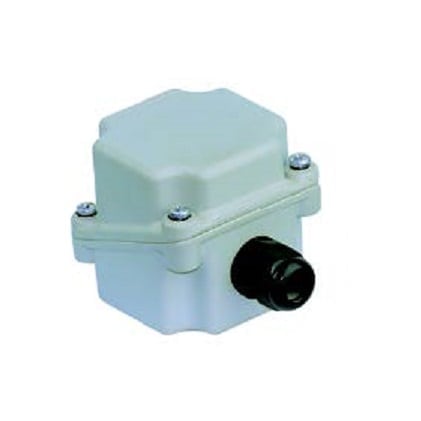

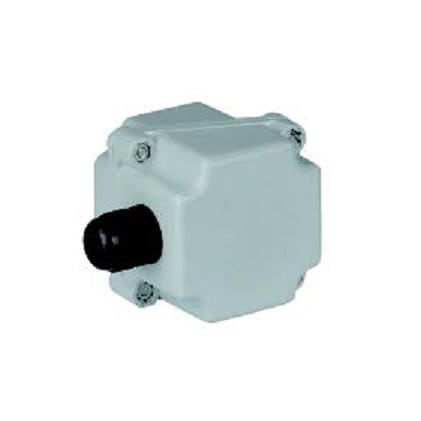

Enclosure for immersion heater, level sensor or temperature sensor
– Can receive a drill on the back for 1″1/4, 1″1/2 and M45x2 fittings with double thread and inner nut, or single thread with rotating ring
– Can receive a 2″ double thread fitting (only with thread on the enclosure)
– Can receive a drill on the back for temperature sensor or level sensor
– Has mounting bosses for internal adjustment backplate
– Available in lightened version with reduced wall thickness to 1.7mm instead of 3mm
– Output by cable gland M20 or M25
Size: 78 x 78 x 74 mm
Volume: 410 cm³
Material: Aluminium
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | Not painted | Painted |
0 | 0 | 0 | Y304000000000007 | Y30400000000000G |
0 | 0 | 10 | Y304000A00000007 | Y304000A0000000G |
0 | 0 | 23.5 | Y304000D00000007 | Y304000D0000000G |
0 | 0 | M25×1.5 | Y304000F00000007 | Y304000F0000000G |
0 | 20 | 0 | Y304000012000007 | Y30400001200000G |
0 | 20 | 10 | Y304000A12000007 | Y304000A1200000G |
0 | 20 | 23.5 | Y304000D12000007 | Y304000D1200000G |
0 | 20 | M25×1.5 | Y304000F12000007 | Y304000F1200000G |
0 | 25 | 0 | Y304000012500007 | Y30400001250000G |
0 | 25 | 10 | Y304000A12500007 | Y304000A1250000G |
0 | 25 | 23.5 | Y304000D12500007 | Y304000D1250000G |
0 | 25 | M25×1.5 | Y304000F12500007 | Y304000F1250000G |
0 | M20×1.5 | 0 | Y30400001T000007 | Y30400001T00000G |
0 | M20×1.5 | 10 | Y304000A1T000007 | Y304000A1T00000G |
0 | M20×1.5 | 23.5 | Y304000D1T000007 | Y304000D1T00000G |
0 | M20×1.5 | M25×1.5 | Y304000F1T000007 | Y304000F1T00000G |
0 | M25×1.5 | 0 | Y30400001T500007 | Y30400001T50000G |
0 | M25×1.5 | 10 | Y304000A1T500007 | Y304000A1T50000G |
0 | M25×1.5 | 23.5 | Y304000D1T500007 | Y304000D1T50000G |
0 | M25×1.5 | M25×1.5 | Y304000F1T500007 | Y304000F1T50000G |
45 | 0 | 0 | Y304450000000007 | Y30445000000000G |
45 | 0 | 10 | Y304450A00000007 | Y304450A0000000G |
45 | 0 | 23.5 | Y304450D00000007 | Y304450D0000000G |
45 | 0 | M25×1.5 | Y304450F00000007 | Y304450F0000000G |
45 | 20 | 0 | Y304450012000007 | Y30445001200000G |
45 | 20 | 10 | Y304450A12000007 | Y304450A1200000G |
45 | 20 | 23.5 | Y304450D12000007 | Y304450D1200000G |
45 | 20 | M25×1.5 | Y304450F12000007 | Y304450F1200000G |
45 | 25 | 0 | Y304450012500007 | Y30445001250000G |
45 | 25 | 10 | Y304450A12500007 | Y304450A1250000G |
45 | 25 | 23.5 | Y304450D12500007 | Y304450D1250000G |
45 | 25 | M25×1.5 | Y304450F12500007 | Y304450F1250000G |
45 | M20×1.5 | 0 | Y30445001T000007 | Y30445001T00000G |
45 | M20×1.5 | 10 | Y304450A1T000007 | Y304450A1T00000G |
45 | M20×1.5 | 23.5 | Y304450D1T000007 | Y304450D1T00000G |
45 | M20×1.5 | M25×1.5 | Y304450F1T000007 | Y304450F1T00000G |
45 | M25×1.5 | 0 | Y30445001T500007 | Y30445001T50000G |
45 | M25×1.5 | 10 | Y304450A1T500007 | Y304450A1T50000G |
45 | M25×1.5 | 23.5 | Y304450D1T500007 | Y304450D1T50000G |
45 | M25×1.5 | M25×1.5 | Y304450F1T500007 | Y304450F1T50000G |
50 | 0 | 0 | Y304500000000007 | Y30450000000000G |
50 | 0 | 10 | Y304500A00000007 | Y304500A0000000G |
50 | 0 | 23.5 | Y304500D00000007 | Y304500D0000000G |
50 | 0 | M25×1.5 | Y304500F00000007 | Y304500F0000000G |
50 | 20 | 0 | Y304500012000007 | Y30450001200000G |
50 | 20 | 10 | Y304500A12000007 | Y304500A1200000G |
50 | 20 | 23.5 | Y304500D12000007 | Y304500D1200000G |
50 | 20 | M25×1.5 | Y304500F12000007 | Y304500F1200000G |
50 | 25 | 0 | Y304500012500007 | Y30450001250000G |
50 | 25 | 10 | Y304500A12500007 | Y304500A1250000G |
50 | 25 | 23.5 | Y304500D12500007 | Y304500D1250000G |
50 | 25 | M25×1.5 | Y304500F12500007 | Y304500F1250000G |
50 | M20×1.5 | 0 | Y30450001T000007 | Y30450001T00000G |
50 | M20×1.5 | 10 | Y304500A1T000007 | Y304500A1T00000G |
50 | M20×1.5 | 23.5 | Y304500D1T000007 | Y304500D1T00000G |
50 | M20×1.5 | M25×1.5 | Y304500F1T000007 | Y304500F1T00000G |
50 | M25×1.5 | 0 | Y30450001T500007 | Y30450001T50000G |
50 | M25×1.5 | 10 | Y304500A1T500007 | Y304500A1T50000G |
50 | M25×1.5 | 23.5 | Y304500D1T500007 | Y304500D1T50000G |
50 | M25×1.5 | M25×1.5 | Y304500F1T500007 | Y304500F1T50000G |
M45×2 | 0 | 0 | Y304M45000000007 | Y304M4500000000G |
M45×2 | 0 | 10 | Y304M45A00000007 | Y304M45A0000000G |
M45×2 | 0 | 23.5 | Y304M45D00000007 | Y304M45D0000000G |
M45×2 | 0 | M25×1.5 | Y304M45F00000007 | Y304M45F0000000G |
M45×2 | 20 | 0 | Y304M45012000007 | Y304M4501200000G |
M45×2 | 20 | 10 | Y304M45A12000007 | Y304M45A1200000G |
M45×2 | 20 | 23.5 | Y304M45D12000007 | Y304M45D1200000G |
M45×2 | 20 | M25×1.5 | Y304M45F12000007 | Y304M45F1200000G |
M45×2 | 25 | 0 | Y304M45012500007 | Y304M4501250000G |
M45×2 | 25 | 10 | Y304M45A12500007 | Y304M45A1250000G |
M45×2 | 25 | 23.5 | Y304M45D12500007 | Y304M45D1250000G |
M45×2 | 25 | M25×1.5 | Y304M45F12500007 | Y304M45F1250000G |
M45×2 | M20×1.5 | 0 | Y304M4501T000007 | Y304M4501T00000G |
M45×2 | M20×1.5 | 10 | Y304M45A1T000007 | Y304M45A1T00000G |
M45×2 | M20×1.5 | 23.5 | Y304M45D1T000007 | Y304M45D1T00000G |
M45×2 | M20×1.5 | M25×1.5 | Y304M45F1T000007 | Y304M45F1T00000G |
M45×2 | M25×1.5 | 0 | Y304M4501T500007 | Y304M4501T50000G |
M45×2 | M25×1.5 | 10 | Y304M45A1T500007 | Y304M45A1T50000G |
M45×2 | M25×1.5 | 23.5 | Y304M45D1T500007 | Y304M45D1T50000G |
M45×2 | M25×1.5 | M25×1.5 | Y304M45F1T500007 | Y304M45F1T50000G |
1½” BSPP | 0 | 0 | Y304BA2000000007 | Y304BA200000000G |
1½” BSPP | 0 | 10 | Y304BA2A00000007 | Y304BA2A0000000G |
1½” BSPP | 0 | 23.5 | Y304BA2D00000007 | Y304BA2D0000000G |
1½” BSPP | 0 | M25×1.5 | Y304BA2F00000007 | Y304BA2F0000000G |
1½” BSPP | 20 | 0 | Y304BA2012000007 | Y304BA201200000G |
1½” BSPP | 20 | 10 | Y304BA2A12000007 | Y304BA2A1200000G |
1½” BSPP | 20 | 23.5 | Y304BA2D12000007 | Y304BA2D1200000G |
1½” BSPP | 20 | M25×1.5 | Y304BA2F12000007 | Y304BA2F1200000G |
1½” BSPP | 25 | 0 | Y304BA2012500007 | Y304BA201250000G |
1½” BSPP | 25 | 10 | Y304BA2A12500007 | Y304BA2A1250000G |
1½” BSPP | 25 | 23.5 | Y304BA2D12500007 | Y304BA2D1250000G |
1½” BSPP | 25 | M25×1.5 | Y304BA2F12500007 | Y304BA2F1250000G |
1½” BSPP | M20×1.5 | 0 | Y304BA201T000007 | Y304BA201T00000G |
1½” BSPP | M20×1.5 | 10 | Y304BA2A1T000007 | Y304BA2A1T00000G |
1½” BSPP | M20×1.5 | 23.5 | Y304BA2D1T000007 | Y304BA2D1T00000G |
1½” BSPP | M20×1.5 | M25×1.5 | Y304BA2F1T000007 | Y304BA2F1T00000G |
1½” BSPP | M25×1.5 | 0 | Y304BA201T500007 | Y304BA201T50000G |
1½” BSPP | M25×1.5 | 10 | Y304BA2A1T500007 | Y304BA2A1T50000G |
1½” BSPP | M25×1.5 | 23.5 | Y304BA2D1T500007 | Y304BA2D1T50000G |
1½” BSPP | M25×1.5 | M25×1.5 | Y304BA2F1T500007 | Y304BA2F1T50000G |
Cable gland not included in these reference, consult us if you want them.
To access download documents, please Login/Register. Datasheet, drawings (.dwg), 3D models (.stp) and other documents are available.
