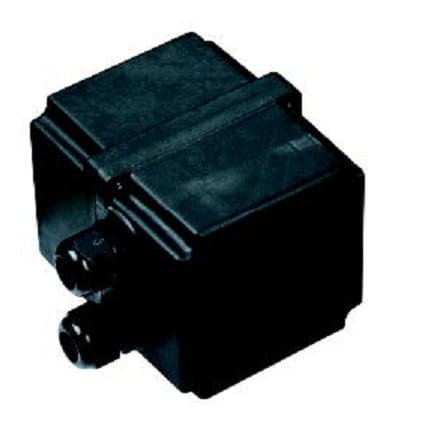

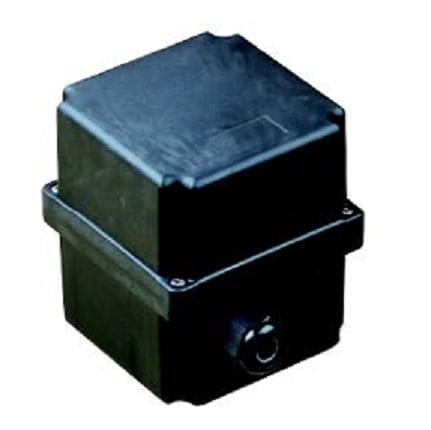

Big size enclosure for immersion heater, temperature sensor, level sensor or controls, Y307
– Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment
– The cover can also receive multiple holes for pilot lights, switches, etc
– Can receive one or two power contactors on internal Din rail
– Features bosses and slides for PCBs
Dimensions | 130 × 130 × 150 mm |
---|---|
Housing raw material | |
Ingress protection | |
Volume (cm³) |
Description

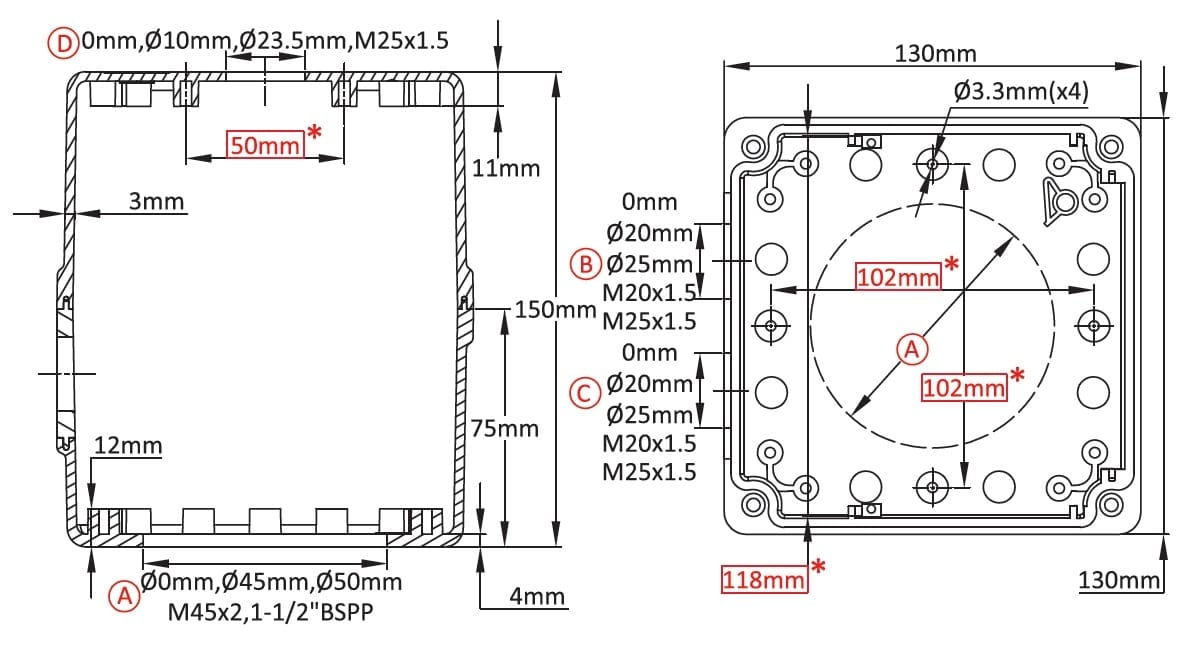

Red dimensions inside rectangular frames on drawings are used for accessories assembly.
Main features
Big size enclosure for immersion heater, temperature sensor, level sensor or controls
– Can receive one or more waterproof boots or screwed caps on the lid, allowing access to internal adjustment
– The cover can also receive multiple holes for pilot lights, switches, etc
– Can receive one or two power contactors on internal Din rail
– Features bosses and slides for PCBs
– Backside can receive drills for temperature sensor probes, level sensor or immersion heater fittings, up to M77x2
-Internal removable connection block (up to 12 ways, 2.5, 6 and 10mm²)
– Several models of cable gland plate holder, with many possibilities, including for flat cables, from 1 to 4 outlets, size up to M25
Size: 130 x 130 x 150 mm
Volume: 2530 cm³
Material: PA66
Ingress protection: IP69K
Mechanical impact resistance: IK10
Main references
A (mm) | B (mm) | C (mm) | D (mm) | References |
0 | 0 | 0 | 0 | Y30700000000000T |
0 | 0 | 0 | 10 | Y307000A0000000T |
0 | 0 | 0 | 23.5 | Y307000D0000000T |
0 | 0 | 0 | M25×1.5 | Y307000F0000000T |
0 | 0 | 20 | 0 | Y30700001200000T |
0 | 0 | 20 | 10 | Y307000A1200000T |
0 | 0 | 20 | 23.5 | Y307000D1200000T |
0 | 0 | 20 | M25×1.5 | Y307000F1200000T |
0 | 0 | 25 | 0 | Y30700001250000T |
0 | 0 | 25 | 10 | Y307000A1250000T |
0 | 0 | 25 | 23.5 | Y307000D1250000T |
0 | 0 | 25 | M25×1.5 | Y307000F1250000T |
0 | 0 | M20×1.5 | 0 | Y30700001T00000T |
0 | 0 | M20×1.5 | 10 | Y307000A1T00000T |
0 | 0 | M20×1.5 | 23.5 | Y307000D1T00000T |
0 | 0 | M20×1.5 | M25×1.5 | Y307000F1T00000T |
0 | 0 | M25×1.5 | 0 | Y30700001T50000T |
0 | 0 | M25×1.5 | 10 | Y307000A1T50000T |
0 | 0 | M25×1.5 | 23.5 | Y307000D1T50000T |
0 | 0 | M25×1.5 | M25×1.5 | Y307000F1T50000T |
0 | 20 | 20 | 0 | Y30700002200000T |
0 | 20 | 20 | 10 | Y307000A2200000T |
0 | 20 | 20 | 23.5 | Y307000D2200000T |
0 | 20 | 20 | M25×1.5 | Y307000F2200000T |
0 | 25 | 25 | 0 | Y30700002250000T |
0 | 25 | 25 | 10 | Y307000A2250000T |
0 | 25 | 25 | 23.5 | Y307000D2250000T |
0 | 25 | 25 | M25×1.5 | Y307000F2250000T |
0 | M20×1.5 | M20×1.5 | 0 | Y30700002T00000T |
0 | M20×1.5 | M20×1.5 | 10 | Y307000A2T00000T |
0 | M20×1.5 | M20×1.5 | 23.5 | Y307000D2T00000T |
0 | M20×1.5 | M20×1.5 | M25×1.5 | Y307000F2T00000T |
0 | M25×1.5 | M25×1.5 | 0 | Y30700002T50000T |
0 | M25×1.5 | M25×1.5 | 10 | Y307000A2T50000T |
0 | M25×1.5 | M25×1.5 | 23.5 | Y307000D2T50000T |
0 | M25×1.5 | M25×1.5 | M25×1.5 | Y307000F2T50000T |
45 | 0 | 0 | 0 | Y30745000000000T |
45 | 0 | 0 | 10 | Y307450A0000000T |
45 | 0 | 0 | 23.5 | Y307450D0000000T |
45 | 0 | 0 | M25×1.5 | Y307450F0000000T |
45 | 0 | 20 | 0 | Y30745001200000T |
45 | 0 | 20 | 10 | Y307450A1200000T |
45 | 0 | 20 | 23.5 | Y307450D1200000T |
45 | 0 | 20 | M25×1.5 | Y307450F1200000T |
45 | 0 | 25 | 0 | Y30745001250000T |
45 | 0 | 25 | 10 | Y307450A1250000T |
45 | 0 | 25 | 23.5 | Y307450D1250000T |
45 | 0 | 25 | M25×1.5 | Y307450F1250000T |
45 | 0 | M20×1.5 | 0 | Y30745001T00000T |
45 | 0 | M20×1.5 | 10 | Y307450A1T00000T |
45 | 0 | M20×1.5 | 23.5 | Y307450D1T00000T |
45 | 0 | M20×1.5 | M25×1.5 | Y307450F1T00000T |
45 | 0 | M25×1.5 | 0 | Y30745001T50000T |
45 | 0 | M25×1.5 | 10 | Y307450A1T50000T |
45 | 0 | M25×1.5 | 23.5 | Y307450D1T50000T |
45 | 0 | M25×1.5 | M25×1.5 | Y307450F1T50000T |
45 | 20 | 20 | 0 | Y30745002200000T |
45 | 20 | 20 | 10 | Y307450A2200000T |
45 | 20 | 20 | 23.5 | Y307450D2200000T |
45 | 20 | 20 | M25×1.5 | Y307450F2200000T |
45 | 25 | 25 | 0 | Y30745002250000T |
45 | 25 | 25 | 10 | Y307450A2250000T |
45 | 25 | 25 | 23.5 | Y307450D2250000T |
45 | 25 | 25 | M25×1.5 | Y307450F2250000T |
45 | M20×1.5 | M20×1.5 | 0 | Y30745002T00000T |
45 | M20×1.5 | M20×1.5 | 10 | Y307450A2T00000T |
45 | M20×1.5 | M20×1.5 | 23.5 | Y307450D2T00000T |
45 | M20×1.5 | M20×1.5 | M25×1.5 | Y307450F2T00000T |
45 | M25×1.5 | M25×1.5 | 0 | Y30745002T50000T |
45 | M25×1.5 | M25×1.5 | 10 | Y307450A2T50000T |
45 | M25×1.5 | M25×1.5 | 23.5 | Y307450D2T50000T |
45 | M25×1.5 | M25×1.5 | M25×1.5 | Y307450F2T50000T |
50 | 0 | 0 | 0 | Y30750000000000T |
50 | 0 | 0 | 10 | Y307500A0000000T |
50 | 0 | 0 | 23.5 | Y307500D0000000T |
50 | 0 | 0 | M25×1.5 | Y307500F0000000T |
50 | 0 | 20 | 0 | Y30750001200000T |
50 | 0 | 20 | 10 | Y307500A1200000T |
50 | 0 | 20 | 23.5 | Y307500D1200000T |
50 | 0 | 20 | M25×1.5 | Y307500F1200000T |
50 | 0 | 25 | 0 | Y30750001250000T |
50 | 0 | 25 | 10 | Y307500A1250000T |
50 | 0 | 25 | 23.5 | Y307500D1250000T |
50 | 0 | 25 | M25×1.5 | Y307500F1250000T |
50 | 0 | M20×1.5 | 0 | Y30750001T00000T |
50 | 0 | M20×1.5 | 10 | Y307500A1T00000T |
50 | 0 | M20×1.5 | 23.5 | Y307500D1T00000T |
50 | 0 | M20×1.5 | M25×1.5 | Y307500F1T00000T |
50 | 0 | M25×1.5 | 0 | Y30750001T50000T |
50 | 0 | M25×1.5 | 10 | Y307500A1T50000T |
50 | 0 | M25×1.5 | 23.5 | Y307500D1T50000T |
50 | 0 | M25×1.5 | M25×1.5 | Y307500F1T50000T |
50 | 20 | 20 | 0 | Y30750002200000T |
50 | 20 | 20 | 10 | Y307500A2200000T |
50 | 20 | 20 | 23.5 | Y307500D2200000T |
50 | 20 | 20 | M25×1.5 | Y307500F2200000T |
50 | 25 | 25 | 0 | Y30750002250000T |
50 | 25 | 25 | 10 | Y307500A2250000T |
50 | 25 | 25 | 23.5 | Y307500D2250000T |
50 | 25 | 25 | M25×1.5 | Y307500F2250000T |
50 | M20×1.5 | M20×1.5 | 0 | Y30750002T00000T |
50 | M20×1.5 | M20×1.5 | 10 | Y307500A2T00000T |
50 | M20×1.5 | M20×1.5 | 23.5 | Y307500D2T00000T |
50 | M20×1.5 | M20×1.5 | M25×1.5 | Y307500F2T00000T |
50 | M25×1.5 | M25×1.5 | 0 | Y30750002T50000T |
50 | M25×1.5 | M25×1.5 | 10 | Y307500A2T50000T |
50 | M25×1.5 | M25×1.5 | 23.5 | Y307500D2T50000T |
50 | M25×1.5 | M25×1.5 | M25×1.5 | Y307500F2T50000T |
M45×2 | 0 | 0 | 0 | Y307M4500000000T |
M45×2 | 0 | 0 | 10 | Y307M45A0000000T |
M45×2 | 0 | 0 | 23.5 | Y307M45D0000000T |
M45×2 | 0 | 0 | M25×1.5 | Y307M45F0000000T |
M45×2 | 0 | 20 | 0 | Y307M4501200000T |
M45×2 | 0 | 20 | 10 | Y307M45A1200000T |
M45×2 | 0 | 20 | 23.5 | Y307M45D1200000T |
M45×2 | 0 | 20 | M25×1.5 | Y307M45F1200000T |
M45×2 | 0 | 25 | 0 | Y307M4501250000T |
M45×2 | 0 | 25 | 10 | Y307M45A1250000T |
M45×2 | 0 | 25 | 23.5 | Y307M45D1250000T |
M45×2 | 0 | 25 | M25×1.5 | Y307M45F1250000T |
M45×2 | 0 | M20×1.5 | 0 | Y307M4501T00000T |
M45×2 | 0 | M20×1.5 | 10 | Y307M45A1T00000T |
M45×2 | 0 | M20×1.5 | 23.5 | Y307M45D1T00000T |
M45×2 | 0 | M20×1.5 | M25×1.5 | Y307M45F1T00000T |
M45×2 | 0 | M25×1.5 | 0 | Y307M4501T50000T |
M45×2 | 0 | M25×1.5 | 10 | Y307M45A1T50000T |
M45×2 | 0 | M25×1.5 | 23.5 | Y307M45D1T50000T |
M45×2 | 0 | M25×1.5 | M25×1.5 | Y307M45F1T50000T |
M45×2 | 20 | 20 | 0 | Y307M4502200000T |
M45×2 | 20 | 20 | 10 | Y307M45A2200000T |
M45×2 | 20 | 20 | 23.5 | Y307M45D2200000T |
M45×2 | 20 | 20 | M25×1.5 | Y307M45F2200000T |
M45×2 | 25 | 25 | 0 | Y307M4502250000T |
M45×2 | 25 | 25 | 10 | Y307M45A2250000T |
M45×2 | 25 | 25 | 23.5 | Y307M45D2250000T |
M45×2 | 25 | 25 | M25×1.5 | Y307M45F2250000T |
M45×2 | M20×1.5 | M20×1.5 | 0 | Y307M4502T00000T |
M45×2 | M20×1.5 | M20×1.5 | 10 | Y307M45A2T00000T |
M45×2 | M20×1.5 | M20×1.5 | 23.5 | Y307M45D2T00000T |
M45×2 | M20×1.5 | M20×1.5 | M25×1.5 | Y307M45F2T00000T |
M45×2 | M25×1.5 | M25×1.5 | 0 | Y307M4502T50000T |
M45×2 | M25×1.5 | M25×1.5 | 10 | Y307M45A2T50000T |
M45×2 | M25×1.5 | M25×1.5 | 23.5 | Y307M45D2T50000T |
M45×2 | M25×1.5 | M25×1.5 | M25×1.5 | Y307M45F2T50000T |
1½“BSPP | 0 | 0 | 0 | Y307BA200000000T |
1½“BSPP | 0 | 0 | 10 | Y307BA2A0000000T |
1½“BSPP | 0 | 0 | 23.5 | Y307BA2D0000000T |
1½“BSPP | 0 | 0 | M25×1.5 | Y307BA2F0000000T |
1½“BSPP | 0 | 20 | 0 | Y307BA201200000T |
1½“BSPP | 0 | 20 | 10 | Y307BA2A1200000T |
1½“BSPP | 0 | 20 | 23.5 | Y307BA2D1200000T |
1½“BSPP | 0 | 20 | M25×1.5 | Y307BA2F1200000T |
1½“BSPP | 0 | 25 | 0 | Y307BA201250000T |
1½“BSPP | 0 | 25 | 10 | Y307BA2A1250000T |
1½“BSPP | 0 | 25 | 23.5 | Y307BA2D1250000T |
1½“BSPP | 0 | 25 | M25×1.5 | Y307BA2F1250000T |
1½“BSPP | 0 | M20×1.5 | 0 | Y307BA201T00000T |
1½“BSPP | 0 | M20×1.5 | 10 | Y307BA2A1T00000T |
1½“BSPP | 0 | M20×1.5 | 23.5 | Y307BA2D1T00000T |
1½“BSPP | 0 | M20×1.5 | M25×1.5 | Y307BA2F1T00000T |
1½“BSPP | 0 | M25×1.5 | 0 | Y307BA201T50000T |
1½“BSPP | 0 | M25×1.5 | 10 | Y307BA2A1T50000T |
1½“BSPP | 0 | M25×1.5 | 23.5 | Y307BA2D1T50000T |
1½“BSPP | 0 | M25×1.5 | M25×1.5 | Y307BA2F1T50000T |
1½“BSPP | 20 | 20 | 0 | Y307BA202200000T |
1½“BSPP | 20 | 20 | 10 | Y307BA2A2200000T |
1½“BSPP | 20 | 20 | 23.5 | Y307BA2D2200000T |
1½“BSPP | 20 | 20 | M25×1.5 | Y307BA2F2200000T |
1½“BSPP | 25 | 25 | 0 | Y307BA202250000T |
1½“BSPP | 25 | 25 | 10 | Y307BA2A2250000T |
1½“BSPP | 25 | 25 | 23.5 | Y307BA2D2250000T |
1½“BSPP | 25 | 25 | M25×1.5 | Y307BA2F2250000T |
1½“BSPP | M20×1.5 | M20×1.5 | 0 | Y307BA202T00000T |
1½“BSPP | M20×1.5 | M20×1.5 | 10 | Y307BA2A2T00000T |
1½“BSPP | M20×1.5 | M20×1.5 | 23.5 | Y307BA2D2T00000T |
1½“BSPP | M20×1.5 | M20×1.5 | M25×1.5 | Y307BA2F2T00000T |
1½“BSPP | M25×1.5 | M25×1.5 | 0 | Y307BA202T50000T |
1½“BSPP | M25×1.5 | M25×1.5 | 10 | Y307BA2A2T50000T |
1½“BSPP | M25×1.5 | M25×1.5 | 23.5 | Y307BA2D2T50000T |
1½“BSPP | M25×1.5 | M25×1.5 | M25×1.5 | Y307BA2F2T50000T |
Cable gland not included in these reference, consult us if you want them.
3D models are available on request under .stp format
Downloads
TO ACCESS DOWNLOAD DOCUMENTS, PLEASE LOGIN/REGISTER. DATASHEET, DRAWINGS (.DWG), 3D MODELS (.STP) AND OTHER DOCUMENTS ARE AVAILABLE.SIMILAR PRODUCTS
-
Empty enclosure for oil filled electric radiatiors 200x77x50
Empty enclosure for oil filled electric radiators, with single tube heating element and electronic temperature control, IP22 Dimensions: 200x77x50 (excluding knob and bracket) Setting: One or two knobs, one pilot light IP Rating: IP22 (vertical mounting only) Weight: 195 gr. Color: RAL1010 Material: PC-ABS Ventilation: Electronic area is ventilated by louver style air inlet of…
-
Immersion heater, level sensor or temperature sensor enclosure, in PA66 and PC, Y3F2
- Includes two brackets for mounting on tank edge board. - Drilling of different diameters possible on the back for direct probes or for 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring. - Includes a removable 6-way 2.5mm² terminal block. - Output by…
-
Wall mounting temperature sensor enclosure, In PA66 and PC, Y3F1
- Features a sealed sensor cable exit system at the top - Includes mounting bosses for printed circuit boards - Includes mounting holes for a 4-20mA temperature converter - Includes two wall brackets - Includes a removable 2.5mm² 6-way terminal block - Output by two M20 cable glands
-
Enclosure for immersion heater with electronic temperature control with heat sink for solid state relay (SSR), Y3N4
- Aluminum extension on rear side with heat exchanger, allows the assembly of static relays - Extension on the back accepts 1 "1/4, 1" 1/2 and M45x2 immersion heaters with double thread and internal nut, or single thread with rotating ring - Front panel with hinged polycarbonate porthole
Technical informations associated to this product
-
Electrical protection classes
The housings are designed to protect electrical equipment located inside. This protection must be considered in the electrical and environmental angles.) -
Main properties of plastic raw materials used for enclosures
The classic housings, with only 5 sides and a lid, require a long and costly layout, most of the time ignoring the application needs: security, fire resistance, water penetration, shocks, UV, temperature, etc. -
Overview of immersion heater fittings
In Europe there are two common types of threads used on immersion heaters fittings. Threads according ISO 228-1, also said BSPP or cylindrical gas thread (G). 2mm pitch metric thread according ISO965-1, little used, which was the subject of an attempt to replace the ISO228-1 in the middle of the 20th -
Guide for immersion heater selection
Figures provided in this section are results of tests made in our laboratory. Charts were smoothened by computer, and are given for specified power and for information only.
Categories
- TEMPERATURE
- Control thermostats
- Temperature limiters
- Control thermostat with ingress protection boxes
- Temperature limiter with ingress protection boxes
- ATEX/IECEx thermostats
- Housings and accessories
- Plastic housings
- Metallic housings
- Immersion heater housings
- Accessories for immersion heaters
- Finned heater control boxes
- Air heater and ventilation boxes
- Accessories for electro thermal control boxes
- Accessories for incorporation
- Relays and power contactors
- Connection blocks
- Heat tracing accessories
- PRESSURE
- HUMIDITY
- FLOW SWITCHES
- LEVEL SWITCHES
- FIRE DETECTION
- CONNECTION BLOCKS
